Оптовая продажа оцинкованный уличный фонарь с порошковым покрытием и

Warranty(year)

10 years

Place of origin

Jiangsu,China

Material

Usually Q345B/A572, Q235B/A36, Q460

Application

highway,bridge,street,square,factory,campus,plaza,stadium.,etc

color

Blue White,offering for customization

certifications

CE/CQC/ISO

Surface treatment

Hop dip galvanized and powder coating

Lifespan

≥20 years

Resistant to wind

≥60km/h

welding

Advanced Submerge-arc Welding Technology

Brand Name

SUFA

Type

Street Light Pole

Tolerance of the dimension

±2%

Pole’s shape

Round tapered, Polygonal

Pole Height

3m-6m, offering for customization

Supply ability

2000 Pieces/Pieces Per Month

port

Shanghai port

welding

It has past flaw testing. Internal and external double welding makes the welding beautiful in shape.
And confirms with international welding standard of CWB

jointing

Jointing of pole with insert mode,inner flange mode,face to face joint mode.

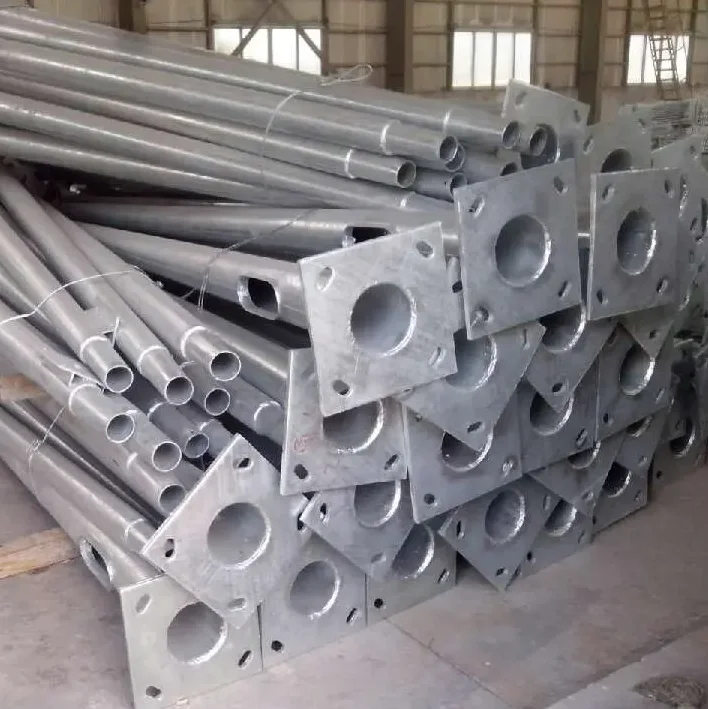

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.

Galvanized

Hot dip galvanization with thickness of 80 average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM
A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to customs’ requests

Quality control

We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the
product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as
per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out
in the plant.

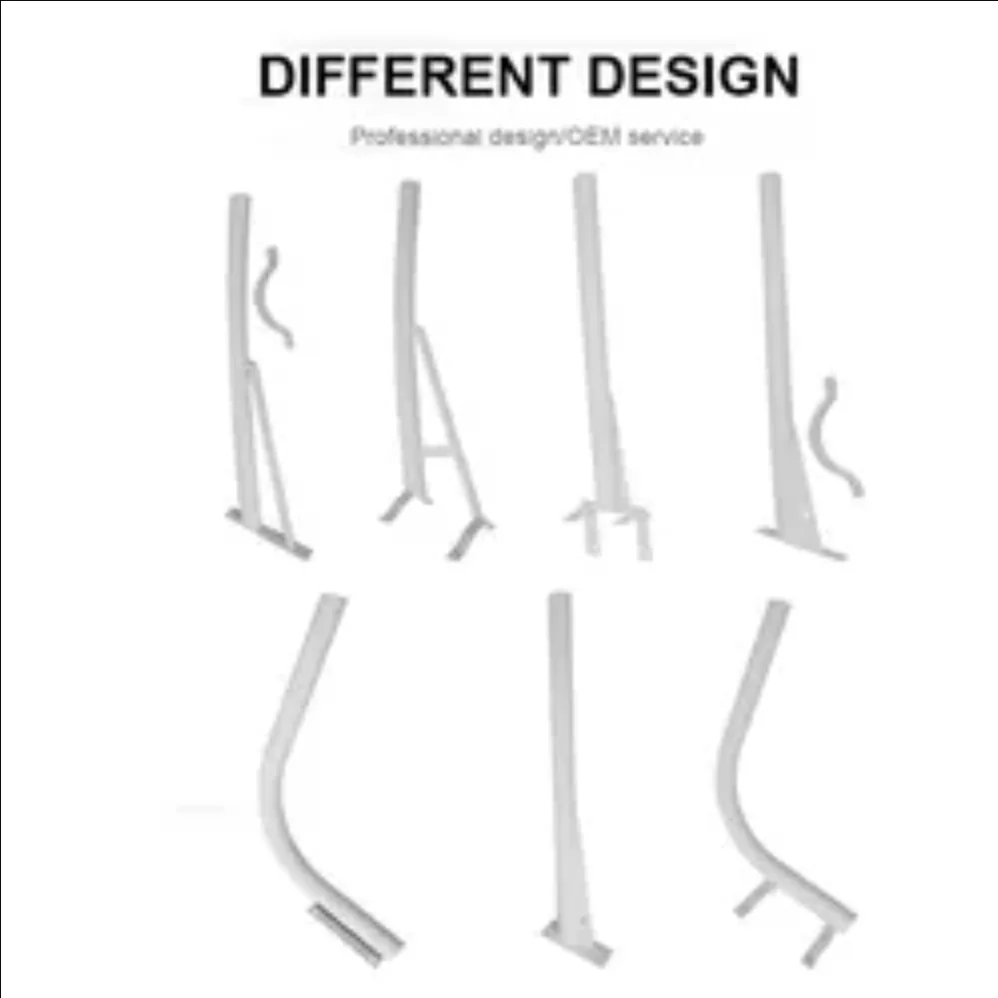

Customized/Design service

Offered, according to customs’ requests

Production process

Preparation of raw materials -> cutting -> bending -> welding arms -> repair and polishing -> shaping -> heading -> mounting base
plate -> welding flanges -> welding door strip -> galvanizing -> powder coating -> installation of door -> factory inspection

Application

Light pole can be adapted to solar energy and led lamp holder, can be used for outdoor lighting, such as rural areas, schools,
squares, factories, streets, highways. The lamp pole is mainly made of high quality Q235 steel bending molding, the pole welding
method is automatic sub-arc welding, the lamp pole is hot-dip galvanized anti-corrosion treatment, and the plastic spray is made
of high quality outdoor pure polyester plastic powder, which can well adapt to the wet weather.
