Небольшая вакуумная машина для производства

Категория: Other Chemical Equipment >>>
Поставщик: Henan,Hengyong,Mechanical,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.77 $*	0.34 $*
Aug-16-2025	0.99 $*	0.29 $*
Jul-16-2025	0.72 $*	0.18 $*
Jun-16-2025	0.85 $*	0.67 $*
May-16-2025	0.93 $*	0.77 $*
Apr-16-2025	0.5 $*	0.66 $*
Mar-16-2025	0.2 $*	0.27 $*
Feb-16-2025	0.56 $*	0.50 $*
Jan-16-2025	0.39 $*	0.83 $*

Характеристики

Product Description

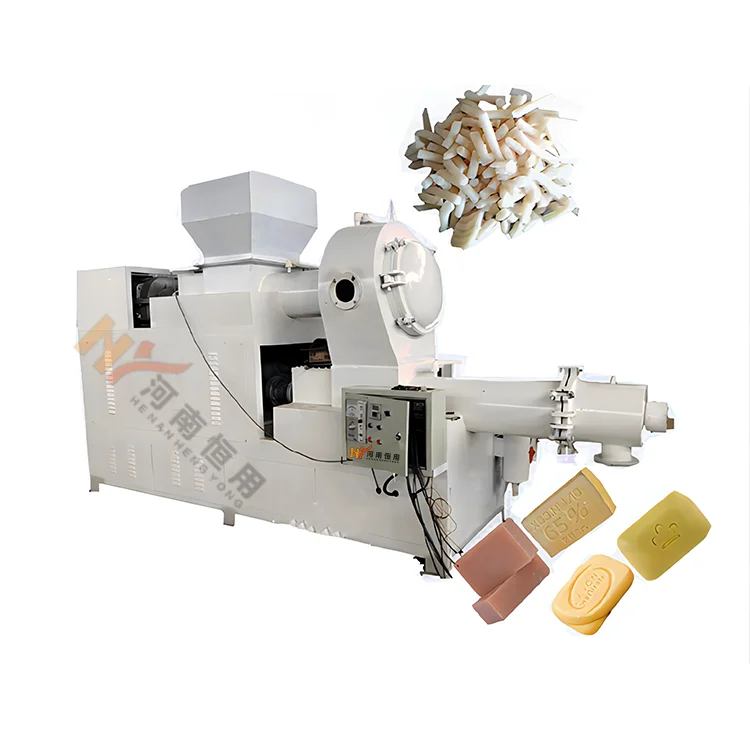

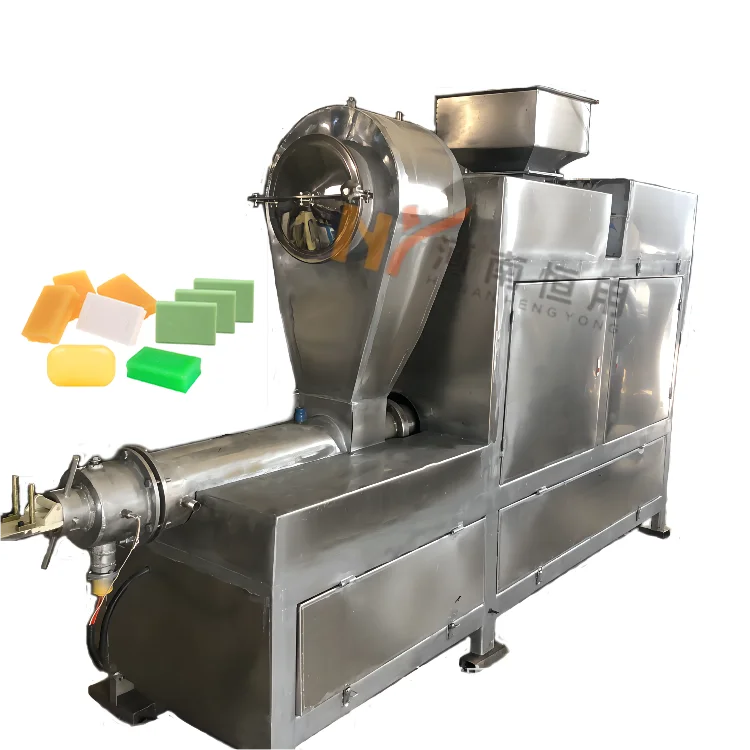

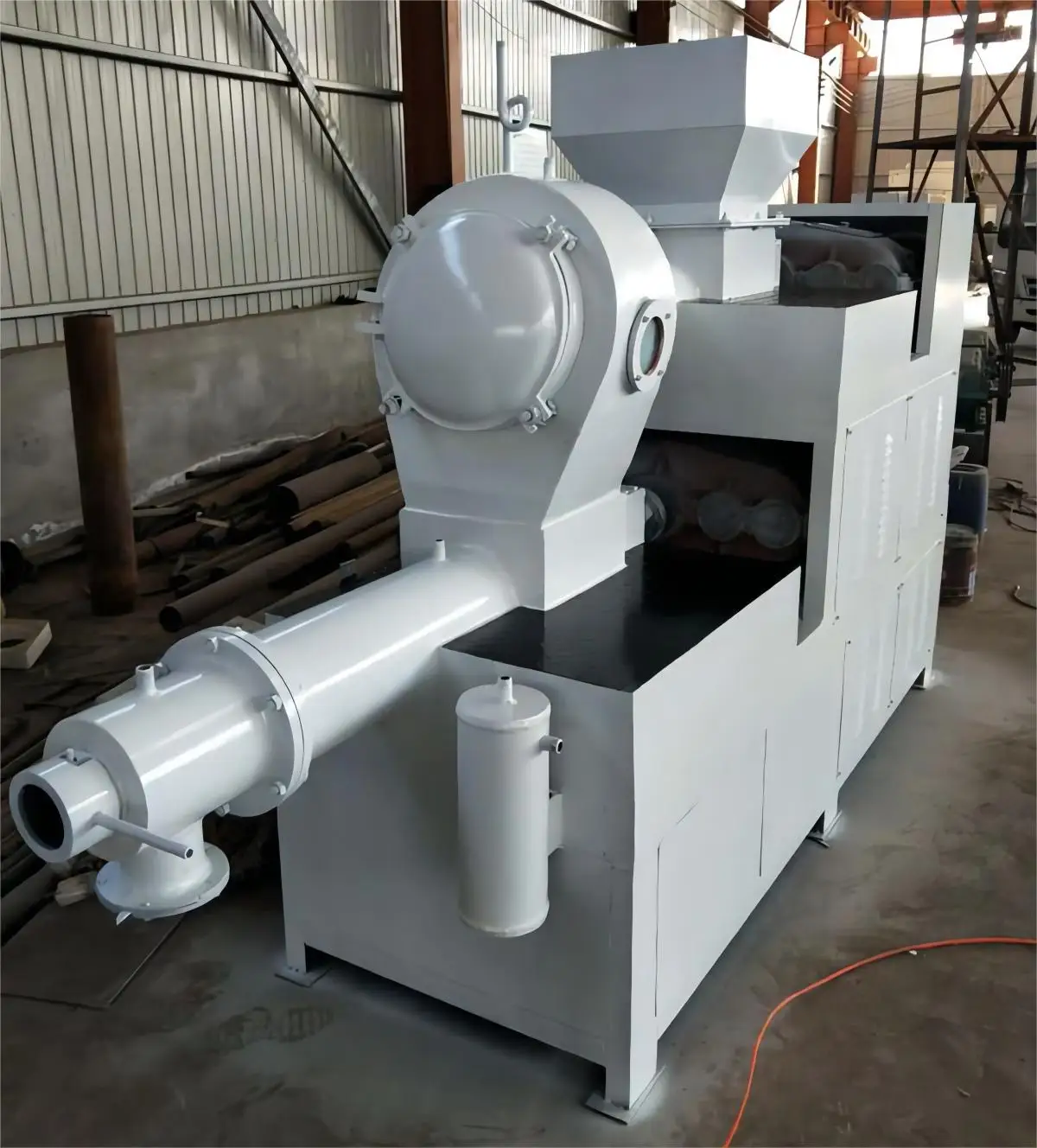

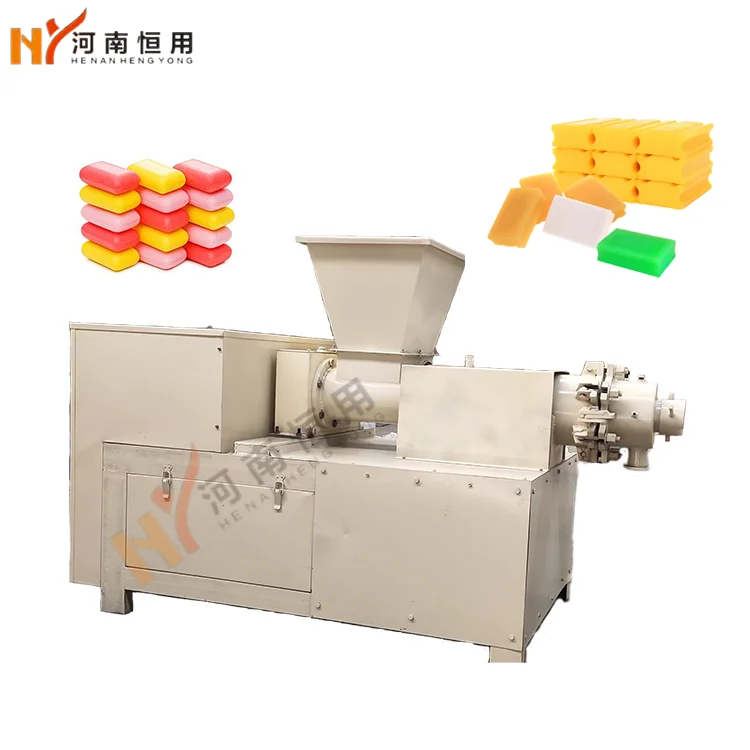

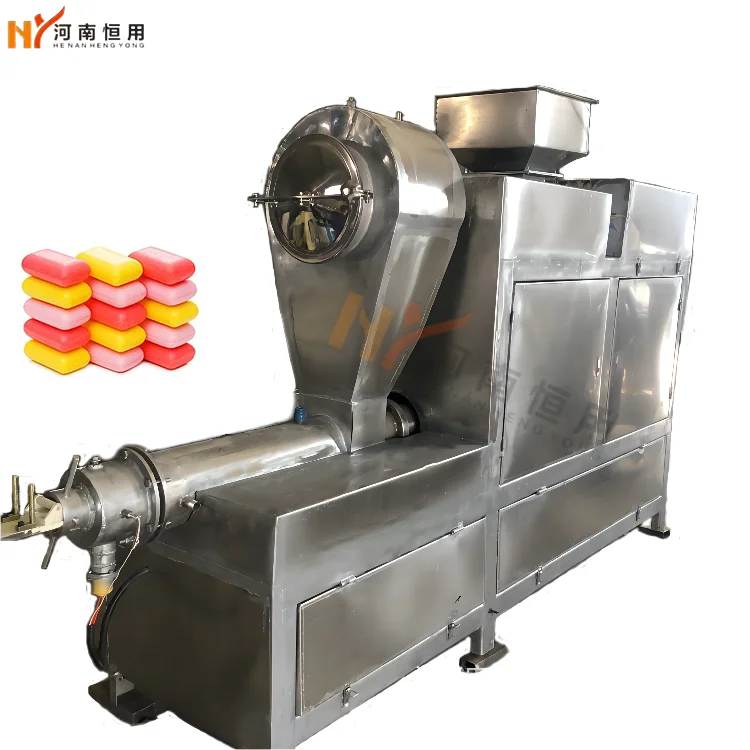

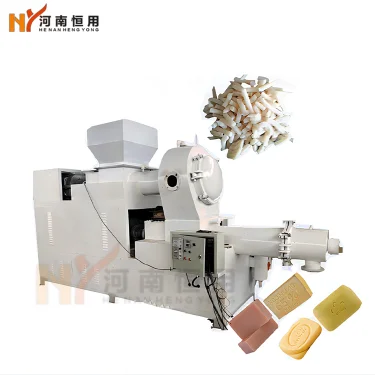

The Mini Plodder Soap Machine is composed of two single screw shaft machines and adopts their own closed deceleration transmission system. The length-to- -diameter ratio of the extended cylinder and screw can reach 1:9, which can effectively squeeze the soap and enhance the compactness of the soap. The upper screw strip is equivalent to a single refining machine to make soap particles
in vacuum. The lower part is the strip, and the soap grain is compressed and extruded through the muzzle in the form of soap plodder.

model	power	production	Diameter of drum	Speed of drum	size(cm）	Material
HY-V180	5.5kw	500kg/h	Φ180	22 RPM	29088200	Q235B carbon steel
HY-V220	7.5kw	1000kg/h	Φ220	22 RPM	34088209	Q235B carbon steel
HY-V250	11kw	3000kg/h	Φ250	22 RPM	38098210	Q235B carbon steel
HY-V300	18.5kw	5000kg/h	Φ300	22 RPM	42098210	Q235B carbon steel

Main features and advantages of small vacuum bar soap making machine soap bar extruder:

1. Microcomputer control,automatic straightening,automatic fixed length,automatic cutting.
2. Very easy operation.
3. multiple batches of simultaneous input length and quantity, computer storage memory.
4. Hydraulic (double tube double knife) cut off, no card cutter, more precise and quieter.
5. Smooth operation, low failure rate, easy maintenance and cheap accessories.

6.Soap size depends on client demands.

7.Good performance & high efficiency.

final products display

We still have different production lines as blow.

Specification

Model	Capacity（kg/h）	Soap weight（kg）	Power（kw）
SDCT-180C	300-500	=> 300	20-30
SDCT-200C	500-800	=> 1000	30-40
SDCT-300C	800-1500	=> 1500	50-60

name：Soap Mixer /HY-NHJ150

power：2.2/3/4/5.5kw

capacity：300-1500kg

Material：The contact part with the material is stainless steel, the other is Q235

name：Three roll grinder/HY-NHJ120

power：3/4/5.5/7.5kw
capacity：300-1500kg
Material：The contact part with the material is stainless steel, the other is Q235

Roller shaft:Ø90/120/160/180/200mm

name：Double single screw vacuum strip extractorpower：13/18.5/26/52kw
capacity：300-1500kg
Material：The contact part with the material is stainless steel, the other is Q235
The screw diameter:Ø150/180/200/300mm
The screw rotation speed:2-22RPM

name：Single Worm Vacuum Plodder

power：3/4/5.5kw
capacity：100-300kg
Material：The contact part with the material is stainless steel, the other is Q235
The screw diameter:Ø90/100/120mm
The screw rotation speed:2-22RPM

Name:Roll printing cutting machine
model：HY-42/HY-42J
power：2kw
voltage: 380V 50Hz
Production capacity：The output is the same as that of soap strip machine
abrasive:Can customize a pair of abrasive tools for customers
size：1000X400X1200mm
weight：100kg

All-in-one printing and cutting machine
Configure different molds to get products of different sizes and flower shapes
The output is consistent with that of the plodder machine.
power:3kw
Arts contacting to soap noodle :stainless steel，the others are Q235
size：148*75*112cm
weight：100Kg
sope size：50-300mm
punch strock：125mm
moving table：115mm

Name：Soap printer
model：HY-X30
power：0.3kw
voltage: 380V 50Hz
Production capacity：30pcs/min
abrasive:Can customize a pair of abrasive tools for customers
size：500X500X800mm
weight：150kg

Soap Mixer/ HY-SS300
Parts contacting to soap noodle :stainless steel， food grade conveyor belt
power:1.1kw
尺寸size：300*68*55cm
weight：150Kg

Company Profile

The machinery and equipment produced by our company are very popular in many fields in China, and are sold to Southeast Asia,Africa, the Middle East, Europe, South America and other countries.Rigorous processing technology, high-quality quality.Hengyong Machinery is your most reliable supplier.
We use preferential prices to find overseas distributors, welcome your inquiries, you will get very valuable information and bring more returns to your company.

Our Workshop
Rigorous production process

Packing & Delivery

Installation, commissioning, packaging and shipping.

Wooden case packaging，Or packaged according to user requirements

Customer Photos

Certifications

Why choose us?
1. We are a professional manufacturer of food machinery and equipment.
2. We have a standardized physical and chemical laboratory, an excellent design team, and a complete production process (cutting workshop, heat treatment workshop,pressing workshop, forging workshop, finishing workshop, grinding workshop, installation workshop).

How do we control our quality?
1. Strictly follow the design process flow for production and processing.
2. The raw materials must pass the mechanical property test and chemical composition test.
3. Parts are subject to hardness testing and vernier caliper testing.
4. Each weld needs to be tested by ultrasonic flaw detection .
5. Each piece of equipment undergoes factory inspection and acceptance of the whole machine.

What products can you buy from me?
Oil press and supporting equipment, oil pressing production line, frying equipment and supporting equipment, fried food production line, distillation and concentration extraction equipment and technical support,mixer, mixing tank, storage tank, various packaging machines, filling machines, capping machine, labeling machine, sterilization equipment, beer juice, beverage production line.

What services can we provide?
1. 6-12 months warranty policy
2. Track the order until you receive the goods
3. Accepted payment currencies: USD, EUR, HKD, RMB 4. 24-hour online service
