V-cut pcb сепаратор

Категория: Separation Equipment >>>
Поставщик: Hefei,Better,Technology,Co.,Ltd.

Цена:1 500,00 $ - 2 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	1785.34 $*	1874.56 $*
Aug-17-2025	1770.18 $*	1859.20 $*
Jul-17-2025	1485.81 $*	1559.64 $*
Jun-17-2025	1740.27 $*	1827.22 $*
May-17-2025	1515.51 $*	1591.61 $*
Apr-17-2025	1710.92 $*	1796.48 $*
Mar-17-2025	1695.58 $*	1780.63 $*
Feb-17-2025	1680.0 $*	1764.77 $*
Jan-17-2025	1665.10 $*	1748.30 $*

Характеристики

Video Description

Product Images

PRODUCT SPECIFICATIONS

No	Item	Data

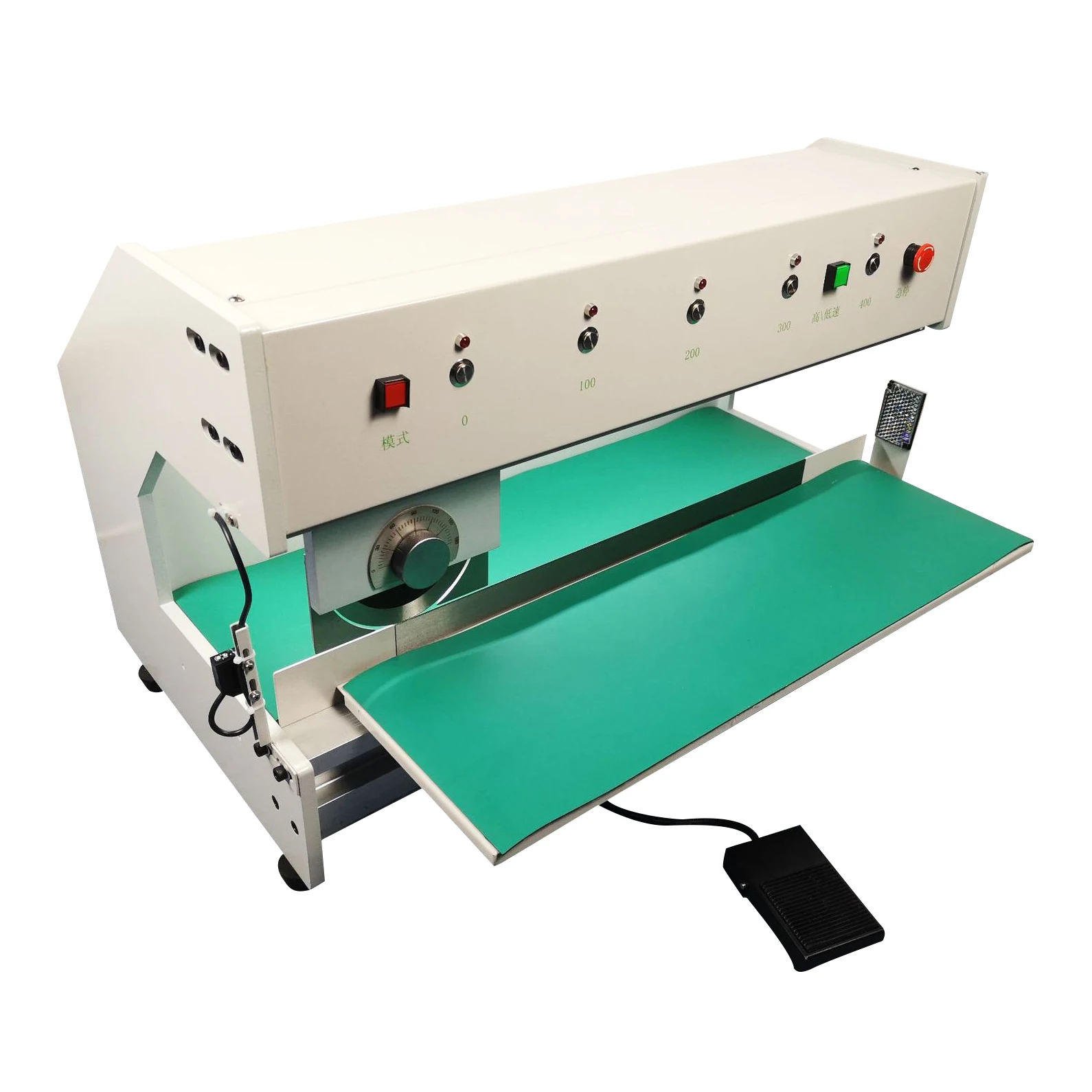

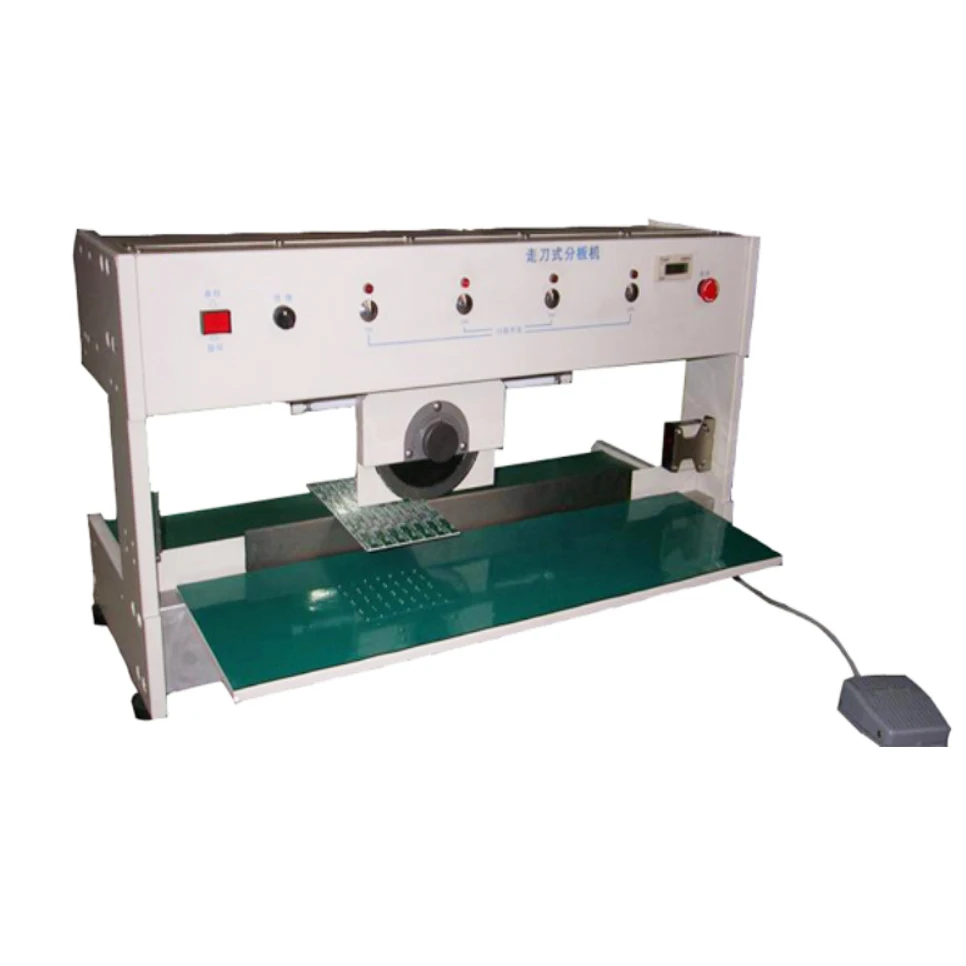

1	Product Name	Manual PCB V-Cut Machine
2	Place of origin	China
3	Noise	below 75 decibels
4	Voltage power	110V,50－60HZ,40w
5	Dust collector size	Lower vacuum: 700(L)630(M)1800mm(H)
6	Dimensions	L600W395H425mm,37KG
7	Cutting accuracy	±0.05mm
8	Effective cutting area	Table size350mm(L)*350mm(W)
9	Scope of application	PCB off-line curve cutting
10	Power supply	AC220V,1.5KW(50-60HZ)

Advantage of Equipment

Advantages of V-Cut Cutting Machine

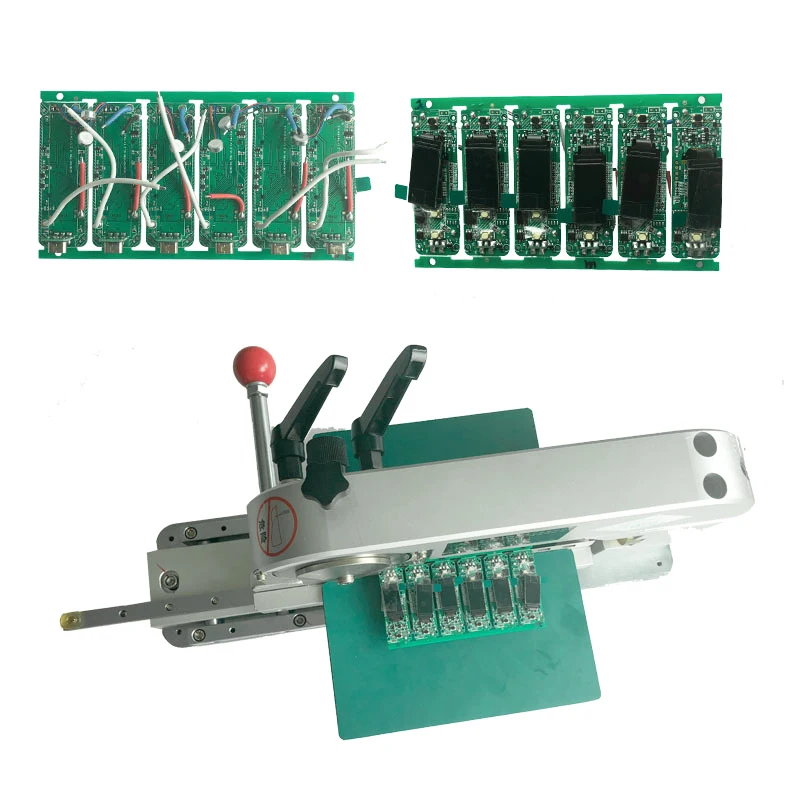

1. After connecting multiple boards with solder, breaking often will damage the circuit or break the electronic parts. The machine
is divided by knife cutting, which can completely reduce stress, prevent cracking of solder joints and breakage of parts, and

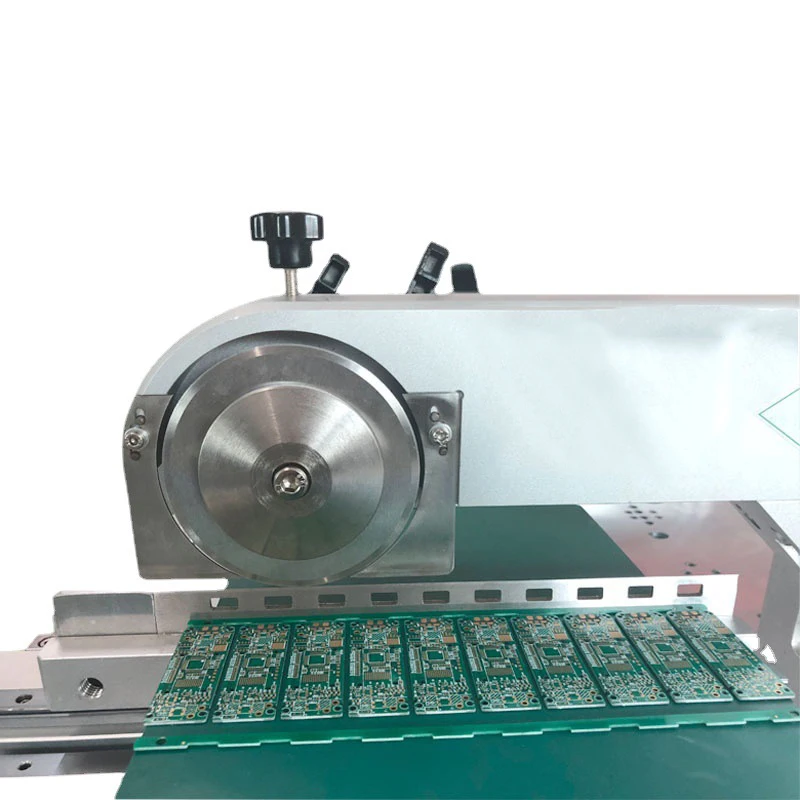

improve production efficiency and quality. . 2. Adopt the method of upper circular knife and lower flat knife. When the board is
on the lower flat knife, when the switch is pressed, the upper circular knife moves horizontally to the set point, that is, the
PCB board is cut and divided, and the cutting does not take off the wire, the incision is flat, and there is no burr

Feature and Function

1. Completely independent development, using microcomputer program control, precise fixed point and strong stability. Cut a single board within 0-360MM length with one knife.

2. The cutting speed of the cutting board can be adjusted to high and low. The speed is 500mm/S and 300mm/S. If the knife speed is fast, the product quality can be improved without burrs and burrs.

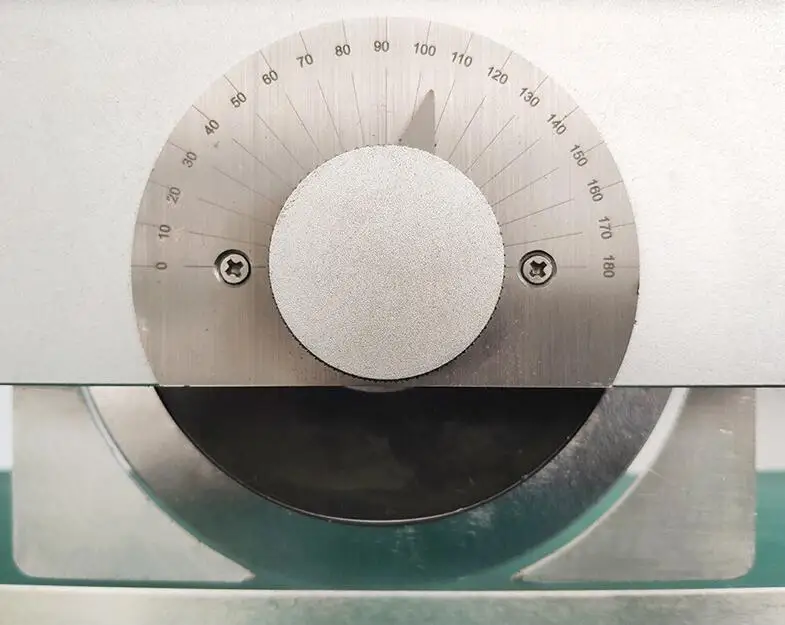

3. The travel of the cutter wheel: 0-360mm (the length of the cutter can be customized). The upper and lower height of the cutter wheel is fine-tuned:0-2mm to apply to various PCB board thicknesses, and to solve the problem of the depth of the V-CUT groove on the PCB board. The height of the console can be adjusted: 0-50mm.

4. The travel of the knife can be set with the length of the plate, and the fixed point of advance and stop can be set manually, and the fixed point of stop is manually set.

5. Tailgate depth range: Unlimited.Maximum board cutting width: unlimited, maximum board cutting length: 360mm, maximum board thickness: 0.2-5mm, maximum thickness between V grooves: 0.25-2.0mm.

6. The upper and lower knives are imported high-speed steel materials, which are extremely durable.When the knives are unfavorable, they can be reground.

7. It can be equipped with a conveyor belt to facilitate the automatic delivery of the cut PCB board.

8. The lifting of the platform and the height adjustment of the platform can affect the quality of the product, it is not easy to cut the product, and it can also reduce the stress .

9. The limit device can be applied to products of different sizes, thereby improving work efficiency.
