                      Plastic welding machine for geogrid   details as follow:geogrids details

   Shanghai hongjin ultrasonic electronic equipment factory is  manufacture geogrid production line equipment is determined by more than one combination of ultrasonic plastic welding machine adopts imported PLC control has the following advanced features:

  (1)  geogrid machine touch-screen display and parameter setting, imported piezoelectric ceramic transducer, the output strength and stability.
  (2) geogrid machine color display touch-screen control panel.
  (3) geogrid machine all-Chinese menu, with multi-language you set, easy to use.
  (4)  geogrid machine levels of adjustable mold design, mold fast and easy adjustment.

 ( 5) geogrid machine  the new power amplifier circuit, power is more robust, more durable transducers,
  (6,) geogrid machine  frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.

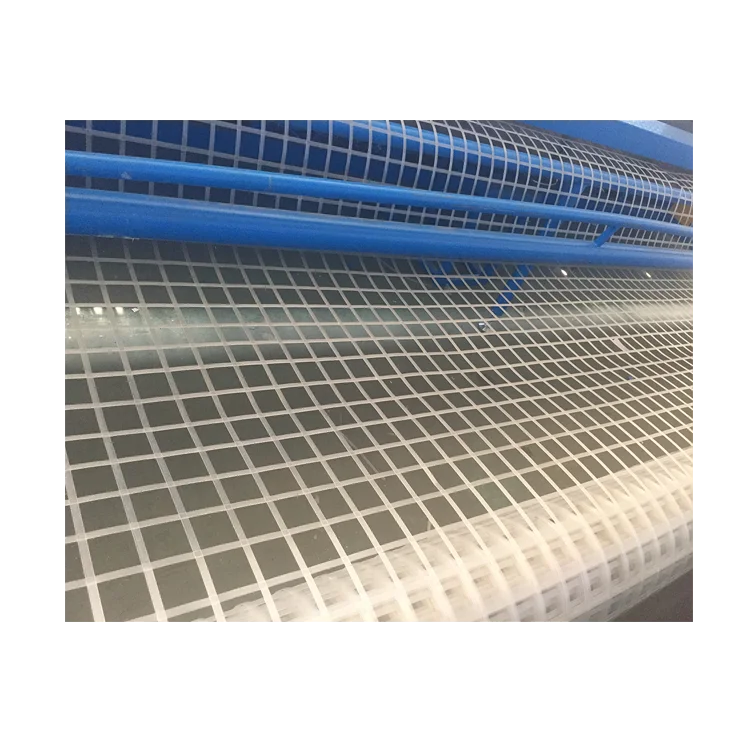

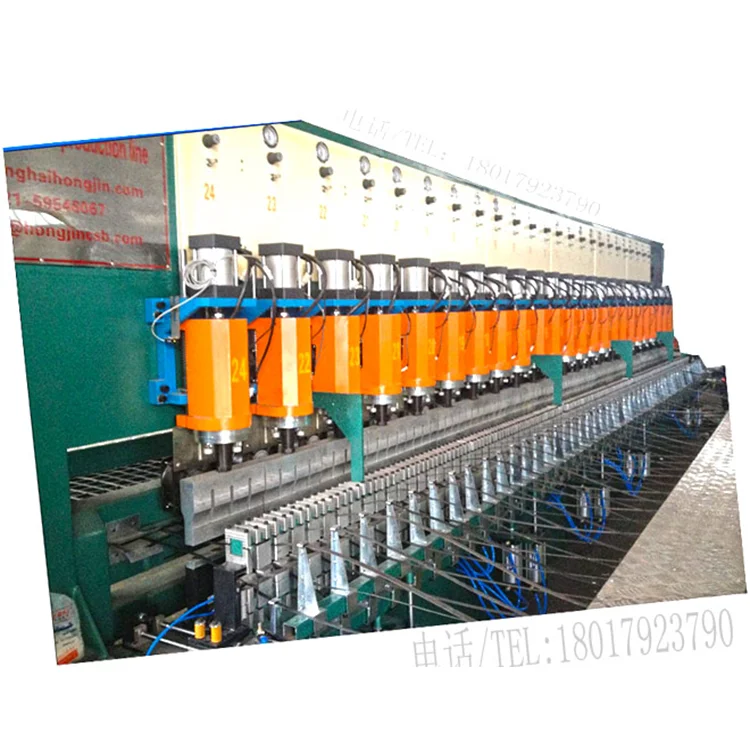

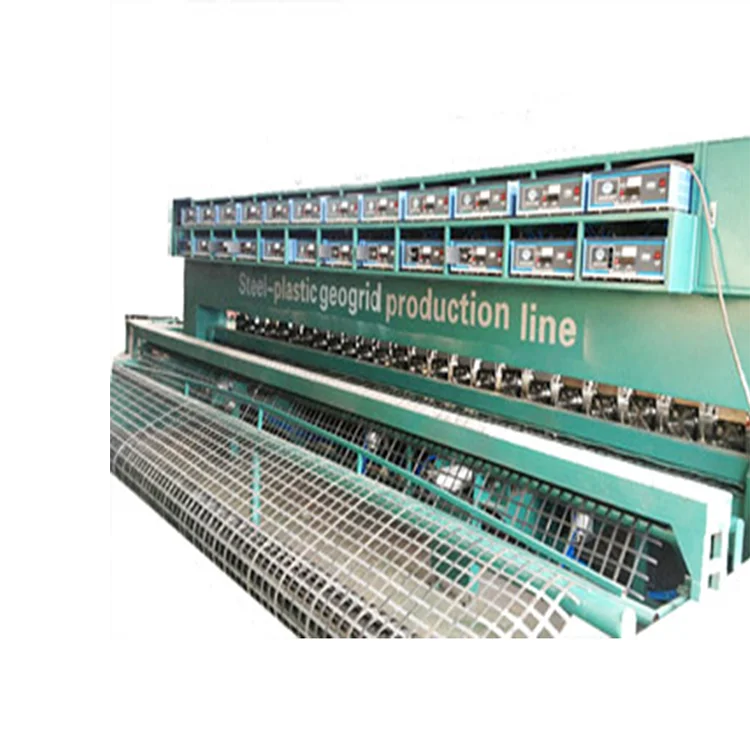

Automatic plastic welding machine for geogrid Photos:



              Earthwork geogrid  Production Line Model Specification Table

Geogrid welding head station	HJM-12-3	HJM-16-4				HJM-24-6	HJM-32-8
Welding digits	12 unit	16 unit				24 unit	32 unit
Maximum output power	31.2KW	41.6.4KW				62.4KW	83.2KW
Ultrasonic output power	15.6KW	20.8KW				31.2KW	41.6KW
Equipment Dimensions	4.5*1.76*2.46	5.5*1.76*2.46				7.5*1.1.76*2.46	9.5*1.76*2.46
Weight	3.5TONS	4.8TONGS				5.7TONS	7.5TONS
Rated input voltage	AC380V       N 50-60HZ
Rated input pressure	0.8~0.10MPa
Air pressure vessel	≥2.5~3.0/min
Air Flow	1.5~2.0M3				2.5~3.0M3
Transverse weld pitch	50mm-80mm-125mm-150mm-200mm--3000
Longitudinal distance between welding points,	50mm-150mm
Geogrid width of the welding machine	3m			4m		6m	8m
24 hours a day production	3500SQM		4500 SQM			6500SQM	8500SQM

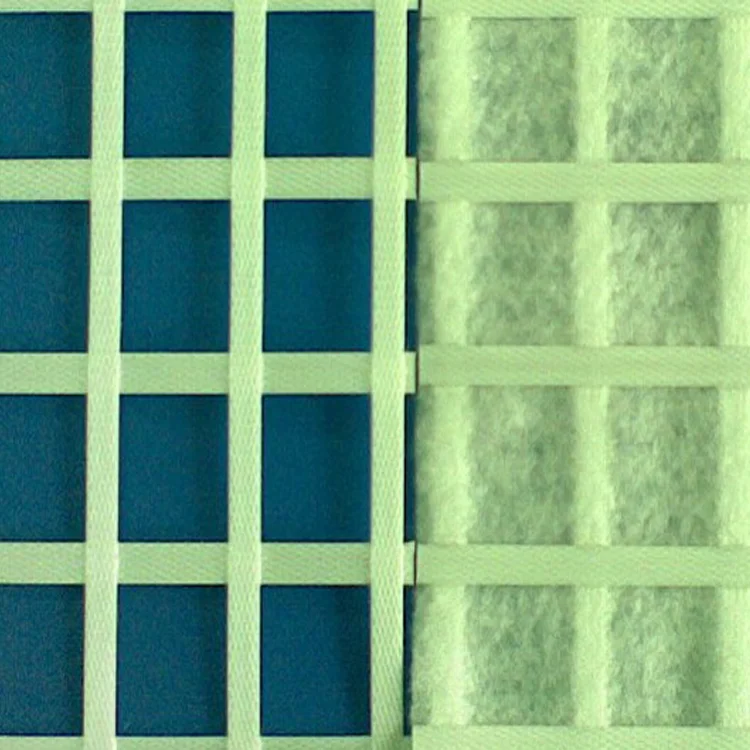

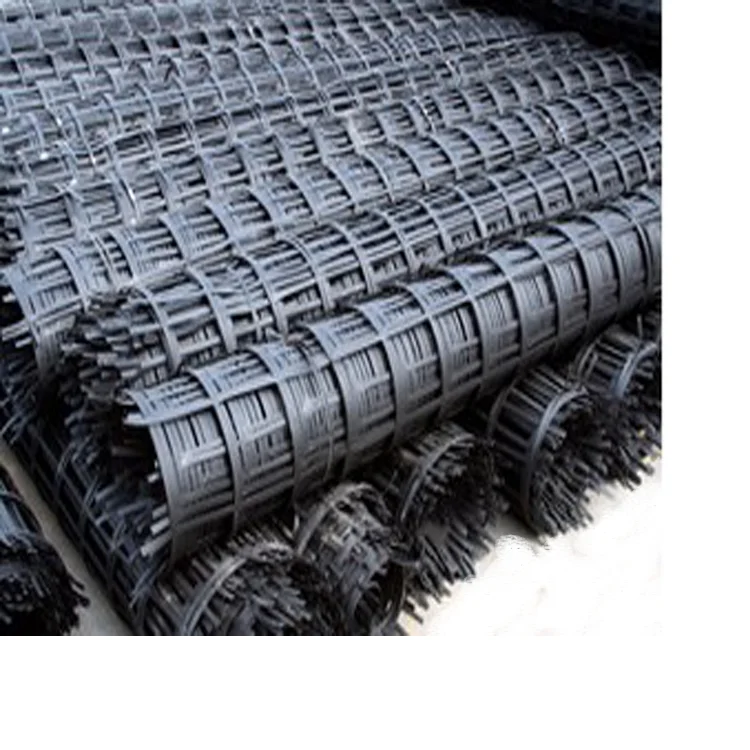

Products samples :





products use for:

   (1)Road surface reinforcement of road,railway and airport road;
   (2)Maintenance,reconstruction and widening of old road surface(asphaltum road or cement concrete road).
   (3)Reinforcement of soft soil roadbed,irrigation channels and water dams.
