Century Aoke DC12V-24V 6 каналы код обучения Универсальный пульт управления для двигателя умного дома полива и орошения
- Категория: Remote Control Switches >>>
- Поставщик: Shenzhen,Century,Aoke,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7.69 $* | 7.87 $* |
| Aug-20-2025 | 7.97 $* | 7.64 $* |
| Jul-20-2025 | 6.28 $* | 6.54 $* |
| Jun-20-2025 | 7.39 $* | 7.70 $* |
| May-20-2025 | 6.77 $* | 6.24 $* |
| Apr-20-2025 | 7.62 $* | 7.92 $* |
| Mar-20-2025 | 7.37 $* | 7.68 $* |
| Feb-20-2025 | 7.62 $* | 7.69 $* |
| Jan-20-2025 | 7.57 $* | 7.44 $* |
Характеристики
Specification

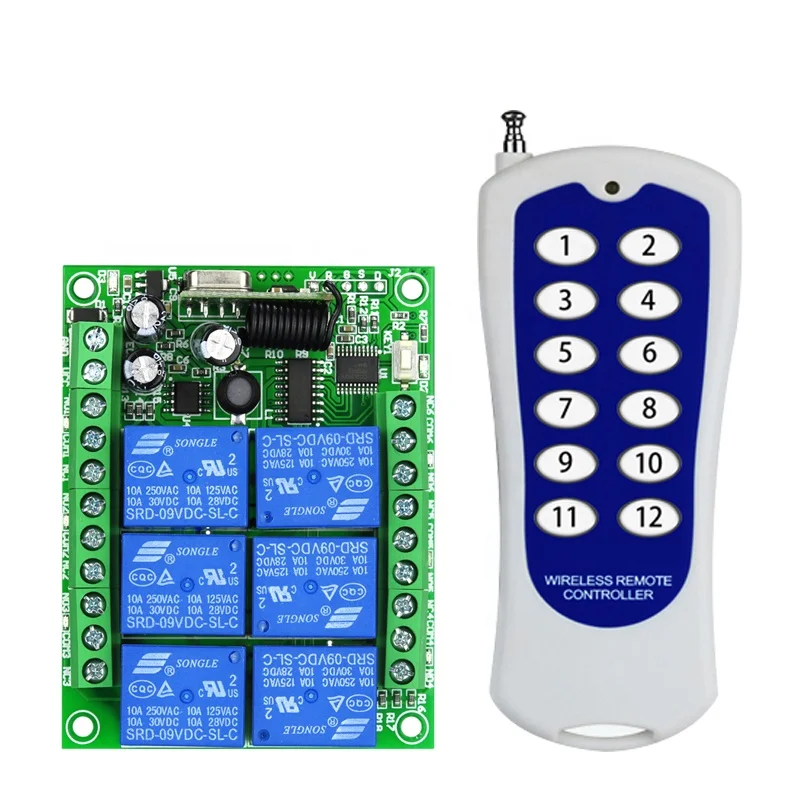

Remote Control (Transmitter) | ||
Model Number | AK-12 | |
Working Voltage | DC 12V (battery: 23A) | |
Working Current | ≤15mA | |
Transmit Power | +15—18dBm | |
Frequency | 315/433.92 MHz | |
Transmission Distance | 500m | |
Shell Material | ABS | |
Modulation | ASK | |
Size | 121*49.8*17mm | |
Weight | 91g | |

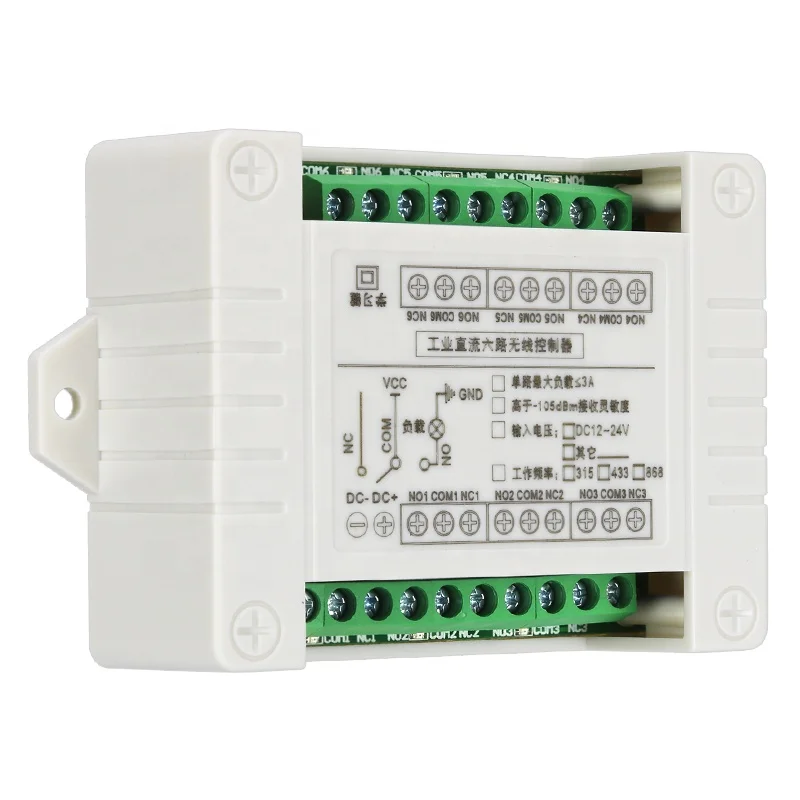

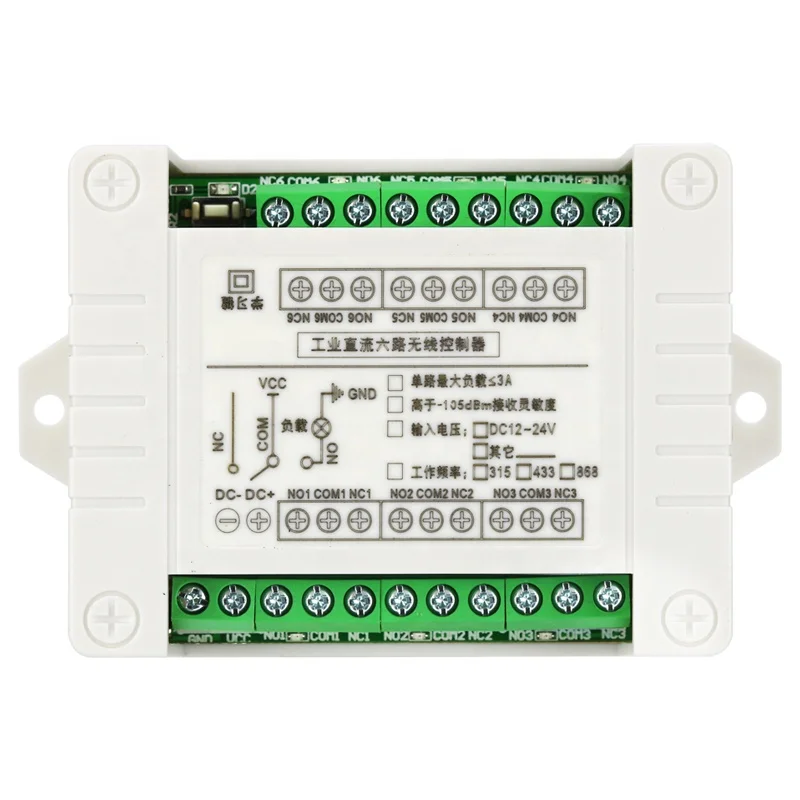

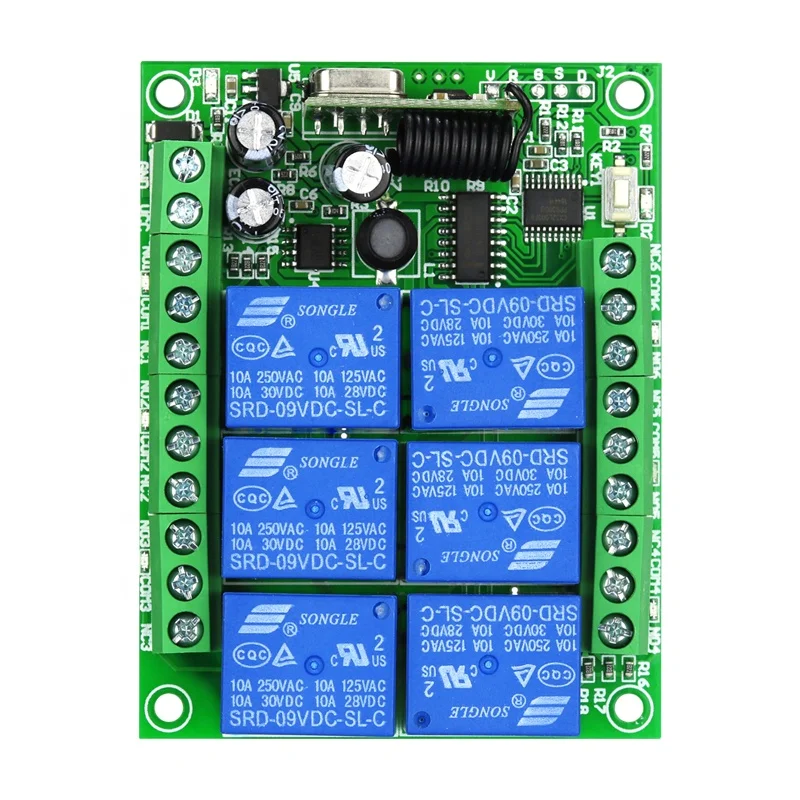

Receiver | Value | |
Model Number | AK-C210406 | |
Working Voltage | DC12V-24V | |
Max. Load Current | 3.5A/CH | |
Stand-by Current | <10mA | |
Receiving Sensitivity | -105 dBm | |
Frequency | 315/433.92 MHz | |
Working Temperature | -20-70℃ | |
Working Mode | Momentary/Toggle/Latched | |
Modulation | ASK | |
Size | 79.4*61.7*28mm (no casing) | |
Weight | 102g(no casing) | |
Product Description
Operating Instruction
Learning Method:
Mode 1:
Long press the learning key until the indicator lights on, and then press any button on the remote control 1~6 within 4 seconds (the indicator light goes out after 4 seconds to indicate that the learning has timed out and unable to learn), the indicator flashes to indicate that the learn is successful, and the working state defaults to the mode 1 after the learning is successful.
Press the No. 1 key is the full momentary mode, that is, all the relays 1 to 6 are in the momentary mode.
Press the No. 2 key for the full toggle mode, that is, all the relays 1 to 6 are in the toggle mode.
Press No. 3 key for full latched mode, that is, all relays 1-6 are in the latched working state.
Press the No. 4 key for 3 momentary and 3 toggle mode, that is, relays 1 to 3 are in the momentary mode, and relays 4 to 6 are in the toggle mode.
Press the No. 5 key for 3 momentary and 3 latched mode, that is, relays 1 to 3 are in the momentary mode, and relays 4 to 6 are in the latched mode.
Press the No. 6 key for 2 latched and 4 jog mode, that is, relays 1 to 2 are in the momentary mode, and relays 3 to 6 are in the latched mode.
Mode 1:
Long press the learning key until the indicator lights on, and then press any button on the remote control 1~6 within 4 seconds (the indicator light goes out after 4 seconds to indicate that the learning has timed out and unable to learn), the indicator flashes to indicate that the learn is successful, and the working state defaults to the mode 1 after the learning is successful.
Press the No. 1 key is the full momentary mode, that is, all the relays 1 to 6 are in the momentary mode.
Press the No. 2 key for the full toggle mode, that is, all the relays 1 to 6 are in the toggle mode.
Press No. 3 key for full latched mode, that is, all relays 1-6 are in the latched working state.
Press the No. 4 key for 3 momentary and 3 toggle mode, that is, relays 1 to 3 are in the momentary mode, and relays 4 to 6 are in the toggle mode.
Press the No. 5 key for 3 momentary and 3 latched mode, that is, relays 1 to 3 are in the momentary mode, and relays 4 to 6 are in the latched mode.
Press the No. 6 key for 2 latched and 4 jog mode, that is, relays 1 to 2 are in the momentary mode, and relays 3 to 6 are in the latched mode.
Mode 2:
Long press the learning key of the controller and hold it, after 5 seconds, the indicator light flashes 6 times to clear the code, and then press and hold the learning key, after 3 seconds, the indicator light flashes 3 times to indicate that the switching mode is successful. Mode 1 and Mode 2 can be switched mutually. (Note: You must keep pressing the learning key during the mode switching process until the mode is successfully switched. After the conversion is successful, you need to relearn the pairing before you can use it normally. In this mode, the remote control is only 2/4/6/8/10 /12 key available.)
Press the No. 12 key to enter the full latched mode, that is, all relays 2/4/6/8/10/12 are in the latched mode.
Press the No. 10 key to enter the 2 latched mode and 4 momentary mode, that is, relay No. 4/8/12 are in the moentary mode, and relay No. 2/6/10 are in the latched mode.
Press the No. 8 key to enter the full momentary mode, that is, all the relays 2/4/6/8/10/12 are in the momentary mode.
Press the No. 4 key to enter the full toggle mode, that is, all the relays 2/4/6/8/10/12 are in the toggle mode.
Press the No. 2 key to enter the 3 toggle mode and 3 momentary mode, that is, relay No. 4/8/12 are in the momentary mode, and relay No. 2/6/10 are in the toggle mode.
Long press the learning key of the controller and hold it, after 5 seconds, the indicator light flashes 6 times to clear the code, and then press and hold the learning key, after 3 seconds, the indicator light flashes 3 times to indicate that the switching mode is successful. Mode 1 and Mode 2 can be switched mutually. (Note: You must keep pressing the learning key during the mode switching process until the mode is successfully switched. After the conversion is successful, you need to relearn the pairing before you can use it normally. In this mode, the remote control is only 2/4/6/8/10 /12 key available.)
Press the No. 12 key to enter the full latched mode, that is, all relays 2/4/6/8/10/12 are in the latched mode.
Press the No. 10 key to enter the 2 latched mode and 4 momentary mode, that is, relay No. 4/8/12 are in the moentary mode, and relay No. 2/6/10 are in the latched mode.
Press the No. 8 key to enter the full momentary mode, that is, all the relays 2/4/6/8/10/12 are in the momentary mode.
Press the No. 6 key to enter the 4 latched mode and 2 momentary mode, that is, relays No. 2/8/10/12 are in the latched mode, and relays No. 4/6 are in the momentary mode.
Press the No. 4 key to enter the full toggle mode, that is, all the relays 2/4/6/8/10/12 are in the toggle mode.
Press the No. 2 key to enter the 3 toggle mode and 3 momentary mode, that is, relay No. 4/8/12 are in the momentary mode, and relay No. 2/6/10 are in the toggle mode.
Notes:
* The input voltage cannot exceed the working voltage range.
* Keep it out of reach of children.
* In an environment with strong wireless interference, the control distance may be reduced.
* It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
* The input voltage cannot exceed the working voltage range.
* Keep it out of reach of children.
* In an environment with strong wireless interference, the control distance may be reduced.
* It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
