45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Полностью автоматические полки для супермаркетов стальной профиль стеллаж хранения стойка поддонов вертикальная машина
- Категория: Other Construction Material Making Machinery >>>
- Поставщик: Jiangyin,Bangnuo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 76160.18 $* | 79968.67 $* |
| Aug-19-2025 | 75520.6 $* | 79296.91 $* |
| Jul-19-2025 | 63360.69 $* | 66528.54 $* |
| Jun-19-2025 | 74240.28 $* | 77952.39 $* |
| May-19-2025 | 64640.56 $* | 67872.73 $* |
| Apr-19-2025 | 72960.51 $* | 76608.61 $* |
| Mar-19-2025 | 72320.34 $* | 75936.63 $* |
| Feb-19-2025 | 71680.31 $* | 75264.63 $* |
| Jan-19-2025 | 71040.93 $* | 74592.63 $* |
Характеристики
Products Description
Description | Explaination |
Working speed | 10-15 m/min（Shear time is not included） |
Pressed plate thickness | 1.5-3.0mm |
Control mode | Panasonic PLC |
Discharging rack | 3T uncoiling and leveling machine |
Feeding | 2 groups |
Leveling | 7 groups |
Front punching | 2 groups |
Anterior shear | 1 group |
Number of molding passes | 18 lanes |
Roll material | Gcr15 quenching of steel after finishing HRC58-62℃，surface chrome plating |
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠76mm |
Main engine power | 15kw |
Power of hydraulic station | 5.5kw |
Hydraulic pressure | 12Mpa |
Scissors material | Cr12Mov， quench HRC 58-62℃ |
Length tolerance | 3m±1.5mm |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
Transmission mode | 1.0 inch double row chain |
Equipment form | Card structure |
Equipment color | Company color |
Equipment size | L*W*H--11.5m*1.6m*1. 2m |
Date of delivery | 80 days |
Payment method | 30% advance charge，70% pay off on delivery |
Flow Chart
Equipment composition
3T uncoiling and leveling machine | 1 piece |
Molding machine | 1 set |
Front punching structure | 1 set |
shear structure | 1 set |
Control cabinet | 1 set |
Hydraulic station | 1 set |
Discharge table | 2 sets |

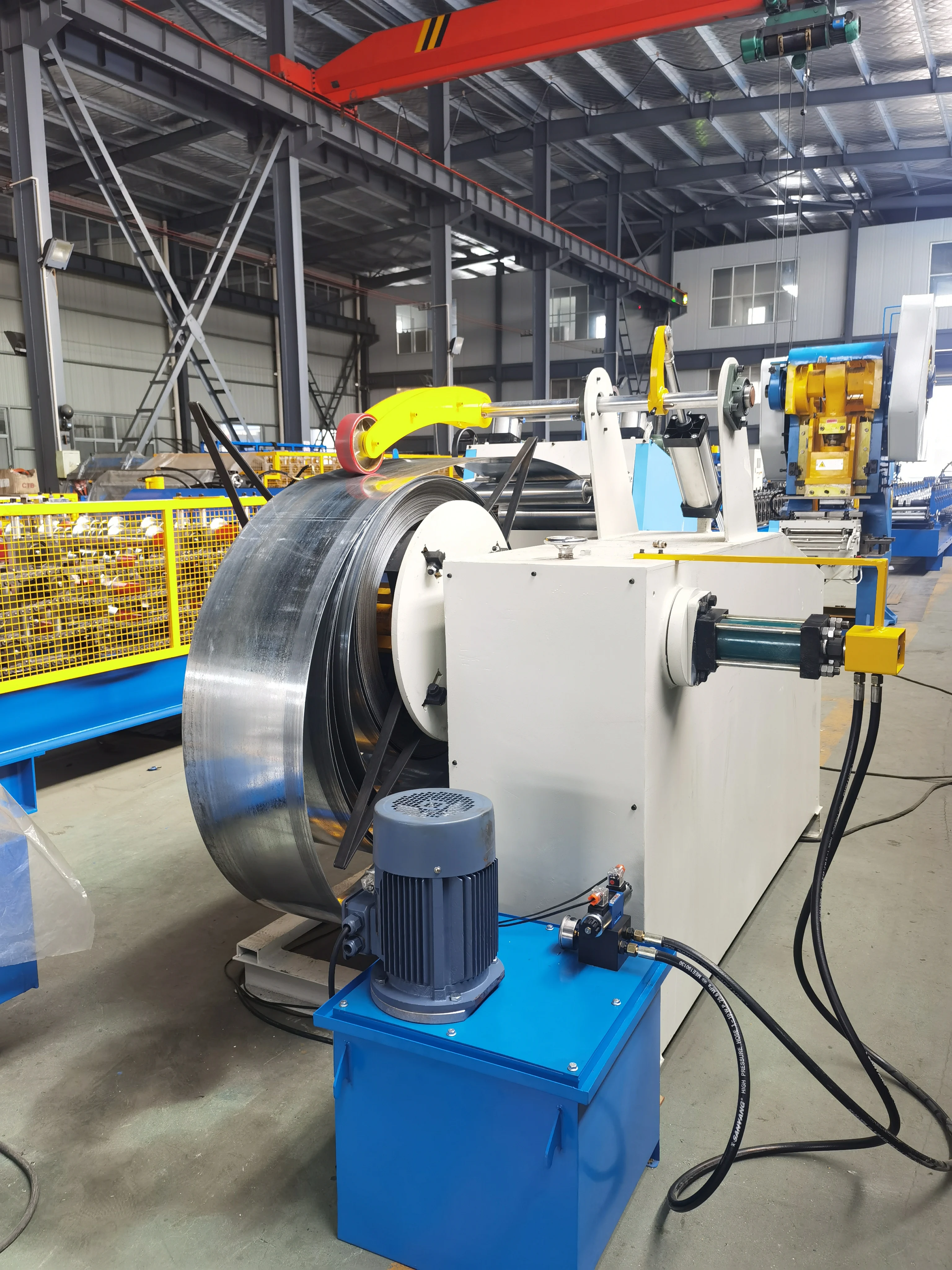

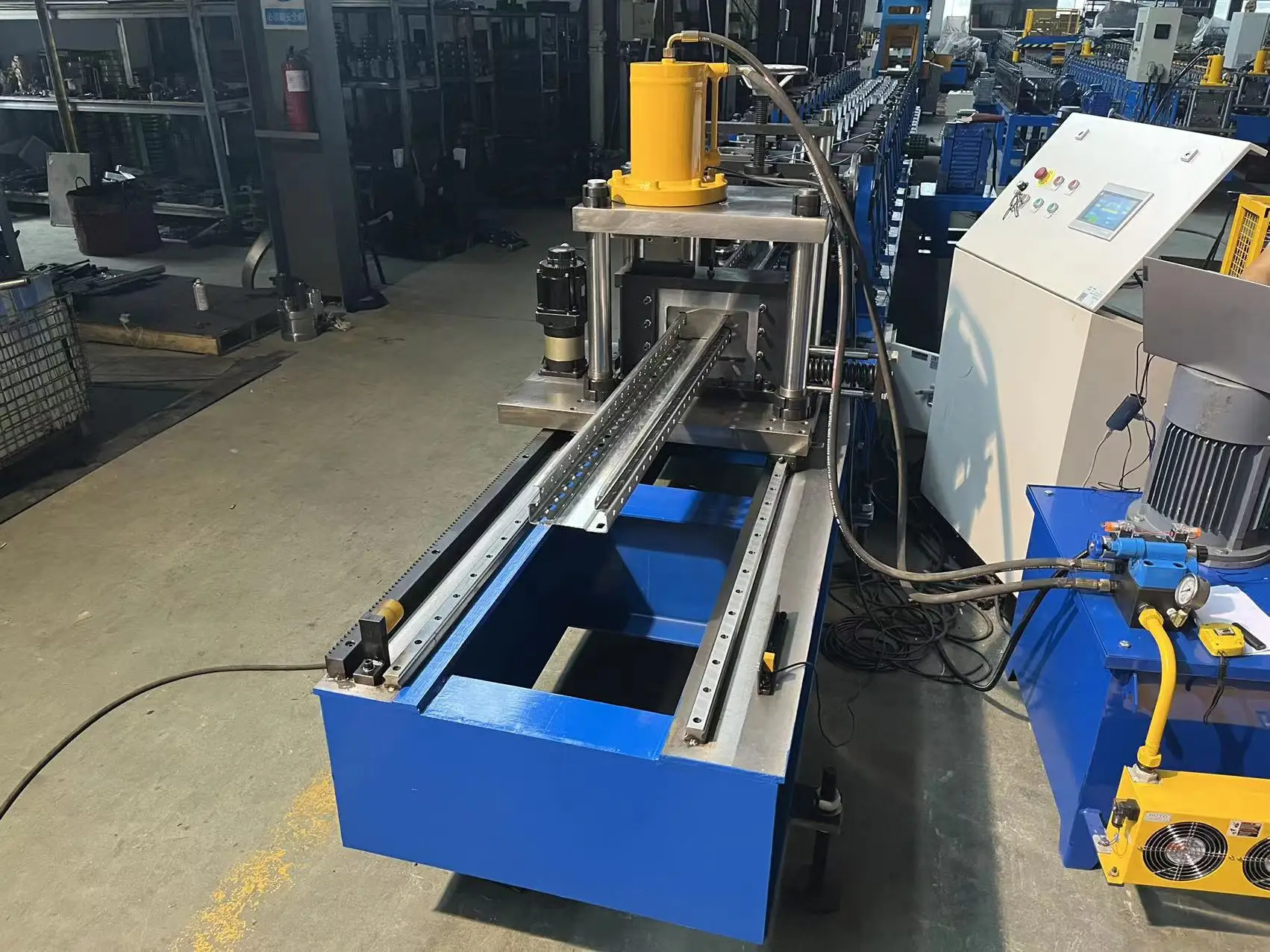

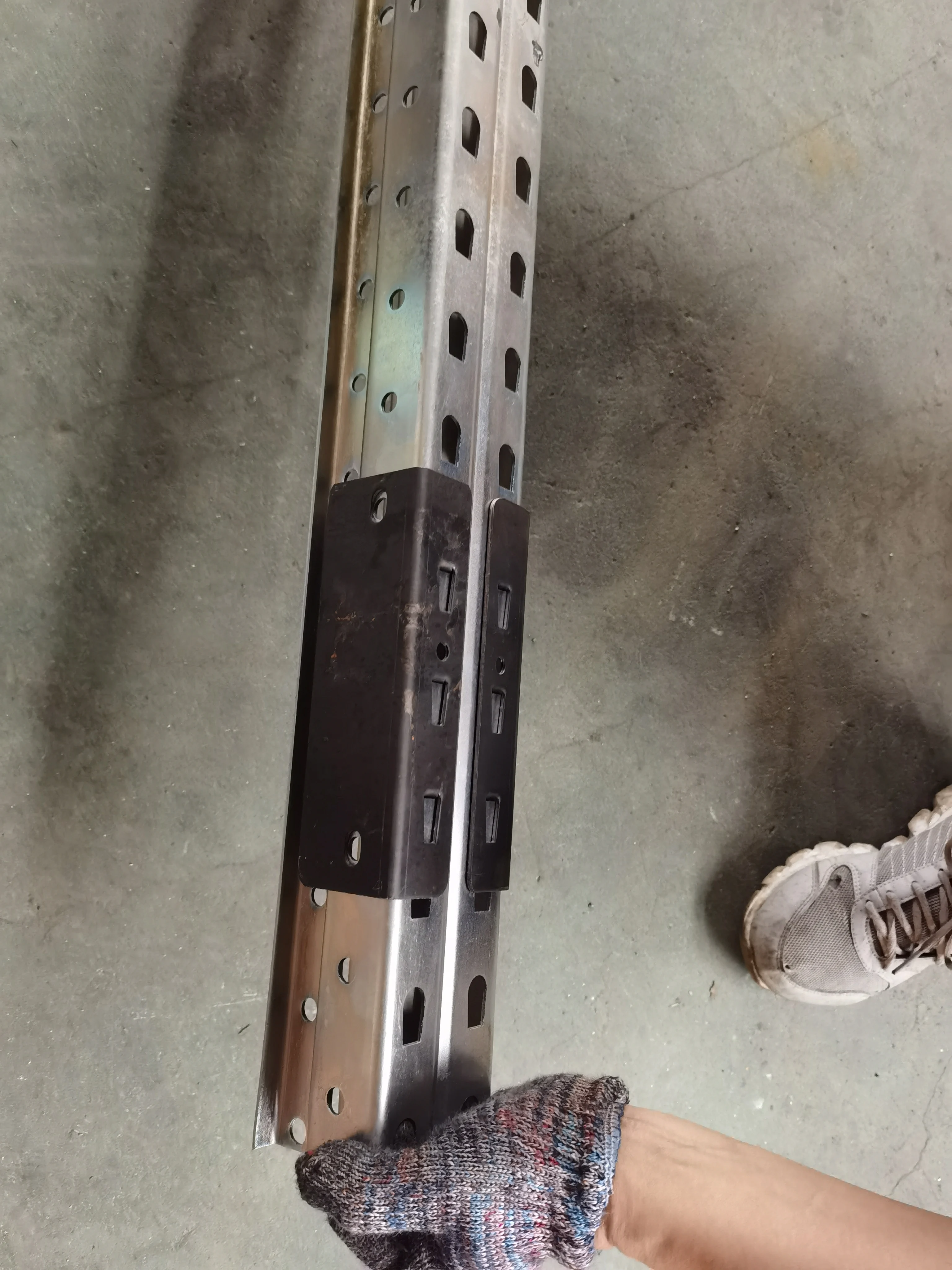

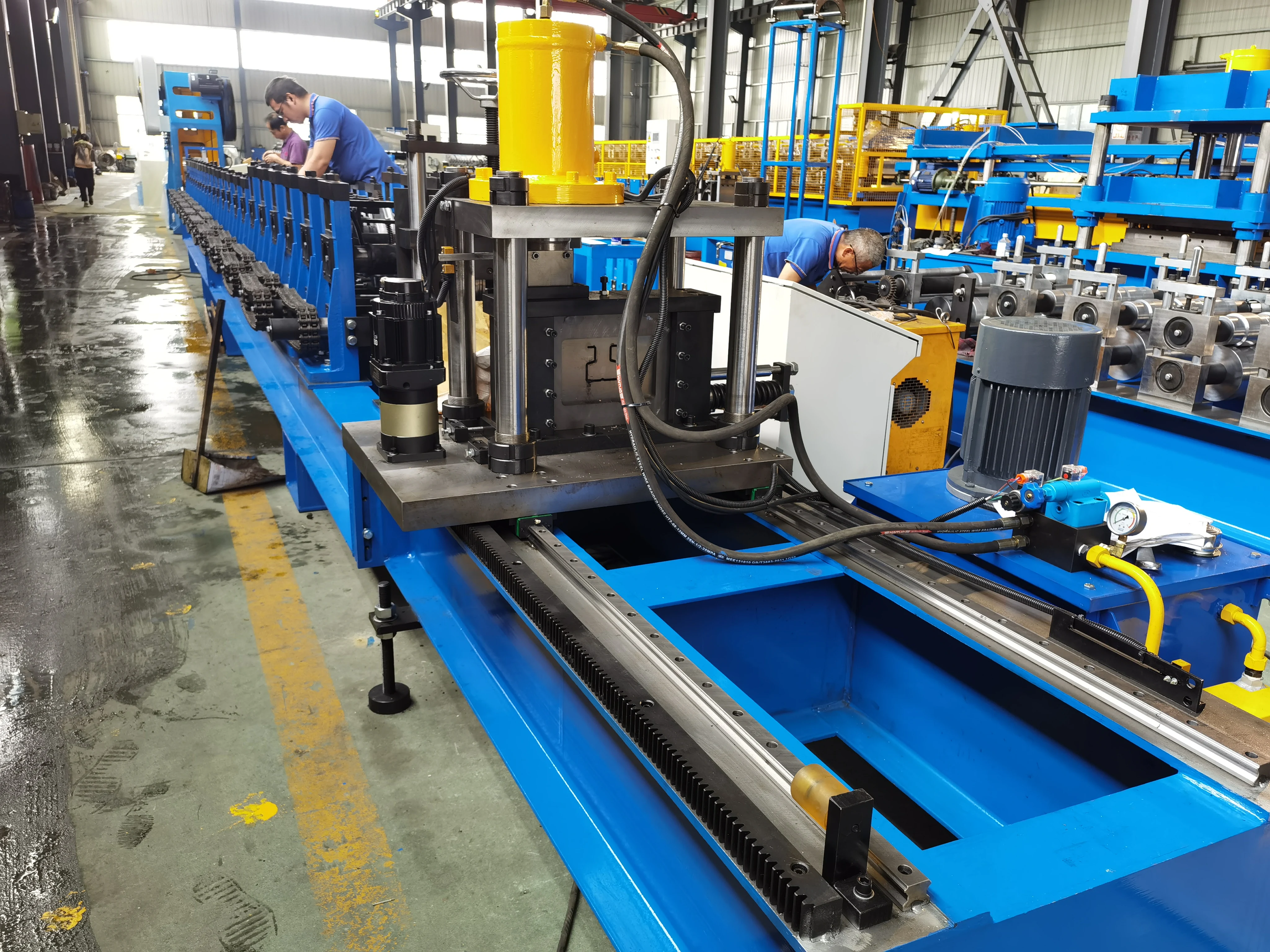

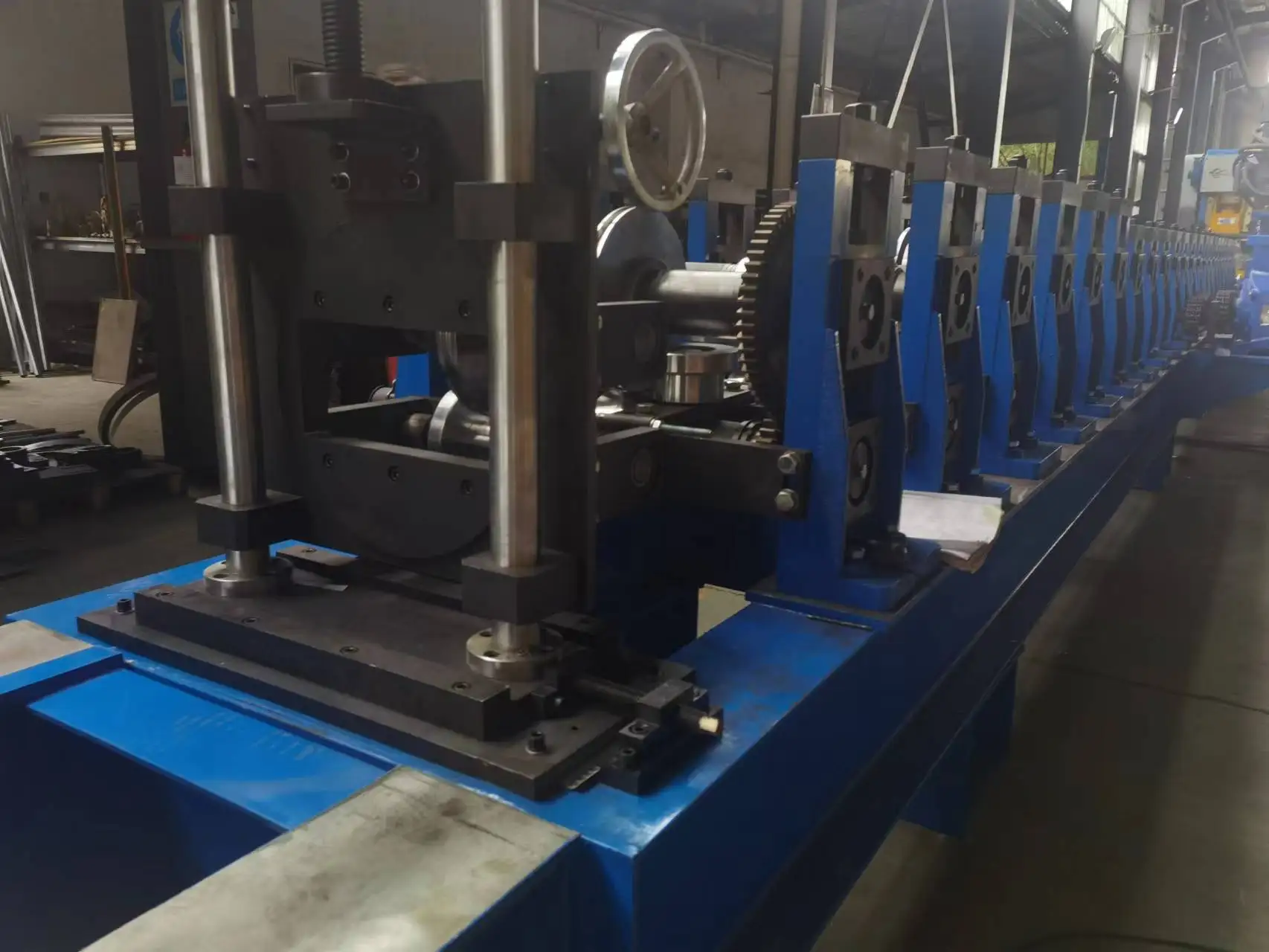

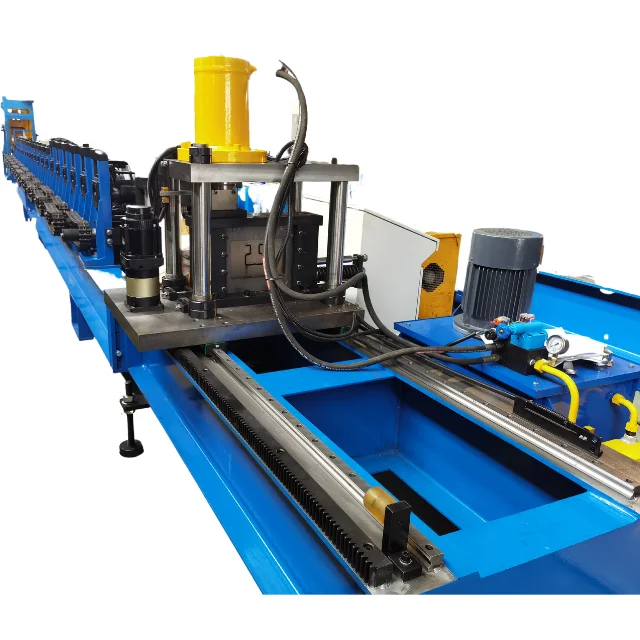

Details Images
FAQ
FAQ
Q1.Does one machine can only produce one size?
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
9. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Certifications
Company Profile
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
TRANSPORT
No additional packaging,
firmly fixed in containers
with belt and wood.
suitable for sea transportation
