Лучшие продажи HWL500 сваебойная машина Hengwang Солнечный столб драйвер
- Категория: >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 28560.47 $* | 29988.70 $* |
| Aug-15-2025 | 28320.59 $* | 29736.79 $* |
| Jul-15-2025 | 23760.58 $* | 24948.21 $* |
| Jun-15-2025 | 27840.38 $* | 29232.24 $* |
| May-15-2025 | 24240.31 $* | 25452.51 $* |
| Apr-15-2025 | 27360.53 $* | 28728.9 $* |
| Mar-15-2025 | 27120.10 $* | 28476.68 $* |
| Feb-15-2025 | 26880.55 $* | 28224.60 $* |
| Jan-15-2025 | 26640.7 $* | 27972.94 $* |
Характеристики

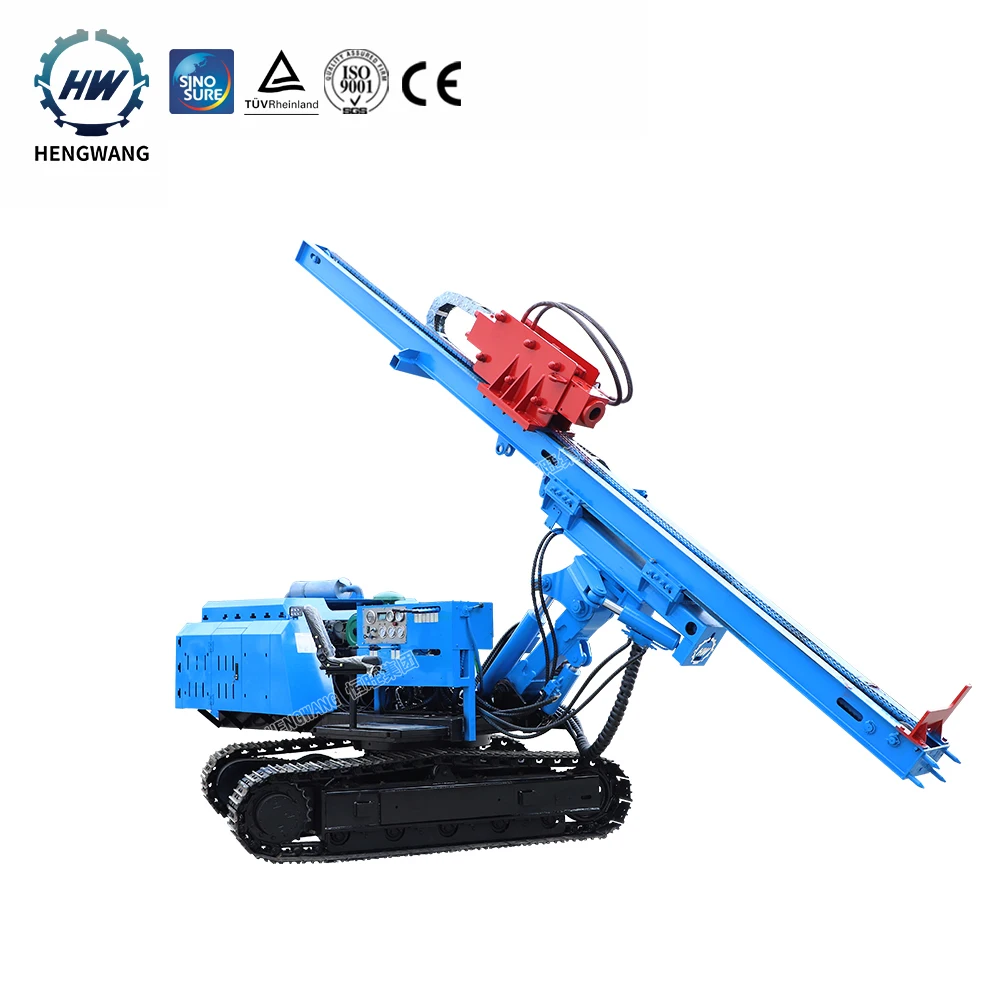

Best selling HWL500 PILE DRIVER Hengwang solar post driver with pile driver hammer
Product Description
Product Application
Hengwang soft soil hard rock sandy formations borehole micro piling machine 1m 2m 3m post multi-function solar pile driver 3m/6m hydraulic rotary press piling machine is multi-functional pile driving machine for mine, with 360 degrees of freedom to rotate, 360 degree angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with steel crawler chassis ,convenient shift pressing boom, vertical and horizontal angle pile, high precision with GPS, durable, time-saving, labor-saving and, especially for engineering construction in the field.
This hydraulic pile driver is a kind of multi-functional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Crawler walking for mountain area,rough road,high climbing ability .The frame can be moved backward and forward,press power head can be adjusted,high post piling position accuracy.
Product Parameters
Technical parameter of hammer pile driver | ||||
Model | HWL600R | / | ||
Hammer impact | 780J | Joule,Accept OEM | ||
Pile length | 0-6000 | mm | ||
Duplex gear pump pressure | 20 | Mpa | ||
Duplex gear pump displacement | 40 | ml/r | ||
Hydraulic system pressure | 20 | Mpa | ||
Main valve flow | 120 | L/Min | ||
Overall Machine weight | 6000 | KG | ||
Diesel engine power | 80 | KW | ||
Rated Speed | 2400 | R/min | ||
Starting Voltage | 24 | V | ||
Rotation angle | 360 | ° | ||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | mm | ||
Effective press pile stroke | 0-3000 | mm | ||
Dimension(LXWXH) | 6200×2200×2850 | mm | ||
Track shoe | 350 | mm | ||
Walking motor total displacement | 1575 | ml/m | ||
Walking motor rated pressure | 18 | Mpa | ||
Walking motor output torque | 4300 | N.M | ||
Walking motor rotate speed | 50 | r/min | ||
Press Pile Diameter | 0-600 | mm | ||
Drilling Depth | 0-6000 | mm | ||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||
Number of impacts / strokes per 1 minute | 900 | times/min | ||
Maximum lengh of Piles to be rammed | 6 | M | ||
Walking speed | 5-10 | Km/hr | ||
Gradeability | 0-35 | ° | ||
Oil tank capacity | 200 | L | ||
Hydraulic tank capacity (L) | 500 | L | ||
Best selling HWL500 PILE DRIVER Hengwang solar post driver with pile driver hammer

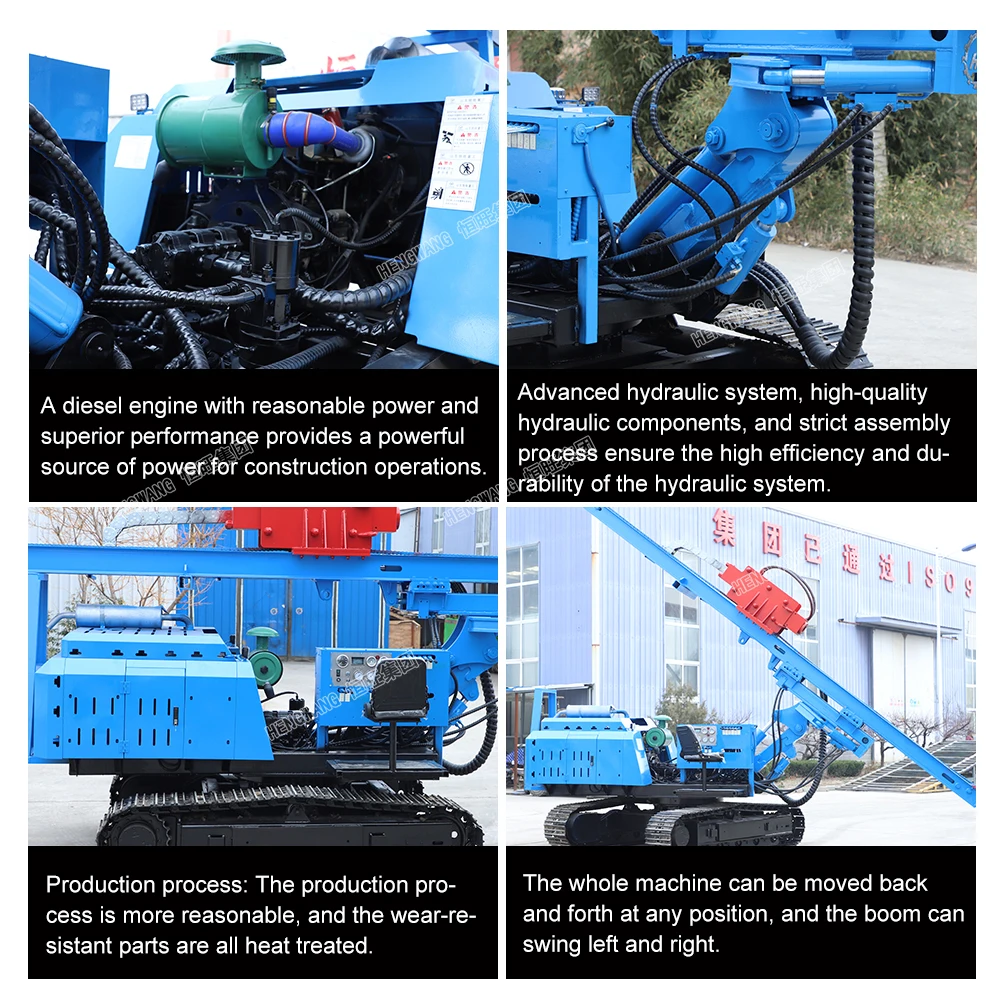

Details Images
Advantages(spotlight)
1.the pile driver machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our pile driver machine can work on the big gradient. 4.our pile driver machine can pree post one soil ground and drill hole with DTH hammer on rocky ground

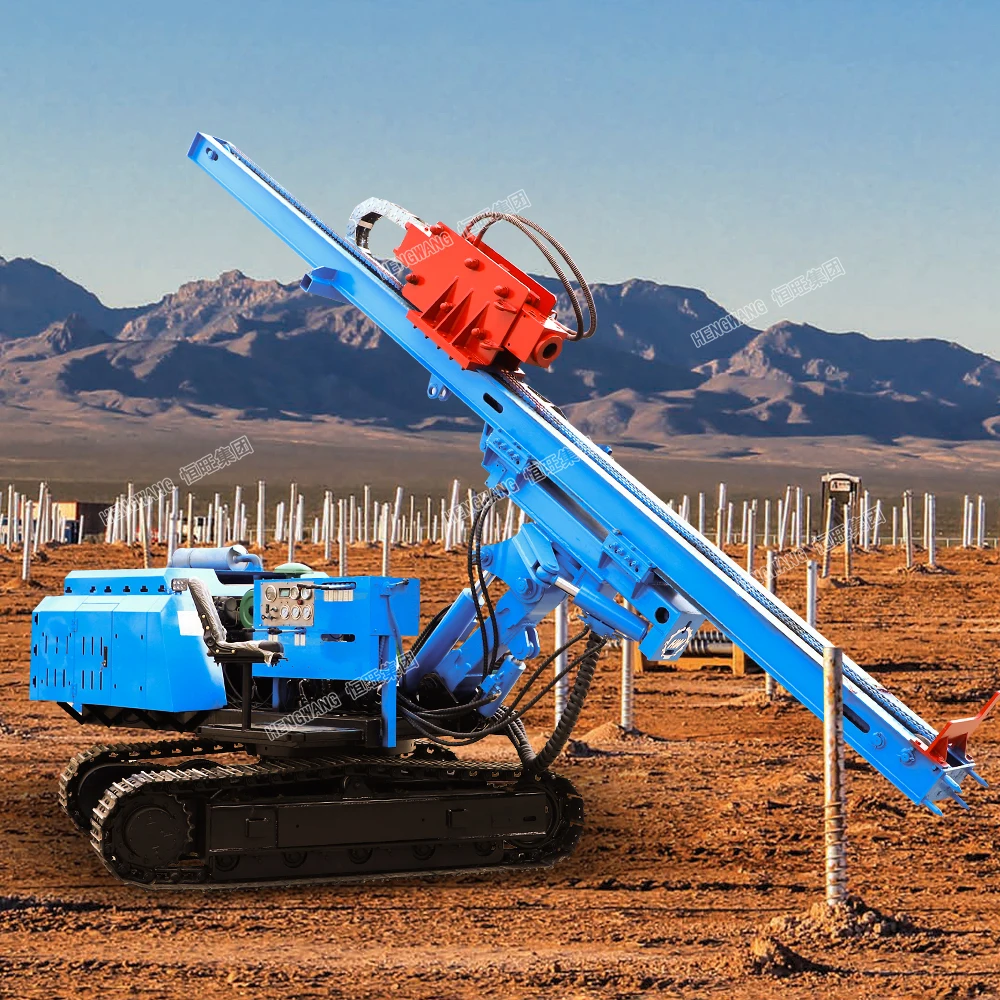

drimountain area slope 3m 2m photovoltaic post ramming machine with Telescopic crawler
Best selling HWL500 PILE DRIVER Hengwang solar post driver with pile driver hammer

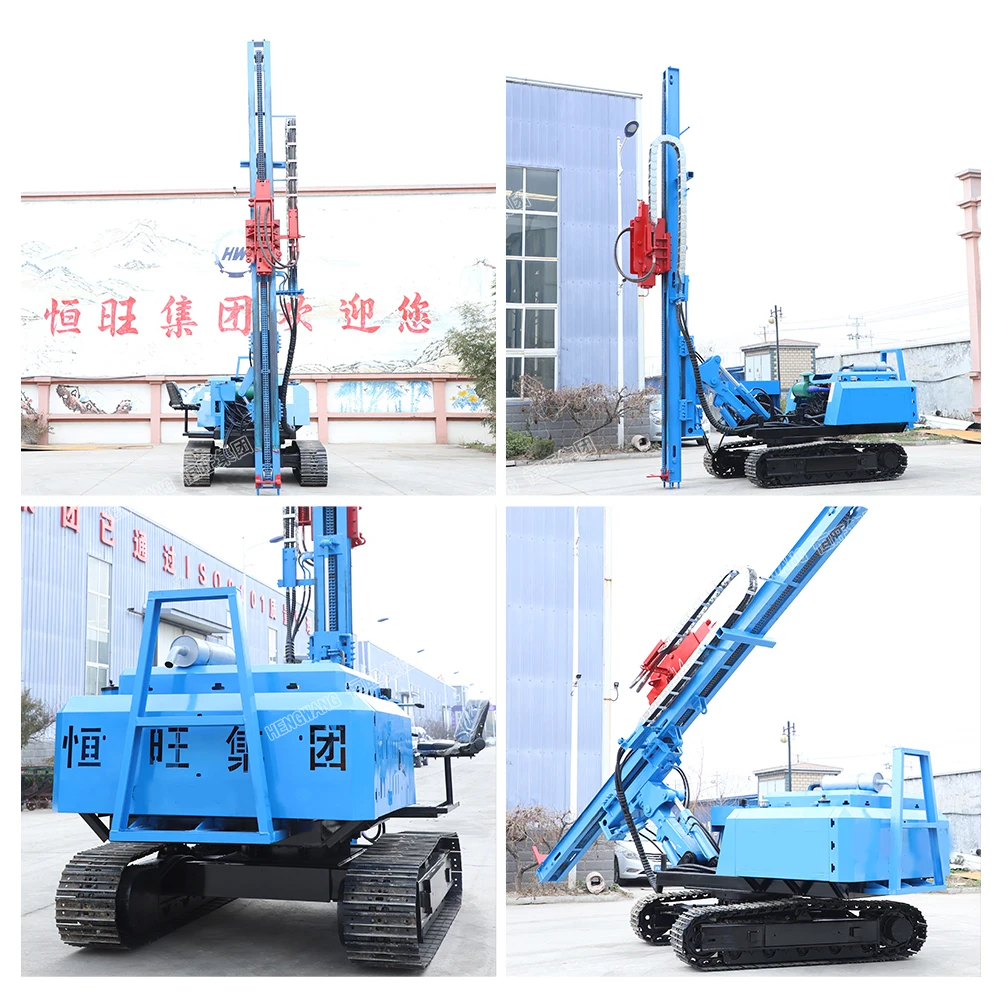

Real Images

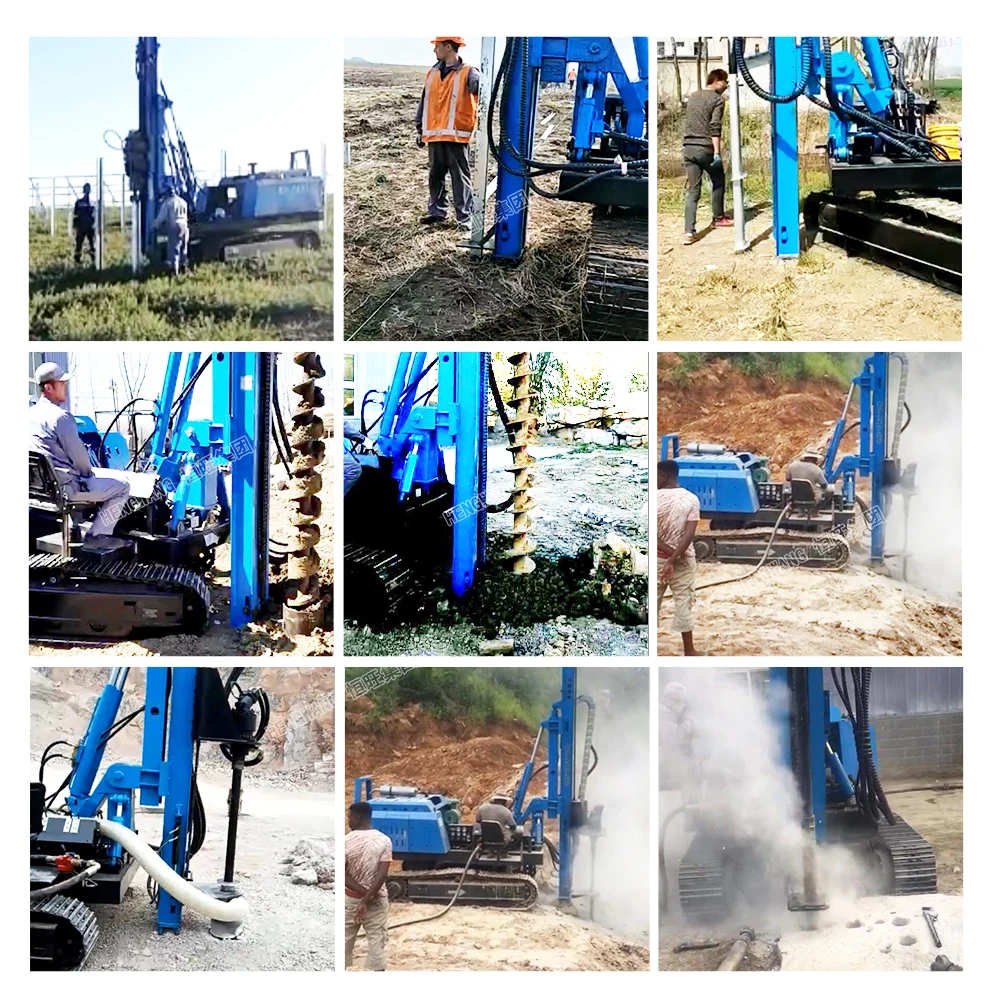

Applications of pile driver
multi-functional Diesel Powered Fence Post ramming Guardrail Pile Driver
Hengwang pile driver in Mongolia for solar post project in 2018
6mountain area slope 3m 2m photovoltaic post ramming machine with Telescopic crawler
Our Service
Pre-Sales Service
* Inquiry and consulting support of pile driver.
* Sample testing support for the pile press machine.
* View our Factory.
After-Sales Service
* Training how to instal the pile pressing machine, training how to use the pile driver machine.
* Engineers available to service machinery overseas.

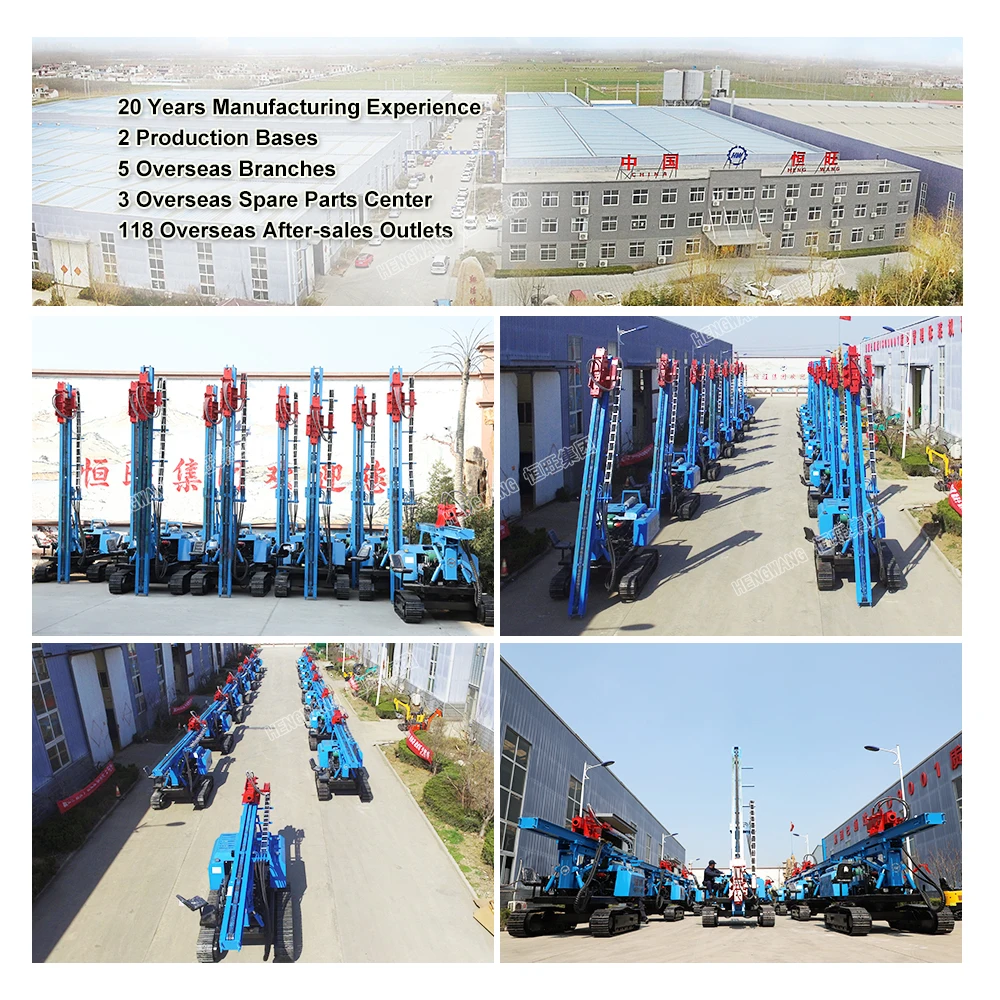

Our Company
