Стеклянная треугольная диспергирующая эквилоральная призма с индексом высокой


Поделиться:


Цена:9,00 $ - 10,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-17-2025 11.2 $* 11.78 $*
Jul-17-2025 9.7 $* 9.59 $*
Jun-17-2025 11.61 $* 11.69 $*
May-17-2025 11.65 $* 11.61 $*
Apr-17-2025 9.67 $* 9.53 $*
Mar-17-2025 11.8 $* 11.0 $*
Feb-17-2025 11.0 $* 11.32 $*
Jan-17-2025 11.8 $* 11.6 $*

Характеристики

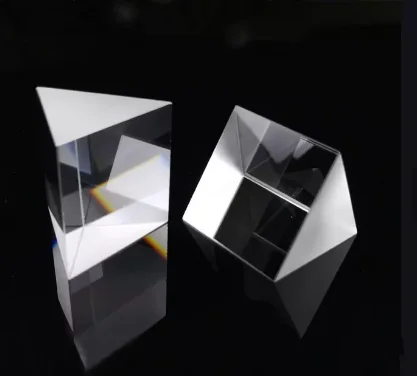

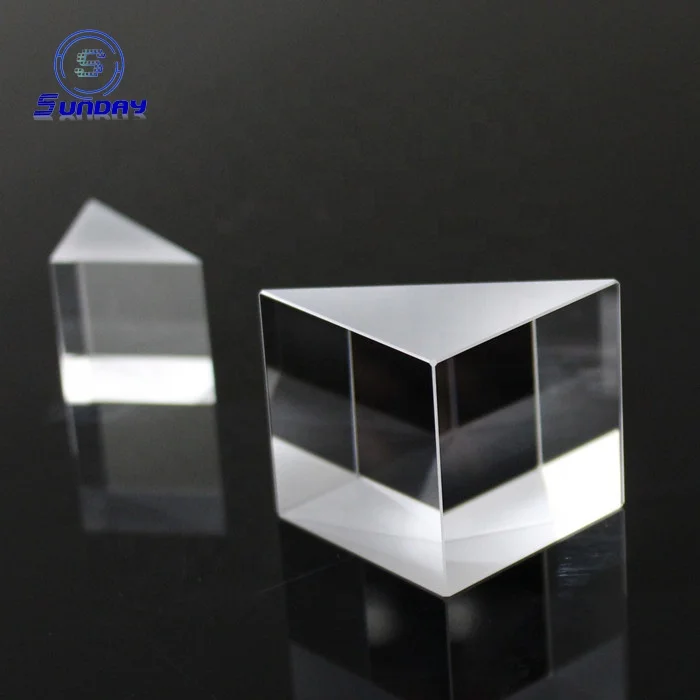

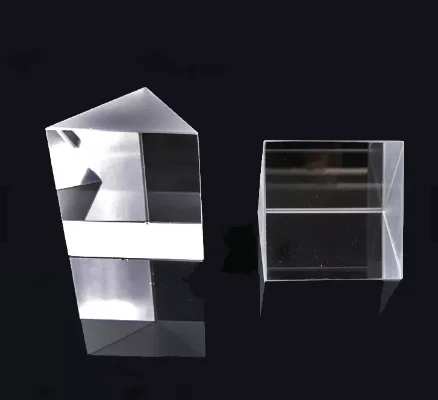

Right Angle Prism
Right angle prisms are used to deflect a light beam with 90 or 180°. Prisms are widly used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.


Specifications:
Material: BK7,Quartz,K9 CaF2,MgF2,ZnSe,Germanium, Silicon
Dia.0.5-500mm
Surface Quality:10-5
Surface Flatness: 1/10 lambda
Chamfer: 0.2mm
Angle tolerance:2''
Coating: AR BBAR,Dielectric,Metal Coating,AR coating




Prisms production Line
Sunday Optics manufacture right angle prism,dove prism,corner cube prisms,penta angle prism, roof prisms,Wedge Prism NPBS, PBS,etc

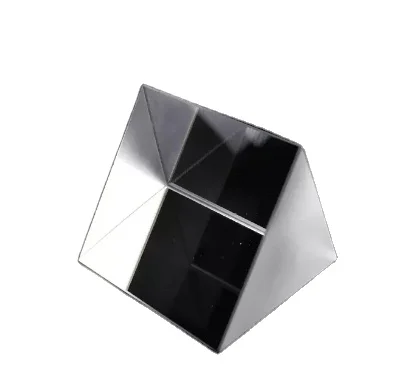

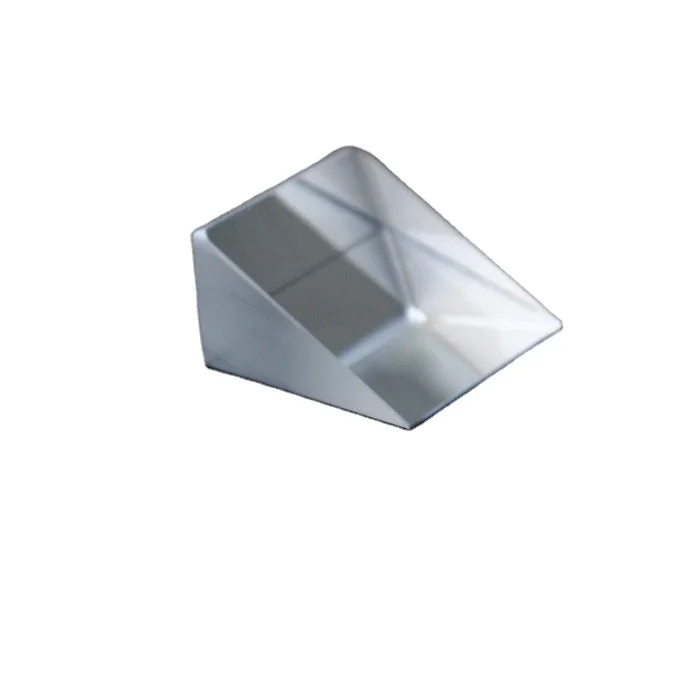

Right Angle Prism
The minimun size is 0.1mm A=B=C
We have large stock for 2mm 5mm 10mm 12.7mm 20mm 25.4mm 38.1mm 50.8mm
Corner Cube Prism
We have the ability to manufacture high precision angle tolerance to be 0.2''.
CaF2 Prism
Monocrystal CaF2 Wedge Prism


Customized Roof Prism
Beam splitter cube, NPBS, PBS


About Sunday Optics
Changchun Sunday Optics Co.,ltd, was founded in 2010, located in optical base Changchun city. With branches in
Changchun, Jiangsu, Nanjing, Sunday Optics mainly produces spherical lens, aspheric lens, prisms, high precision window,
filter,coating, laser lens, optical design and optical assembly. The minimum size of the lens can be 0.1mm, and the tolerance of prism’s 90-degree angle can be 2 ' '.




Process
Equipment: Sunday Optics owns milling and grinding machine, polishing machine, ring throwing, glue machine, coating
equipment.These equipments make complete production process of cutting, grinding, polishing, coating and glue.
Annual output: With multiple branches, our annual processing capacity up to 1 million pieces,which can achieve sample order and mass production.
Technical support: Relying on the technology of changchun institutr of optics, we can complete the processing of parts with high difficulty and provide optical design, assembly and other services.
Main materials: optical glass, infrared materials, BK7 FK61 CaF2 Silicon Germanium, etc.
Coating film: In addition to providing high-quality parts, we can also offer most kinds of coating, optical films equipped
withcrystal film thickness controller 360C and ion source to ensure the coating precision and quality.








Payment






Production Line
Sunday Optics manufactures Prisms,Spherical lens, cylindrical lens, aspheric lens,powell lens, ball lens, collimator lens, filters, coatings,


Spherical lens
Aspheric Lens
Cylindrical Lens


Collimator Lens
Filter
Dome Lens


Ball Lens
Glass Prism
Germanium Window
