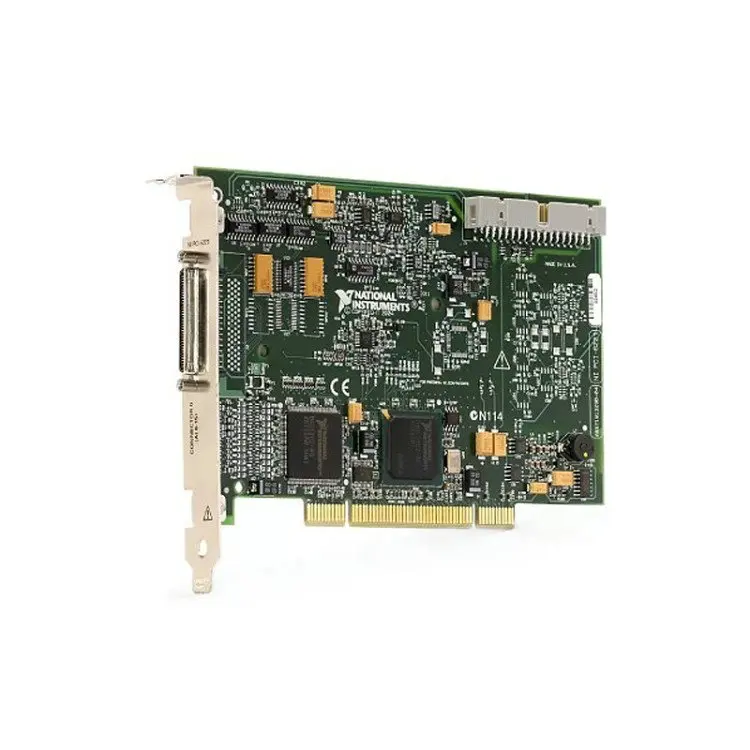

PCI-6221 68Pin DAQ Data Acquisition Board Original 779066-01 for NI National Instruments



Features:
- 16 AI (16-Bit, 250kS/s), 2 AO, Up to 24 DIO PCI Multifunction I/O Device
- 16 SE/8 DIFF AI channels; ±10 V to ±0.2 V input range
- Two 16-bit AO channels; 833kS/s single channel, 740kS/s dual-channel
- 24pcs 5 V logic DIO lines (8 hardware-timed up to 1 MHz) with 68-pin variant
- Two 32-bit, 80 MHz counter/timers
- One 68-pin female VHDCI connector

Specifications:
Overview
- Product: PCI-6221
- Product Family: Multifunctional DAQ
- Bus type: PCI
- Product number: 779066-01
- Operating Systems/Objects: for Real-Time Systems, Linux, Mac OS and Windows
- For LabVIEW RT: Yes
- DAQ Product Family: M Series
- Measurement Type: Quadrature Encoder, Digital, Voltage and Frequency
- Conformance to RoHS Directive: Yes

Analog Input
- Number of channels: 16, 8
- Single-ended channels: 16
- Differential Channels: 8
- Resolution: 16 bits
- Sampling rate: 250 kS/s
- Maximum analog input voltage: 10 V
- Maximum voltage range: -10 V to 10 V
- Accuracy over maximum voltage range: 3100 μV
- Sensitivity at maximum voltage range: 97.6 μV
- Minimum voltage range: -200 mV to 200 mV
- Accuracy over minimum voltage range: 112 μV
- Sensitivity at minimum voltage range: 5.2 μV
- Number of ranges: 4
- Simultaneous sampling: no
- On-board storage: 4095 samples

Analog Output
- Number of channels: 2
- Resolution: 16 bits
- Maximum analog input voltage: 10 V
- Maximum voltage range: -10 V to 10 V
- Accuracy over maximum voltage range: 3230 μV
- Minimum voltage range: -10 V to 10 V
- Accuracy of minimum voltage range: 3230 μV
- Frequency range: 833 kS/s
- Single channel current drive capability: 5 mA

Digital I/O
- Bidirectional Channels: 24
- Input channel only: 0
- Output channel only: 0
- Number of channels: 24, 0
- Timing: Hardware and Software
- Maximum clock rate: 1 MHz
- Logic level: TTL
- Input current: leakage current, source current
- Output current: drain current, source current
- Programmable Input Filter: Yes
- Support Programmable Power-Up State: Yes
- Single channel current drive capability: 24 mA
- Total current drive capability: 448 mA
- Watchdog Timer: No
- Support Handshake I/O: No
- Support Mode I/O: Yes
- Maximum input range: 0 V - 5 V
- Maximum output range: 0 V - 5 V

Counter/Timer
- Number of counters/timers: 2
- Number of DMA channels: 2
- Buffer operation: yes
- Glitch Cancellation: Yes
- GPS Sync: No
- Maximum range: 0 V - 5 V
- Maximum source frequency: 80 MHz
- Pulse generation: yes
- Resolution: 32 bits
- Time base stability: 50 ppm
- Logic level: TTL

Physical Standard
- Length: 15.5cm/6.1"
- Width: 9.7cm/3.8"
- I/O Connector: 68-pin VHDCI female

Timing/Triggering/Sync
- Trigger: Digital
- Synchronous Bus (RTSI): Yes

Package Included:
- 1 x DAQ Card
