DSO-138 цифровой осциллограф комплект производство электронного обучения
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Capital,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 17.60 $* | 17.0 $* |
| Jul-15-2025 | 13.52 $* | 13.29 $* |
| Jun-15-2025 | 16.3 $* | 16.47 $* |
| May-15-2025 | 16.82 $* | 16.74 $* |
| Apr-15-2025 | 13.62 $* | 13.28 $* |
| Mar-15-2025 | 16.38 $* | 16.34 $* |
| Feb-15-2025 | 16.93 $* | 16.65 $* |
| Jan-15-2025 | 16.72 $* | 16.27 $* |
Характеристики
Product Description
Product Description
Specification
Specification
item | value |
Warranty | / |
Type | Digital Oscilloscope Kit |
Place of Origin | China |
Guangdong | |
Model Number | DSO138 |
Product Name | DS138 oscilloscope |
Display | LCD |
Color | picture |
Max. input voltage | 50Vpp |
Application | Test signal source |
Model | DSO138 oscilloscope |
Feature | high quality |
Shipping Method | DHLUPSFedexEMSHK Post |
Payment | PaypalTTWestern UnionTrade Assurance |
Lead time | 1-35 Working Days |
Packing & Delivery
Packing & Delivery

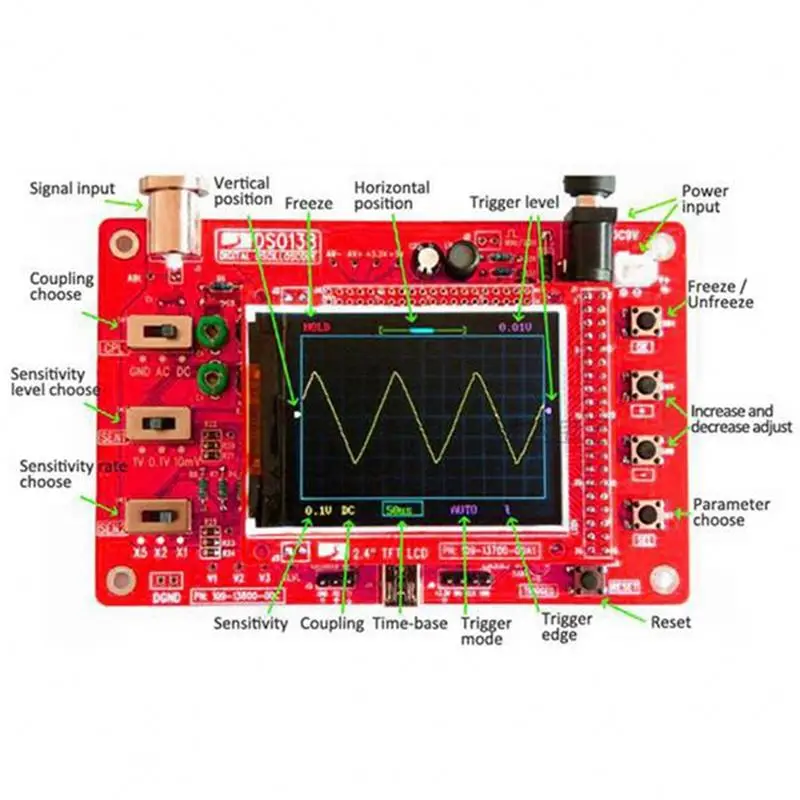

Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sample buffer depth: 1024 bytes Analog Bandwidth: 0 - 200KHz Vertical Sensitivity: 10mV/Div – 5V/Div (in 1-2-5 increments) Adjustable vertical displacement with indication Input impedance: 1MΩ Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe) Coupling methods include DC/AC/GND Horizontal time base range: 10μs/Div – 50s/Div (in 1-2-5 increments) With automatic, conventional and single trigger modes, it is convenient to capture instantaneous waveforms Trigger with rising or falling edge Adjustable trigger level position with indication Waveform before trigger can be observed (negative delay) Waveform display can be frozen at any time (HOLD function) Comes with 1KHz /3.3V square wave test signal source
SO138 Oscilloscope Making Kit Features: For electronic production training, the description materials are complete and detailed, including circuit diagrams, production instructions, instructions for use, troubleshooting methods, etc., and the production success rate is high. There are various types of components, which are suitable for students to carry out component identification, in-line component welding, and SMD component welding training. Students can obtain a practical tool at the same time of production, which can effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared reception and emission, etc., to increase learning interest and improve learning effect. The kit uses an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display, which can be used as an ARM development test board. Provide the source program, capable friends can carry out secondary development on the basis of the kit, for example, it can be changed to millivoltmeter, data logger and so on. The circuit is simple and reliable, and the price is low
