Многослойная печатная плата FR4 в сборе индивидуальный производитель
- Категория: Double-sided PCB >>>
- Поставщик: Croll,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.22 $* | 0.10 $* |
| Aug-18-2025 | 0.64 $* | 0.3 $* |
| Jul-18-2025 | 0.94 $* | 0.43 $* |
| Jun-18-2025 | 0.58 $* | 0.30 $* |
| May-18-2025 | 0.50 $* | 0.96 $* |
| Apr-18-2025 | 0.45 $* | 0.46 $* |
| Mar-18-2025 | 0.66 $* | 0.25 $* |
| Feb-18-2025 | 0.76 $* | 0.55 $* |
| Jan-18-2025 | 0.96 $* | 0.44 $* |
Характеристики

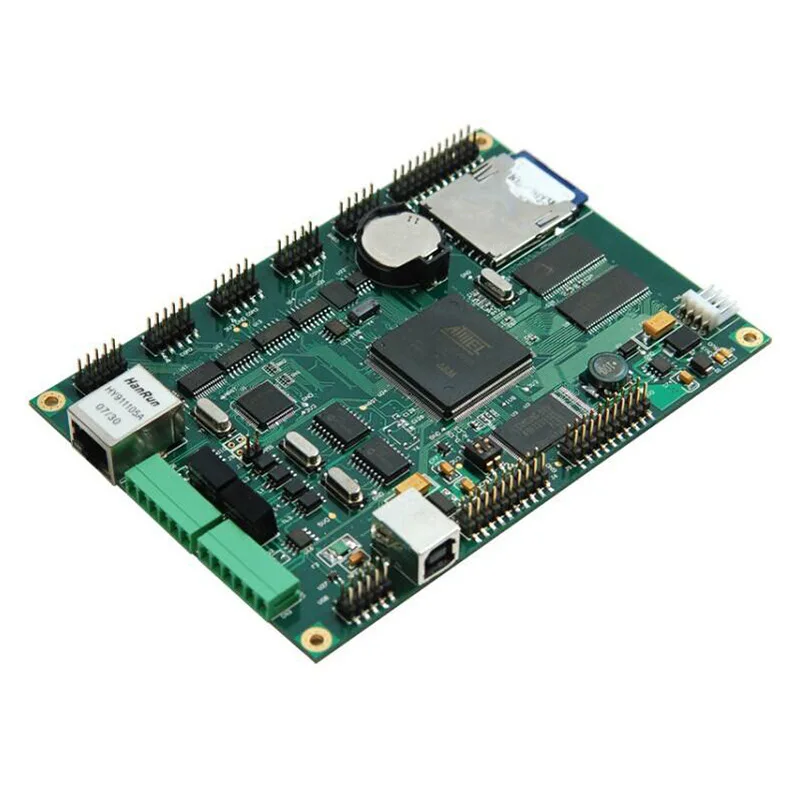

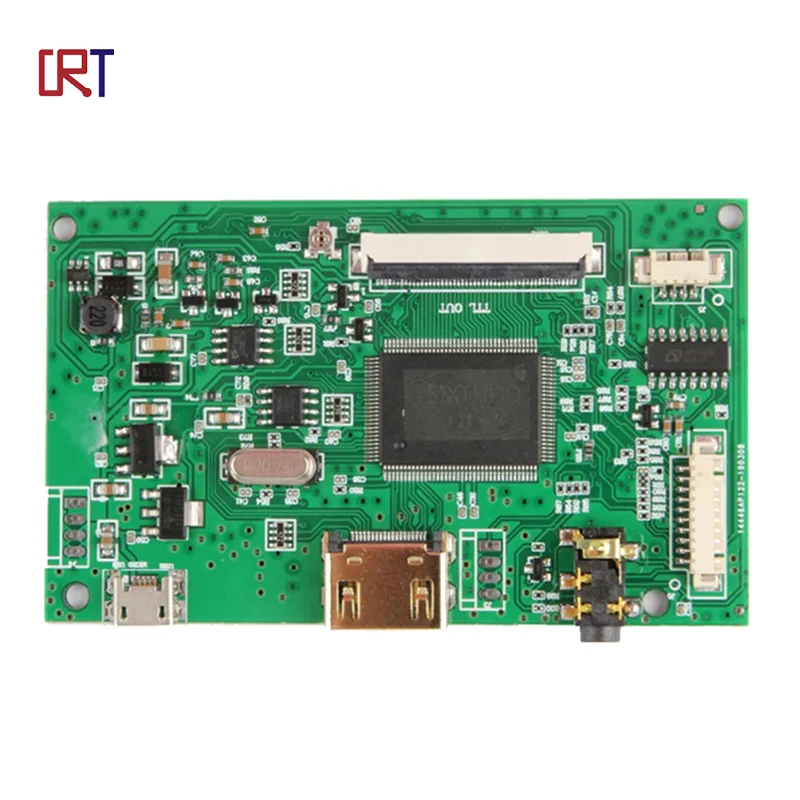

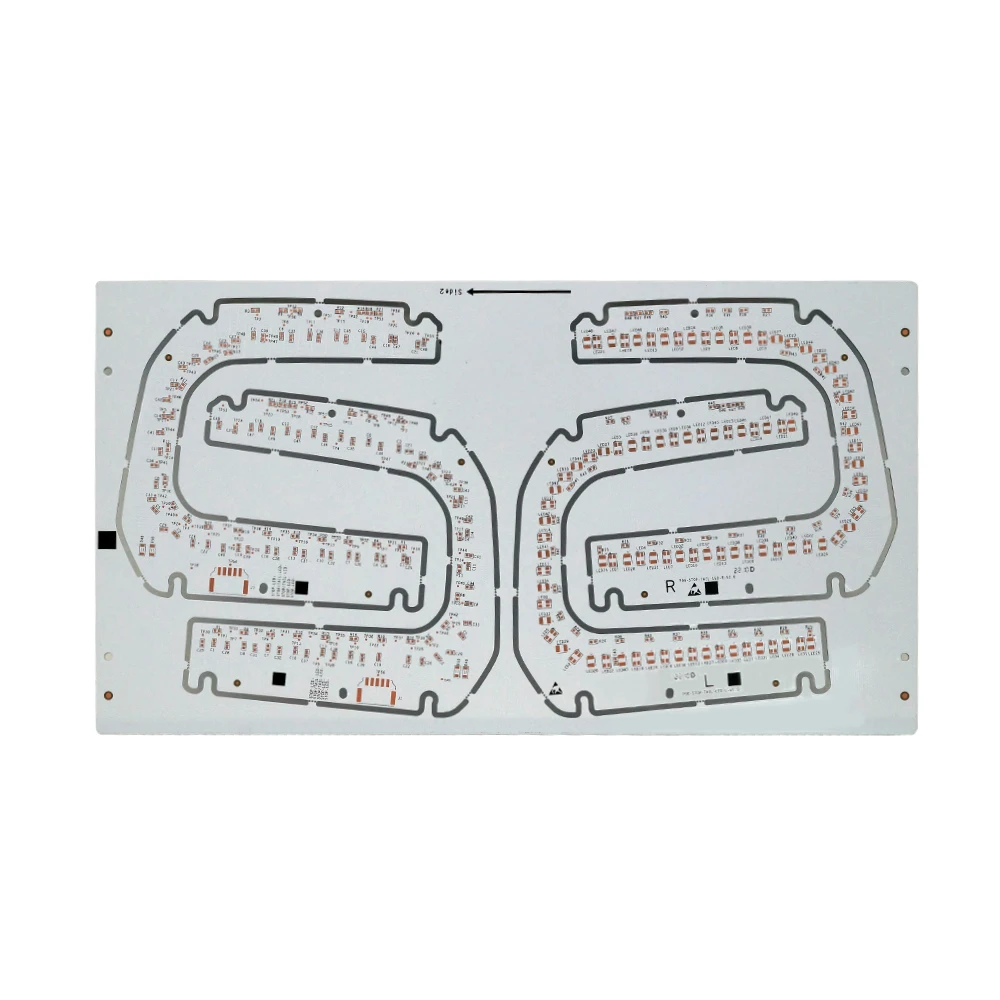

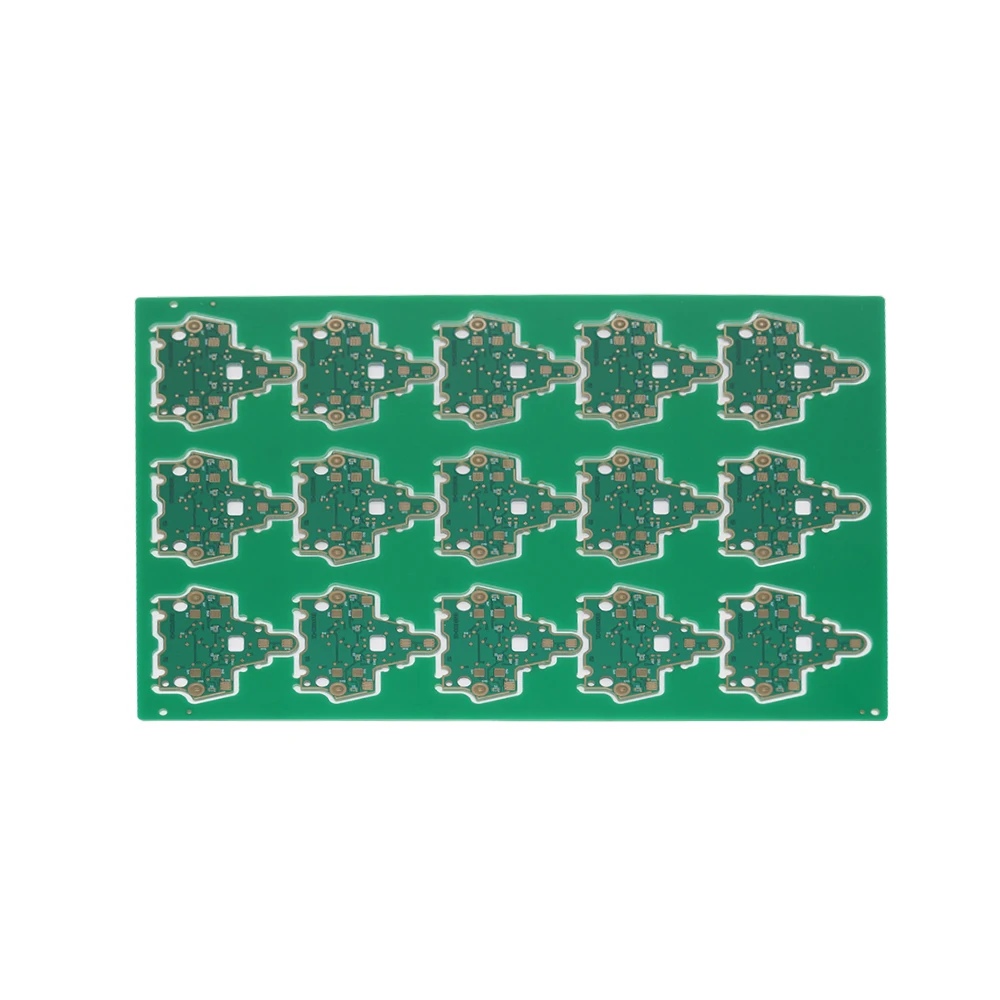

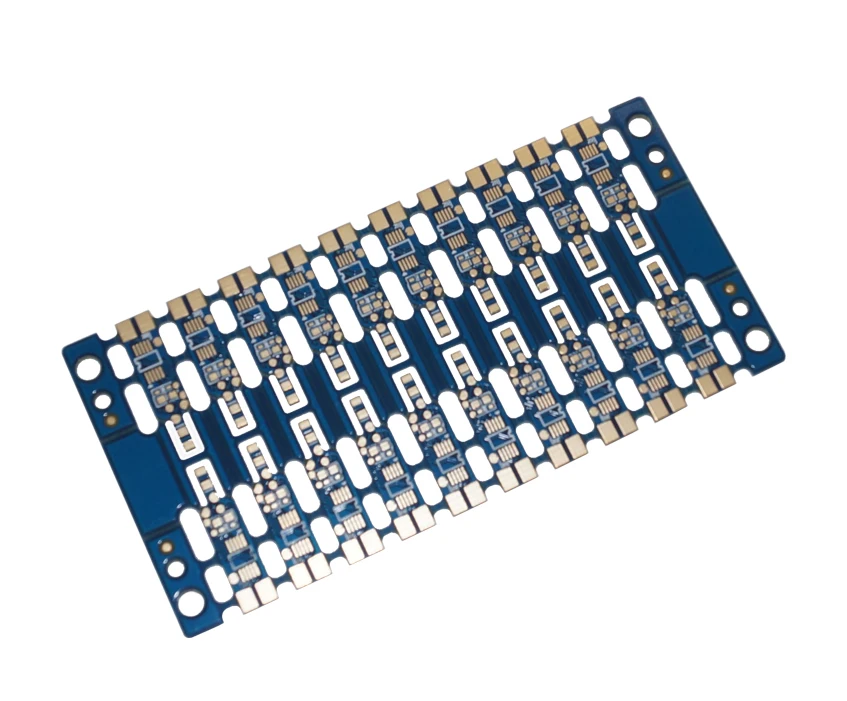

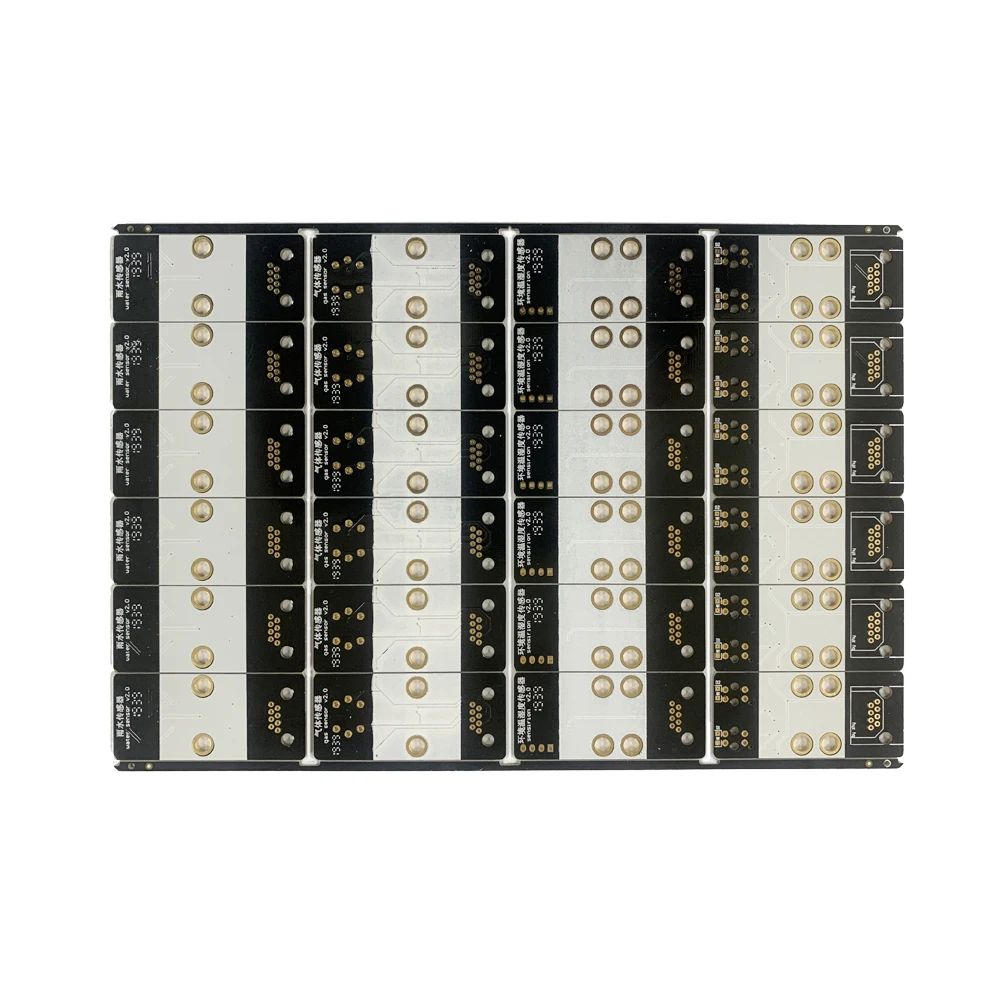

Product Show
China PCB Supplier Multilayer PCB board Factory
CRT-PCB Capability Summary Table
CRT-PCB Capability Summary Table | Sample capacity | Mass production capacity | ||
PCB Type | FR4 PCB\\FPC\\Rigid-Flex | FR4 PCB\\FPC\\Rigid-Flex | ||
Certificates | UL\\ISO9001\\ISO14001\\TS16949 | UL\\ISO9001\\ISO14001\\TS16949 | ||
Layer Count | Layer Count | 1~36L | 1~28L | |
Max. Length | 5mm~1.5m | 5mm~1.2m | ||
Panel Sizes | Max. Width | 600mm | 500mm | |
Thkness Range | 0.05~8mm | 0.05~5mm | ||
min. Dielectric | 0.0125mm | 0.0125mm | ||
InnerLayerCopperWeight | 1/4~2.0 oz | 1/3~2.0 oz | ||
OuterLayerCopperWeight | 1/4~10.0oz | 1/3~8.0 oz | ||
Drilling Capability | Min. Laser DHS | 75um | 75um | |
Min. Michenical DHS | 0.10mm | 0.15mm | ||
DrillPositionTol. | ±0.05 | ±0.075 | ||
Min. PTH Tol. | ±0.05 | ±0.075 | ||
Min. NPTH Tol. | ±0.03 | ±0.05 | ||
Min. PTH Slot Tol. | ±0.075 | ±0.1 | ||
Min. NPTH Slot Tol. | ±0.075 | ±0.05 | ||
Counter-sink | Yes | Yes | ||
Counter-bore | Yes | Yes | ||
Back Drilling | Yes | Yes | ||
Plating Capability | LaserBlind Via A/R | ≦0.8 | ≦0.8 | |
Blind Via A/R | ≦12 | ≦10 | ||
PTH Via A/R | ≦12 | ≦10 | ||
Max.Min.Plating Thickness | 8~75um | 8~50um | ||
Copper Filling | Yes | Yes | ||
CCD Registration | Yes | Yes | ||
InnerLayerCopperWeight | Yes | 1/6~2.0 oz | ||
MinInnerLayerLineWidth/Spacing | 1/3oz- 40um; H-1oz 75um; 2oz 125um | 1/3oz 50um; H-1oz 100um; 2oz 150um | ||
OuterLayerCopperWeight | 1/4~7.0 oz | 1/3~3.0 oz | ||
MinOuterLayerLineWidth/Spacing | 1/3oz- 40um; H-1oz 75um; 2oz 125um | 1/3oz 50um; H-1oz 100um; 2oz 150um | ||
MinBGAPitch | 1/3oz 0.25mm; 1oz 0.35mm; 2oz 0.4mm | 1/3oz 0.35mm; 1oz 0.45mm; 2oz 0.6mm | ||
MinSMTPitch | 1/3oz 0.15mm; 1oz 0.20mm; 2oz 0.30mm | 1/3oz 0.2mm; 1oz 0.25mm; 2oz 0.35mm | ||
Reg.Tol. (mm) | ±0.05 | ±0.075 | ||
AOI | Yes | Yes | ||
LF HASL\\OSP\\ENIG\\ENEPIG\\Gold Finger\\Immersion\\Peelable Mask Tin\\Immersion Silver\\Carbon\\Carbon\\High Resistor Carbon\\Kapton Tape\\Mixed Surface (OSP+ENIG…) | ||||
Profile (mm) | V-cut | Yes | Yes | |
Routing | Yes | Yes | ||
Punching | Yes | Yes | ||
Laser | Yes | Yes | ||
Beveling | Yes | Yes | ||
Counter-bore | Yes | Yes | ||
Depth Controlled Routing | Yes | Yes | ||
Special Tech | Buried Capacitor | Paste PI/FR4/steel sheet/aluminum sheet/ceramic sheet for reinforcement and EMI shielding film | ||
Buried Resistor | ||||
Coin Attached | ||||
Others | ||||
For more parameters, please consult our online customer service
