Лесной комбайн Yuchai YCF135fm для резки дефилляции измерения сегментирования и окуня деревьев
- Категория: Forestry Machinery >>>
- Поставщик: Acntruck,Vehicle,&,Machinery,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 95200.73 $* | 99960.11 $* |
| Aug-20-2025 | 94400.35 $* | 99120.50 $* |
| Jul-20-2025 | 79200.26 $* | 83160.6 $* |
| Jun-20-2025 | 92800.29 $* | 97440.83 $* |
| May-20-2025 | 80800.0 $* | 84840.68 $* |
| Apr-20-2025 | 91200.16 $* | 95760.36 $* |
| Mar-20-2025 | 90400.27 $* | 94920.81 $* |
| Feb-20-2025 | 89600.1 $* | 94080.86 $* |
| Jan-20-2025 | 88800.81 $* | 93240.77 $* |
Характеристики
Yuchai Forest Harvester Machine YCF135fm for Cutting, Delimbing, Measuring, Segmentation and Heaping trees to Russia
Acntruck International is a leading Chinese construction machinery exporter, located in the downtown of Shanghai City.
Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
With a balanced and diversified approach towards the ever changing market scenario in perfect combination with strategic management and organic growth, Acntruck International has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery.
Since our company was founded, we continually introduce top Chinese construction machinery enterprises and their products to international markets. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
With a balanced and diversified approach towards the ever changing market scenario in perfect combination with strategic management and organic growth, Acntruck International has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery.
PRODUCT DETAILS

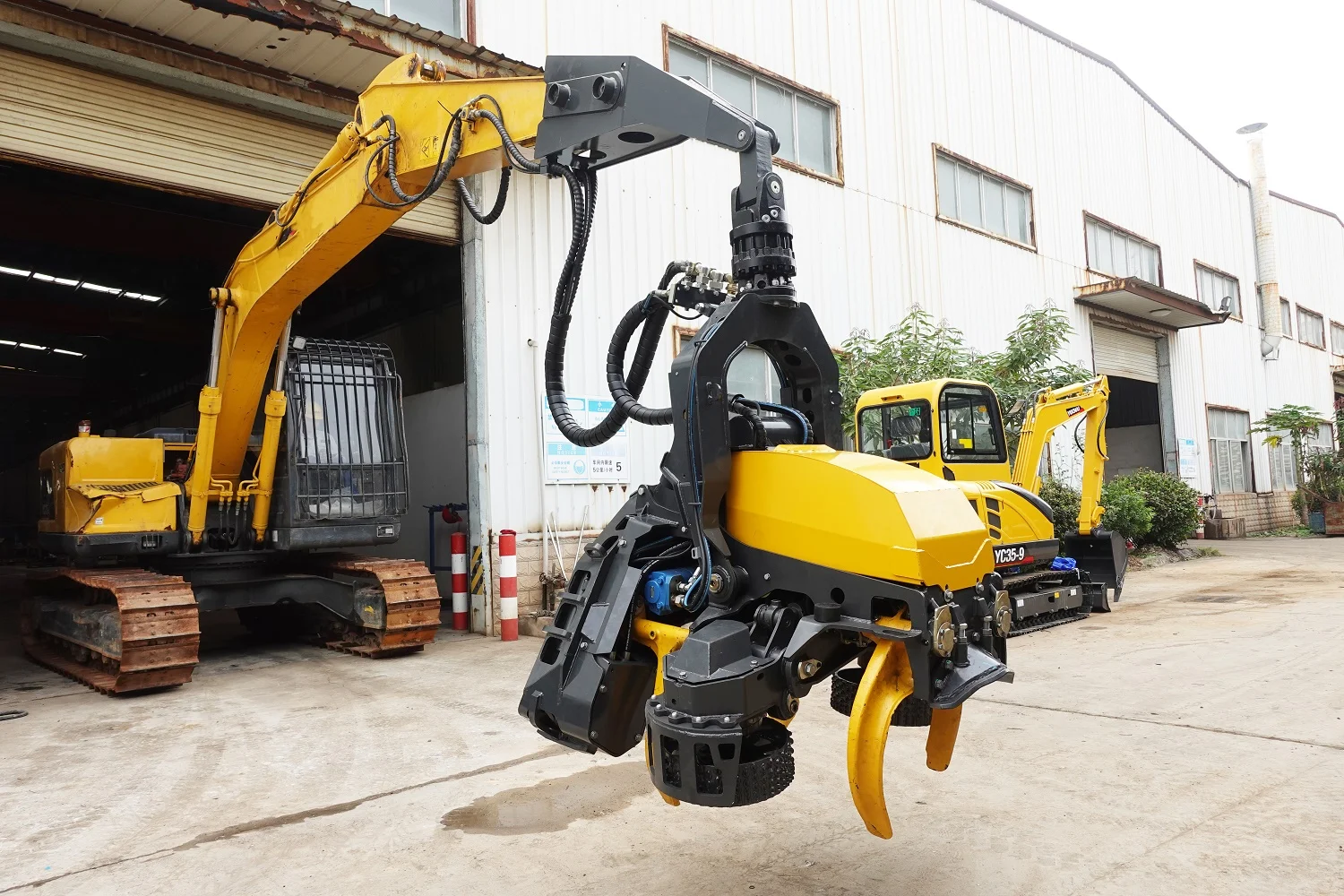

YCF135FM Log harvester for wood harvester
PRODUCT SPECIFICATIONS

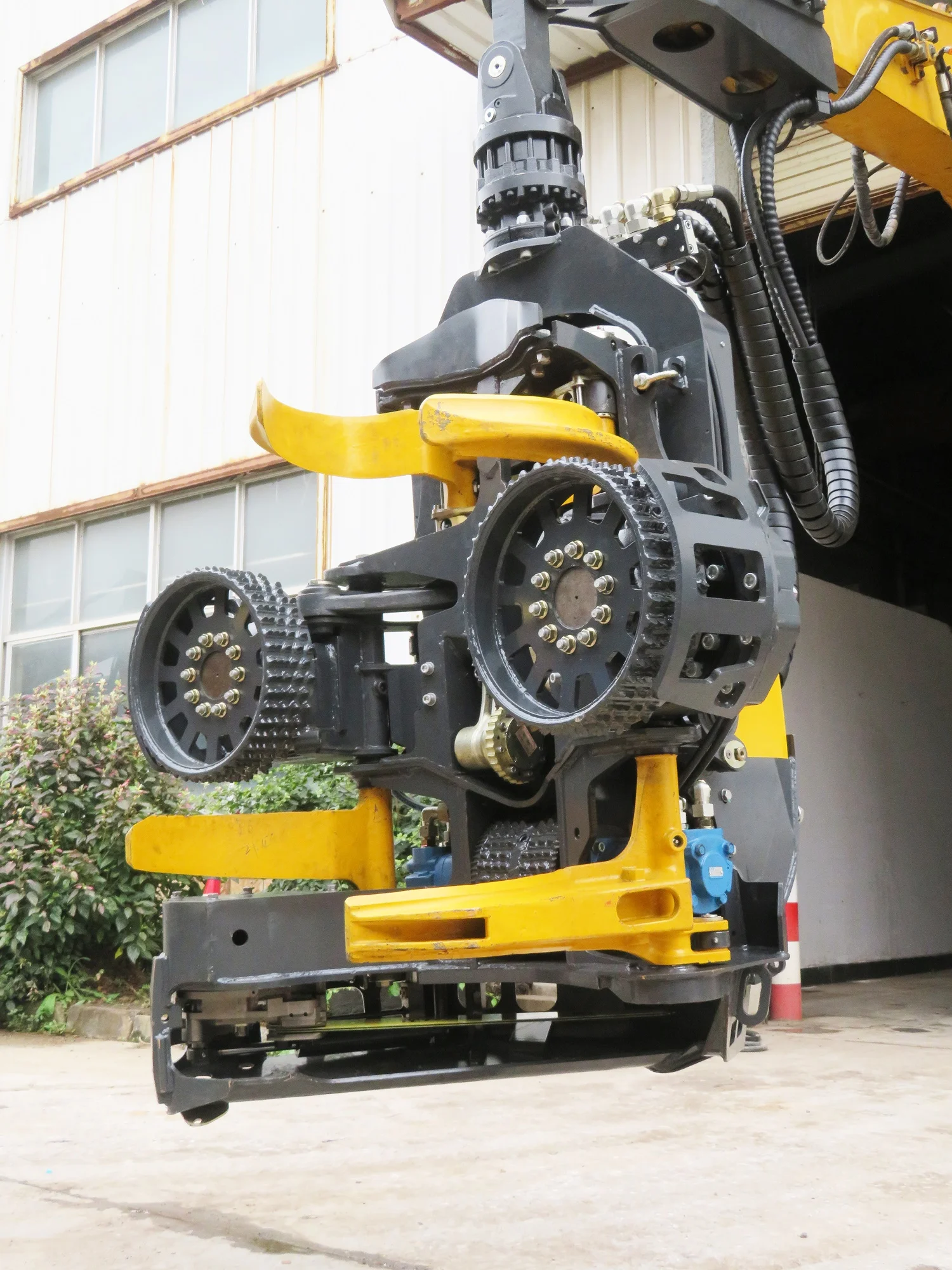

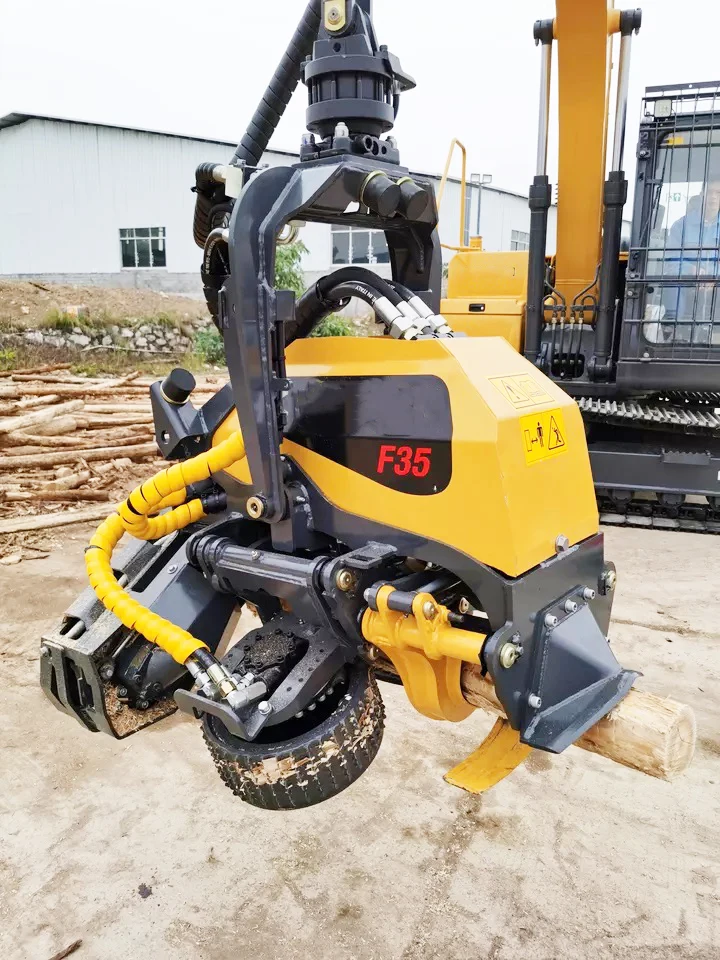

YCF35 Harvester Heads
Parameter List | ||||
Chain saw | Max.cutting diameter | 350mm | ||
Guide bar length | 457.2mm | |||
Chain pitch | 10.3mm | |||
Chain tank capacity | 3.4L | |||
Feeding | Rollers quantity | 2 | ||
Rollers diameter | 371.mm | |||
Max. opening of rollers | 400mm | |||
Max. feed force | 16KN | |||
Max. feed speed | 5m/s | |||
Delimbing | Knives qty | 2+1 | ||
Diameter tip-to-tip | 330mm | |||
Front knives max. opening | 480mm | |||
Hydraulic requirement | Operating pressure | 22.5MPa | ||
Flow required | 150~180L/min | |||
Power required | 40~60KW | |||
Control system | Operating voltage | 24 V | ||
Control system | YU-CHAI Y01T.1 | |||
Application | Excavator | 18-15 T | ||
Technical specification | Width (head closed/head open) | 870/1130 mm | ||
Length | 1140 mm | |||
Height | 1100 mm | |||
Weight | 560 kg | |||

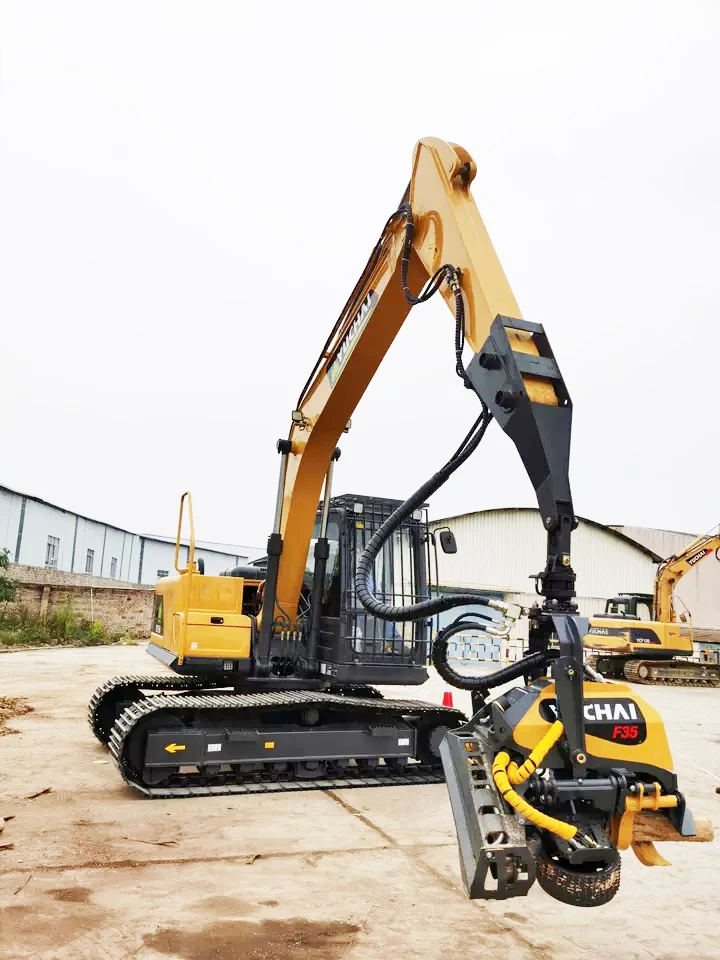

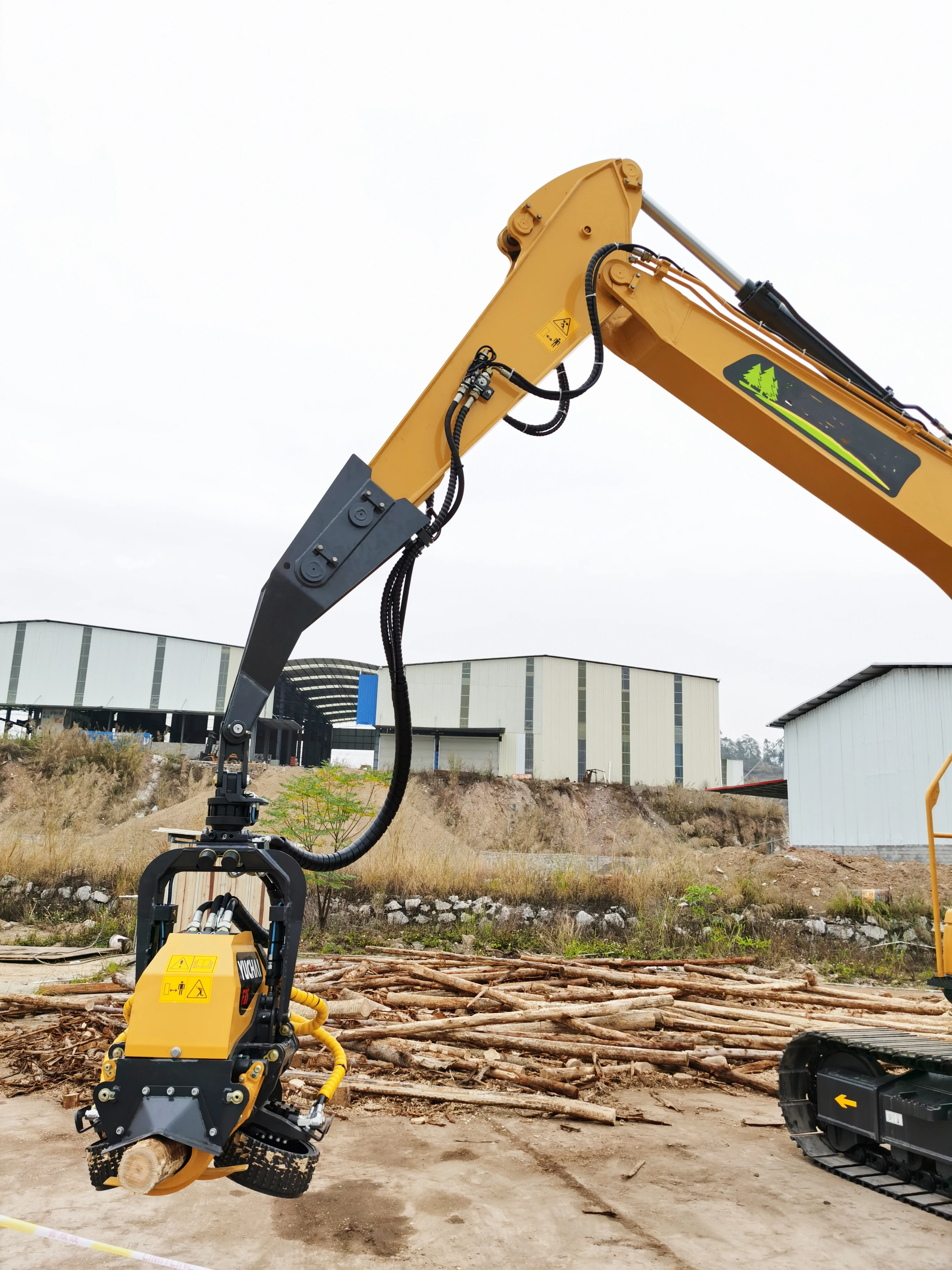

YCF135FM Tree Harvester
Parameter List | ||||
Basic parameter | Weight | 13800kg | ||
Engine | YU-CHAI YCF36 | |||
Rated power | 86/2200 kW/rpm | |||
Max cutting diameter | 350 mm | |||
Performance parameter | Max slewing speed | 12 r/min | ||
Travel speed | 3.1/5.5 km/h | |||
Fuel tank capacity | 270 L | |||
Hydraulic tank capacity | 105 L | |||
Gradeability | 35 ° | |||
Operation parameter | Max.Operating Radius | 7819 mm | ||
Max.Operating Depth | 5500 mm | |||
Max.Operating Height | 8290 mm | |||
Platform Tail Turning Radius | 2250 mm | |||
Transportation dimension | Length | 7780 mm | ||
Width | 2600 mm | |||
Height | 2823 mm | |||
Other Parameter | Lenght Of Track | 3695 mm | ||
Track Gauge | 2950 mm | |||
Width Of Track | 600 mm | |||
Height Between Undercarriage And Ground | 415 mm | |||
