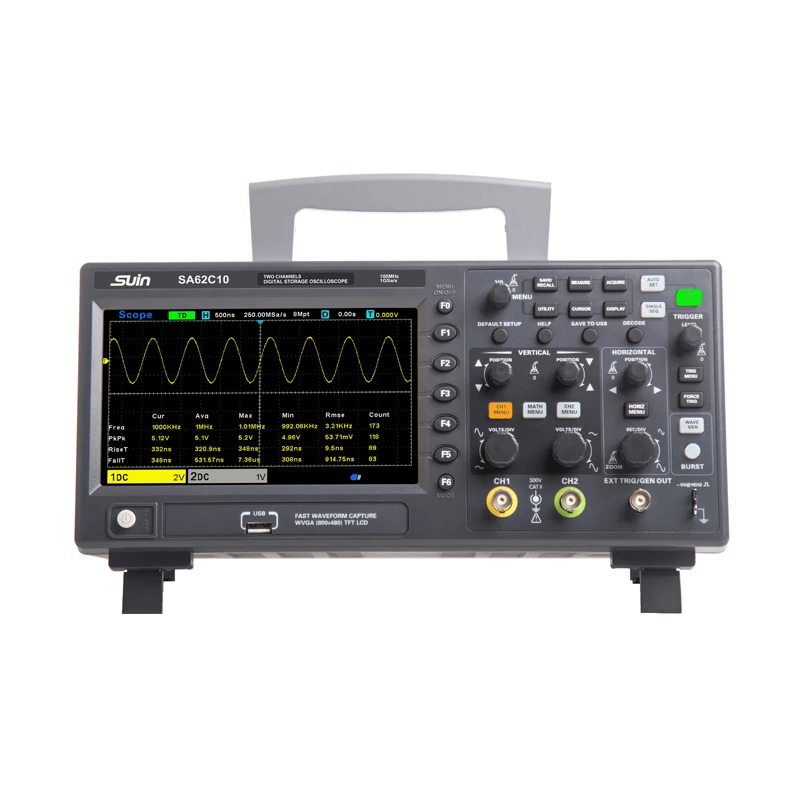

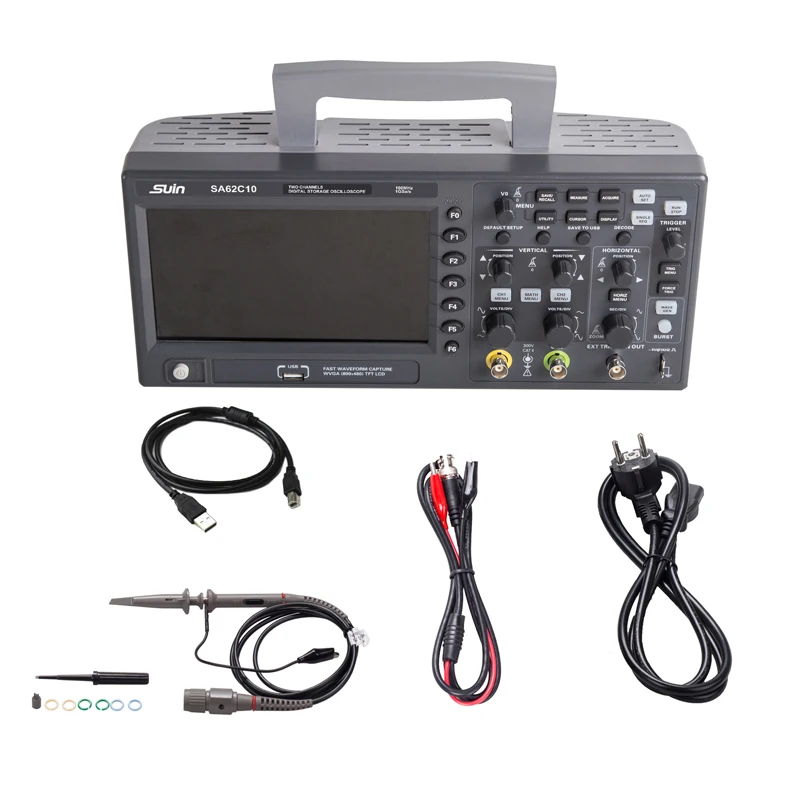

Suin SA62C10 100 МГц 2 канала осциллограф dso Цифровые запоминающие
- Категория: Oscilloscopes >>>
- Поставщик: Shijiazhuang,Suin,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.46 $* | 0.42 $* |
| Aug-15-2025 | 0.25 $* | 0.83 $* |
| Jul-15-2025 | 0.74 $* | 0.54 $* |
| Jun-15-2025 | 0.44 $* | 0.73 $* |
| May-15-2025 | 0.26 $* | 0.29 $* |
| Apr-15-2025 | 0.31 $* | 0.2 $* |
| Mar-15-2025 | 0.11 $* | 0.33 $* |
| Feb-15-2025 | 0.94 $* | 0.54 $* |
| Jan-15-2025 | 0.79 $* | 0.34 $* |
Характеристики
Product Description
Features
2 channel, 100MHz/150MHz bandwidth.
1GSa/s real time sample rate.
8M memory depth.
8 bit vertical resolution.
Vertical scale from 2mV/div to 10V/div.
Large (7.0-inch) color display, WVGA (800x480).
Multiple automatic measurements.
Four math functions, including FFT standard.
Trigger mode: edge, pulse width, video, slop, timeout, window, pattern, interval, runt.
Serial decode/trigger options for: UART, LIN, CAN, IIC, SPI.
Each analog channel with an individual 3 digits digital voltmeter (DVM) and 5 digits frequency counter.
32 built-in measurements and a measurement statistics display.
Built-in 1 channel waveform generator with: sine, square, ramp, exponential rise, noise, DC, arbitrary (available for SA62D10 and SA62D15 only).
USB host and device connectivity, standard.
Supports SCPI remote command control.
1GSa/s real time sample rate.
8M memory depth.
8 bit vertical resolution.
Vertical scale from 2mV/div to 10V/div.
Large (7.0-inch) color display, WVGA (800x480).
Multiple automatic measurements.
Four math functions, including FFT standard.
Trigger mode: edge, pulse width, video, slop, timeout, window, pattern, interval, runt.
Serial decode/trigger options for: UART, LIN, CAN, IIC, SPI.
Each analog channel with an individual 3 digits digital voltmeter (DVM) and 5 digits frequency counter.
32 built-in measurements and a measurement statistics display.
Built-in 1 channel waveform generator with: sine, square, ramp, exponential rise, noise, DC, arbitrary (available for SA62D10 and SA62D15 only).
USB host and device connectivity, standard.
Supports SCPI remote command control.
Specification
SA62D15 | SA62D10 | SA62C15 | SA62C10 | |||||||
Overview | ||||||||||
Oscilloscope | 2 analog channels | |||||||||
Waveform Generator | Standard | Standard | N/A | N/A | ||||||
Serial Protocol Analysis | UART, LIN, CAN, IIC, SPI | |||||||||
Integrated Digital Voltmeter (DVM) | Standard | |||||||||
External Trigger | 1 | |||||||||
OSCILLOSCOPE | ||||||||||
Input | ||||||||||
Analog Channel | 2 | |||||||||
Input Coupling | AC, DC, GND | |||||||||
Input Impedance/Capacitance | 1MΩ±1% / 20pF±3pF (DC coupling) | |||||||||
Standard Probe Attenuation | 1X, 10X | |||||||||
Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |||||||||
Overvoltage Category | CATII 300V | |||||||||
Maximum Input Voltage | 300VRMS (10×) | |||||||||
Vertical | ||||||||||
Bandwidth | 150MHz | 100MHz | 150MHz | 100MHz | ||||||
Rise Time at BNC (typical) | ≤ 2.4ns | ≤3.5ns | ≤ 2.4ns | ≤ 3.5ns | ||||||
Vertical Resolution | 8-bit resolution, all channels sampled simultaneously | |||||||||
Input Sensitivity Range | 2mV/div to 10V/div | |||||||||
Offset Range | 2mV/div to 200mV/div, ±1V | |||||||||
500mV/div to 10V/div, ±50V | ||||||||||
Bandwidth Limits | 20MHz (selectable) | |||||||||
Invert Signal | Selectable | |||||||||
Low Frequency Response (-3db) | ≤10Hz at BNC | |||||||||
DC Gain Accuracy | ±3% full scale for Normal or Average acquisition mode, 10V/div to 10mV/div; | |||||||||
±4% full scale for Normal or Average acquisition mode, 5mV/div to 2mV/div | ||||||||||
DC Offset Accuracy | ±0.1div ± 2mV ± 1% offset setting | |||||||||
Skew | 2ns | |||||||||
Note: when using a 1X probe, bandwidth reduce to 6MHz | ||||||||||
Horizontal | ||||||||||
Time Base Range | 2ns/div to 100s/div (in 1-2-5 sequence) | |||||||||
Sample Rate and Delay Time Accuracy | ±50ppm | |||||||||
Delta Time Measurement Accuracy (Full Bandwidth) | Single-shot, Normal mode: ± (1 sample interval +100ppm × reading + 0.6ns) | |||||||||
>16 averages: ± (1 sample interval + 100ppm × reading + 0.4ns) | ||||||||||
Sample interval = s/div ÷ 200 | ||||||||||
Acquisition | ||||||||||
Max. Sample Rate | 1GSa/s for half channels | |||||||||
500MSa/s for all channels | ||||||||||
Memory Depth | Max. 8M for half channels | |||||||||
Max. 4M for all channels | ||||||||||
Waveform Interpolation | (sin x)/x | |||||||||
Waveform Update Rate (Typical) | Up to 2,000 waveform per second each channel (Normal acquisition mode, no measurement) | |||||||||
Acquisition Mode | Normal, Peak Detect, Average, HR (High Resolution) | |||||||||
Time Mode | YT (default mode), XY (volts vs. volts display), Roll (displays the waveform moving across the screen from right to left) | |||||||||
Autoset | Finds and displays all active channels and external trigger. And automatically configures the best display of the input signals on these channels. | |||||||||
Single Sequence | Acquisition Mode | Acquisition Stop Time | ||||||||
Normal, Peak Detect | Upon single acquisition on all channels simultaneously | |||||||||
Average | After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128 | |||||||||
Trigger | ||||||||||
Trigger Modes | Auto, Normal, Force (front panel key that forces a trigger) | |||||||||
Trigger Source | CH1, CH2, EXT, AC Line | |||||||||
Trigger Holdoff Range | 20ns to 10s | |||||||||
Trigger Level Range | Internal: ±5 divisions from center screen | |||||||||
External: 3.3V (CMOS) | ||||||||||
Trigger Level Accuracy ( typical) | Internal: 0.2div × volts/div within ± 4 divisions from center screen | |||||||||
Trigger Sensitivity | ±0.2 div | |||||||||
Set Level to 50% (typical) | Operates with input signals ≥50Hz | |||||||||
Trigger Types | Edge, Pulse width, Video, Slope, Over time, Window, Pattern, Interval, Under Amp | |||||||||
Edge | Trigger on a rising, falling, or either edge of any source | |||||||||
Pulse Width | Trigger on a pulse of a selected channel with a time duration that is ‘less than a value,’ ‘greater than a value’ , ‘equal to a value’ or ‘not equal to a value’ | |||||||||
Range: 8ns to 10s | ||||||||||
Video | Trigger on scan lines or individual lines; odd/even or all fields from the composite video; or broadcast standards (PAL and NTSC) | |||||||||
Slope | Trigger on rising or falling slope of the specified time. This trigger mode is applicable to ramp and triangle waveforms. | |||||||||
Time setting range: 8ns to 10s | ||||||||||
Overtime | Trigger when the time interval is greater than the pre-set timeout value. | |||||||||
Window | Trigger when the input signal passes through the high trigger level or the low trigger level. | |||||||||
Pattern | Trigger when a specified pattern on any combination inputs is entered. | |||||||||
Interval | Trigger on rising or falling edge when the time between the edges is within the specified time. You can use this trigger to find missing or mistimed edges, or changes in signal frequency. | |||||||||
Under Amp | Trigger pulses that pass through one trigger level but fail to pass through another trigger level. | |||||||||
UART | Trigger on start frame position, stop frame position, specified data, parity error or communication error. | |||||||||
LIN | Trigger on LIN (Local Interconnect Network) interval filed, sync field, ID field, sync code error, or specified identifier, frame ID and data. | |||||||||
CAN | Trigger on the start of frame bit, remote frame ID, data frame ID, remote or data frame ID, data frame ID and data, error frame, all errors, acknowledge error, and overload frame of the CAN (controller area network) signal. | |||||||||
SPI | Trigger on SPI (Serial Peripheral Interface) data pattern during a specific framing period. | |||||||||
IIC | Trigger at a start/stop bit or specified address and/or data values. Also, trigger on missing acknowledge, restart. | |||||||||
Measurements | ||||||||||
Cursors | Voltage difference between cursors: △V | |||||||||
Time difference between cursors: △T | ||||||||||
Reciprocal of △T in Hertz (1/ΔT) | ||||||||||
Auto Measurements | Voltage: Peak to peak, Average, Maximum, Minimum, Vtop, Vmid, Vbase, Vamp, RMS, R-Overshoot, F-Preshoot, Preiod RMS, Preiod Average, F-Overshoot, R-Preshoot | |||||||||
Time: Frequency, Period, Rise time, Fall Time, + Width, - Width, +Duty, -Duty, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR, LFF | ||||||||||
Waveform Math | ||||||||||
Arithmetic | +, -, x , ÷, FFT | |||||||||
FFT | Window types: Hanning, Hamming, Flattop, Rectangular, Bartlett, Blackman | |||||||||
Sample point: 1024 | ||||||||||
DVM (DIGITAL VOLTMETER) | ||||||||||
Functions | DC RMS, AC RMS, DC | |||||||||
Data Source | CH1, CH2 | |||||||||
Resolution | 3 digits | |||||||||
FREQUENCY COUNTER | ||||||||||
Functions | Frequency | |||||||||
Data Source | CH1, CH2 | |||||||||
Resolution | 5 digits | |||||||||
BUILT-IN ARBITRARY/FUNCTION GENERATOR (only available for SA62D15 and SA62D10) | ||||||||||
WaveGen Out | 1CH Front-panel BNC connector | |||||||||
Waveforms | Sine, square, ramp, exponential rise (EXP), noise, DC, arbitrary. | |||||||||
Modulation | Modulation Type | AM | Modulation Frequency: 1Hz to 75MHz | |||||||
Depth: 0 to 120% | ||||||||||
FM | Modulation Frequency: 1Hz to 75MHz | |||||||||
Deviation: 0.1Hz to carrier frequency | ||||||||||
Carrier Wave | Sine, ramp | |||||||||
Modulation | Sine, square, ramp | |||||||||
Burst | Types | N Cycle, Infinite | ||||||||
Count | 1 to 1024 | |||||||||
Trigger Source | Manual | |||||||||
Frequency | Sine: 0.1Hz to 25MHz | |||||||||
Square: 0.1Hz to 10MHz | ||||||||||
Ramp: 0.1Hz to 1MHz | ||||||||||
Exponential Rise: 0.1Hz to 5MHz | ||||||||||
Arbitrary: 1uHz~75MHz | ||||||||||
Noise Bandwidth | >25MHz | |||||||||
Output Impedance | 50 Ω + 1% high impedance | |||||||||
Amplitude | 5mV to 3.5Vpp (50Ω) | |||||||||
10mV to 7Vpp(High impedance) | ||||||||||
DAC | 2K~200MHz adjustable | |||||||||
Frequency Resolution | 1uHz | |||||||||
Waveform Depth | 4KSa | |||||||||
Vertical Resolution | 12 bit | |||||||||
Frequency Accuracy | 100ppm (frequency <10KHz) | |||||||||
50ppm (frequency >10KHz) | ||||||||||
Amplitude Accuracy | ±3dB | |||||||||
Display | ||||||||||
Display Type | 7 inch TFT (diagonal liquid crystal) | |||||||||
Display Resolution | 800 horizontal by 480 vertical pixels | |||||||||

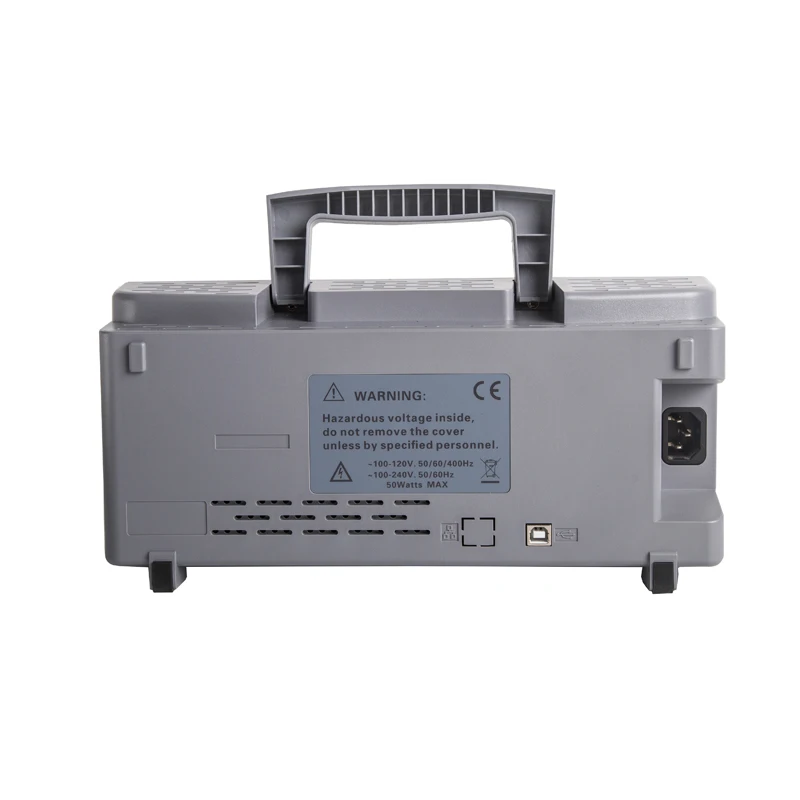

Connectivity | ||||||||||
Standard Ports | USB 2.0 (host and device) | |||||||||
Probe Compensator Output | ||||||||||
Output Voltage ( typical) | About 5V into ≥1MΩ load | |||||||||
Frequency (typical) | 1kHz ± 1% | |||||||||
Power Supply | ||||||||||
Supply Voltage | 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ | |||||||||
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ | ||||||||||
Power Consumption | <15W | |||||||||
Fuse | T2A 250VAC 4x8 | |||||||||
Environmental | ||||||||||
Temperature | Operating: 32℉ to 122℉ (0℃ to 50℃); | |||||||||
Storage: -40℉ to 159.8℉ (-40℃ to +71℃) | ||||||||||
Cooling Method | Convection | |||||||||
Humidity | ’+104℉ or below (+40℃ or below): ≤90% relative humidity; | |||||||||
106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity | ||||||||||
Altitude | Operating: Below 3,000m (10,000 feet) | |||||||||
Mechanical | ||||||||||
Dimension | 318 x 110 x 150mm (L x W x H) | |||||||||
Weight | 1.90KG | |||||||||
Packing & Delivery
Company Profile
SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
Recommend Products
FAQ
1. who are we?
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter
4. why should you buy from us not from other suppliers?
Suin is a high-tech company who has passed the ISO9001:2015 international quality management system certification and get many practical new type innovations, appearance design patent and software copyright. Strong R&D team and professional production line
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
We are based in Hebei, China, start from 1990,sell to Eastern Europe(50.00%),Western Europe(22.00%),South America(12.00%),Southeast Asia(6.00%),South Asia(5.00%),Eastern Asia(3.00%),North America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power quality analyzer,signal generator,frequency counter,DC power supply,millivolt meter
4. why should you buy from us not from other suppliers?
Suin is a high-tech company who has passed the ISO9001:2015 international quality management system certification and get many practical new type innovations, appearance design patent and software copyright. Strong R&D team and professional production line
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,French
Похожие товары
Цифровой осциллограф Tektronix TDS2012B, б/у
US $200.00-$800.00
Мультиметр осциллографа ET828 2 в 1
US $130.00-$200.00
