Product Description

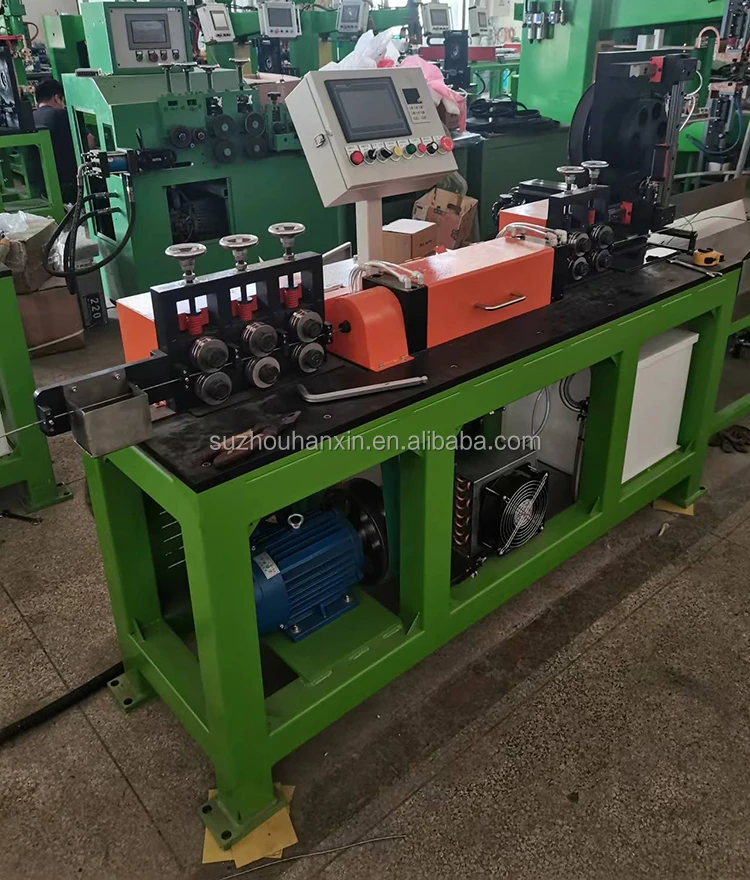

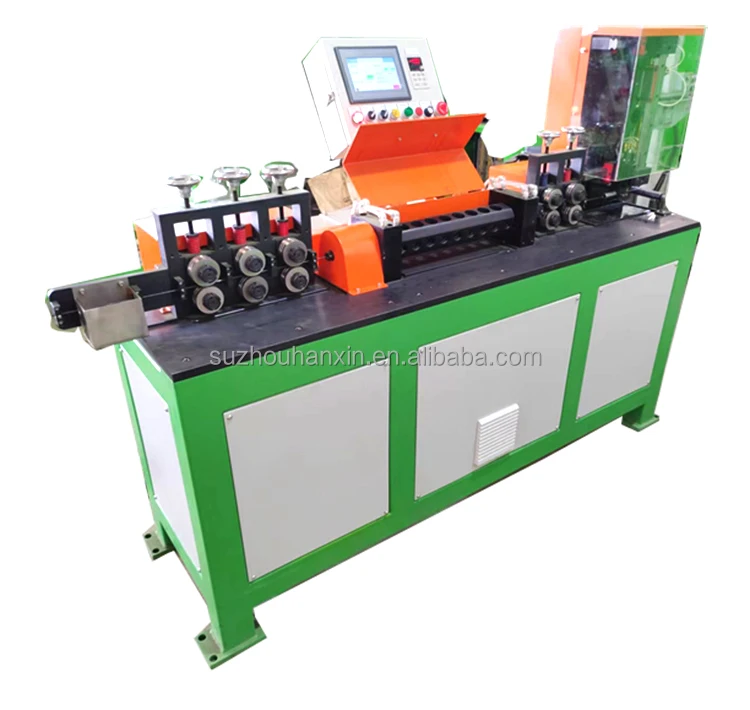

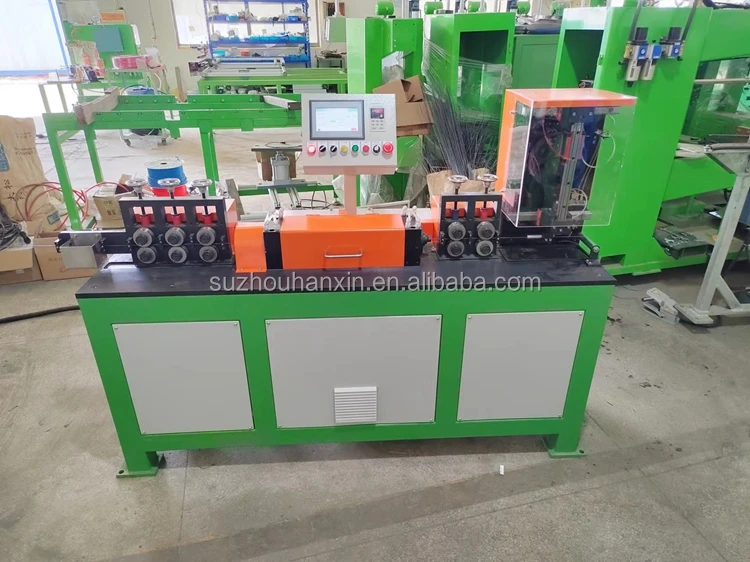

Flying shear steel wire straightening and cutting metal straightening machinery
1, The straightening machine consists of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear gun and a wire frame. The straightening part is composed of a straightening shaft, a straightening pressure block and a bearing housing at both ends to complete the straightening work of the wire. Its power is a motor installed in the lower part of the frame, which drives the straightening shaft to rotate at high speed through triangle tape.
2, The straightening device and the cutting device are driven by their own motors, and they do not interfere with each other. The two sets of wire feeding mechanisms at the front and rear can ensure the smooth feeding of the wires.
ly Used Wire Rod CNC High Speed Straightening and Cutting Machine Made in Suzho
1. Realized the straightening CNC length adjustment, broke through the shortcomings of the traditional gun positioning length, continuous automatic cutting operation;
2. The servo motor is used to cut with speed, which solves the bottleneck of blocking material and unable to improve efficiency when cutting material by traditional straightening machine;
3. Automatic stop protection function is turned on for aligning rotating shaft, and automatic stop protection is provided when wire is broken.
4. It has the characteristics of high efficiency, easy operation and high precision.
| Servo Speed Straightening and Cutting Machine | |
| Model | 2-4 |
| The Diameter range of iron wire (mm) | Φ2-4 |
| The min cutting length(m) | 80-100meter |
| The Speed of Feeding | 10-60m/min |
| The length of tolerance | ±0.5mm |
| Machinable Material | Low carbon steel and Stainless wire |
| Feeding uncoiler(mm) | 1000*300*1500 |
| The power of feeding motor(Kw) | 1.5 |
| The power of straighten motor(Kw) | 2.2 |
| The power of cutting motor(Kw) | 2.6 |
| Brand of Guide Module | TAIWAN |
| Number of feeder wheel sets(Pair) | 4 |
| the number of Adjust blocks(Piece) | 8 |
| Overall Size(mm) | 2670*710*1450 |
| Note: The above parameters for reference, beyond the above specifications need to be customized separately | |
Packaging & Shipping

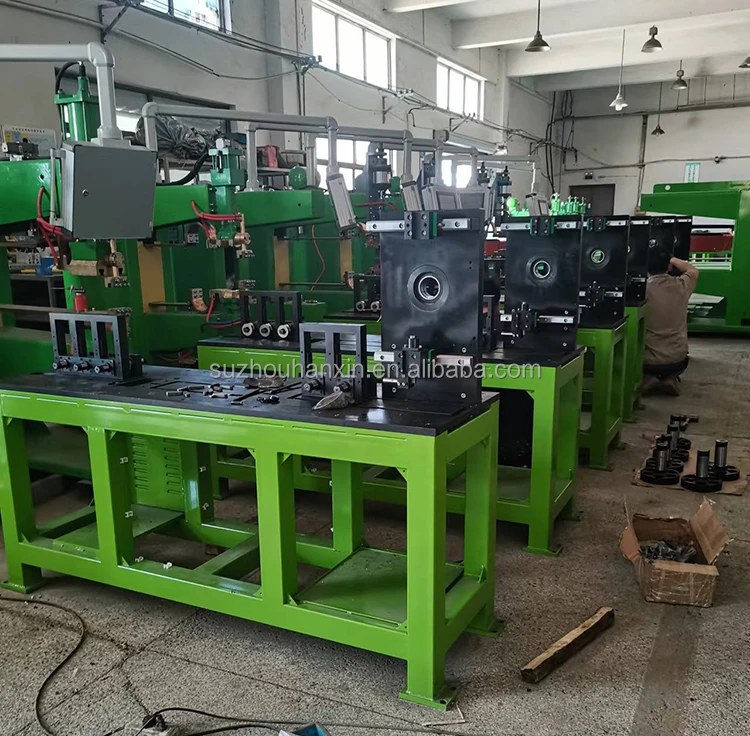

Company Information
FAQ
Q1: Are you a trading company or a manufacturer?
Answer: We have our own factories, which are located in Suzhou.
Q2: What are your payment terms?
Answer: T / T payment, the deposit is 40% of the payment, and 60% is paid
before delivery. Before paying the final payment,
we will provide you with photos of the product and warranty.
Q3: What is the price of your equipment?
Answer: The FOB price is only for reference, the actual price of the equipment should
also be determined according to your welding requirements, and there is a large
amount of discount.
Q4: How long is your delivery time?
Answer: Usually 30 days. If you need emergency services,
please notify us before submitting your order.
Q5: How about your after-sales service and warranty?
Answer: During the warranty period (one year), we will provide spare
parts to you free of charge. And provide technical consultants at any time.
