Сертифицированный CE лесохозяйственный автомат четырехъядерный велосипед прицеп с журавлением для лесной древесины
- Категория: Forestry Machinery >>>
- Поставщик: Henan,Zhangsheng,Environmental,Protection,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2618.86 $* | 2749.49 $* |
| Aug-15-2025 | 2596.5 $* | 2726.4 $* |
| Jul-15-2025 | 2178.57 $* | 2287.99 $* |
| Jun-15-2025 | 2552.20 $* | 2680.90 $* |
| May-15-2025 | 2222.76 $* | 2333.96 $* |
| Apr-15-2025 | 2508.24 $* | 2633.55 $* |
| Mar-15-2025 | 2486.7 $* | 2610.82 $* |
| Feb-15-2025 | 2464.79 $* | 2587.43 $* |
| Jan-15-2025 | 2442.10 $* | 2564.65 $* |
Характеристики

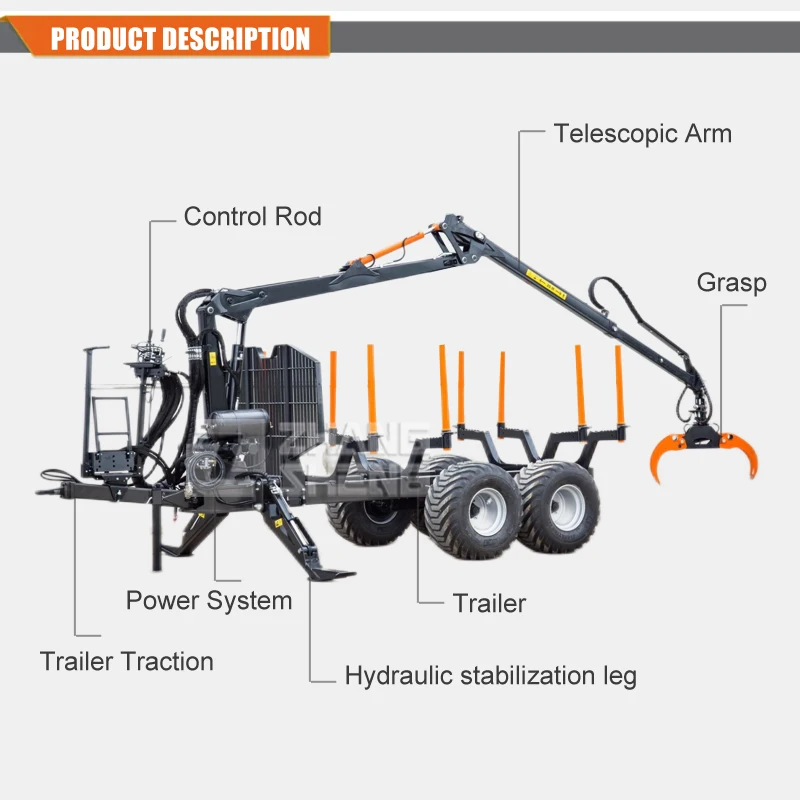

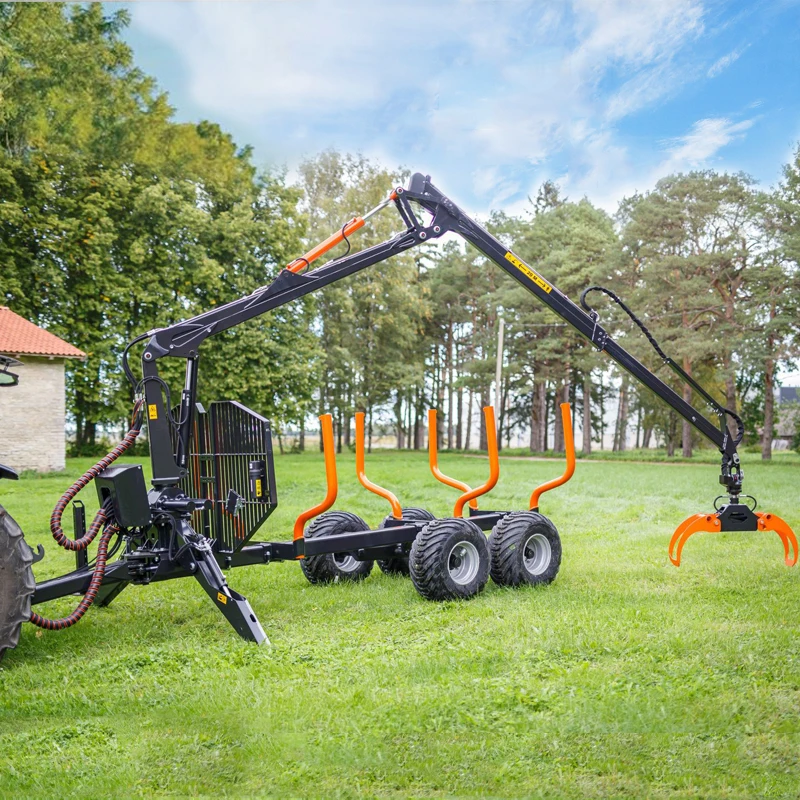

Attached to your car or tractor, this trailer is compact and allows you to grab logs and transport them longitudinally or laterally. The timber grapple can be equipped with a 360° hydraulic rotator to load logs into the trailer in any direction. It can also work comfortably in tight areas. Simple hydraulic operating system and anti-skid and wear-resistant tires for SUVs. Ideal for the needs of forest logging professionals and forest owners as well as farmers. 4 major manufacturing advantages, buy the best Chinese-made log trailer.
Light base | |||||||
RM/TC420L | RM/TC500L | RM/TC550L | RM/TC600L | ||||
4.2m | 5m | 5.5m | 6m/a section telescopic arm | ||||
Max. Reach (m) | 4.2 | 5 | 5.5 | 6 | |||
Lifting capacity kgs(4m) | 390 | 580 | 680 | 750 | |||
Lifting capacity at full reach (Kg) | 370 | 500 | 520 | 500 | |||
Slewing torque KN.M | 11 | 11 | 11 | 11 | |||
Standard grabbing | TG20 （Max. open area 1260） | TG20 （最大张口1260） | TG20（最大张口1260） | TG20（最大张口1260） | |||
Slewing angle | 380° | 380° | 380° | 380° | |||
No. of swing cylinder pcs | 2 | 4 | 4 | 4 | |||
Working pressure (Mpa) | 20 | 20 | 20 | 20 | |||
Total weight (excluding legs) (Kg) | 560 | 720 | 740 | 760 | |||
Grabbing swinging double brakes | Yes | ||||||
Recommend hydraulic oil flow (L/min) | 20-30 | 30-45 | 40-50 | 40-50 | |||
Standard rotor motor | GR-30F(3T Flange) | GR-30F(3T法兰式) | GR-30F(3T法兰式) | GR-30F(3T法兰式) | |||
Log trailer | ||||||||
Model | TR-20 | TR-50 | TR-80 | TR-100 | ||||
loading capacity (t) | 2 | 5 | 8 | 10 | ||||
Matching tractor power (HP) | 20-50 | 50-60 | 70-80 | 80-100 | ||||
Total Weight (Kg) | 400 | 1200 | 1750 | 1980 | ||||
Loading section (㎡) | 0.8 | 1.6 | 2.3 | 2.6 | ||||
Total length (m) | 4 | 5.1 | 6 | 6 | ||||
Trailer loading length (m) | 2.8 | 3.1 | 3.8 | 4.3 | ||||
Total width (m) | 1.4 | 1.8 | 2.2 | 2.2 | ||||
NO. of tires | 4 | 4 | 4 | 4 | ||||
Tire specifications | 26*12-12（300/65-12） | 10/75-15.3 | 400/60-15.5 | 400/60-15.5 | ||||
The trailer has been calibrated so that its own weight is proportional to the size of the load compartment. Durable, flexible and stable even on difficult terrain. The same is true when loading a trailer.
Fully hydraulic stabilizer legs that extend out of a wide base. Even in difficult terrain, it can make the balancing better and safer to use.
Our trailers are designed with the center of gravity as low as possible, in order to ensure that the operation of the trailer is balanced and to reduce swaying while driving. Even if it is empty. The low center of gravity is achieved through an optimally designed and calibrated load compartment and by keeping the crane's anchor point as low as possible and close to the trailer frame. This is especially important when the log trailer is equipped with a crane.

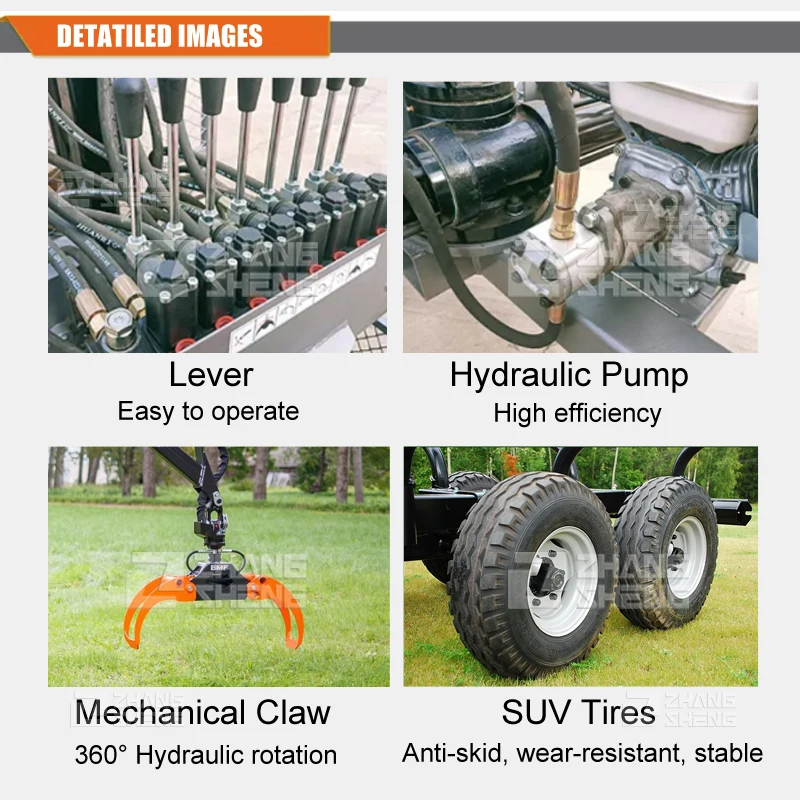

270° Boom swing range and 360° Hydraulic rotation. You can pick up logs in any position and orient them exactly where you want.
We have Oil palm FFB gripper, mechanical swing arm is universal,Just change the gripper to meet your different material needs.
Packing & Delivery
Packed in high quality metal frame, with board on the bottom for support and extra plastic wrap for protection.

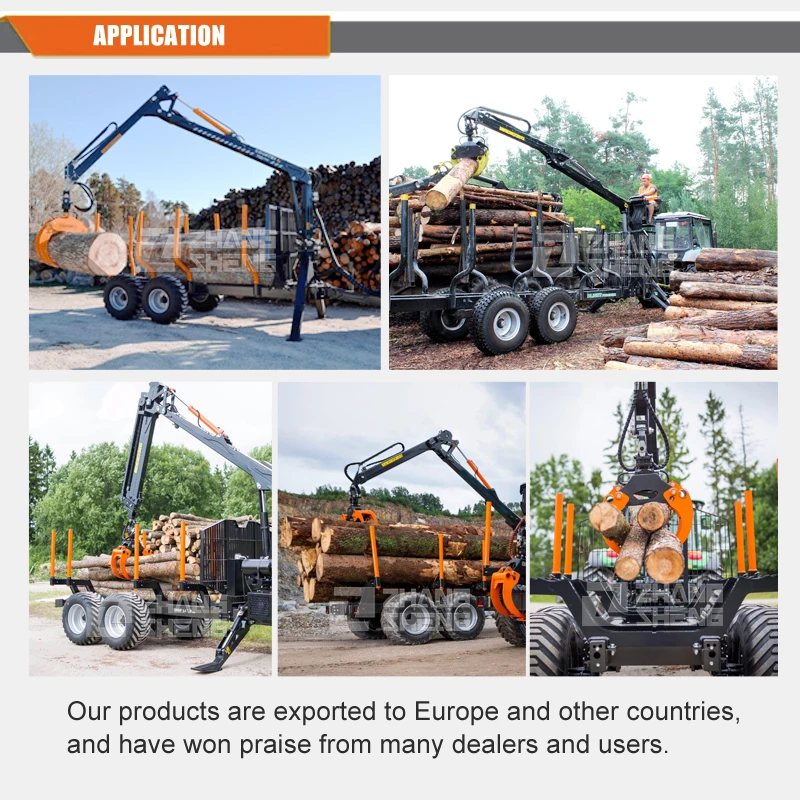

Case Show
Our products are exported to Europe and other countries, and have won praise from many dealers and users.
Workshop production
3 sets of high-power laser cutting machines can meet the material preparation work of 1,000 sets per month.
5 imported CNC lathes, with fast processing speed and high precision of workpieces.Keep the machine stable under high-speed operation.
Five dynamic balancing machines ensure that the rotors of each crusher are accurately calibrated.Has an assembly workshop of 5,000 square meters
Meet the monthly production task of 1,000 units.
Company Certificate
As a professional OEM and exporter, Zhangsheng has exported to more than 45 countries. We have the entire series of wood processing machines. All products have CE certification of SGS and TUV-Rheinland. The total number of log grapple trailer exported to Europe and North America each year is more than 1000 units.
FAQ
1. Are you a factory or a trading company?
We have our own factory, mainly producing forestry machinery and waste wood recycling equipment. "market our own products" reduces the cost of intermediate links. OEM available.
2. Can i buy a sample?
Yes, welcome to order sample. However, you need to pay for the sample and we’ll return it to you after receiving your batch order in the future.
3. How to control quality and guarantee delivery?
We have passed the ISO9001, ensure high quality and efficient management. Products are 100% tested before delivery. You can place an order on Alibaba, and the platform will provide you with supervision and guarantee. If the seller does not ship in time, customer can apply for a refund through the Ali platform to avoid losses.
4.How to warranty products?
The warranty period of the machine is one year. During this period, we will send you the replacement of the damaged parts (non -artificial). After the warranty period expires, it will enter the paid service period. We only charges costs and transportation fees. We also supports training in English, Russian, and Spanish.
5. What are the benefits of becoming a dealer?
We have our own factory, mainly producing forestry machinery and waste wood recycling equipment. "market our own products" reduces the cost of intermediate links. OEM available.
2. Can i buy a sample?
Yes, welcome to order sample. However, you need to pay for the sample and we’ll return it to you after receiving your batch order in the future.
3. How to control quality and guarantee delivery?
We have passed the ISO9001, ensure high quality and efficient management. Products are 100% tested before delivery. You can place an order on Alibaba, and the platform will provide you with supervision and guarantee. If the seller does not ship in time, customer can apply for a refund through the Ali platform to avoid losses.
4.How to warranty products?
The warranty period of the machine is one year. During this period, we will send you the replacement of the damaged parts (non -artificial). After the warranty period expires, it will enter the paid service period. We only charges costs and transportation fees. We also supports training in English, Russian, and Spanish.
5. What are the benefits of becoming a dealer?
If you have strength and willingness to become our dealer, we will not only adjust the price. Secondly, we can provide you with customized machines based on the needs of the buyer's market. More importantly, we will send professional engineers to guide you on the spot to make you the person who
