Характеристики

Introduction

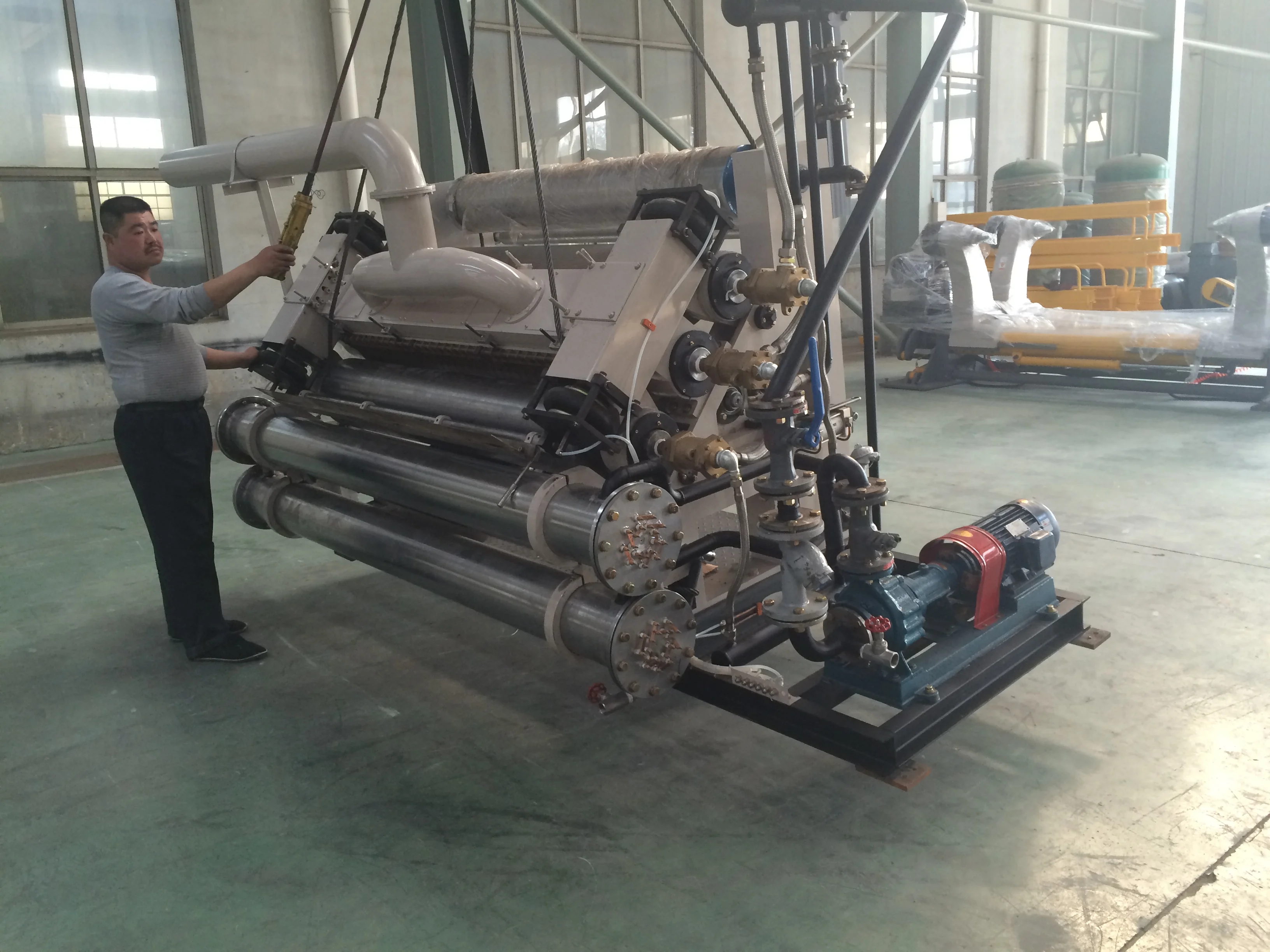

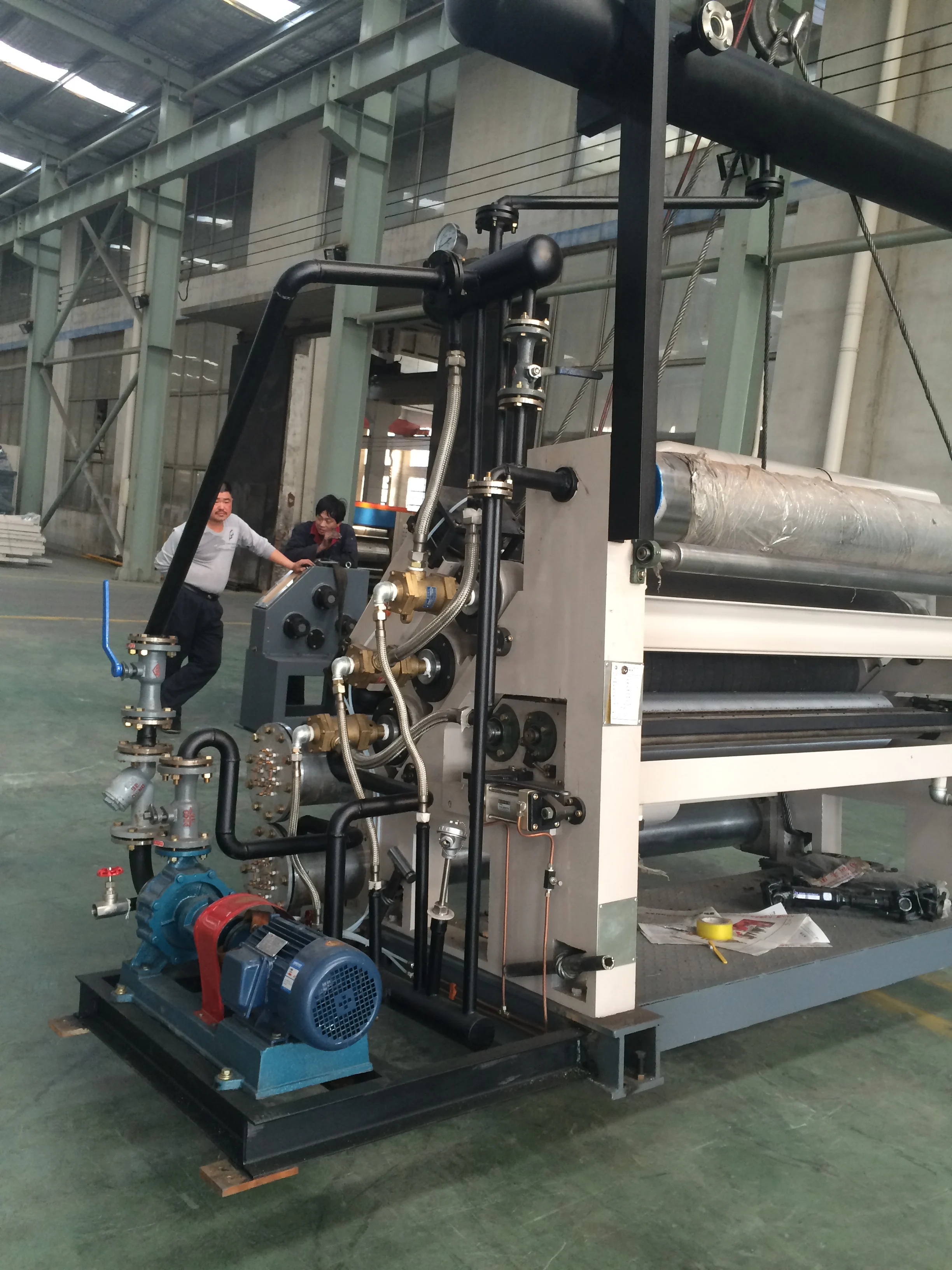

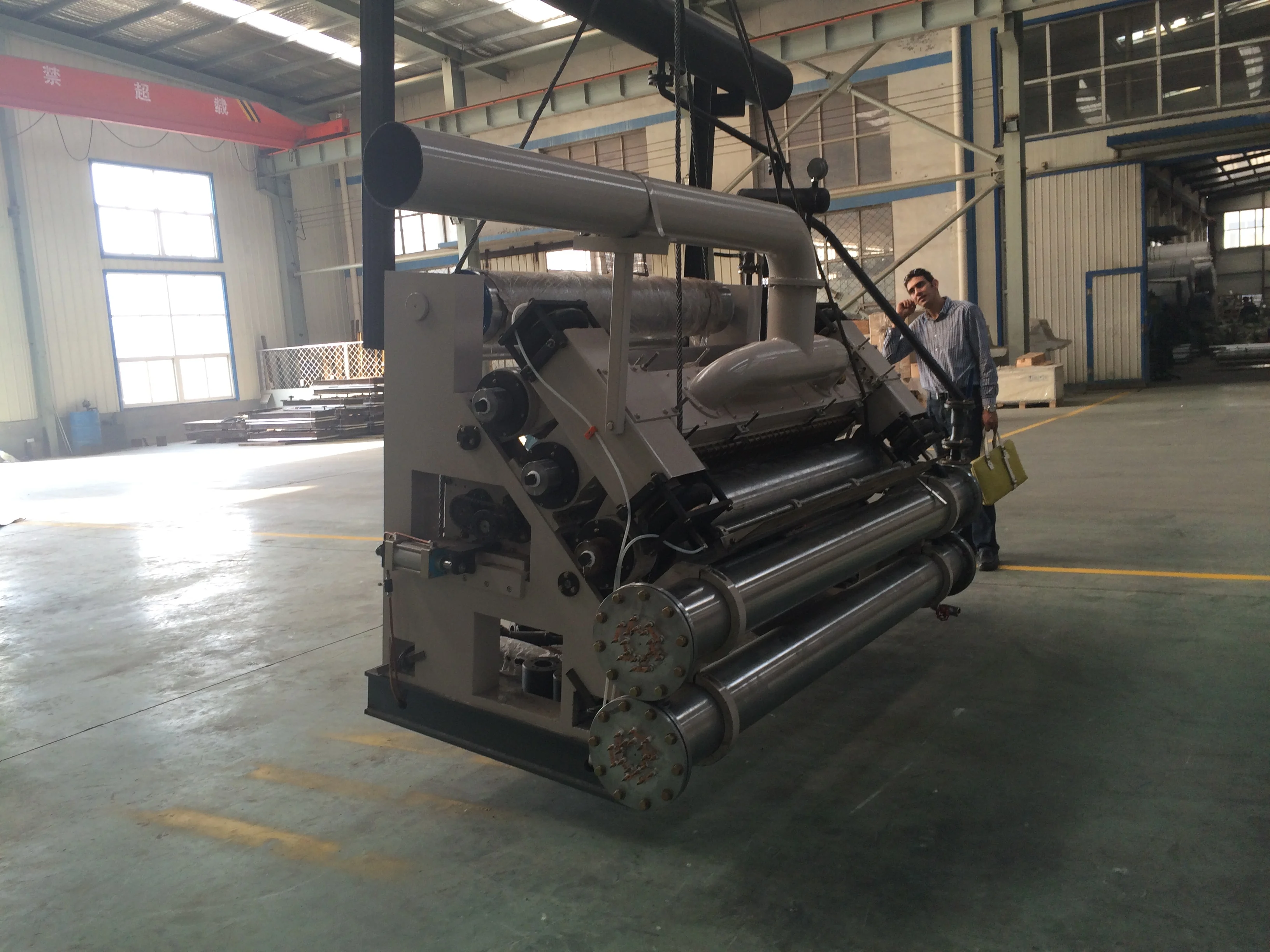

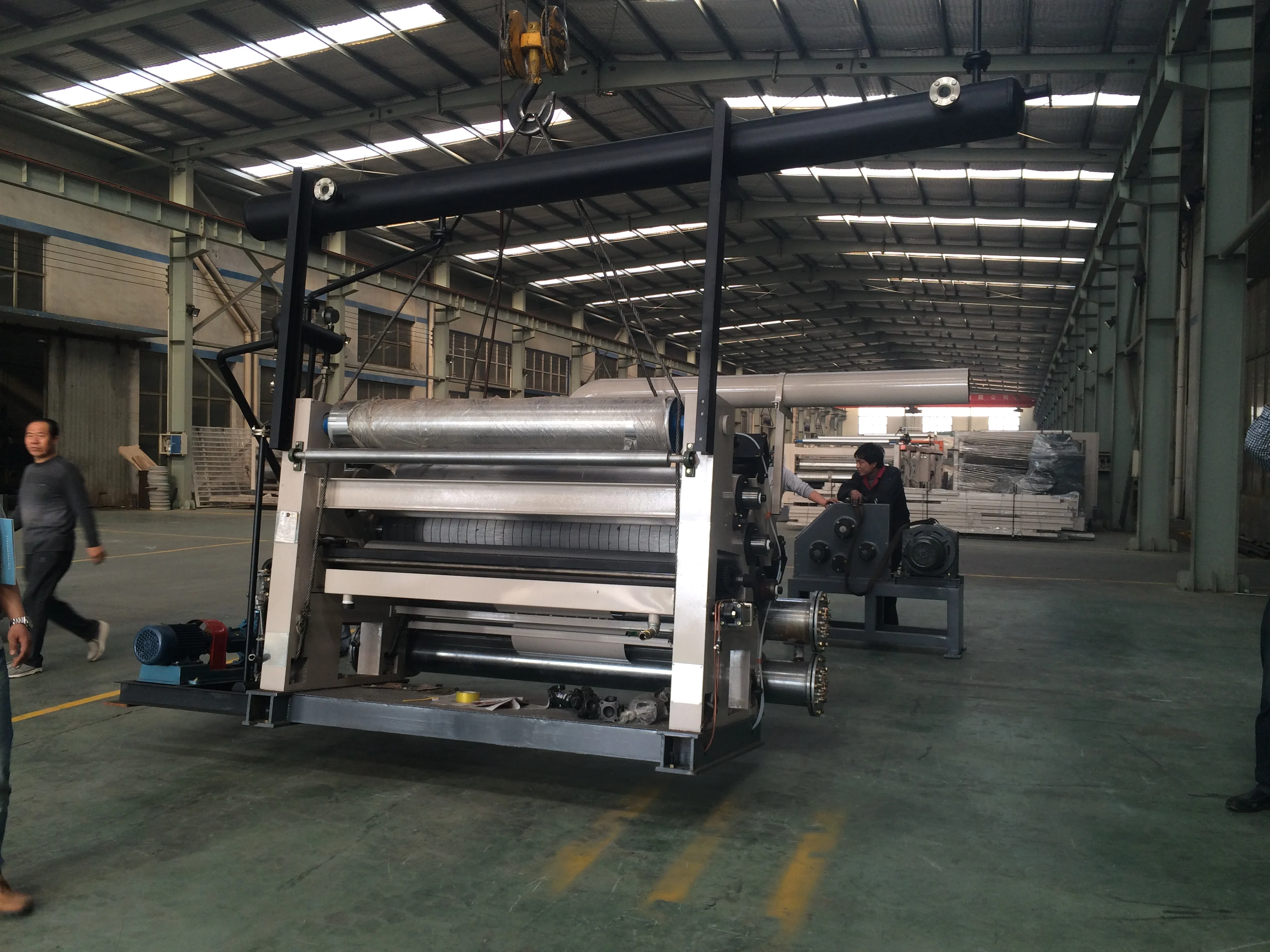

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

Product Paramenters

Working Width	1400-2500mm
Heating method	Oil heating & Electrical heating
Design speed	80m/min
Economical speed	40-50 m/min
Compress-air pressure	0.4-0.9MPa
Flute type	Standard flute	UV Flute
		Standard spec.	A,B,C,E,F
		For other type and model, we can produce as customer’s requirement.
Corrugated roll diameter	280mm
Wall Thickness	130mm
Type	Vacuum Absorb
Roller material	48CrMo alloy, Heat treated

Features

★Using suction hood structure, with a strong high pressure blower, suction with a silencer. Gas supply and electrical control centralized in the same operation panel, not less than 1.5 meters from the hosts, operating side cover closed.

★Cast iron wallboard, siding thickness of 130mm. Universal Joints.

★Corrugated roller material adopt 48CrMo alloy steel, after quenching, intermediate frequency quenching, surface polishing, corrugated main roller diameter¢ 280mm，surface hardness more than HRC58 degrees,airbag loading. The key parts of the tile and pressure roller bearings high temperature bearings Wafangdian production.

★Pressure roller¢ 284mm, Surface grinding and chrome plated; airbag load, the material is medium carbon steel 45, quenched and tempered.

★Pneumatic control for glue, back glue，glue roller diameter ￠215m. Engraved polishing surface after pit style textured machined hard chrome plating process, scraping the roller surface after polishing hard chrome plating.

★Corrugated roller, pressure roller materials provided by the Central Plains Steel, corrugating unilateral 0.15mm high, the pressure roller unilateral 0.075mm high.

★preheat roller with Day steel production seamless Steel Tube¢ 320mm.

★Using four sets of electric heating pipe heating oil, heating fast, no furnace, automatic temperature control and two groups control.

★Conducting oil powerful closed-loop circulation system pressure is low, no leakage, heat recycling, less heat loss.

★Installed in the special structure of the heat roller churning ring, roller heat evenly, corrugated good shape.

★Conducting oil high thermally conductive, carrying high-calorie, simple production process, low investment, for small carton production.

Application

Exhibition

Certifications

Shipment & Transportation

Company Profile

ROYAL PACKING Focus on:

1. Turn-key Project for corrugated carton factory and paper mill factory

2. paper and cardboard production line, equipment and spare parts

3. corrugated paperboard production line, equipment and spare parts

4. A4 paper production line

5. Raw Materials of carton factory

Our strongest machines includes: 3-layer, 5-layer corrugated production line, folder gluer line, FFG, single facer, flexo printer, creasing and diecutting machine, stitching machine, laminating machine, slitter and rewinder, paperboard sheeter, diecutting machine
