NCF-200 НЗ сервопривода фидер и UL-200A размывательная расправительная машина 2 в 1 линия
- Категория: Metal Straightening Machinery >>>
- Поставщик: Zhejiang,Jinaolan,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 3332.14 $* | 3499.69 $* |
| Aug-20-2025 | 3304.57 $* | 3469.13 $* |
| Jul-20-2025 | 2772.31 $* | 2911.75 $* |
| Jun-20-2025 | 3248.9 $* | 3410.82 $* |
| May-20-2025 | 2828.57 $* | 2969.3 $* |
| Apr-20-2025 | 3192.29 $* | 3352.52 $* |
| Mar-20-2025 | 3164.68 $* | 3322.28 $* |
| Feb-20-2025 | 3136.99 $* | 3293.52 $* |
| Jan-20-2025 | 3108.28 $* | 3263.39 $* |
Характеристики
KINGLAN BRAND FEEDER MACHINE
WHOLE LINE SOLUTION - FACTORY IDRECT SALE

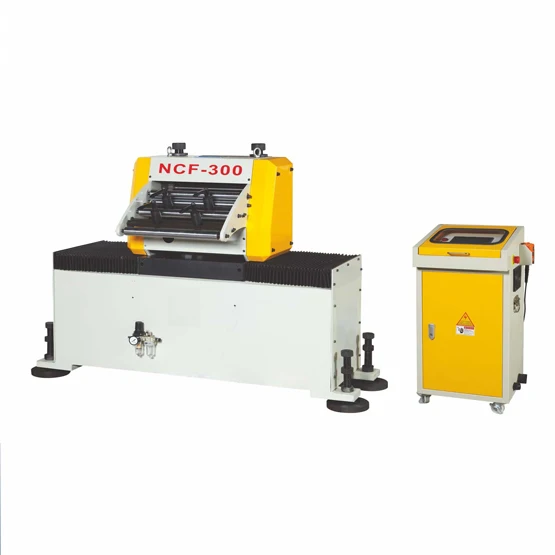

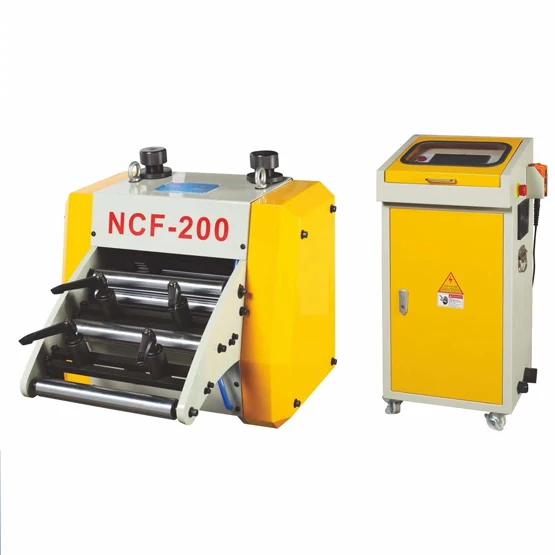

NC Servo Feeder
NC Servo Roll feeder Machine
NC Servo Zigzag feeder Machine
2 in 1 uncoiler straightener machine
3 in 1 uncoiler straightener machine
2 in 1 feeder

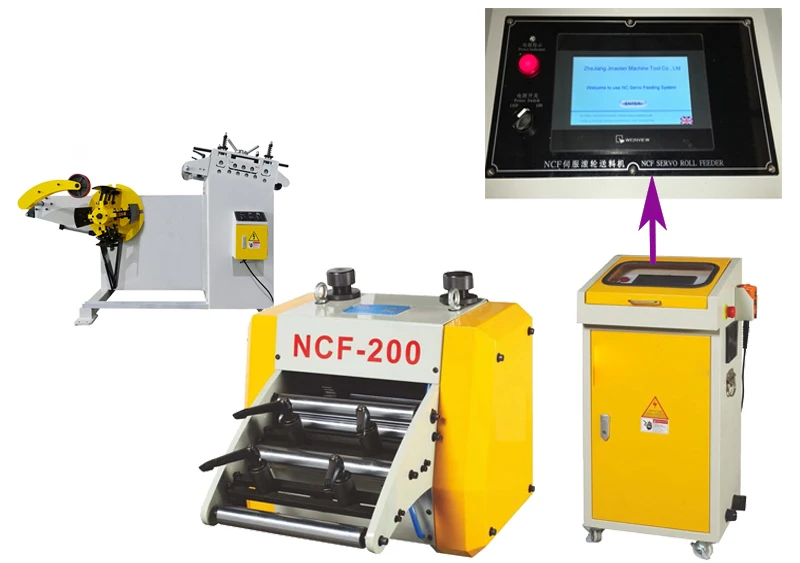

2-in-1 uncoiler and straightener for power presses
Machine main features
1.Roller leveling machine with feeder places on the same stage can reduce feeding and overall demand for the usual error to the accuracy easy for installation and does not occupy space.
2.it used of solid roller bearing steel,heat treatment.hard chrome plating and then grind,good hardness and abrasive and long lifetime
3.Maintenance and management are simplified,better safty and lower usage cost
4.control box electronic components are made in Japan,fewer failures and longer lifetime
5.the machine can work with frequency converter with better results
6.the machine can work with pressing device ,has better effect.
2.it used of solid roller bearing steel,heat treatment.hard chrome plating and then grind,good hardness and abrasive and long lifetime
3.Maintenance and management are simplified,better safty and lower usage cost
4.control box electronic components are made in Japan,fewer failures and longer lifetime
5.the machine can work with frequency converter with better results
6.the machine can work with pressing device ,has better effect.
Main Specifications :
![A.jpg]()
![Feeder 5.jpg]()
Straightener Feeder
Function instruction: use unbending principle to release material bending stress to straighten plate, then feed into press
equipment according to set length and speed.
Driven method: AC servo motor
Straightening-feeding roller combination: straightening roller; assistant roller; feeding roller.
Straightening measure display method: dial display.
Straightning roller release method: pneumatic release.
Straightening measure adjusting method: manually by hand wheel (Electrically Adjust for optional)
Straightening measure adjusting method: electrically adjust (for optional), no need rotate the hand wheel, more precise, with
date storing function to store each group of material of straightening adjustment date which can save time for future using,
convenient for operation.
Roller driven method: gear driving, all gears adopt tempering, carburization, high frequency quenching, precise grinding gear
IT6 level precise standard.
Straightening-feeding rollers flip up system (for optional): upper straightening-feeding rollers can be lifted by hydraulic
cylinder from one side, lifting angle can reach up to 30 degree. Through operating touch screen HMI or button of hand operating
box to open straightening-feeding rollers, by this way, easy for clear rollers, to ensure material surface flatness and
cleanliness. Adopts double oil cylinder to control.

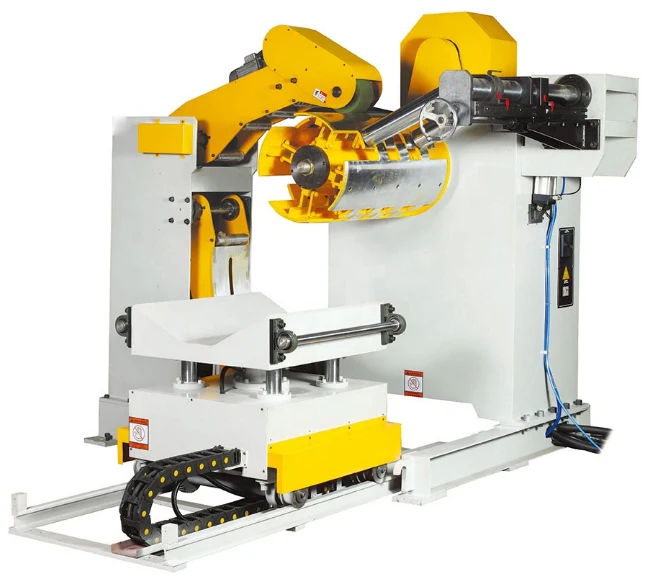

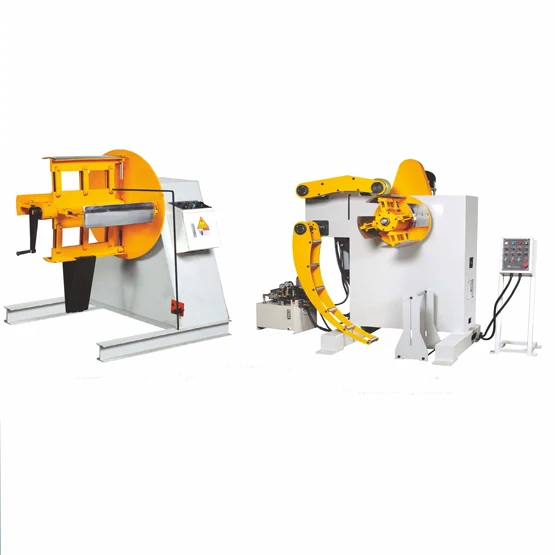

3 in 1 feeder
3 IN 1 DECOILER STRAIGHTENER FEEDER BLANKING LINE PUNCH PRESS FEEDER
