Бренд Yaweh фронтальный погрузчик мини-погрузчик тонн колесный

Цена:14 000,00 $ - 16 000,00 $*

Количество:

About Our Company

Details Images

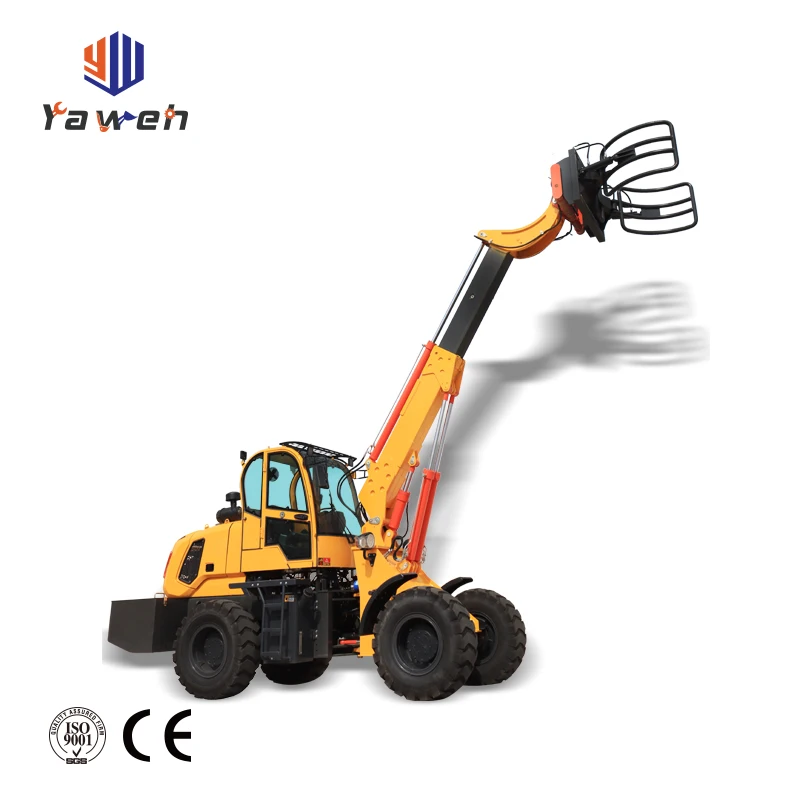

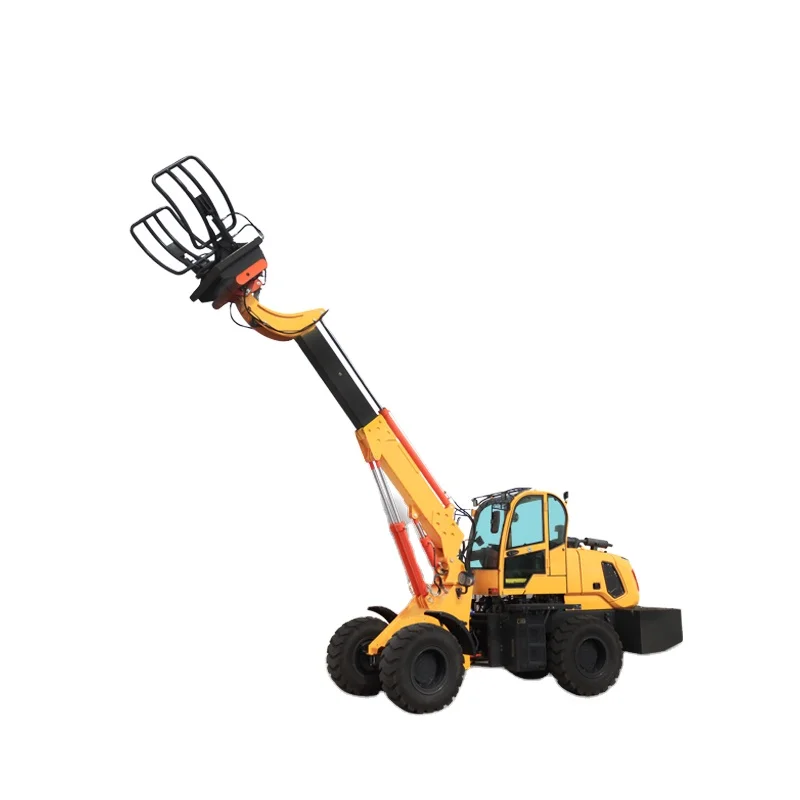

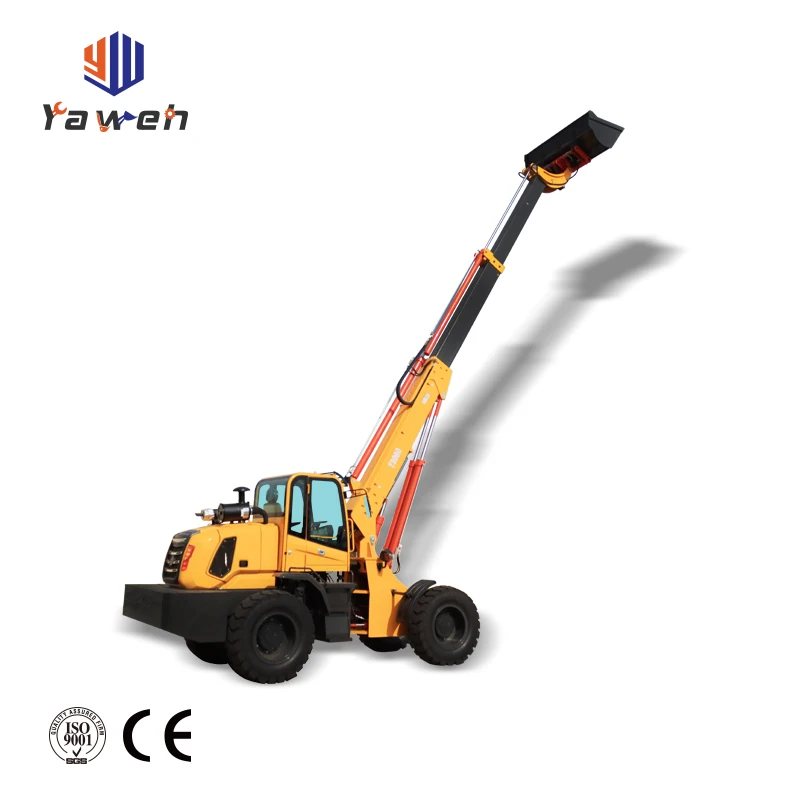

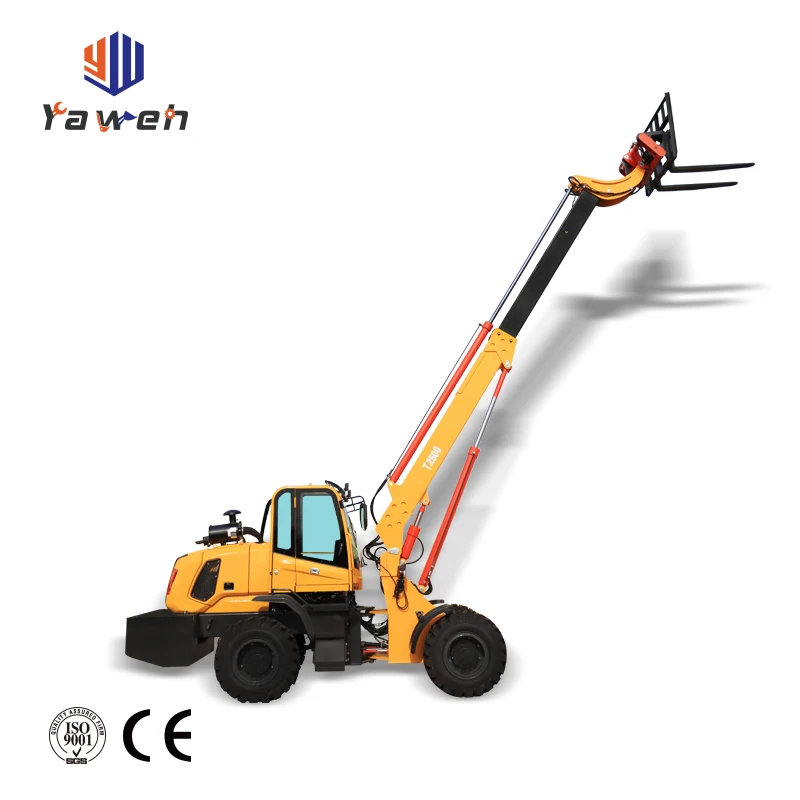

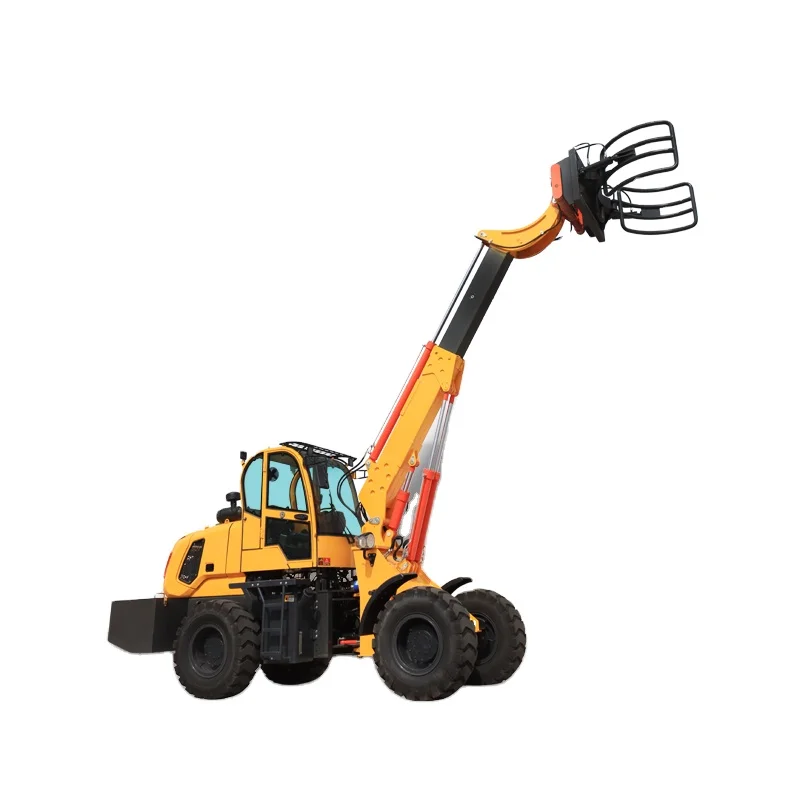

Yaweh Heavy Industries Telescopic boom loader parameters
Overall dimensions					Engine
1	Dimension（mm)	*875020002800*	1	Model	Yunnei 4102 supercharged
2	Wheelbase（mm）	2650	2	Form	Turbocharged
3	Wheelbase（mm)	1560	3	Power Rating（KW)	76
4	Minimum Ground Clearance（mm)	320	4	Rated speed（r/min)	2400
Performance Parameters					5	Cylinder bore	102
1	System pressure（Mpa)	16	Drivetrain
2	Weight of the whole machine（kg)	6600	1	Transmission	Powershift
3	Maximum speed（Km/h)	35	2	Number of gears	Front 2 and back 2
4	Maximum climbing capacity（°）	35	3	Torque converter model	280 split high and low speed
5	Minimum turning radius（mm)	5330	Axle
Loader telescopic boom parameters					1	model	Large wheel side bridge
1	Maximum lifting height（mm)	8500	Tires
2	Maximum unloading height（mm)	6800	1	Specification	16/70-20
3	Maximum unloading distance（mm)	1200	2	Braking form	Brake disc brake
4	Maximum load capacity（kg）	2500	3	Parking brake	Manual brake
5	Maximum rated load(kg)	800	Other parameters
6	Bucket width（mm)	2000	1	Drive form	Four-wheel drive
Steering System					2	Variable speed form	Hydraulic variable speed
1	Form	Fully hydraulic steering	3	Operating System	Electromagnetic hydraulic pilot system
2	Steering angle（°）	38
