Пневматический дозатор клея прецизионный игольчатый Дозирующий клапан
- Категория: Other Machinery & Industrial Equipment >>>
- Поставщик: Anosin,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 595.59 $* | 625.22 $* |
| Aug-18-2025 | 590.66 $* | 620.22 $* |
| Jul-18-2025 | 495.3 $* | 520.51 $* |
| Jun-18-2025 | 580.88 $* | 609.14 $* |
| May-18-2025 | 505.7 $* | 530.39 $* |
| Apr-18-2025 | 570.37 $* | 599.52 $* |
| Mar-18-2025 | 565.91 $* | 593.11 $* |
| Feb-18-2025 | 560.69 $* | 588.51 $* |
| Jan-18-2025 | 555.19 $* | 583.68 $* |
Характеристики

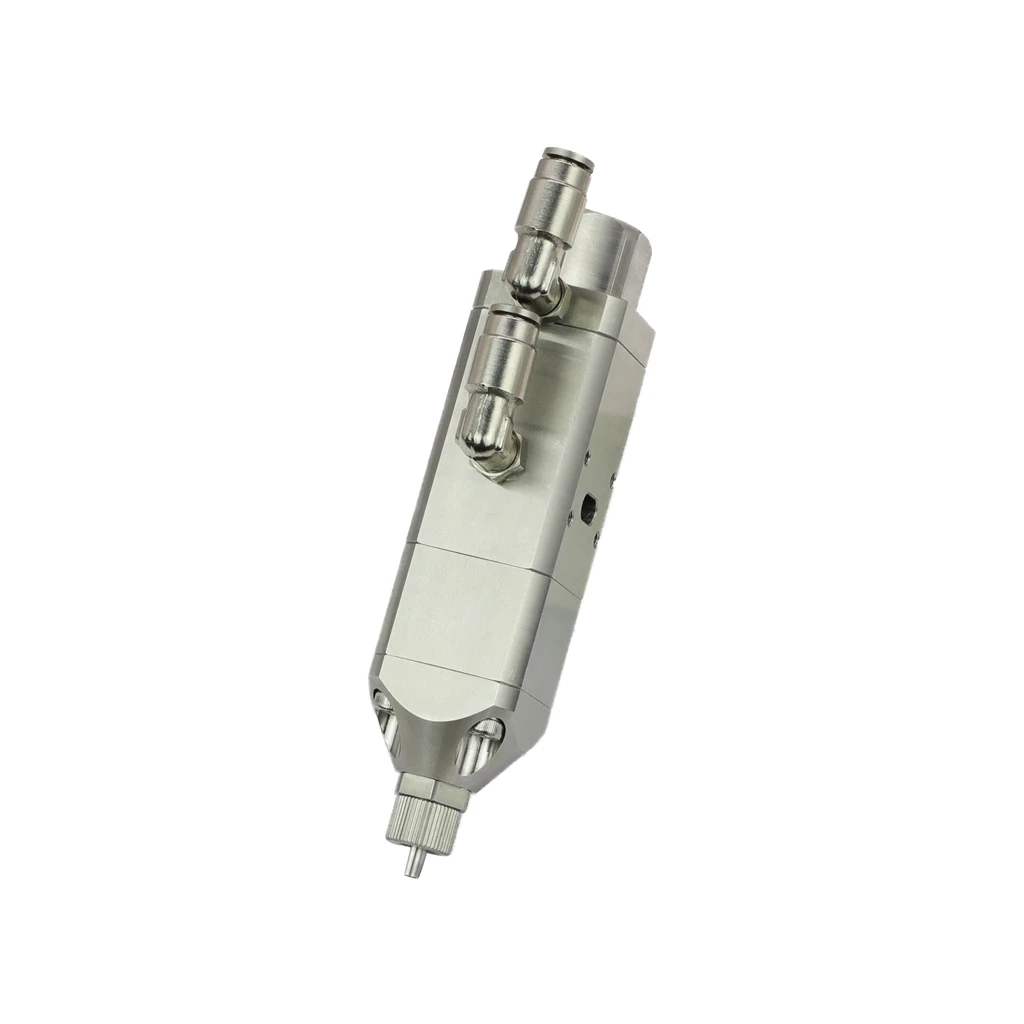

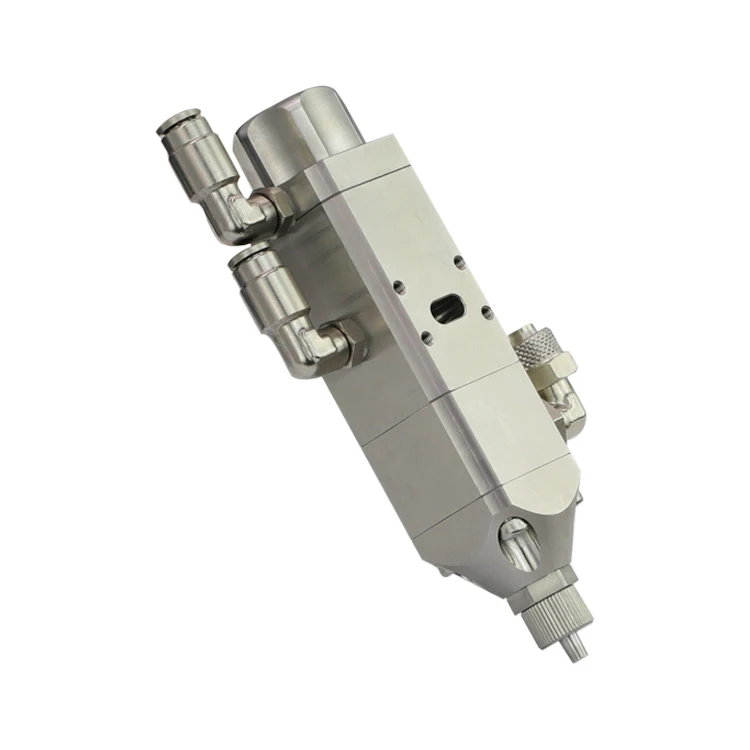

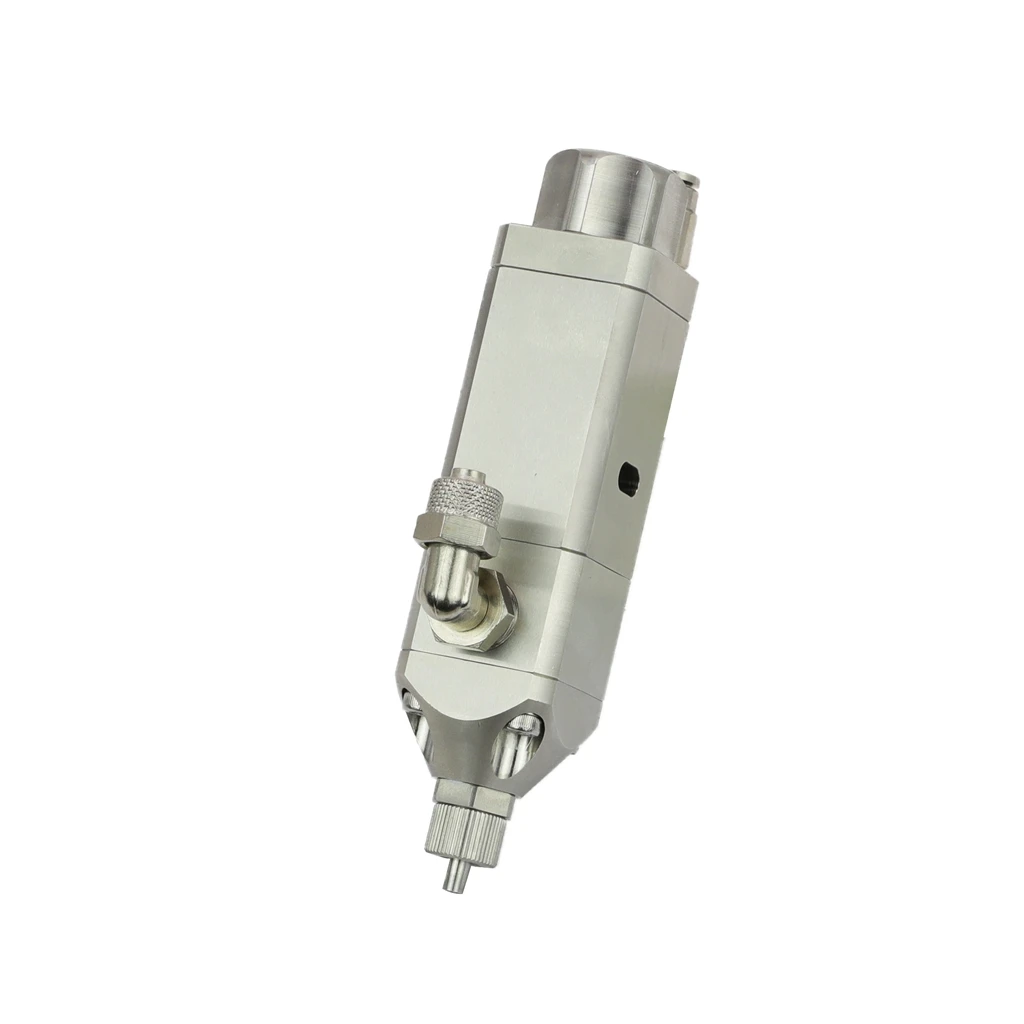

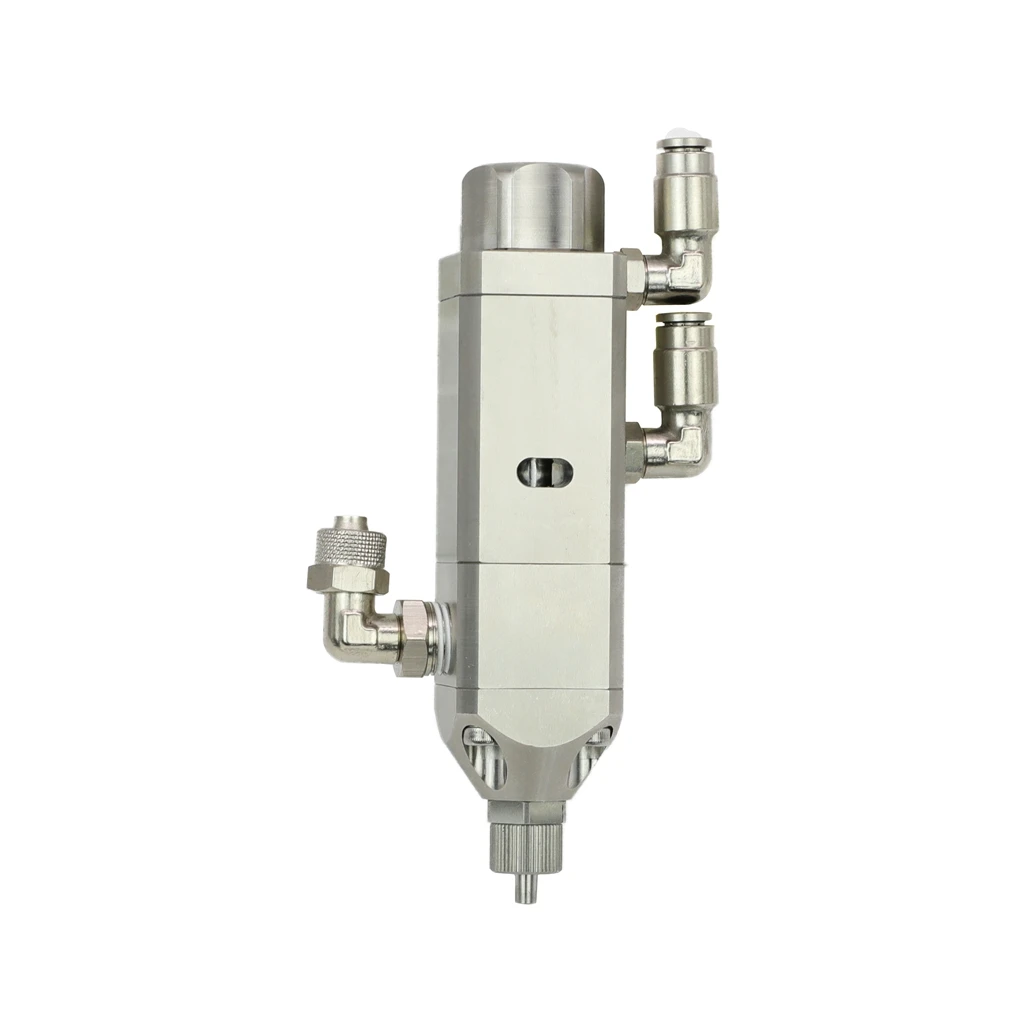

AV-350 is a needle valve suitable for medium and high viscosity glue. It has a unique hard alloy steel valve core design, which can withstand high pressure fluid pressure and is resistant to wear by fluids with fillers. With stroke adjustment function, it can avoid excessive glue output, and adjust the suction amount to ensure that the line width and glue dot size are always consistent.The main body and cavity are made of stainless steel, which are corrosion resistant and wear resistant.
No. | Item | Data |
1 | Dimensions(mm) | 134.5 x 30 x 30 |
2 | Weight(g) | 720 |
3 | Main material | Stainless steel |
4 | Firing pin material | Tungsten steel |
5 | Gas sealing ring material | PU |
6 | Fluid sealing ring material | UPE |
7 | Thread of feed joint | Rc 1/4 |
8 | Drive air source coupling thread | M5 |
9 | Min. draving pressure | 0.4MPa |
10 | Max. fluid pressure | 20MPa |
11 | Working frequency | > 7HZ |

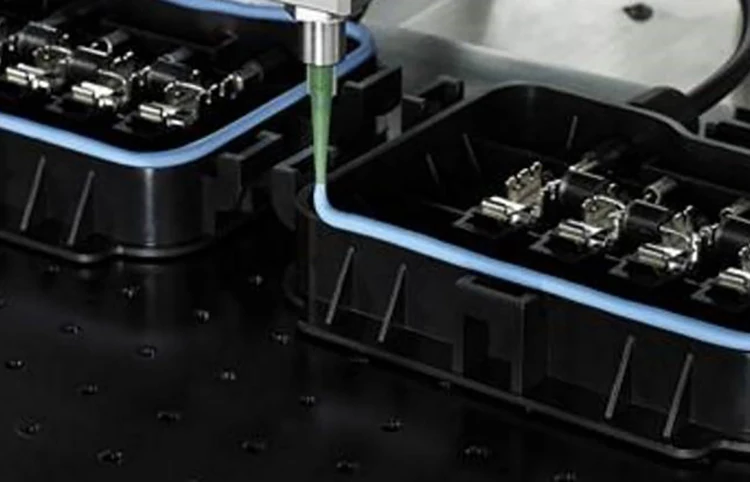

Typical application
1.Thermal Grease
2.RTV Silicone3.Grease
4.Sealant
