Высокоточная машина для резки

Категория: Paper Processing Machinery >>>
Поставщик: Ruian,Loyal,Machinery,Co.,Ltd.

Цена:49 000,00 $ - 50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	58310.61 $*	61226.93 $*
Aug-17-2025	57820.83 $*	60711.95 $*
Jul-17-2025	48510.38 $*	50936.43 $*
Jun-17-2025	56840.19 $*	59682.56 $*
May-17-2025	49490.16 $*	51965.43 $*
Apr-17-2025	55860.55 $*	58653.95 $*
Mar-17-2025	55370.54 $*	58139.12 $*
Feb-17-2025	54880.22 $*	57624.70 $*
Jan-17-2025	54390.65 $*	57110.15 $*

Характеристики

Products Description

Application:

This type high speed slitting machine is the ideal processing machine for high demand of speed and precision such as jumbo sticker before label printing, electric screen protective film, paper cardboard and so on.

Advantage:

This roller slitting machine is PLC control, automatic tension control, 2 servo motors drive.300m/min high speed slitting, duplex slip shaft rewinding make rewinding moothly. Automatic loading is ideal for jumbo roll. Pausource ultrasonic rectification be used in web guide. Slitting faster and more accurately.

Technical Parameter

Model	HCH2-650	HCH2-1300	HCH2-1700
Slitting effective width	30-650mm	30-1300mm	30-1700mm
Slitting speed	300m/min	300m/min	300m/min
Unwinding roll diameter	φ1000mm	φ1000mm	φ1000mm
Rewinding roll diameter	2*φ600mm (option:800mm)	2*φ600mm (option:800mm)	2*φ600mm (option:800mm)
Main motor power	4kw	5.5kw	7.5kw
Rewinding motor power	5.5kw	7.5kw	11kw
Total power	11kw	13kw	21kw
Precision	±0.03mm	±0.03mm	±0.03mm
Machine weight	2000kg	3500kg	4000kg
Machine overall dimension	270020001580mm	270026501580mm	280031501600mm

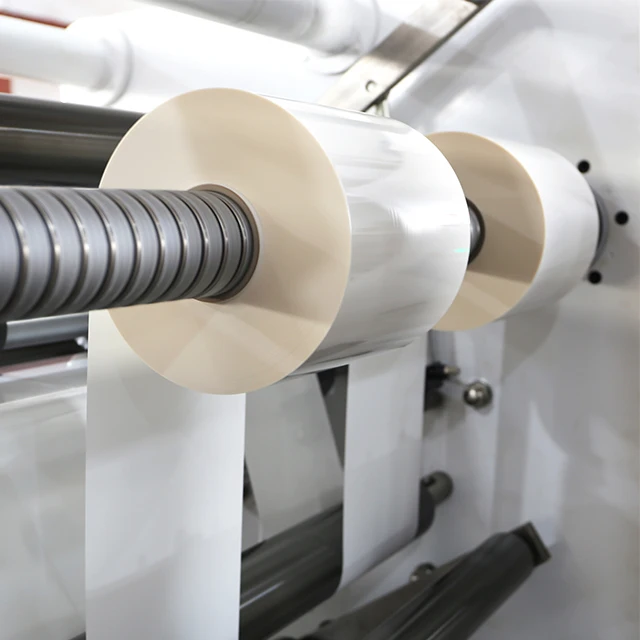

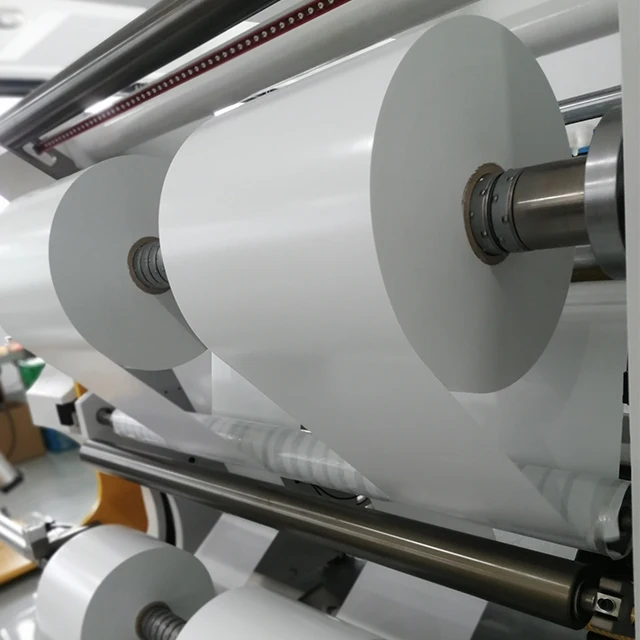

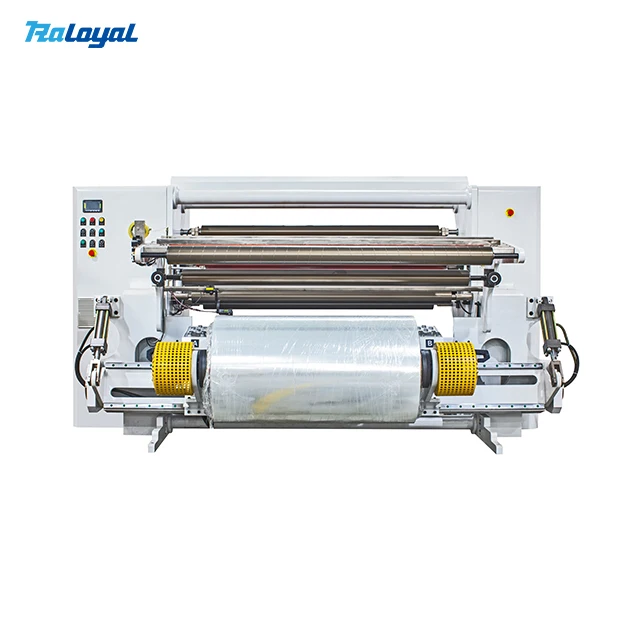

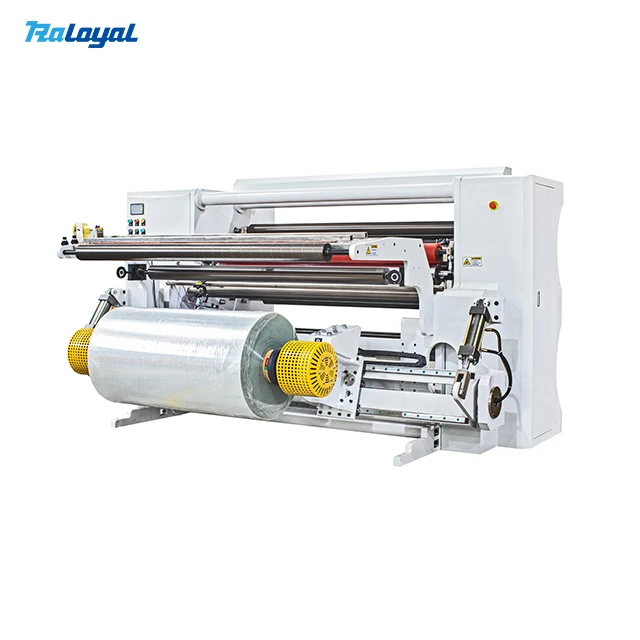

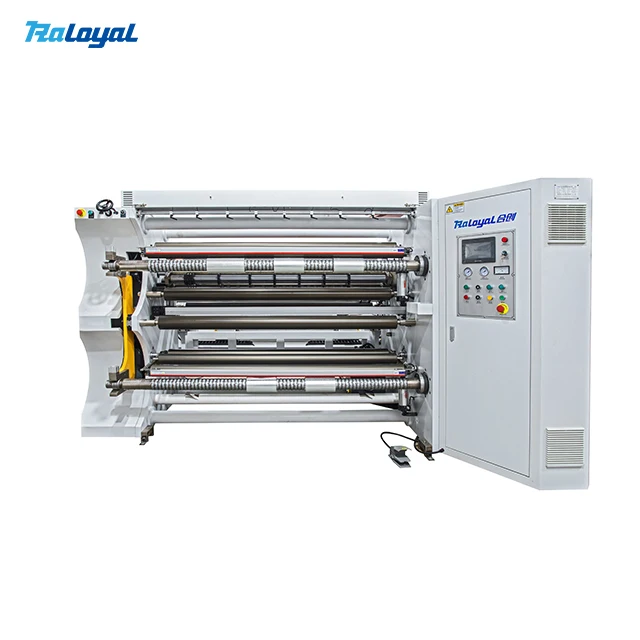

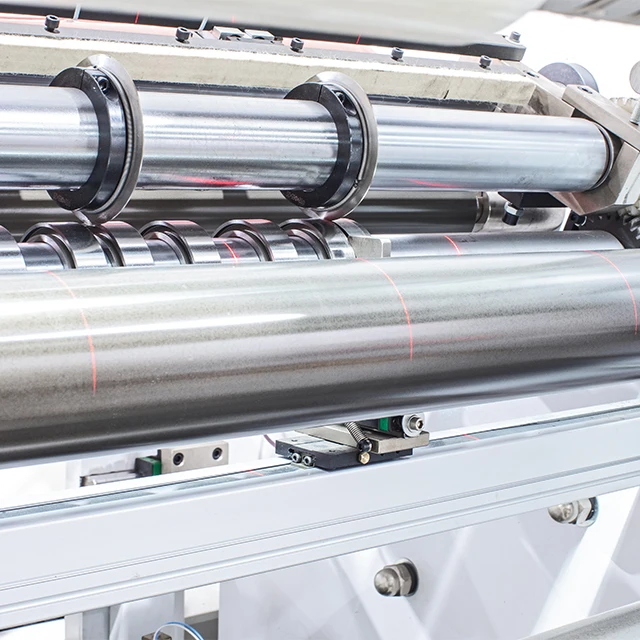

Details Images

Related Products

Why Choose Us

1. Quality Control

Incoming Quality Control

Our quality team will inspect the incoming parts before storage by sampling.

Process Quality Control

Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.

Outgoing Quality Control

Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed client’s expectation.

2. Packing & Delivery

3. Certifications

4. Our Service

Pre-Sales Service

Inquiry and consulting support.

Sample material testing support.

Lead the customer to visit our factory if required.

After-Sales Service

12 months guarantee, life-long time technic maintenance and support.

Online Guidance support. Spare parts supports.

24 Hours * 7 days service online.

Company Profile

COMPANY PROFILE

Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new energy and paper industry.

RaLoyal have been always devoted to provide a global solution to the demands of markets in constant development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the waiting time for customers.

We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
