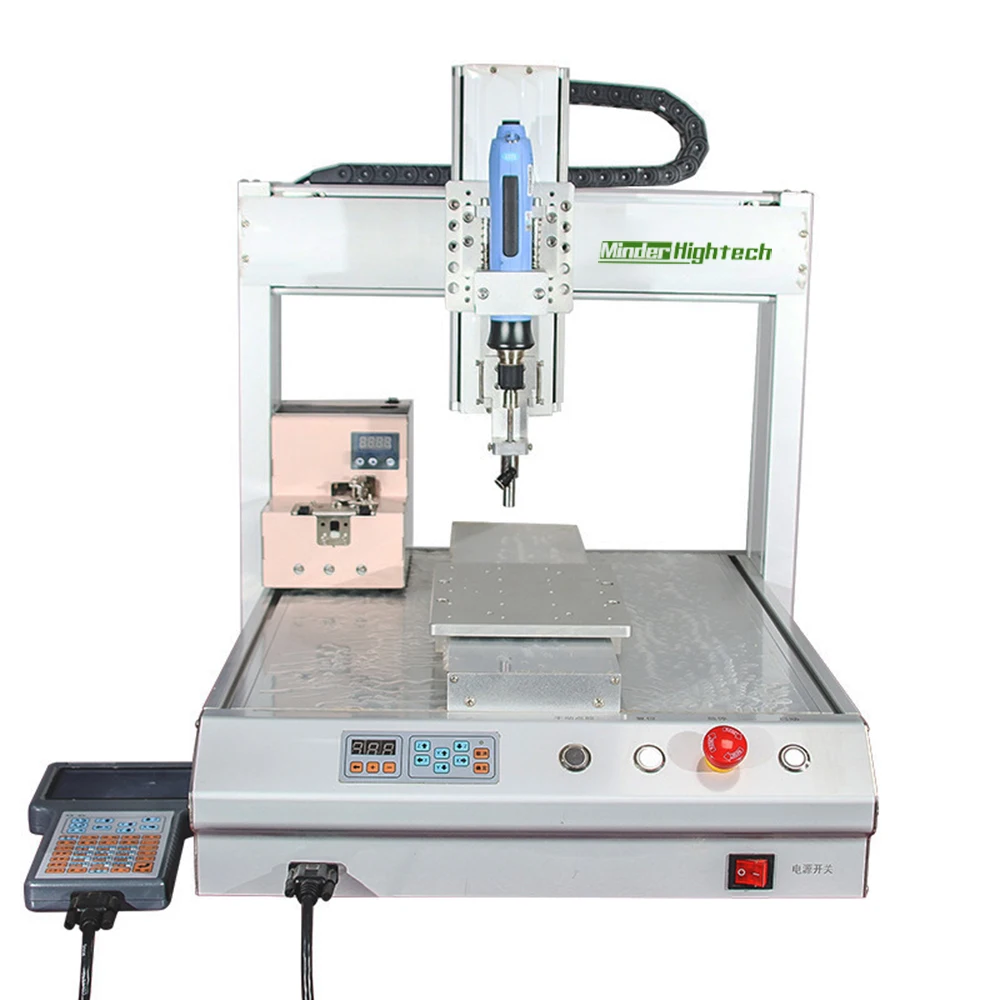

Прямая поставка с завода Высококачественная Автоматическая винтовая машина Высокоэффективная блокировкой робот
- Категория: >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.53 $* | 0.99 $* |
| Aug-17-2025 | 0.68 $* | 0.84 $* |
| Jul-17-2025 | 0.50 $* | 0.50 $* |
| Jun-17-2025 | 0.5 $* | 0.32 $* |
| May-17-2025 | 0.15 $* | 0.90 $* |
| Apr-17-2025 | 0.3 $* | 0.80 $* |
| Mar-17-2025 | 0.19 $* | 0.43 $* |
| Feb-17-2025 | 0.92 $* | 0.12 $* |
| Jan-17-2025 | 0.17 $* | 0.16 $* |
Характеристики
Product Description
Factory price direct sales, can customize equipment according to your product
* The company's automatic screw machine can be customized non-standard. For more detailed parameters, please contact customer service.
* The automatic screw machine is an automated equipment that can replace manual screw locking.
* As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
* The automatic screw machine is an automated equipment that can replace manual screw locking.
* As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Strong versatility, cost saving
* It is suitable for the production of a variety of products. After the customized program is edited and saved, it can be used after the later recall.
* Suitable for multiple jigs, the same screw machine can be used for screws of different products by replacing different jigs..
* Suitable for multiple jigs, the same screw machine can be used for screws of different products by replacing different jigs..
Specification
Drive method | Precision motor (optional closed loop, servo) |
Guide | Hiwin |

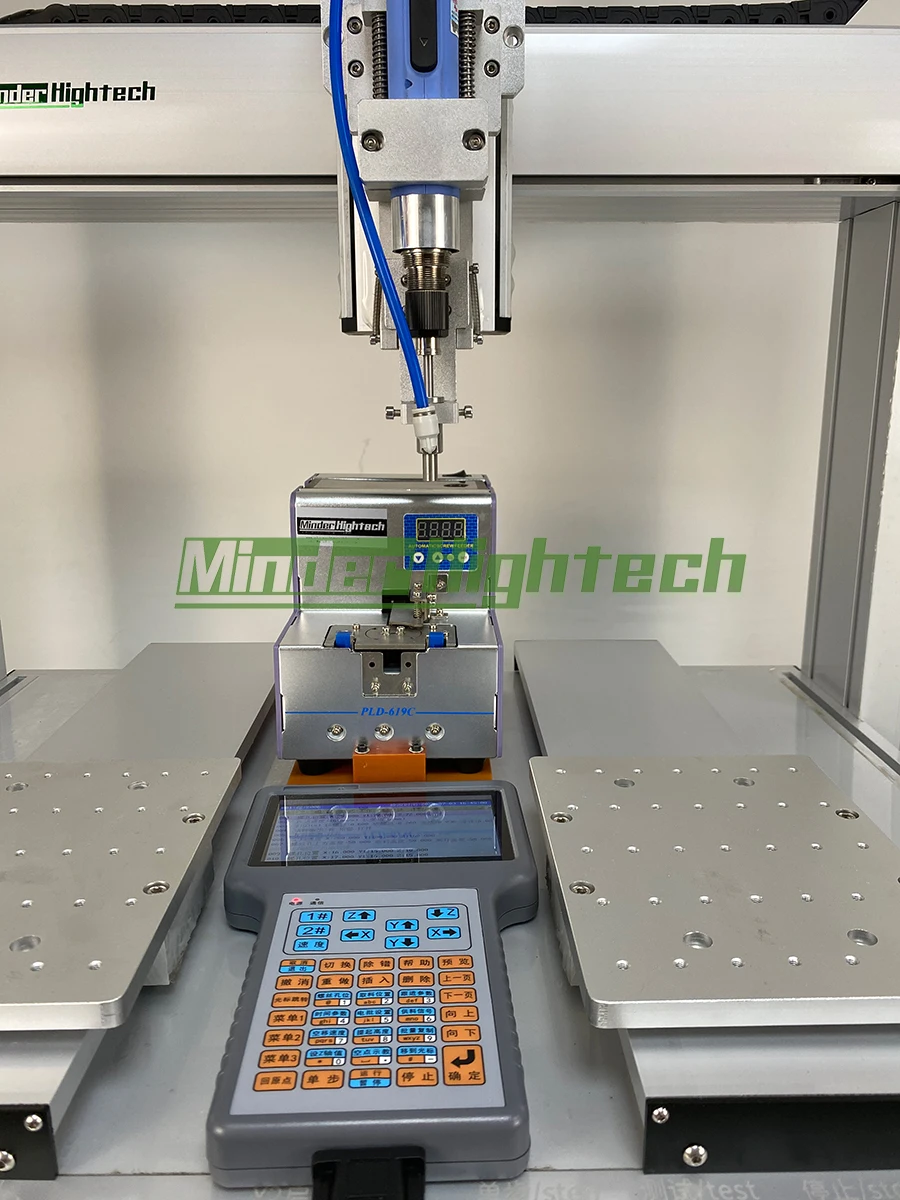

Programming interface | Teaching box |
Drawable graphics | Point-to-point, linear and circular interpolation stepless speed change |
stroke | X=500,Y1=300,Y2=300,Z=100 |
Program capacity | 999 groups/1000 points per group |
The fastest | 500/600/800mm/s |
Repeatability | ±0.02mm |
power supply | 220V/50HZ |
Electric batch | HIOS |
Universal screws | M1-M5（Cross, plum blossom, hexagon socket, etc.） |
Enter air pressure | 4-7kgf/cm² |
Torque | 0.3-16kgf.cm（According to electric batch and screw） |
Bad alarm | Sliding wire, floating height, missed beat, etc. |
physical dimension | 590L*520W*650H mm |
weight | 55kg |

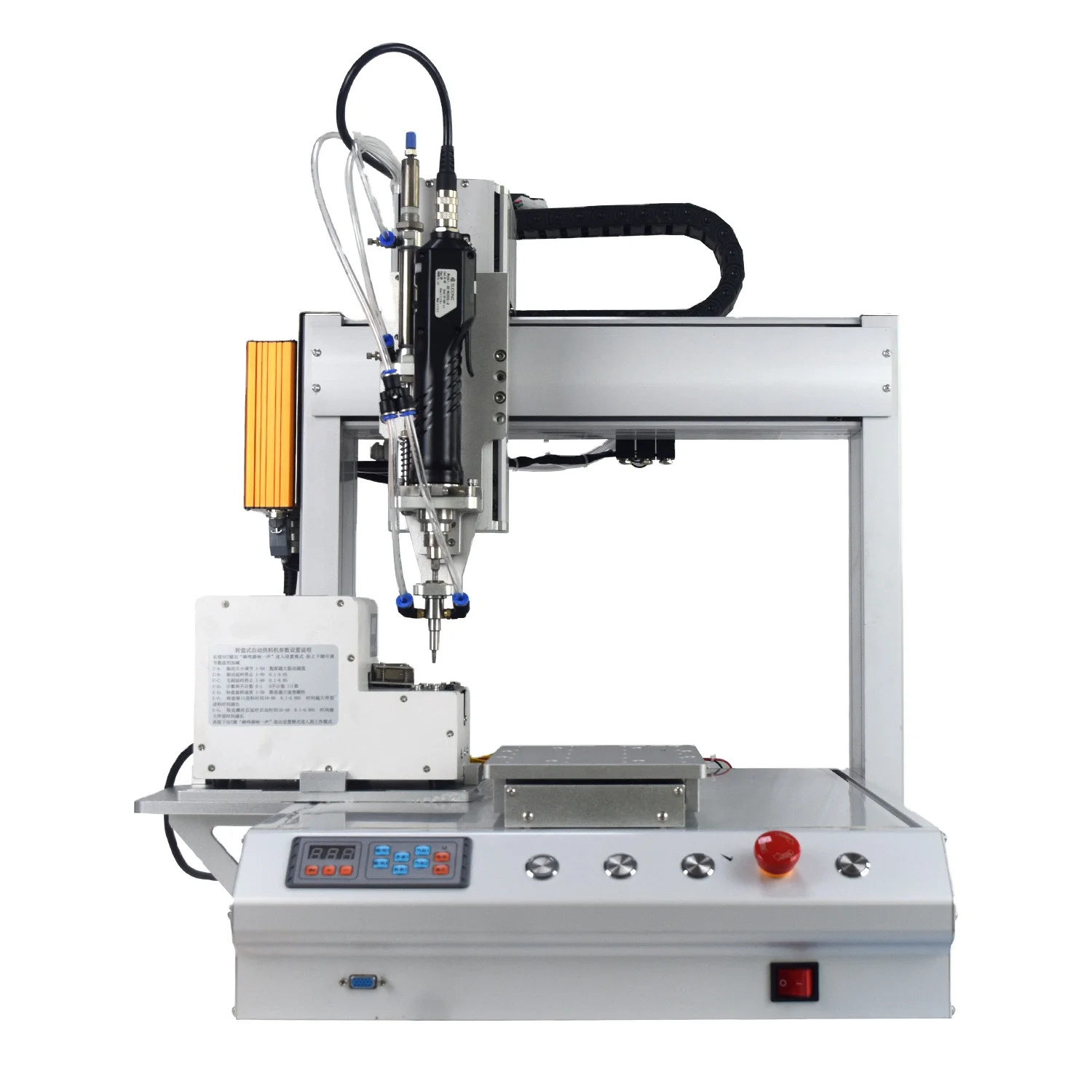

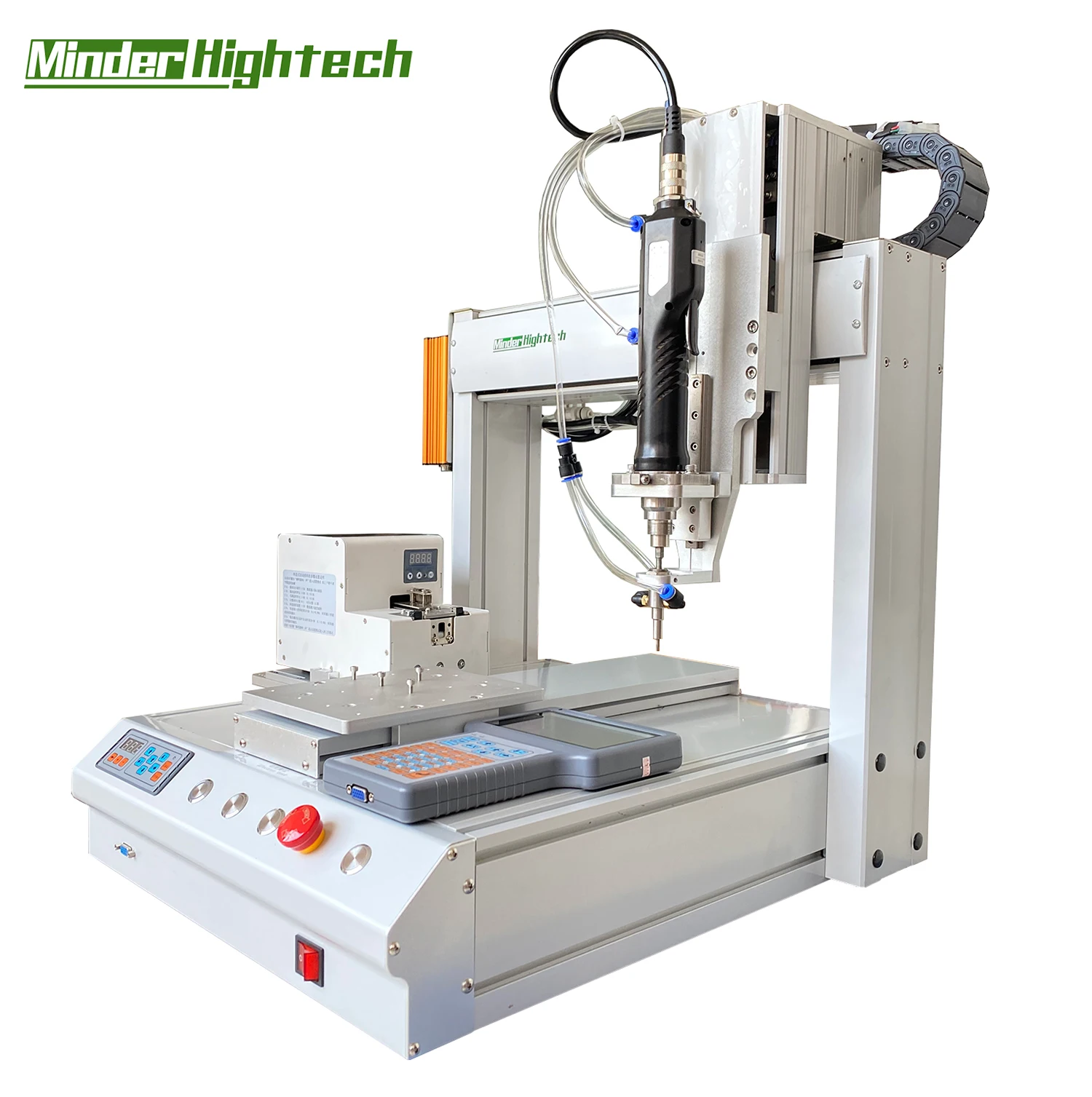

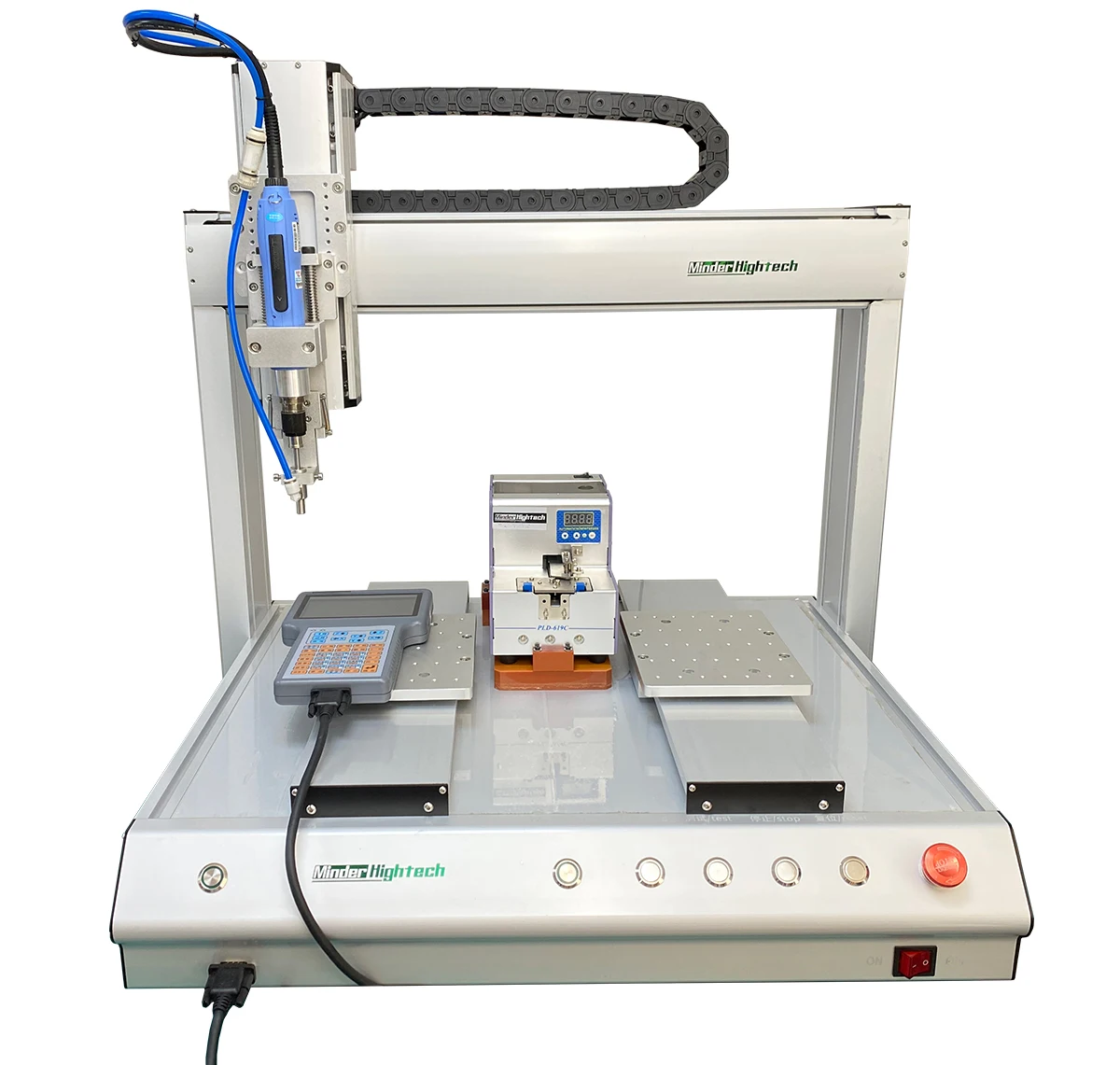

Air blow feeding type screwing robot
Model | MD-DL-T3311CQ | MD-DL- T4411CQ | MD-DL- T5511CQ | MD-DL- T53311CQ | MD-DL- T54411CQ | MD-DL- T6441CQ | MD-DL- T7441CQ | MD-DL- T8441CQ | |||||||
Stroke X | 300mm | 400mm | 500mm | 500mm | 500mm | 600mm | 700mm | 800mm | |||||||
Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 400mm | 400mm | 400mm | |||||||
Stroke Y2 | no | no | no | 300mm | 400mm | 400mm | 400mm | 400mm | |||||||
Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
Material size | 300*300 | 400*300 | 500*500 | 170*300 | 170*400 | 210*400 | 250*400 | 300*400 | |||||||
Rated speed | 500mm/s(X-Y-Z)Max1000mm/s | ||||||||||||||
Screwing No. | Default 1 PC(optional2PCS) | ||||||||||||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | ||||||||||||||
Motion mode | Point to point; line circle | ||||||||||||||
Positioning accuracy | +-0.02(mm) | ||||||||||||||
Program | Control Teaching Box/PC | ||||||||||||||

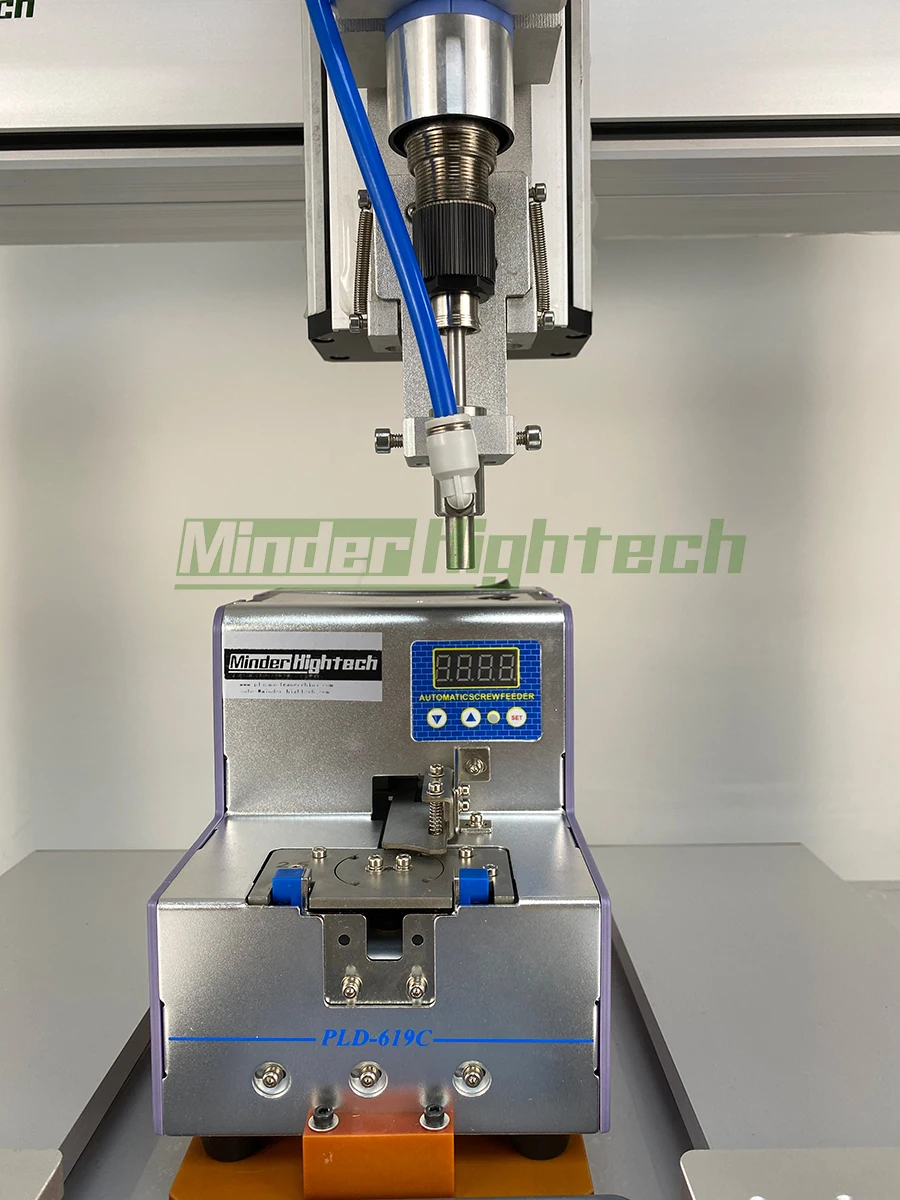

Screw feed mode | air blow | ||||||||||||||
Screw feed speed | 60PCS/Min | ||||||||||||||
Screw driver | SDL series Servo motor screw driver(optional others) | ||||||||||||||
External | RS232 | ||||||||||||||
Detail
Our Factory
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Western Europe(00.00%) ,South Asia(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South America(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Western Europe(00.00%) ,South Asia(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South America(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
