Disposable Infusion Set Making Machine IV Infusion Set Production Line
Product Description

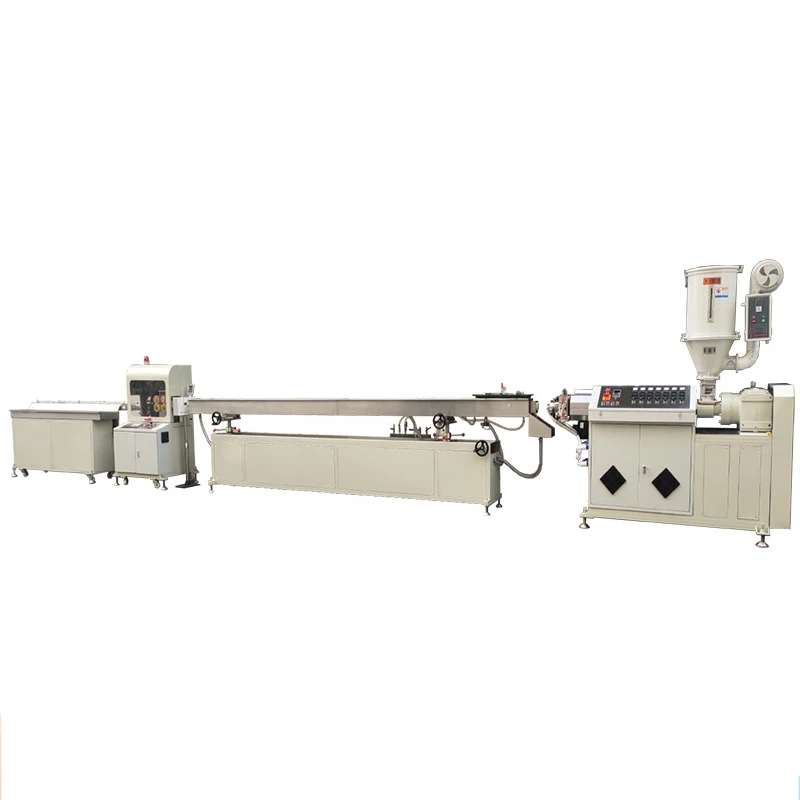

IV Infusion Set Production Line
Plastic Extruder machine is for thermoplastic processing of all kinds of plastic, with various types of heads and auxiliary equipment and suitable screw, then it will make the soft or hard plastics such as PVC, polyethylene, polypropylene to be rods, tubes, belts, extrusion, blown film, drawing, wire and cable .
Single Cavity infusion tube extrusion machine can produce precision medical infusion tube which is a simple PVC hose and infuse drugs to veins then help patient recover soon. Material could be PVC, TPE and no DEHP PVC. It’s disposable and huge needed by every clinic and hospital.
Our PVC extruder machine adopt the advance frenquency converter, with stable performance , high efficiency, smooth screw rotating speed, low consumotion and large torque etc.
Product Advantage
Infusion Set Making Machine
1. Precision: ±0.05mm
2. Screw: could be single screw and twin screw. Make sure precision stable and longer service life.
3. Controller could be controlled by computer or Integrate temperature control. Easy to operate
4. Mould adopt imported S136 Mould dedicated steel.
5. Cooling basin: use SUS304 stainless steel. three-dimensional adjustable frame.
6. Famous Mainframe. Famous variable-frequency drivess
7. Drawing: Precision drawing machine .and adjustable speed. Stable.
8. Cutting : automatically cutting . Precision less than ±0.05mm
9. Material could be : PFA FEP
2. Screw: could be single screw and twin screw. Make sure precision stable and longer service life.
3. Controller could be controlled by computer or Integrate temperature control. Easy to operate
4. Mould adopt imported S136 Mould dedicated steel.
5. Cooling basin: use SUS304 stainless steel. three-dimensional adjustable frame.
6. Famous Mainframe. Famous variable-frequency drivess
7. Drawing: Precision drawing machine .and adjustable speed. Stable.
8. Cutting : automatically cutting . Precision less than ±0.05mm
9. Material could be : PFA FEP
Parameter
Model | YG-TS35 | YG-TS45 | YG-TS55 |
Tube size range | 1~4mm | 2~8mm | 8~15mm |
Screw size | 35mm | 45mm | 55mm |
Screw L/D | 28:1 | 28:1 | 28:1 |
Voltage | 380V | 380V | 380V |
Power | 5.5Kw | 11Kw | 15kW |
Production capacity | 8~10Kg/h | 15~18Kg/h | 30~35Kg/h |
Details Images
50kg SS Hopper:one set
Vacuum auto-loader:one set
Screw size: Φ45mm
Screw L/D: 28:1
Gear box: one set
Transmission style: direct coupling
Control power:11kw
Control style: frequency conversion
Thermostat zone: 5 zones
Radiating zone: 3zones
Vacuum auto-loader:one set
Screw size: Φ45mm
Screw L/D: 28:1
Gear box: one set
Transmission style: direct coupling
Control power:11kw
Control style: frequency conversion
Thermostat zone: 5 zones
Radiating zone: 3zones
Frame material:Stainless steel square tube 40*40mm,thickness 1.5mm
Cover material: fully-closed Tempered glass
Haul off belt: PU Poly-V belt
Cover material: fully-closed Tempered glass
Haul off belt: PU Poly-V belt
length of belt:500mm
Haul-off roller: Aluminum Alloy
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power:0.55*2kw
Control style: frequency conversion
Cutting power:1kw (XINJIE servo motor)
Haul-off roller: Aluminum Alloy
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power:0.55*2kw
Control style: frequency conversion
Cutting power:1kw (XINJIE servo motor)
Material: Stainless steel 304
Water tank size:4000*200*200mm
Tri-dimension movement water tank support: one set
Water circulation tank: one set
Water pump: 0.75kw
Vacuum pump:1.1kw
Tri-dimension movement style: manual wheel
Water tank size:4000*200*200mm
Tri-dimension movement water tank support: one set
Water circulation tank: one set
Water pump: 0.75kw
Vacuum pump:1.1kw
Tri-dimension movement style: manual wheel
