Автоматические машины для тиснения и штамповки

Категория: Paper Processing Machinery >>>
Поставщик: Wenzhou,Guangya,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.16 $*	0.14 $*
Aug-18-2025	0.19 $*	0.96 $*
Jul-18-2025	0.64 $*	0.9 $*
Jun-18-2025	0.31 $*	0.15 $*
May-18-2025	0.25 $*	0.53 $*
Apr-18-2025	0.58 $*	0.3 $*
Mar-18-2025	0.38 $*	0.37 $*
Feb-18-2025	0.60 $*	0.91 $*
Jan-18-2025	0.72 $*	0.95 $*

Характеристики

>>Products Description

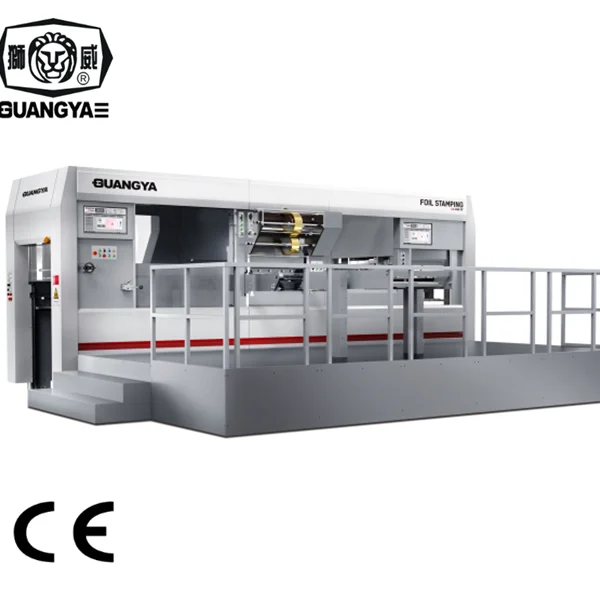

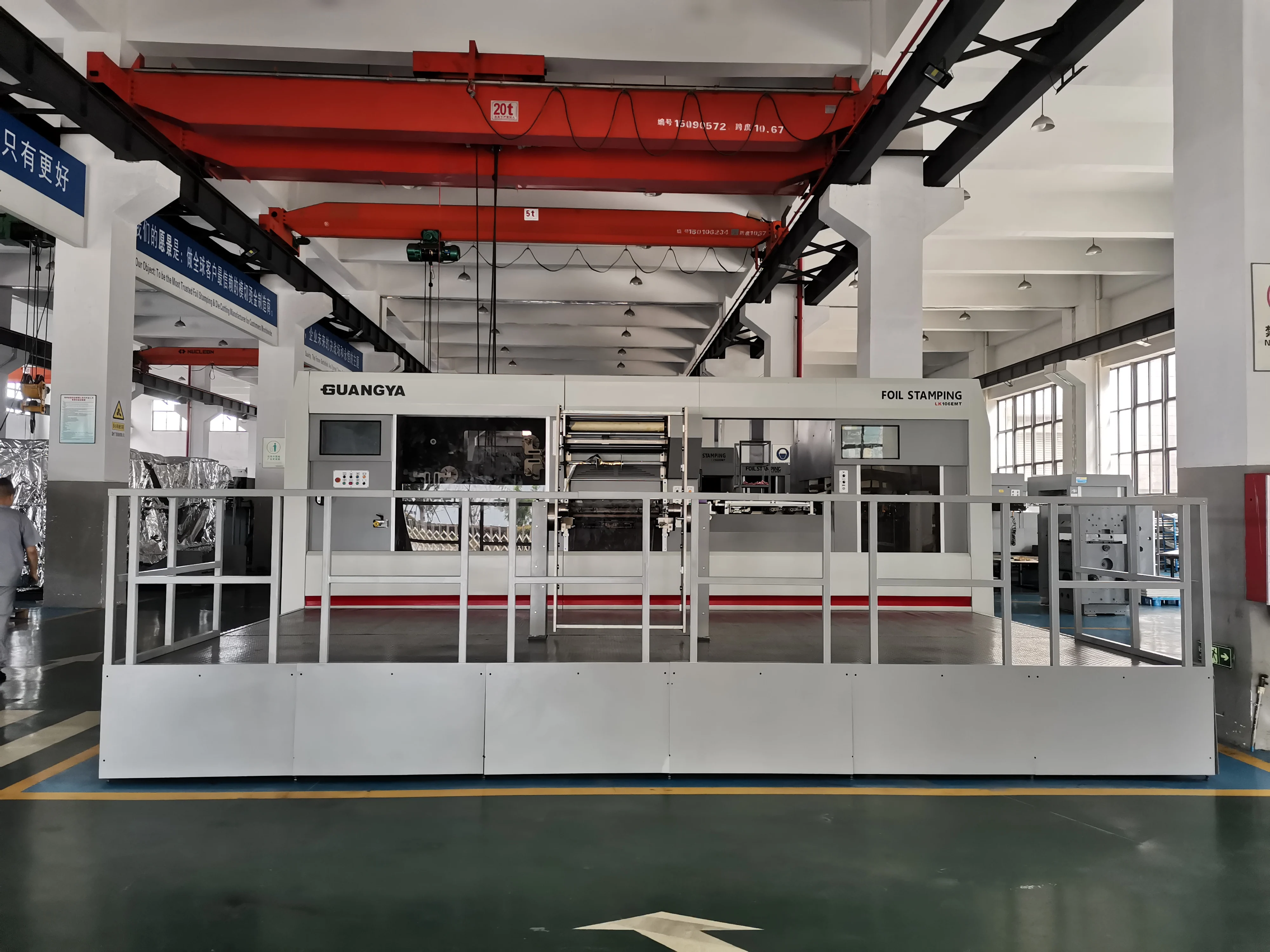

LK106EMT Automatic Hot Foil Stamping and Die Cutting Machine

1)The machine is equipped with 3 sets longitudinal and 2 sets lateral foil feeding systems, to ensure the foil feeding stable, accurate, reliable tension controlling, less stretching, the foil feeding difference is only about 1mm.

2)The waste foil collecting hair wheel is driven by imported servo motor, which ensures the high speed, stable, precise stamping work. Strong heat-resistant special material formed and processed honeycomb plate, could be located at any position.

3)The heat-resistant stick and the anti-side-moving special block lay, makes the stamping more accurate and perfect. 12 individual temperature controlling zones, independent researched and developed “PID” precise controlled heating system, to keep the stamping molds temperature be stable, ensure the whole heating system’s temperature control be more equal and fast response

Max. sheet size	1060×746mm
Min. sheet size	400×320mm
Max.die cutting size	1060×746mm
Max.stamping size	1060×746mm
Gripper margin	9-17mm
Paper range	80-2000g/m2(cardboard) 0.1-2mm(cardboard)≤4mm(corrugated)
Maximum cutting force	300T
Max. mechanical speed	8000s/h
Max.stamping speed	6500s/h
Foil pulling shafts,longitudinal 3,transversal 2
Zones individually heated	12 heating zones ( each zone can be adjusted independently, max 200℃ )
Max. foil longitudinal diameter	￠250mm
Max. delivery pile height	1400mm
Max. feeding pile height	1300mm
Main motor power	15kw
Power rating	65kw
Machine weight	26000kg
Air supply	0.6Mpa, ＞0.37m3/min
Overall machine dimensions	7400×4320×2800mm

>>Details Images

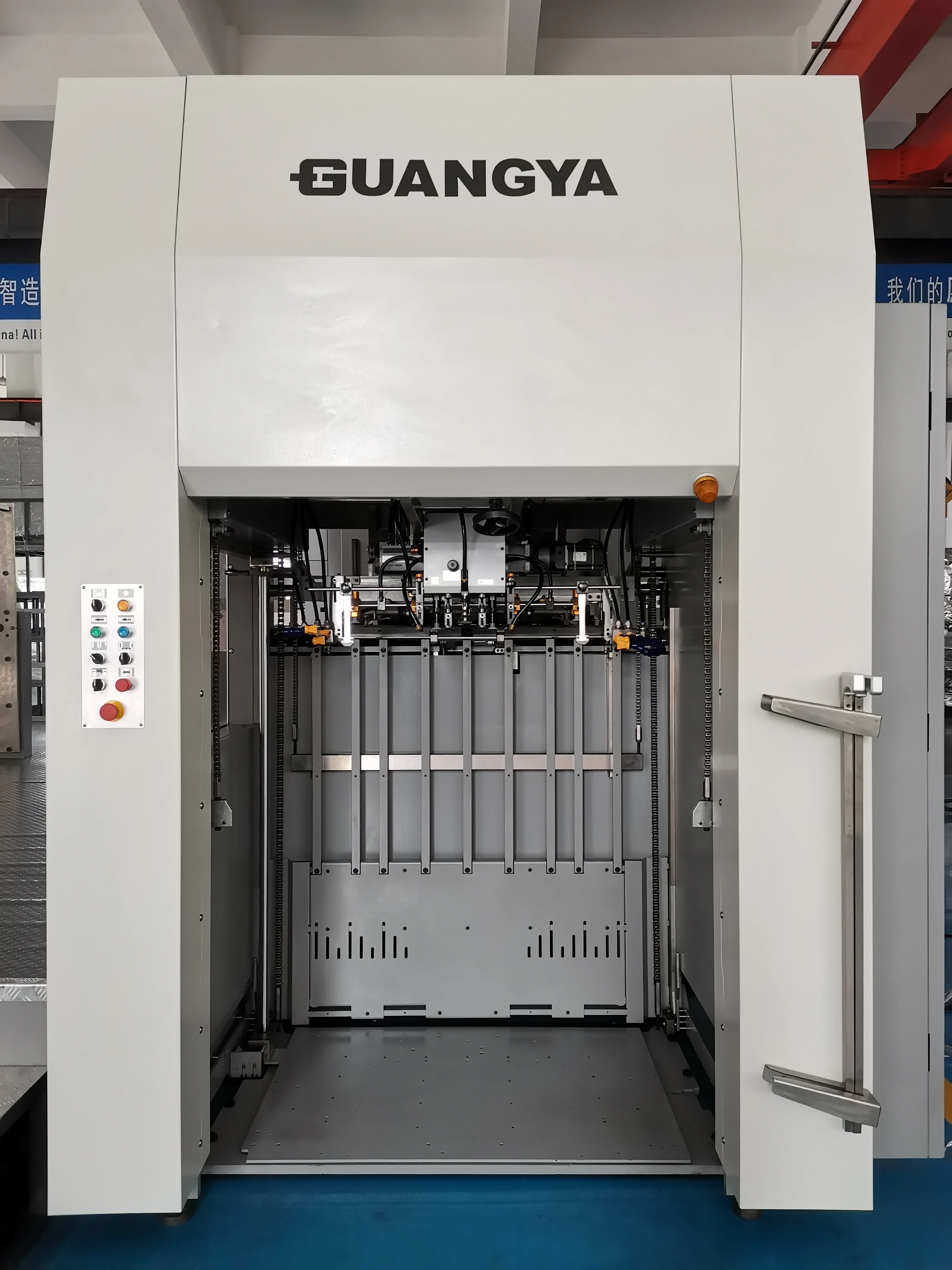

Feeder

* Pile tray with handle allowing manual lateral correction of the pile during production.

* Feeder protective device in case of crashing.
* Feeder is equipped with 4 lifting suction cups and 4 transport suction cups.
* The suction cups are adjustable according to the paper deformation in lateral way.
* Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth
feeding process.
* Adjustable while in operation: to fine tune the feeder cycle to the platen.
* Safety system for lowering the pile tray.

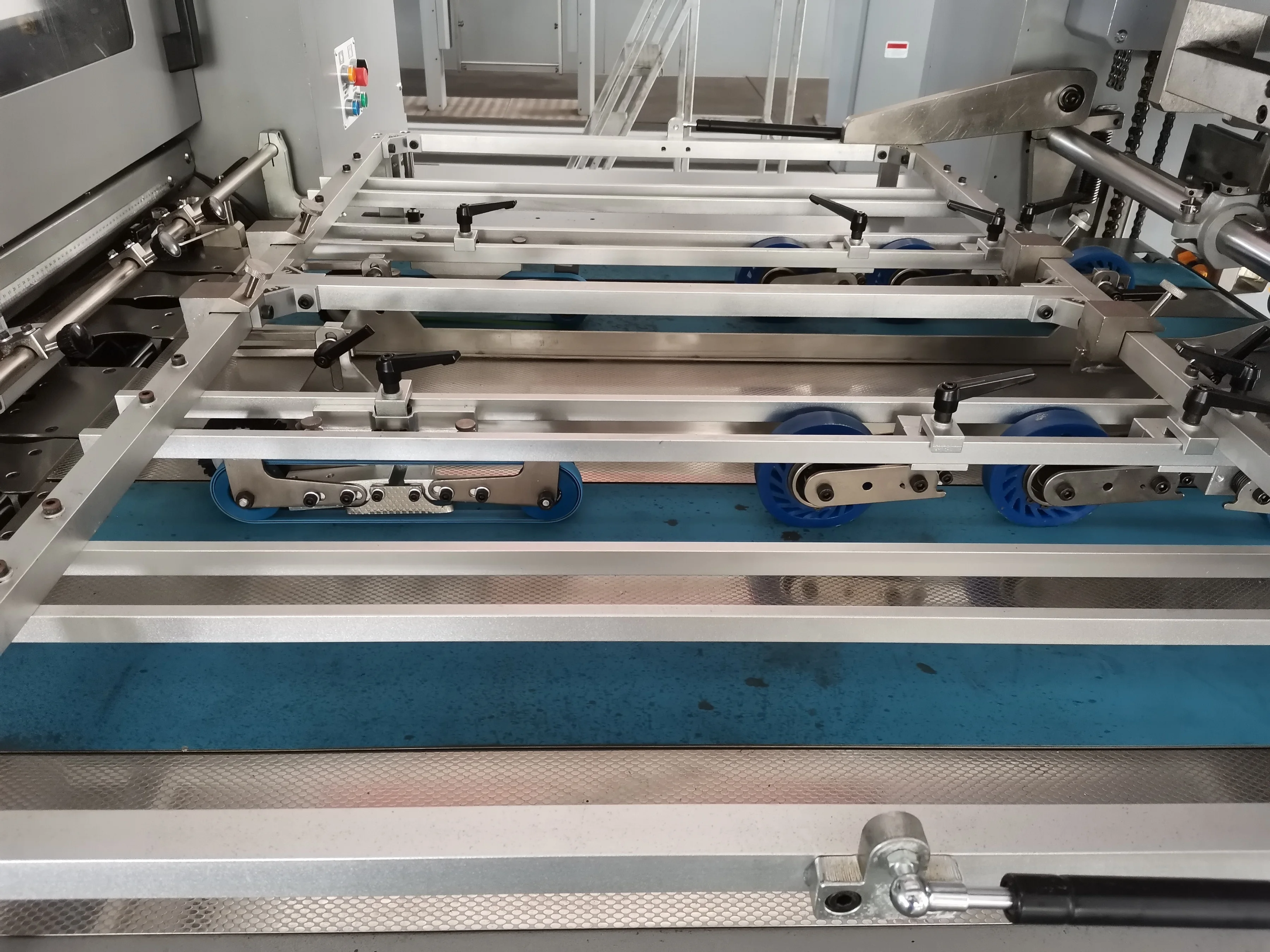

Feed table

* Covered with upgrade anti-static stainless-steel plate.
* Double sheet detector.
* Support plates at entry of platen station.
* Sheet hold-down device (guiding the sheets to the front lays).
* Upper frame with manual lifting device
* Wide conveyor belts ensure sheets accurately to the front and side lays units

Die cutting / Foil stamping section

* Advanced host technology. Could finish hot foil stamping + embossing, die cutting in one pass, hot foil stamping, die cutting,
and heated die cutting function.

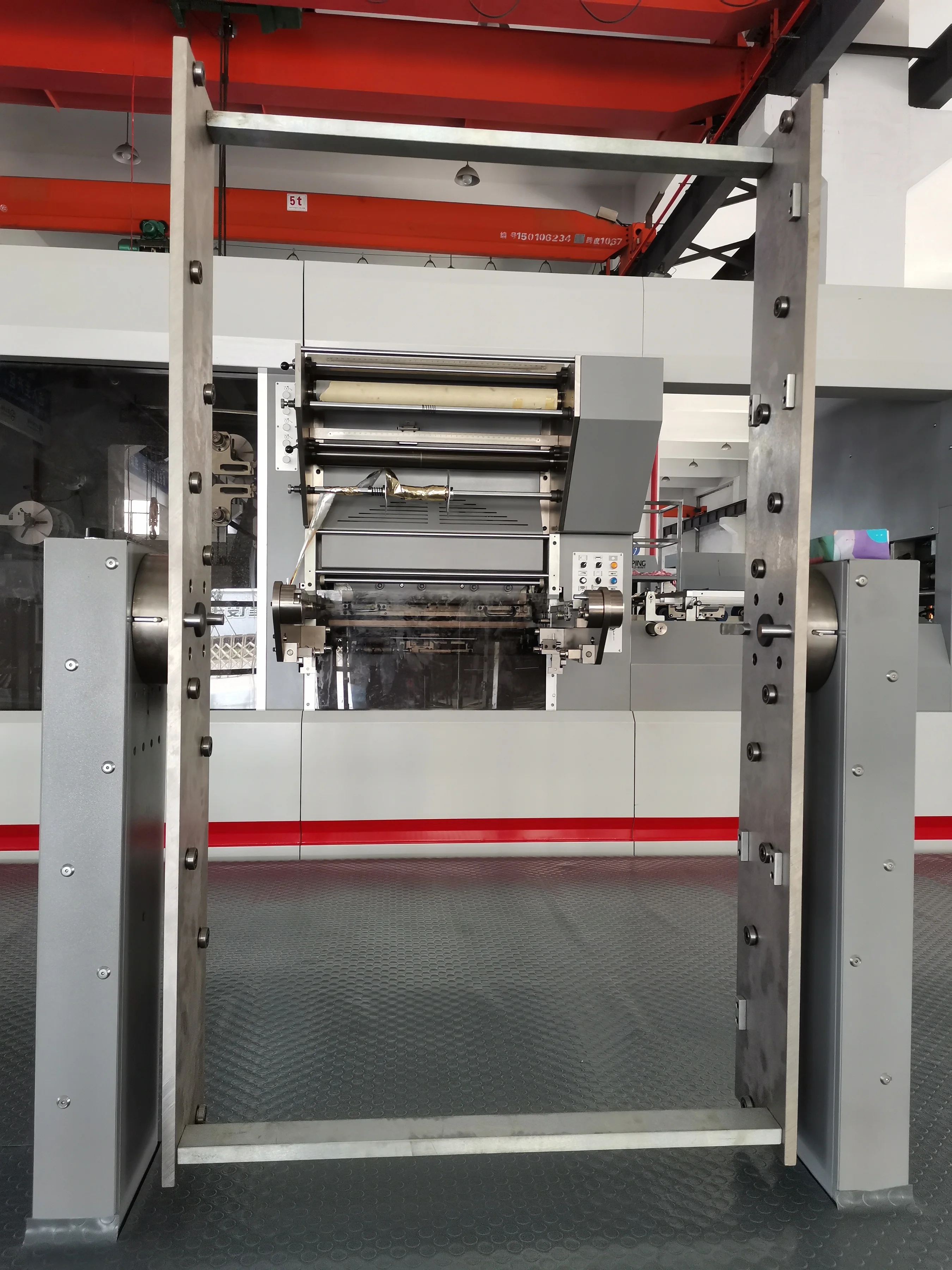

* With 3 longitudinal and 2 transversal foil feeding rolls, more effect foil processing.
* Heated upper head
* Gripper reopening device
* Gripper fine adjustment automatic "on and off" pressure device of the platen.
* Equipment centering and locking.
* Automatic locking of the chase against the upper beam.
* Measurement of the cutting force with strain gauge automatically.

>>Recommend Products

>> Sample

Certifications

Packing & Delivery

1.Deep clean machine

2. packed with film to prevent machine from water vapor and keep it clean

3. Vacuum packaging

4.Container loading

Exhibition

Since 1996, our company has participated in many well-known exhibitions and our customers come from all over the world, according to statistics our machines have been sold to more than 70 countries worldwide

Company Profile

Zhejiang Guangya Machinery Co.,Ltd is a professional manufacturers of hot foil stamping and die cutting machine with long history.Since its establish we have always insisting on the policy of Achieved success by quality,Integrity is base,also pay attention to new product development and continual improvement.On designing machine, we adopt high and new technology from home and abroad.Our products is very popular in domestic market and already exported to over 70 countries or region such as Europe,North America,Middle East and so on.

Reception Center

Work Shop 1

Work Shop 2

Company Office

Company Outside

Pictures Gallery

>>FAQ

1. Q: Are you a factory or trading company?
A: We are a factory,manufacturer.

2. Q: What certificate do you have?
A: We have ISO9001 and CE certificate.

3. Q: How long is the warranty period?
A: All of our products have one year warranty.

4. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.

5.Q: Where is your factory located? How can we visit there?
A: Our factory located in Baihai New Zone,Pingyang County,Zhejiang province,China. You can by air to Wenzhou Airport and by High-speed rain to Ruian Station. We will arrange to pick up you.

We are welcome all friends to visit us for future cooperation!
