Product Overview

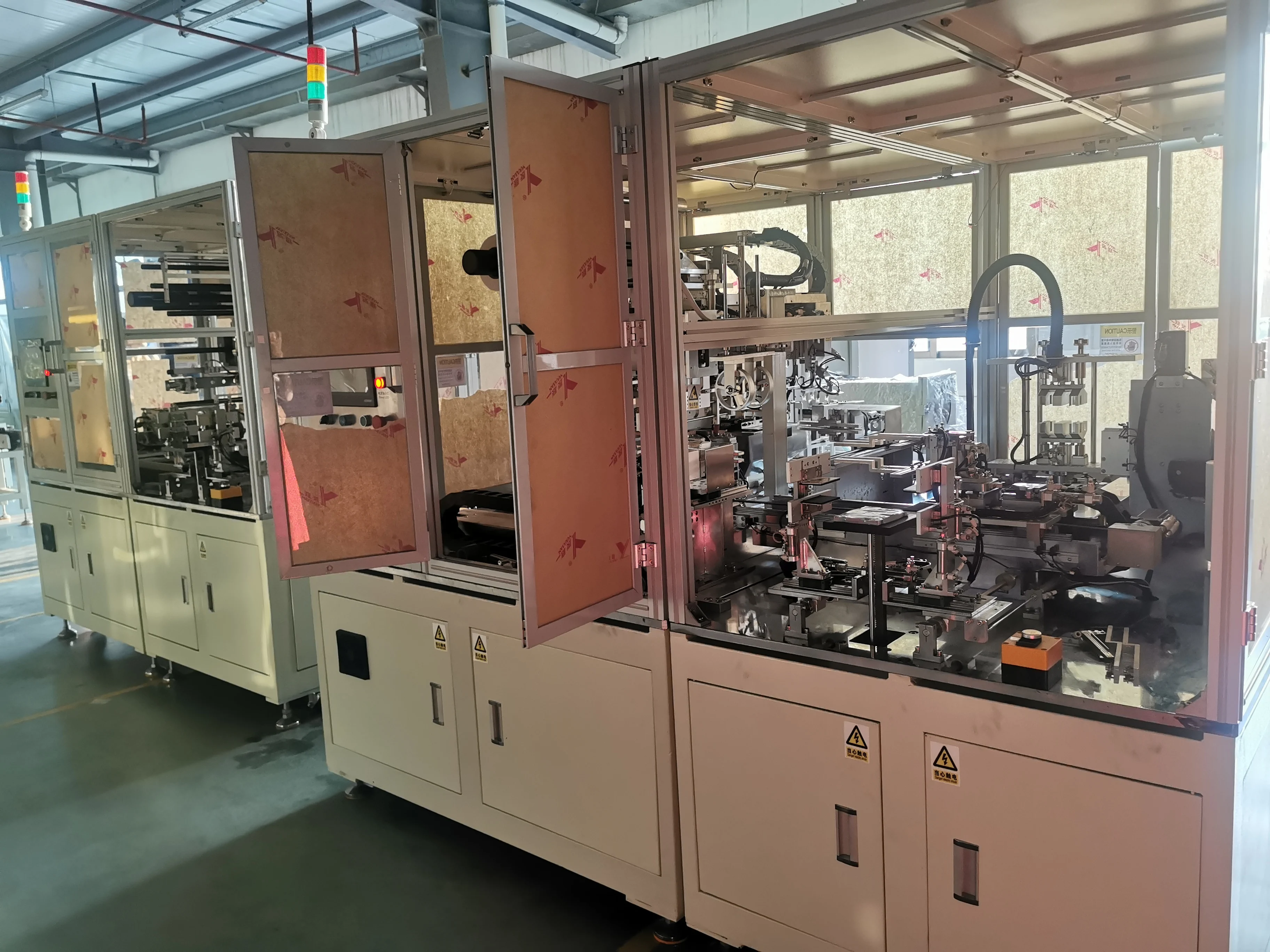

Automatic Battery Stacking Machine for Pouch Cell and Prismatic Cell

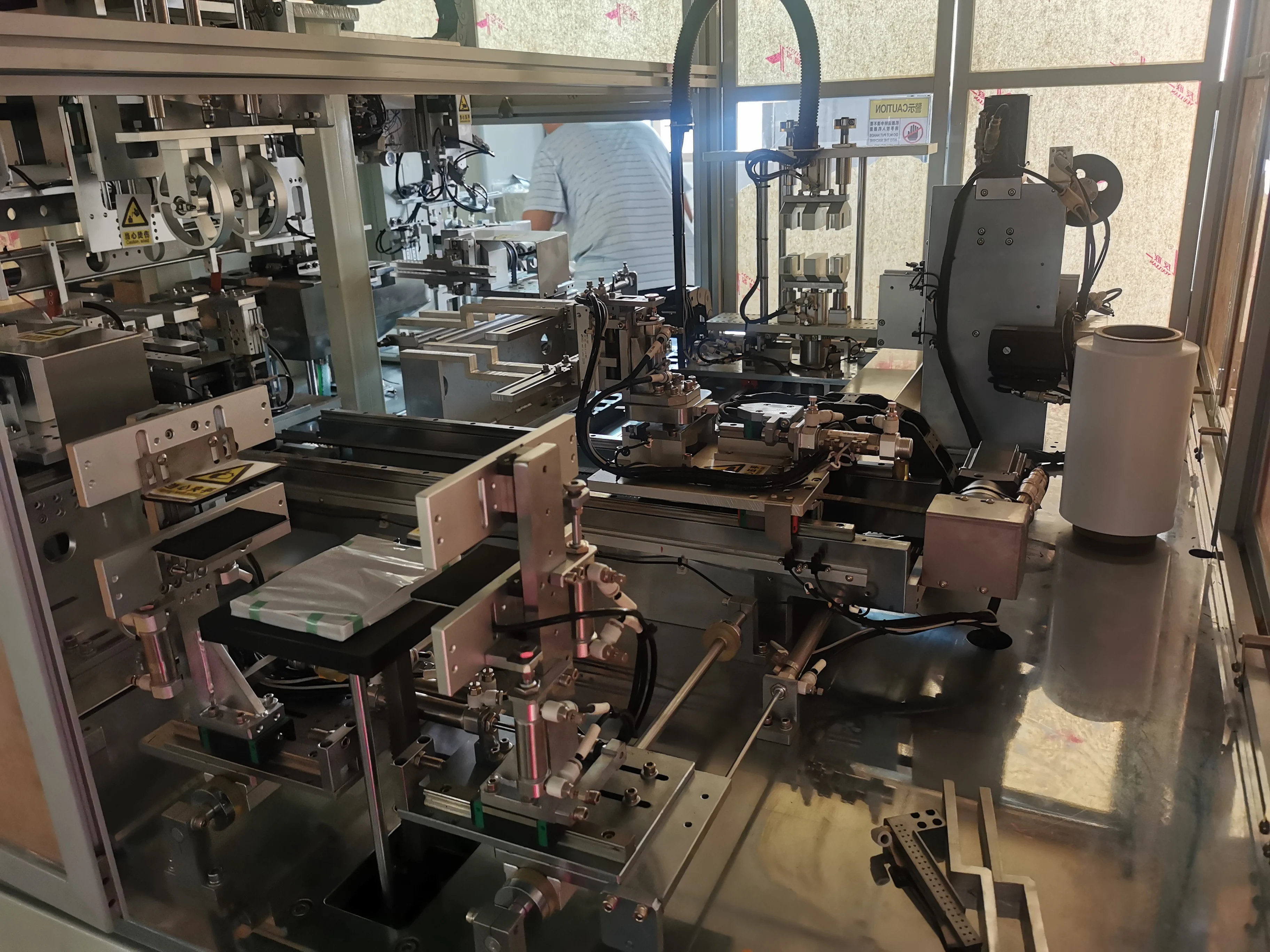

This device uses the manipulator left and right to move, in the two electrodes limit to pick up the electrode material, in the middle position alternately put the materials to stack, and simultaneously completes the Z-shaped folding of separator during the left and right movement. So back and forth to finish the entire core’s stacking and assembling.The manipulator adopts linear servo motion module achieving high speed, smooth and accuracy.Separator put materials with constant tension, and in the process of putting materials, there is a correction mechanism to control the neatly consistent discharge. The electrode also adopts linear servo motion module to convert different electrode sheets.
FEATURES AT A GLANCE
*. Electrode bending double-chip device for electrodes bending can avoid sucking multiple pieces at a time
*. Electrode secondary re-preposition. The alignment device ensures accurate positioning of the electrode
*The separator rectifying device can ensure the accurate Electrode displacement Precision servo motor control ensures accurate positioning of stacking.
*. lignment of the separator
* Material Box automatic air blowing device allow the electrode to drift away automatically ensures that the electrode does not absorb much.
*. Electrode secondary re-preposition. The alignment device ensures accurate positioning of the electrode
*The separator rectifying device can ensure the accurate Electrode displacement Precision servo motor control ensures accurate positioning of stacking.
*. lignment of the separator
* Material Box automatic air blowing device allow the electrode to drift away automatically ensures that the electrode does not absorb much.

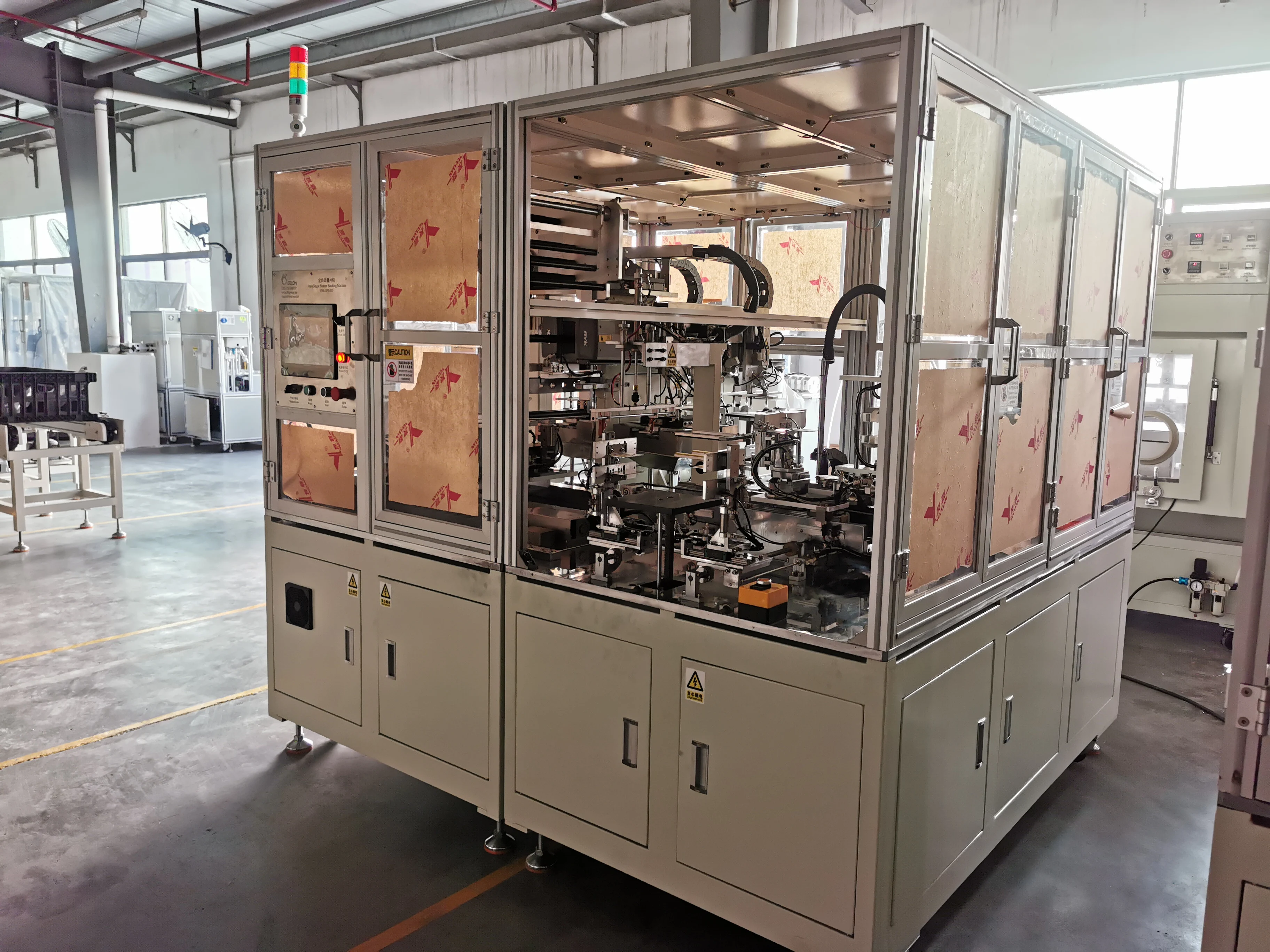

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Reference Shape Size | 2500×1700×1900 mm（L×W×H） |
2 | Power source | AC220V single phase；voltage pulsation±10%； |
3 | Compressed air | 0.4 ～ 0.6Mpa(4-6kgf/cm2), Compressed air flow per unit 100L/min, unilization ratio 50％ |
4 | Rate of movement (failure caused by equipment only) | ≥95% |
5 | Environmental cleanliness | No less than 100,000 grade, no corrosive gas, liquid |
6 | Thickness (mm) | 5～20 |
Cell size (customized according to customer requirements) | Width(mm) | 80～120 |
8 | Length(mm) | 150～250 |
Tab length(mm) | Q≤30 | |
Tab width (mm) | ≤50 |

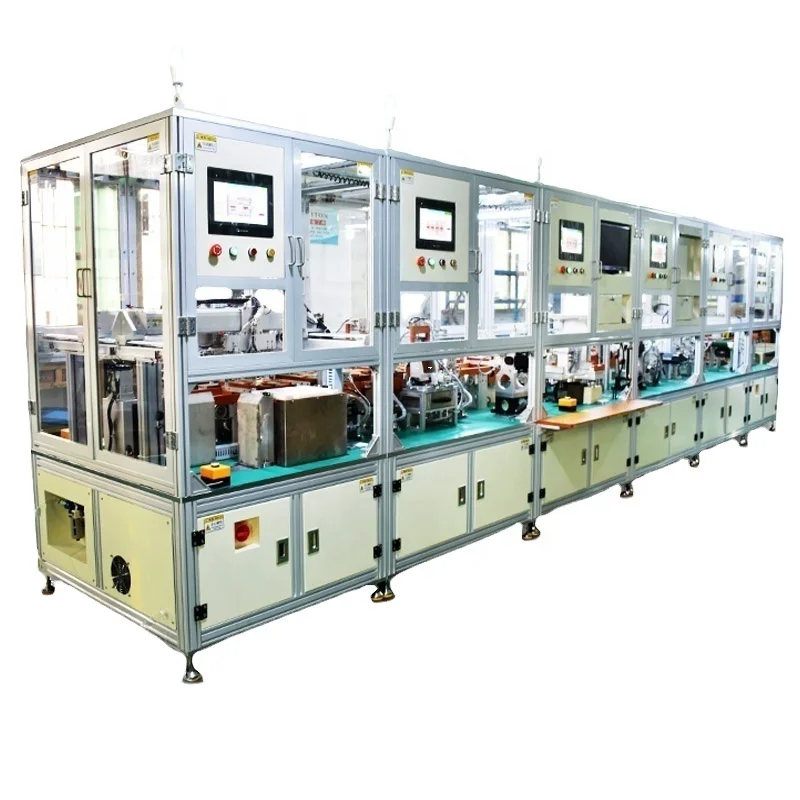

SIMILAR PRODUCTS
