Products Description

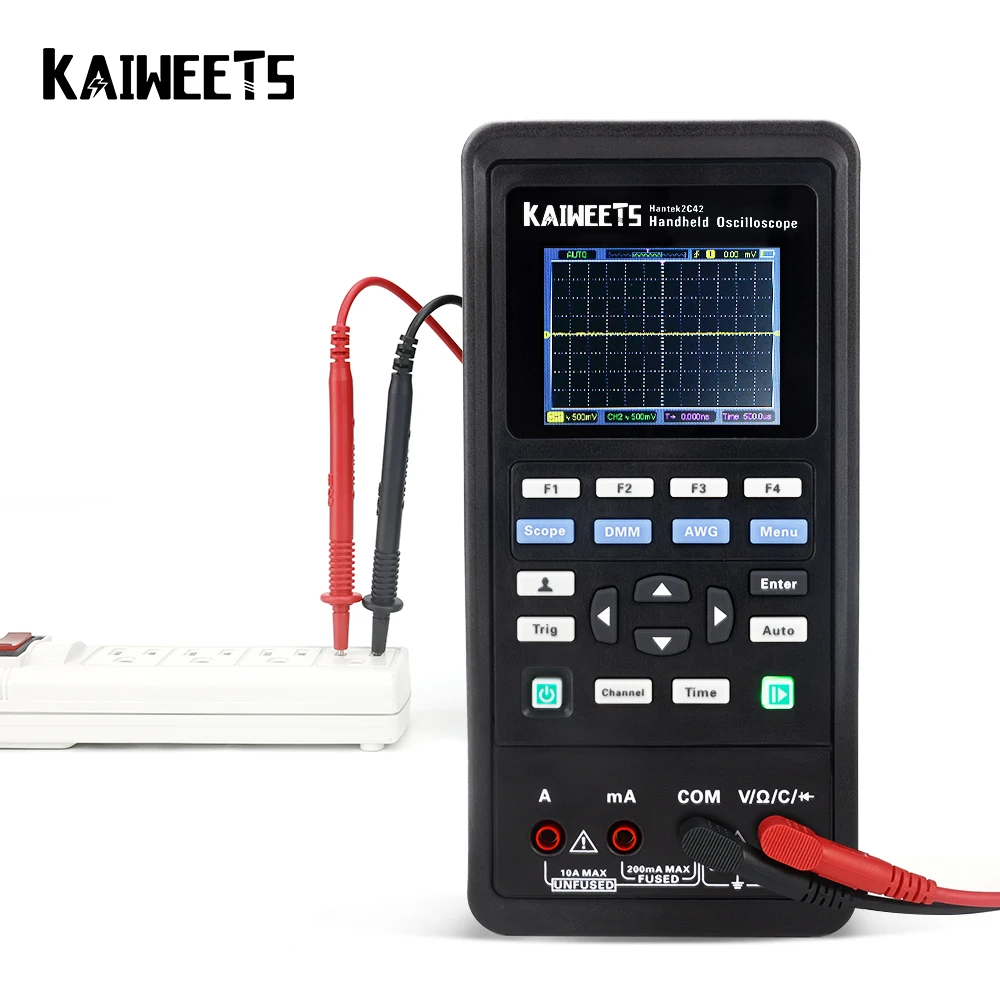

Kaiweets 2000 series

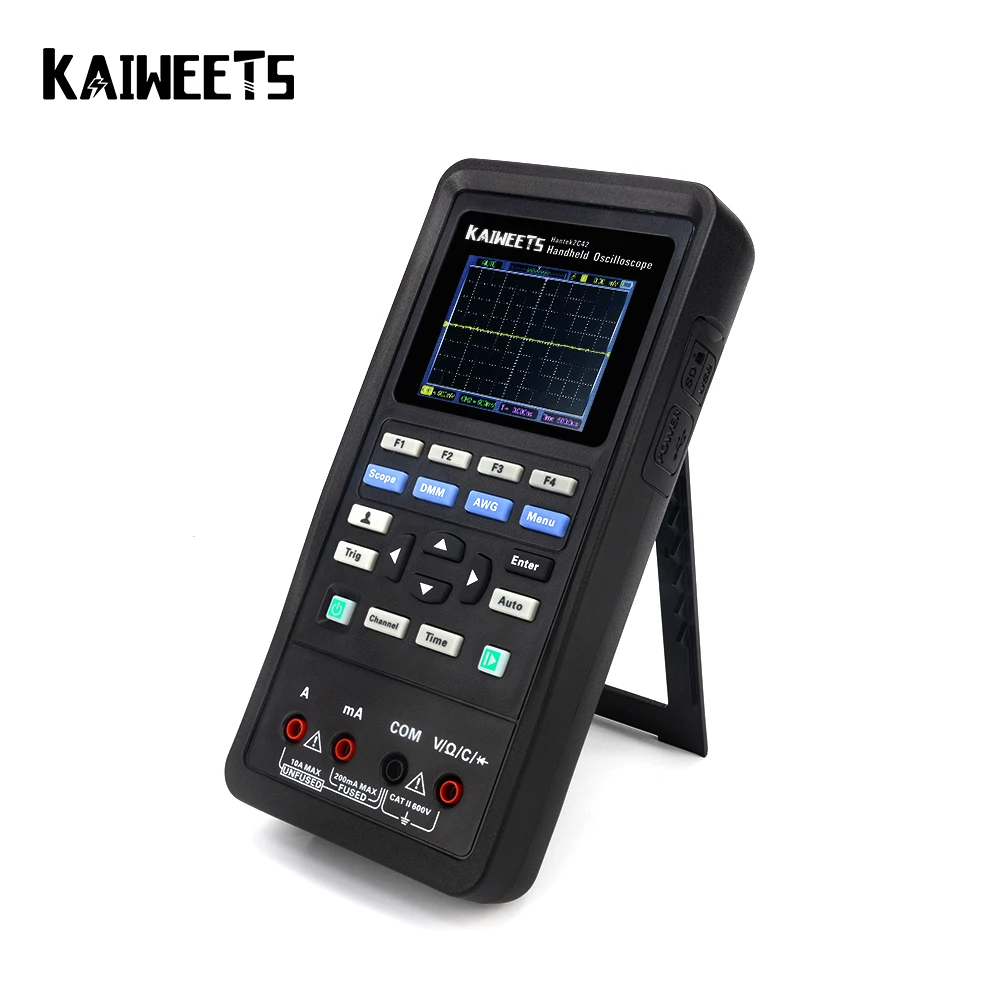

Kaiweets 2000 series of new generation handheld oscilloscopes have three functions of oscilloscope signal source multimeter, compact and portable, one-handed grip; hanging foot design, multi-angle adjustable; ultra-low power design, Type C charging interface, charging for 2 hours Standby for two months all day; full high-definition color LCD screen, clear and delicate display; minimalist keyboard design, simple operation, easy to use; scan code video help function.


Small size, great function :
Minimalist keyboard design, simple operation, easy to use;
High-brightness color LCD screen, visible under strong light; delicate colors, clear waveform display; high-end quality shell ten silicone protective cover, delicate touch, strong impact resistance, heat resistance will be outstanding; two 18650 lithium batteries can be powered Continuous use for a whole day, standby for more than two months; minimalist keyboard design, simple operation, easy to use;


Oscilloscope + signal source + multimeter:
One machine with multiple functions, three general test equipment functions, an essential helper for engineers when going out at home;
Three functions of one machine:
Dual channel oscilloscope + signal source + multimeter

Oscilloscope:
250M sampling rate, 70/40MHz bandwidth
10mV~10V vertical resolution;
Auto automatic test function;
Button tone settings;
Adjustable backlight brightness, backlight time, automatic shutdown time;
Digital voltmeter function;
Language support Chinese and English switching;
Cursor measurement, reference waveform, waveform save function;


Signal generator function
Can simulate various sensors Multi-purpose equipment that improves work efficiency and meets current and future testing needs.

Information generator function：
250M Sampling Rate，12-bit vertical resolution
Sine wave：1Hz~25MHz
Square wave：1Hz~10MHz
Triangle wave：1Hz~1MHz
Trapezoidal wave：1Hz~5MHz
Frequency resolution:1Hz
Output impedance:50Ω
Four arbitrary waves;
Multi-purpose equipment to meet current and future testing needs


Multifunction digital multimeter
High sensitivity, high accuracy, clear display, overload protection, easy to carry.
Multimeter function:
The whole system is equipped with a multi-function digital multimeter as standard,
which can measure AC and DC voltage/current, resistance, diode, capacitance, and continuity test.
High sensitivity, high accuracy,
clear wet display, overload protection, easy to carry.

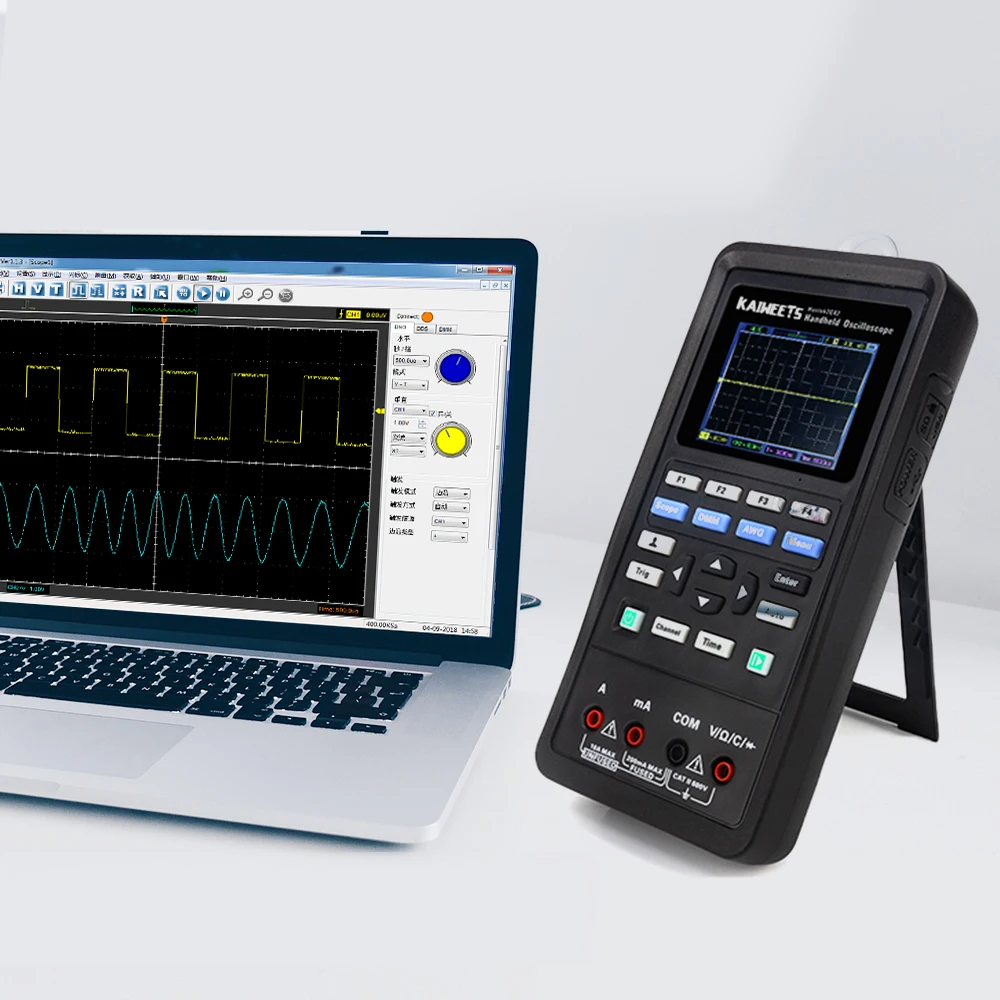

Powerful PC software :
Powerful oscilloscope: 20 kinds of automatic measurement, cursor measurement, waveform printing and saving function, REF and Math function, Pass/Fail function.




Large-capacity lithium battery + ultra-low power consumption design + TypeC data transmission/charging port :
The 18650 can be replaced with lithium battery power supply, eliminating the trouble of replacing the battery later;
5V/2A high current or ordinary computer USB port can be recharged, and use it while charging, saving worry and easy to use;

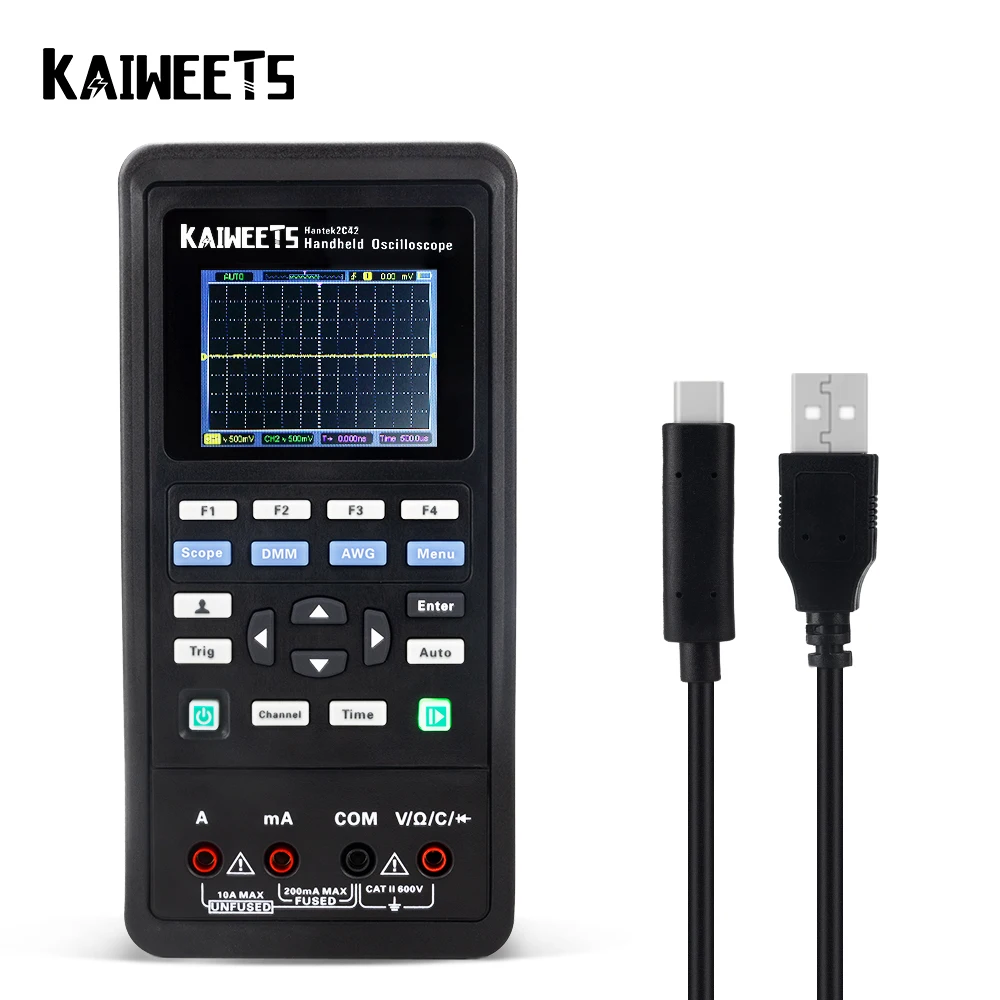

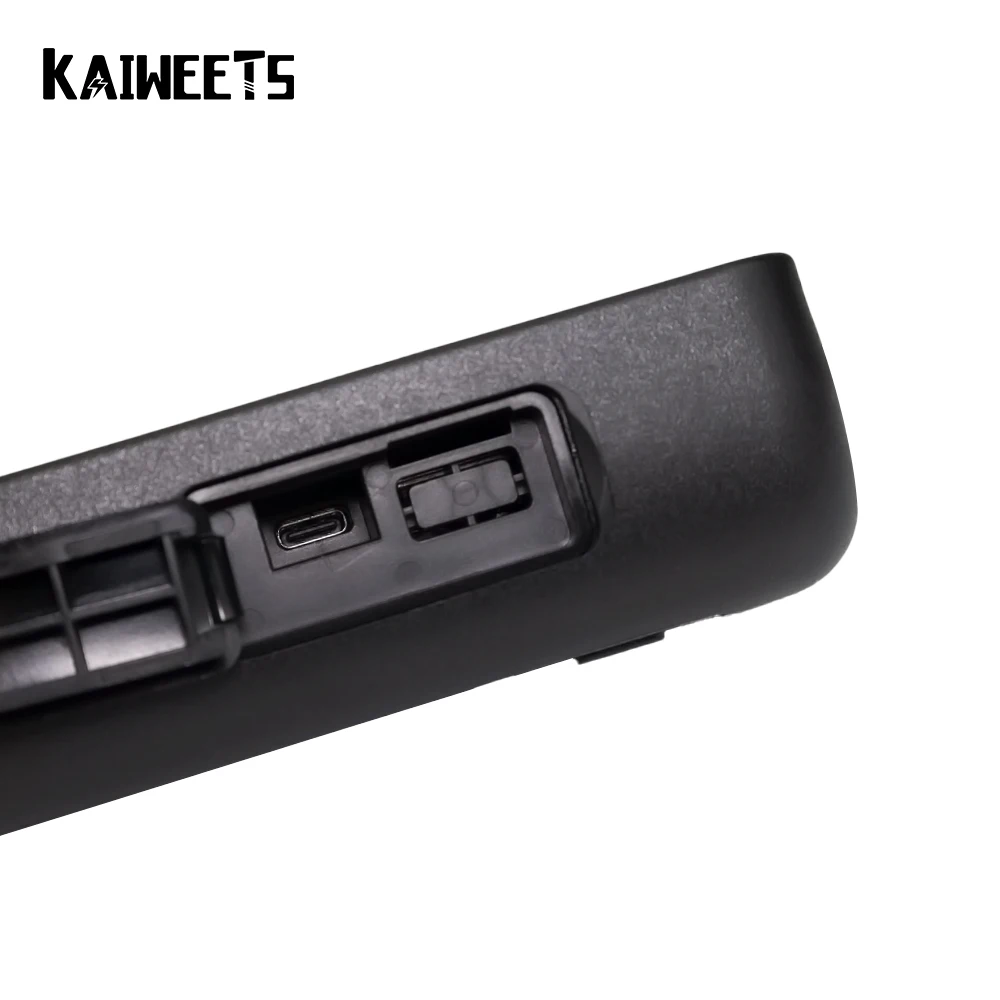

Type C charging interface, charging for 2 hours standby day two months;
the Type C + power data transmission interface, and can share a cell phone chargers and the data line;
Built-in large-capacity lithium battery:
The 18650 can be replaced by a lithium battery, which eliminates the trouble of replacing the battery in the future;





Applicable Scene


222



Product parameters:


model
Kaiweets2C72
Kaiweets2D42
Kaiweets2C72
Kaiweets2C42
Oscilloscope
bandwidth
70MHz
40MHz
70MHz
40MHz
Number of channels
2CH oscilloscope + multimeter + signal source
2CH oscilloscope + multimeter + signal source
2CH oscilloscope + multimeter
2CH oscilloscope + multimeter
level
Sampling rate range
250MSa/s (single channel), 125MSa/s (dual channel),
Waveform interpolation
(sin x) / x
Record length
3K per channel
Horizontal scale range
5ns/div~500s/div 1, 2, 5 steps
vertical
AD converter
8-bit resolution, simultaneous sampling for each channel
Oscilloscope vertical scale range
Input BNC is 10mV/div~10V/div
Optional analog bandwidth limit, typical
20MHz
Low frequency response (-3db)
≤10Hz at BNC
Rise time at BNC, typical
≤5ns
Vertical gain accuracy
In "normal" or "average" acquisition mode, ±3%
Note: The bandwidth is reduced to 6MHz when using X1 probe
collection
Acquisition mode
normal
trigger
type
Edge trigger
model
Automatic, normal, single
Level
±4 divisions from the center of the display
Trigger level accuracy
0.2 divisions×volts/div within ±4 divisions from the center display
Slope
Rising edge, falling edge, rising edge or falling edge
Source
CH1/CH2
enter
Input coupling
DC, AC or GND
Input impedance, DC coupling
25pF±3 pF，1MΩ±2%
Probe attenuation
1X、10X
Support probe attenuation coefficient
1X、10X、100X、1000X
Maximum input voltage
150VRMS
Measurement
cursor
Voltage difference between cursors△V
Time difference between cursors△T
Automatic measurement
Frequency, peak-to-peak
Arbitrary Wave Signal Generator
Wave frequency
Sine wave: 1Hz~25MHz
-
-
Square wave: 1Hz~10MHz
-
-
Triangle wave: 1Hz~1MHz
-
-
Trapezoidal wave: 1Hz~5MHz
-
-
Sampling Rate
250MSa/s
-
-
Amplitude
2.5Vpp
Frequency resolution
0.10%
-
-
aisle
1 waveform output channel
-
-
Wave depth
512Sa
-
-
Vertical resolution
12 bit
-
-
Frequency stability
<30ppm
-
-
Output impedance
50 Ω
-
-
multimeter
Maximum resolution
4000 points
measurement method
Voltage, current, resistance, capacitance, diode, on-off measurement
Maximum input voltage
AC:600V, DC: 600V
Maximum input current
AC: 10A, DC:10A
input resistance
10MΩ


Measurement item
Resolution
Precision
Resolution
DC voltage
400.00mV
±(0.8% + 5)
100uV
4.000V
1mV
40.00V
10mV
400.0V
100mV
600.0V
±(1% + 2)
1V
Overload protection: 400mV range is 250V, other ranges are 600Vrms.
AC voltage
4.000V
±(1.2% + 5)
1mV
40.00V
10mV
400.0V
100mV
600.0V
±（>1.5% + 5）
1V
Frequency range: 40Hz~400Hz;
Frequency range of 400V and 600V range: 40Hz~100Hz
DC
40.00mA
±(1% + 2)
10uA
200.0mA
±（>1.5% + 2）
100uA
4.000A
±(1.8% + 2)
1mA
10.00A
±(3% + 2)
10mA
Overload protection: self-recovery fuse 200mA/250V, 4A, 10A range without fuse
Alternating current
40.00mA
±(1.3% + 2)
10uA
400.0mA
±(1.8% + 2)
100uA
4.000A
±(2% + 3)
1mA
10.00A
±(3% + 5)
10mA
Frequency range: 40Hz~400Hz;
Self-recovery fuse: 200mA/250V; 4A, 10A range without fuse
resistance
400.0Ω
±（>1% + 3）
0.1Ω
4.000KΩ
±(1.2% + 5)
1Ω
60.00KΩ
10Ω
400.0KΩ
100Ω
4.000MΩ
1KΩ
40.00MΩ
±(1.5%±3)
10KΩ
Overload protection: 220V effective value
capacitance
40.00nF
±(3% + 5)
10pF
400.0nF
100pF
4.000uF
1nF
40.00uF
10nF
100.0uF
100nF
Overload protection: 220V effective value
diode
0V~1.0V
On-off measurement
<50Ω
General technical specifications
show
Display type
2.8 inch, color LCD display
Display resolution
320*240
Display contrast
Adjustable
power supply
power supply
AC 100V ~ 240V, 50Hz ~ 60Hz; DC input: 5VDC, 2A
Power consumption
Less than 1.8W
Fuse
T，3A
Battery
2600mA*2
surroundings
Operating temperature
0~50 °C (32~122 °F)
storage temperature
-40~+71 °C (-40~159.8 °F)
humidity
≤+104℉(≤+40°C): ≤90% relative humidity
106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
cooling method
convection
Altitude
When operating and not operating
3,000m (10,000 feet)
Mechanical shock
Random vibration
0.31 g RMS from 50Hz to 500Hz ,
10 minutes per axis
When not operating
2.46g RMS from 5Hz to 500Hz ,
10 minutes per axis
During operation
50g, 11ms, half sine wave
Mechanical part
Oscilloscope size
199 x 98 x 40mm (length x width x height)
weight
400g
Product accessories
Probe*1, clip line*2, Type C line*1, charger*1
Probe*1, clip line*2, Type C line*1, charger*1
Probe*1, clip line*1, Type C line*1, charger*1
Probe*1, clip line*1, Type C line*1, charger*1
