UNI-T цифровой осциллограф 100 МГц 2 канальный запоминающий
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Yuntong,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 286.10 $* | 300.51 $* |
| Aug-16-2025 | 283.67 $* | 297.3 $* |
| Jul-16-2025 | 238.19 $* | 250.56 $* |
| Jun-16-2025 | 278.99 $* | 292.28 $* |
| May-16-2025 | 242.9 $* | 254.33 $* |
| Apr-16-2025 | 274.84 $* | 288.59 $* |
| Mar-16-2025 | 271.57 $* | 285.85 $* |
| Feb-16-2025 | 269.42 $* | 282.54 $* |
| Jan-16-2025 | 266.91 $* | 279.27 $* |
Характеристики
Product Description

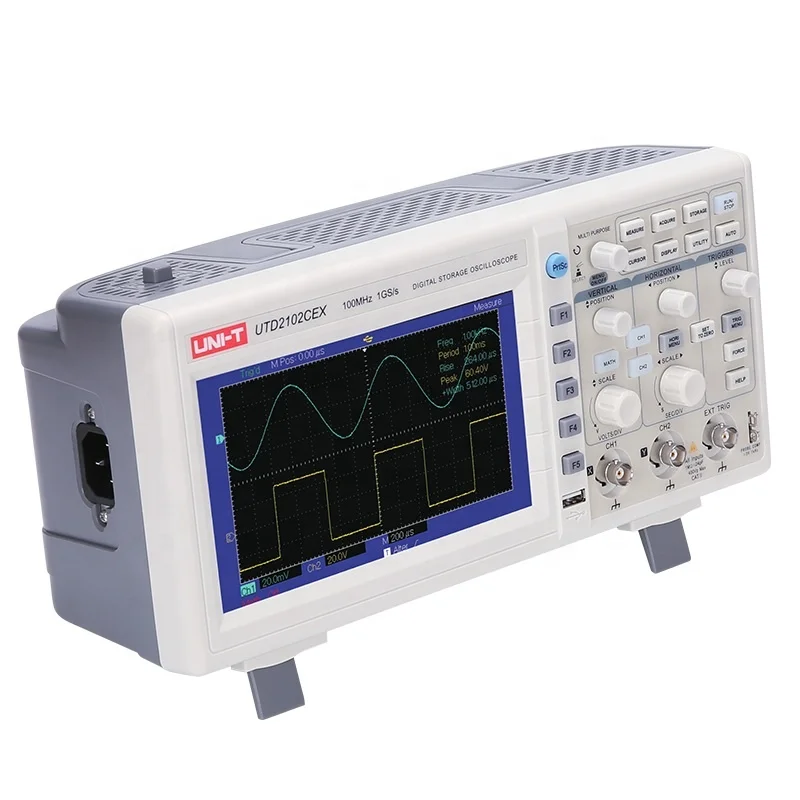

UTD2000CEX Series is the value leader of high performance economical oscilloscope
1GSa/s sampling rate and big screen.It is widely loved by customers.
The classical CEX Series is a great entry for value oscilloscope requirements with features including FFTs,
record and replay, roll mode, alternate trigger mode.
The UTD2000CEX series is equipped with 2 channels as standard,
and has multiple national languages, which is convenient for operation and use in more regions and countries
The UTD2000CEX-II Series maximum of 8000 frames can be recorded,
and a better waveform analysis effect can be achieved through the playback and save functions. and Up to 20,000wfms/s waveform capture rate.
and a better waveform analysis effect can be achieved through the playback and save functions. and Up to 20,000wfms/s waveform capture rate.
Specification

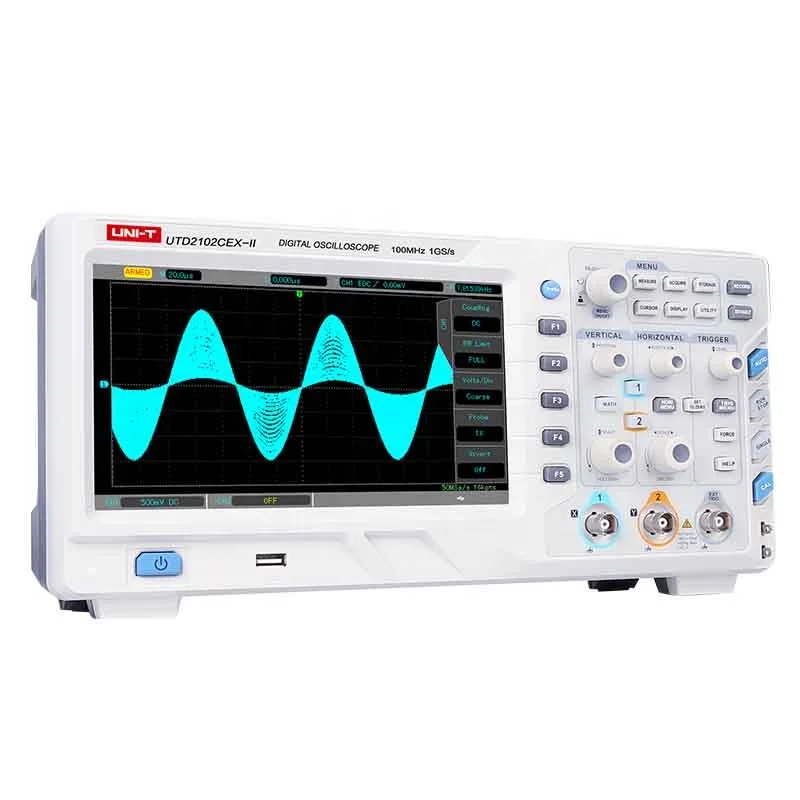

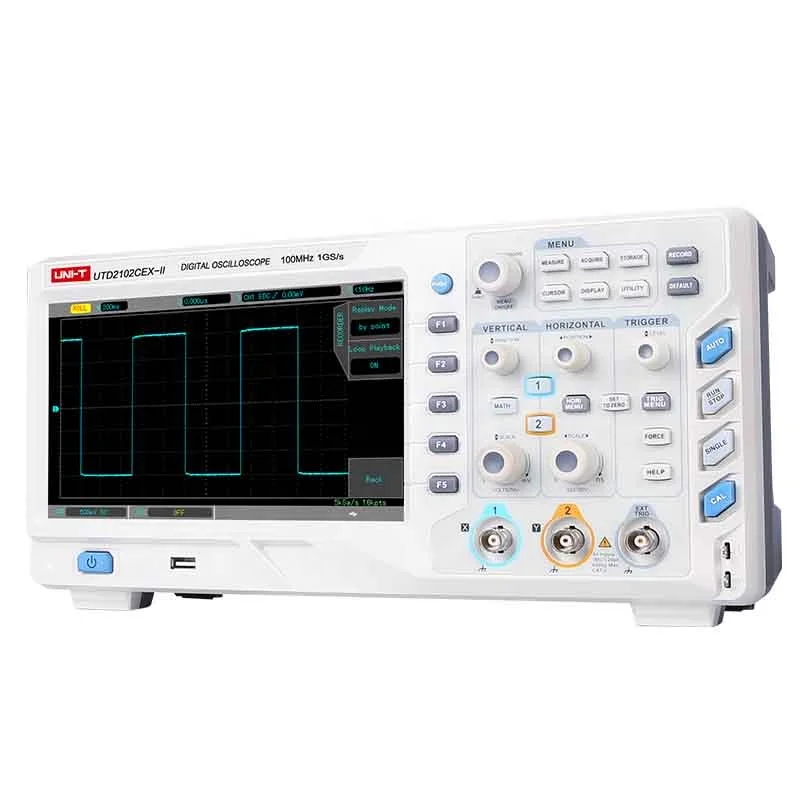

Model | UTD2102CEX-II | ||||||
Analog bandwidth | 100MHz | ||||||
Channels | 2 | ||||||
Sampling rate | 1GS/s | ||||||
Memory depth | 25kpts | ||||||
Waveform capture rate | 20,000 wfms/s | ||||||
Time base scale | 2ns/div~50S/div | ||||||
Vertical Sensitivity (V/div) | 1mV/div~20 V/div | ||||||
Trigger Modes | Edge, Pulse,Alternate | ||||||
Interface | USB OTG | ||||||
Display | 8-inch TFT LCD, WVGA (800 x 480) | ||||||
Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||||||
Optional interfaces | 25MHz Function/Arbitrary waveform Generator | UT-D14 | |||||
Packing & Delivery
Product net weight | 2.2kg | ||||||
Standard quantity per carton | 2 pcs | ||||||
Standard carton measurement | 450mm× 420mm × 280mm | ||||||
Standard carton gross weight | 8.5kg | ||||||
Delivery time | Generally 3-5 days from in stock | ||||||
Company Profile
Certifications
FAQ
1.Q: Are you trading company or manufacturer?
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
