Портативный станок для выпрямления стальных стержней гибочный
- Категория: Metal Straightening Machinery >>>
- Поставщик: Zhengzhou,Hengyou,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1904.46 $* | 1942.42 $* |
| Jul-16-2025 | 1544.88 $* | 1575.78 $* |
| Jun-16-2025 | 1874.10 $* | 1911.36 $* |
| May-16-2025 | 1859.62 $* | 1896.90 $* |
| Apr-16-2025 | 1484.40 $* | 1514.17 $* |
| Mar-16-2025 | 1829.43 $* | 1866.9 $* |
| Feb-16-2025 | 1814.25 $* | 1850.38 $* |
| Jan-16-2025 | 1799.16 $* | 1835.14 $* |
Характеристики

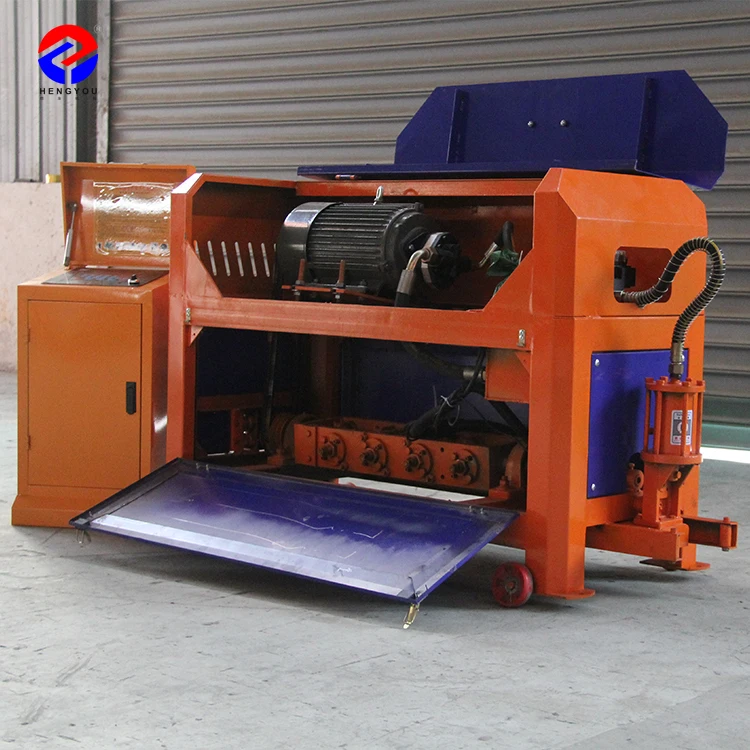

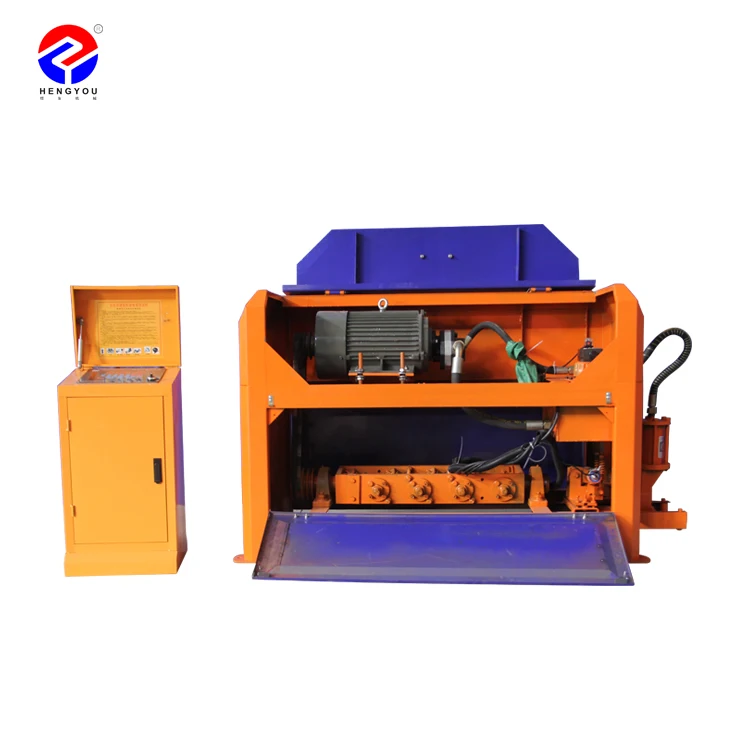

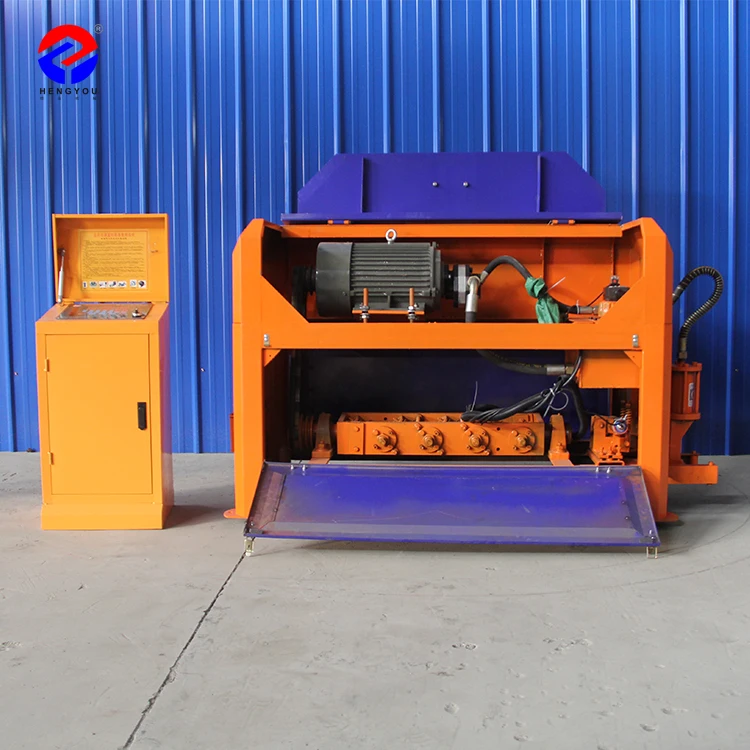

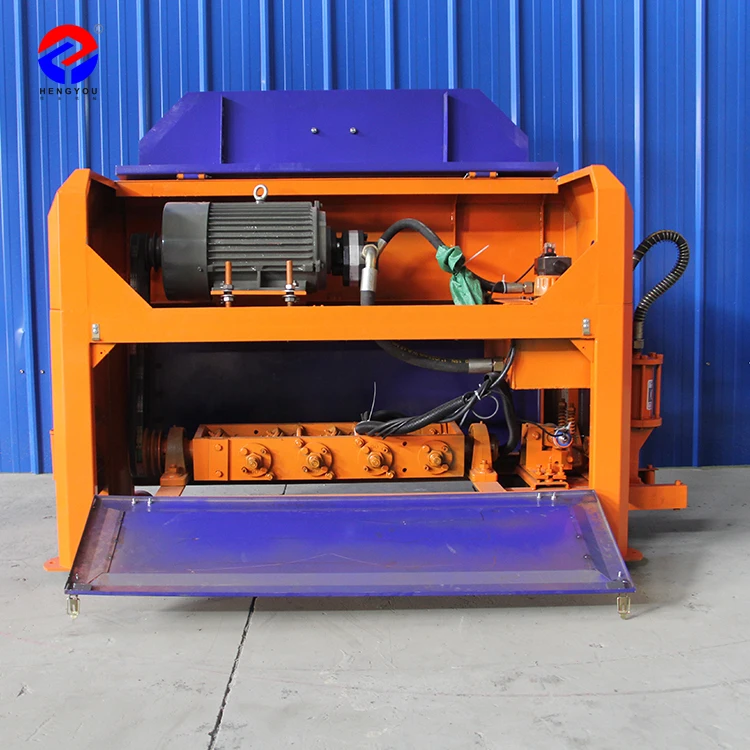

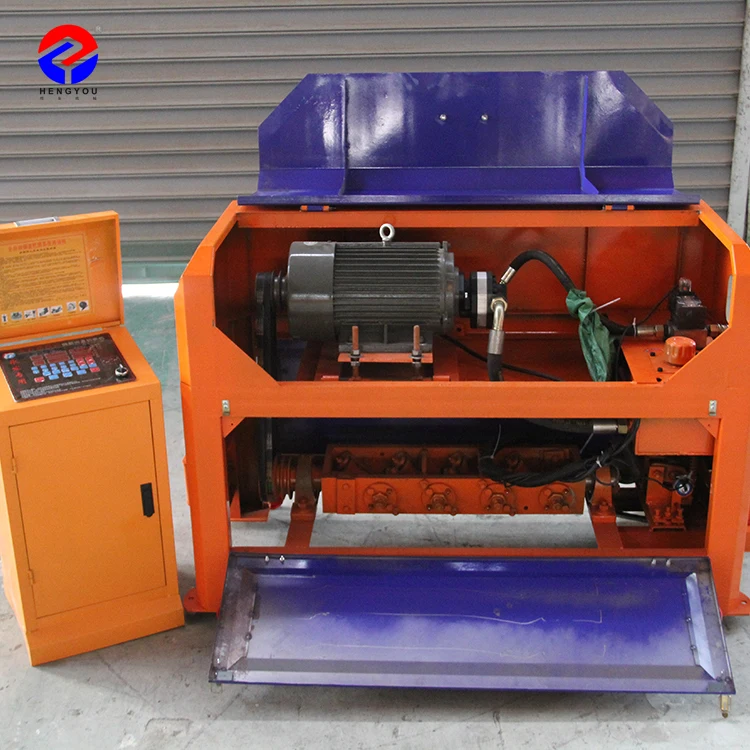

The steel bar straightening and cutting machine adopts multi-wheel straight forward straightening method, which is suitable for large-scale steel bar straightening processing plants. Steel bar straightening machine can also be used with hoop bending machine and extension unit to synthesize stirrup production line.
Rebar straightener and cutter is mainly used to straighten those steel bars with a diameter of 4-14mm. The cut length can be customized at will. After the machine is straightened, the surface of the steel bar is basically free of scratches, with good straightness, high strength and low loss.
type | straightening speed | straightening diameter | cutting length | motor power | total weight | overall size |
5.5kw-A | 28-42 | 4-8 | 0.3-99 | 5.5 | 240 | 150*56*90 |
5.5kw-B | 28-42 | 4-8 | 0.3-99 | 5.5 | 250 | 145*57*90 |
7.5kw-A | 30-45 | 4-10 | 0.3-99 | 7.5 | 270 | 146*58*90 |
7.5kw-B | 30-45 | 1-12 | 0.3-99 | 7.5 | 280 | 148*58*90 |
9kw-B | 38-48 | 4-14 | 0.3-99 | 9 | 330 | 165*68*102 |
9kw-A | 38-48 | 4-14 | 0.3-99 | 9 | 335 | 168*65*100 |
9kw | 42-50 | 4-14 | 0.3-99 | 9 | 520 | 170*62*110 |
11kw | 52-58 | 4-14 | 0.3-99 | 11 | 520 | 200*60*130 |
70M-A | 40-70 | 4-14 | 0.02-99 | 5.5 | 1000 | 250*70*110 |
70M-B | 40-70 | 4-14 | 0.4-99 | 5.5 | 1000 | 250*70*110 |
85M-A | 48-70 | 4-14 | 0.02-99 | 5.5 | 1200 | 290*80*120 |
85M-B | 48-70 | 4-14 | 0.3-99 | 5.5 | 1200 | 290*80*120 |
GT4-14 | 40-55 | 4-14 | 0.3-99 | 5.5 | 1000 | 300*80*120 |

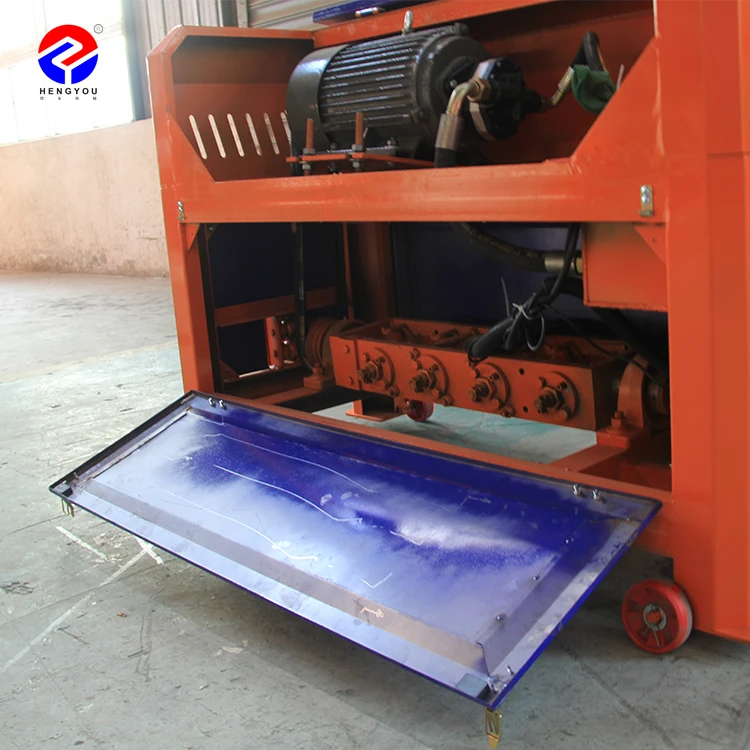

Double-row four-wheel feed inlet
The feed balance is stable, convenient and durable.
Eight-round straightening frame
Straightening and cutting can be done easily by adopting chromium 12 straightening wheels.
Meter counting system
It is made of high-quality chromium 12 material, which reduces loss and has a long service life.
Single-tube oil cylinder
enhance the cutting speed, the cutting speed is fast, and the steel bar is cut cleanly and neatly.
Pressure regulating valve
Adjust the pressure of the oil cylinder, and the speed of the knife can be adjusted arbitrarily.
Control cabinet
Microcomputer control, reasonable structure, simple operation, automatic straightening, and stable operation
Zhengzhou Hengyou Machinery Manufacturing Co., Ltd., located in Zhengzhou, Henan Province, was established on August 28, 2017. It covers an area of about 50 acres, has nearly 30,000 square meters of workshops, office buildings, 2000 square meters, and nearly 300 square meters of products. Showroom.Our company is now specialized in the manufacture and trade of material handling equipment, construction engineering machinery,agricultural machinery, mining machinery and livestock machinery. Our production workshop has a clear division of labor, clear division of responsibilities, and two warehouses. Our company has more than 300 fixed employees, including more than 200 skilled workers, more than 20 core professional R&D teams, and more than 200 sets of large-scale production and processing equipment. Our company insists on striving for survival by quality, creating brand by meticulous, and seeking innovation by research and development, and constantly pushes new products of different grades and different prices to meet the needs of buyers at different levels. As a direct manufacturer that can support self-production and self-sales, we have strong strength to complete the integrated operation of production, sales, delivery and after-sales, and can provide our customers with comprehensive one-stop services.
Our market has covered various regions in China, and is now exported to more than 90 countries and regions such as Europe, the United States, Australia, Japan, and the United States. With rich experience in import and export, we can provide diversified mechanical equipment for international friends in various countries.
Q1:Does the company ship by sea or land? Which port? |
A1: Our shipments are generally shipped by sea, which has strong carrying capacity and cheaper freight, and the seaborne is more tolerant of the category of goods, and the basic requirements can be met. We generally use Tianjin and Qingdao ports within China. |
Q2:How is your service? |
A2:24 hours on line service,support Chinese,English and French techinical guidance. |
Q3:How you Packing&delivery？ |
A3:Standard export wooden box,protect the machine from damage.If your order is big and we have no stock,we promise to delivery within 7 to 12 days. |
Q4:Rebar straightener is only one machine? |
A4:Our rebar straightener includes one set of straightener, for part of big straightener, steel auxiliary runway should be in one horizontal line. |
