Новый стиль многофункциональный TOP20-2V пластиковый корпус УЦИ с линейным масштабом для фрезерования-расточный/Пена/шлифовальный

Описание и отзывы

Трекер стоимости

Характеристики





TOP20-2V multi-function DRO Specification:

TOP20-V multi-function DRO, it can be used on milling machine, boring machine, lathe machine, grinding machine, electronic spark machine etc.



1.PCD circular sub-holes (for milling, EDM)
2.Slash punch (for milling machine)
3.Tool compensation function (for milling machine)
4.Taper measurement function (for lathe)
5.Slope processing (for milling machine)
6.R arc function (for milling machine)
7.200 tool magazine (for lathe)
8.EDM functions (for EDM, ordered separately)
9.RS-232 communication (ordered separately)

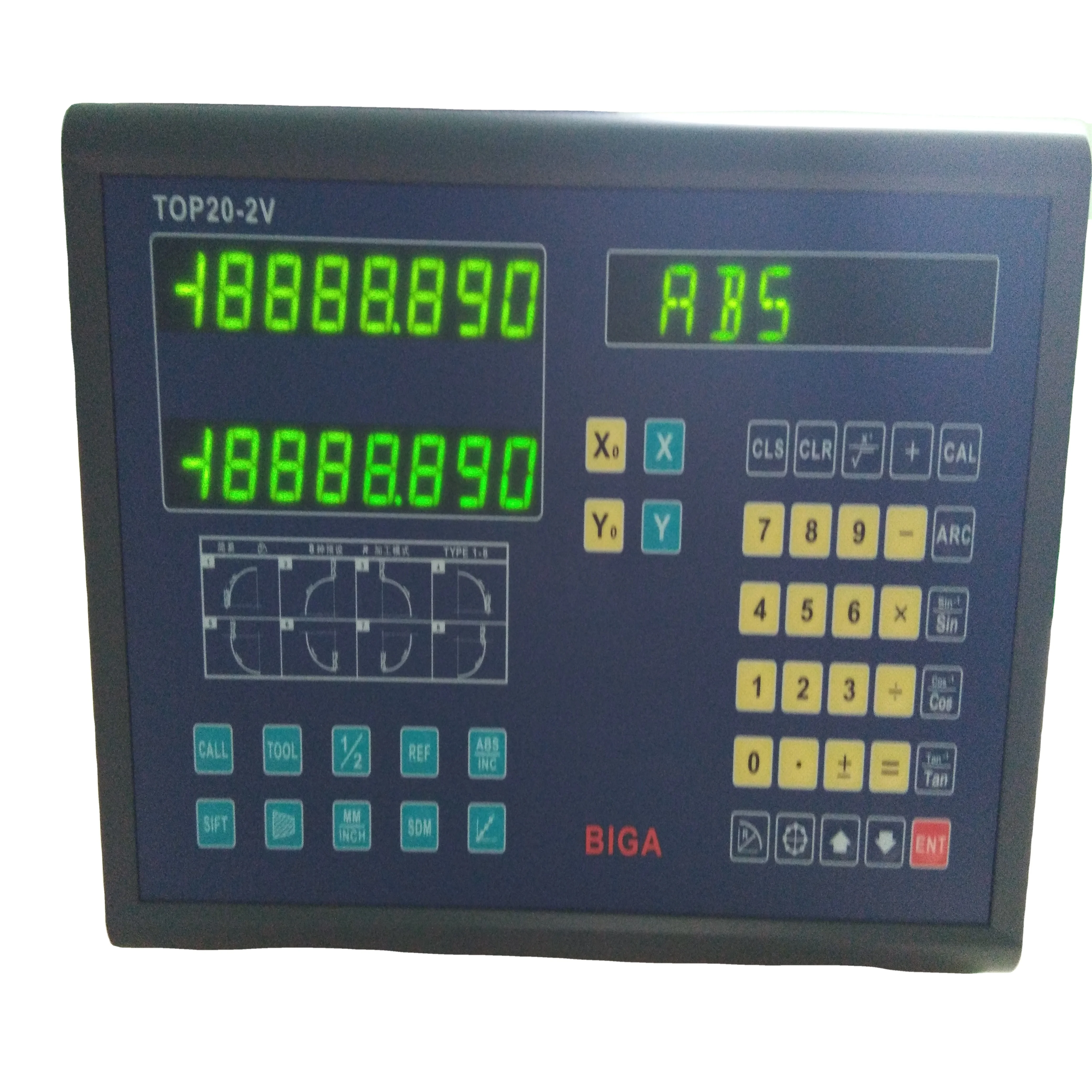

Feature of TOP20-2V digital readout

No. Axes:	2
Display:	Bright Green LED
Case:	ABS Plastic or metal
Power :	110…240 VAC (50/60 Hz)
Storage Temperature:	-20oC to +70oC
Operating Temperature:	0oC to +50oC
Relative Humidity:	20% to 85%
Dimensions (H x W x D):	182mm x 265mm x 45mm
Auxiliary Port (6-outputs + RS232):	Optional

Non-condensing
USB Service Fitted as standard

Delivery and packaging:

Delivery:5 working days after teceive your payment

Packaging: export standard packging

After-sale service:

Warranty period : 1 year

After the warranty period, we will still offer technical support and your request will be replied within 12 hours.
