С воздушным охлаждением 4-тактный бензиновый двигатель 4.8kw ж/д ЧПУ Линейный рельс шлифовальный станок trainrail машин головка рйлинга переключатель шлифовальная
- Категория: >>>
- Поставщик: Henan,Qiangli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 833.9 $* | 875.69 $* |
| Aug-20-2025 | 826.60 $* | 867.49 $* |
| Jul-20-2025 | 693.73 $* | 728.21 $* |
| Jun-20-2025 | 812.79 $* | 853.6 $* |
| May-20-2025 | 707.34 $* | 742.78 $* |
| Apr-20-2025 | 798.90 $* | 838.83 $* |
| Mar-20-2025 | 791.71 $* | 831.41 $* |
| Feb-20-2025 | 784.95 $* | 823.20 $* |
| Jan-20-2025 | 777.73 $* | 816.80 $* |
Характеристики
Product Description

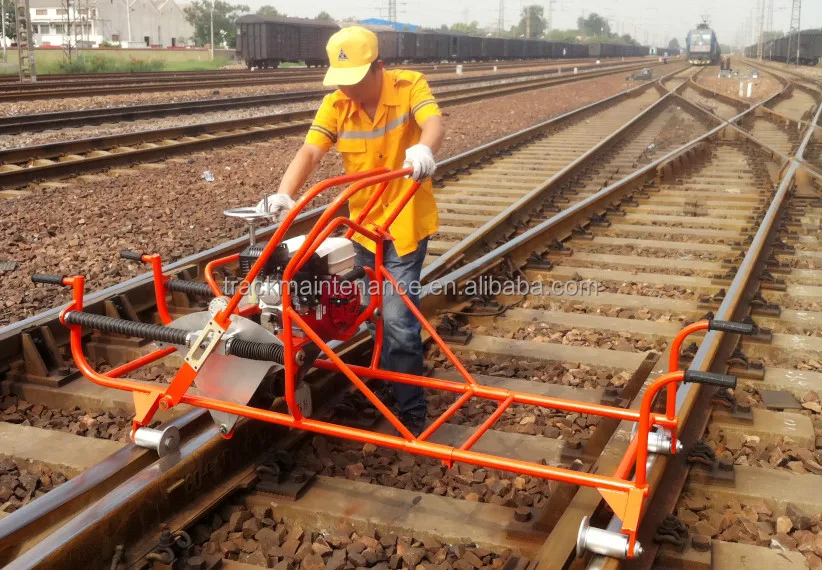

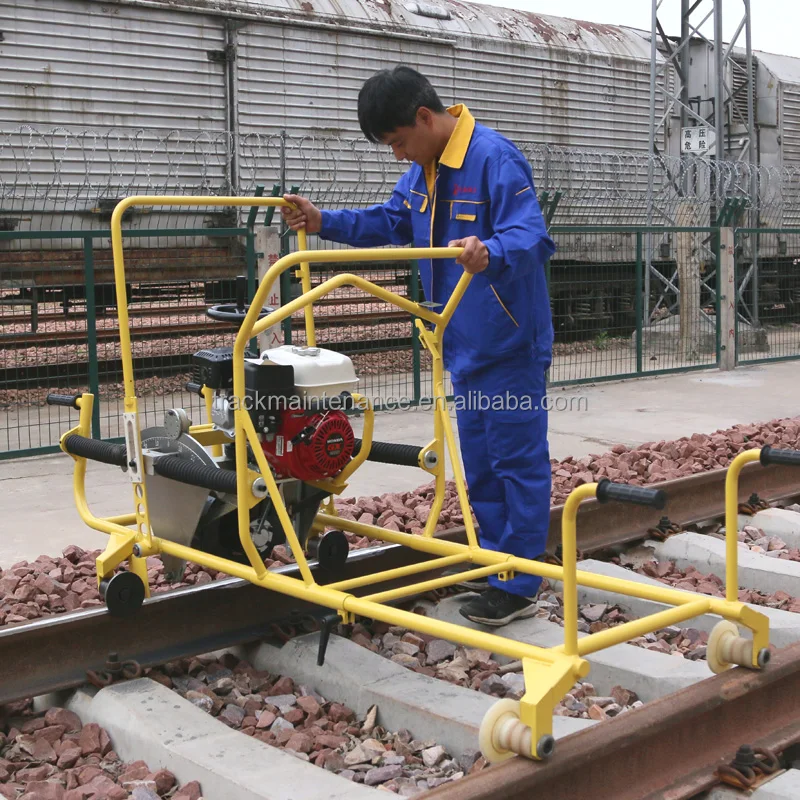

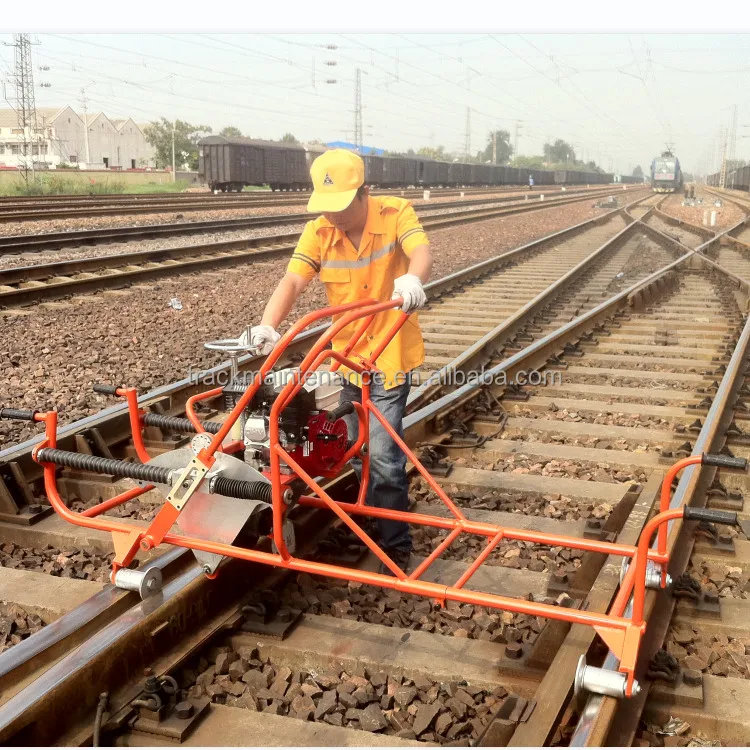

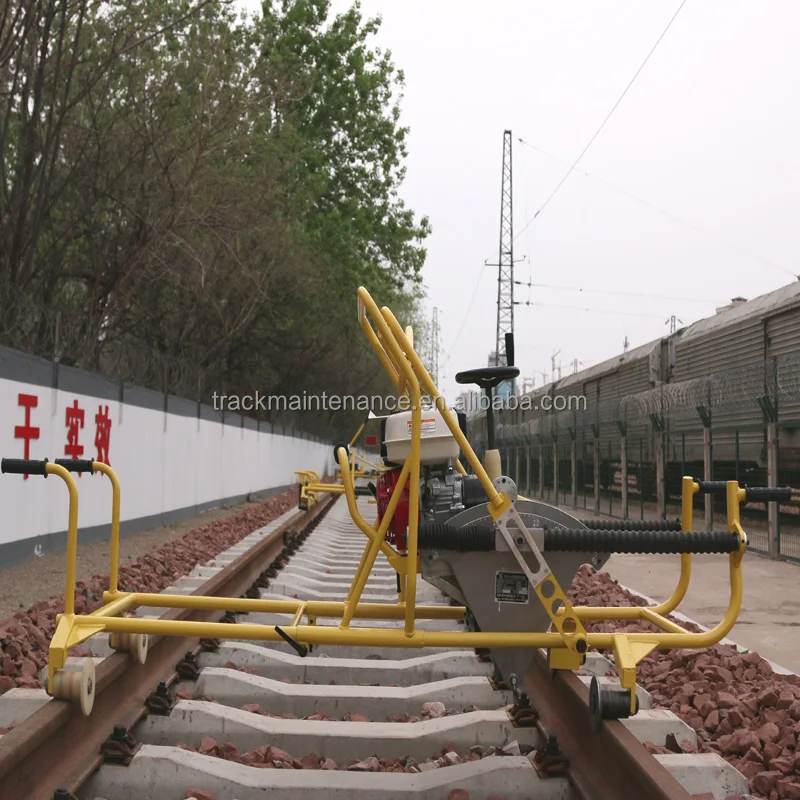

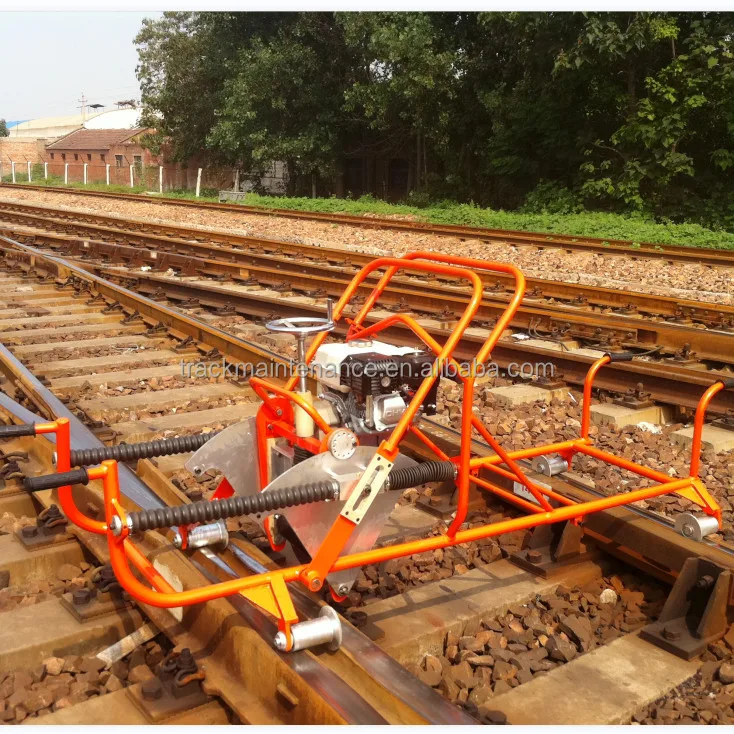

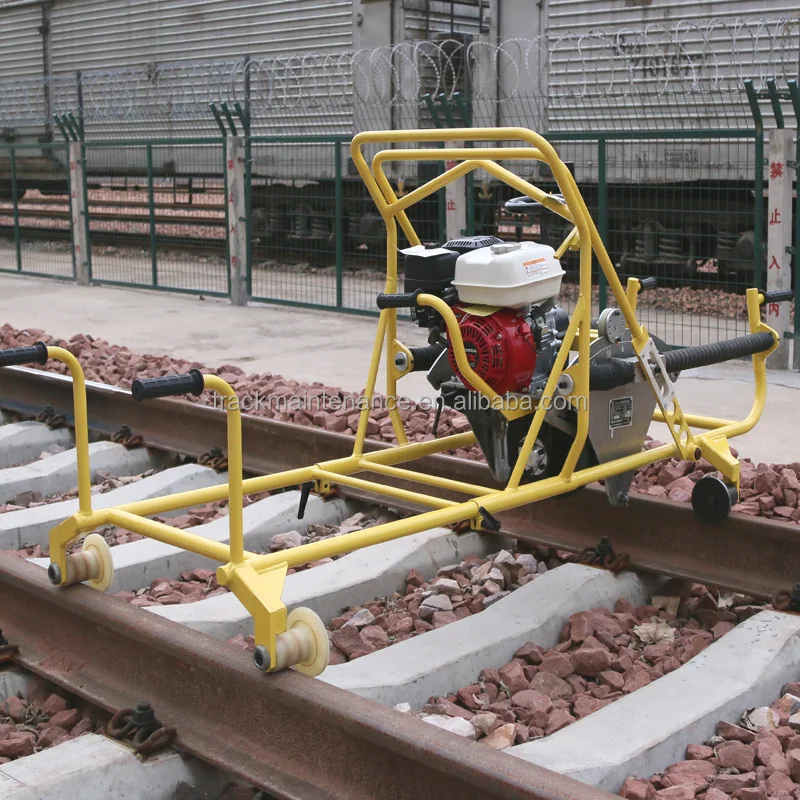

Ncm-4.8 internal combustion turnout grinder is a special machine suitable for the railway industry. It is mainly used for the
maintenance of rail turnout and ordinary rail. The machine has the characteristics of high working efficiency, simple operation,fast up and down, wide application range and so on.
maintenance of rail turnout and ordinary rail. The machine has the characteristics of high working efficiency, simple operation,fast up and down, wide application range and so on.
which can be used not only for turnout maintenance，but also for rail head surface，rail repair weld and joint weld repair and grinding operations of oradinary rails.
Specification
petrol engine： | 4.8kw（6.5ps）/3600rpm |
grinding wheel speed： | 4000rpm |
grinding angel range of wheels according to Y axis（longitudinal）： | ±30° |
grinding angle range of wheels according to Z axis(vertical)： | 3° |
grinding distance along the Z axis （vertical）： | 84mm |
grinding distance alone the X axis（longitudinal）： | ±200mm |
host quality： | 100kg |
dimension： | 2380*840*940（mm） |
