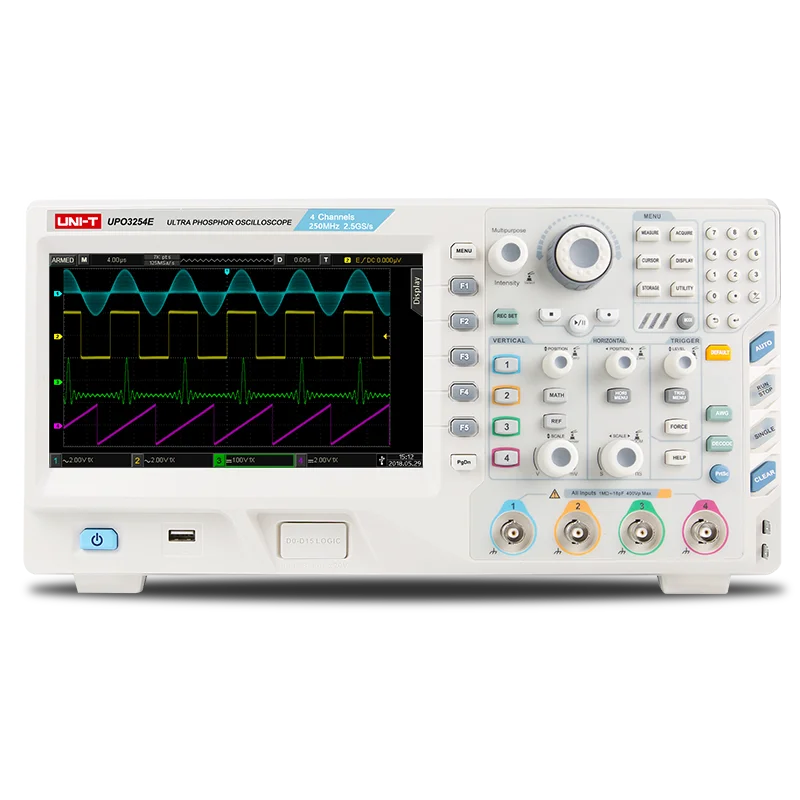

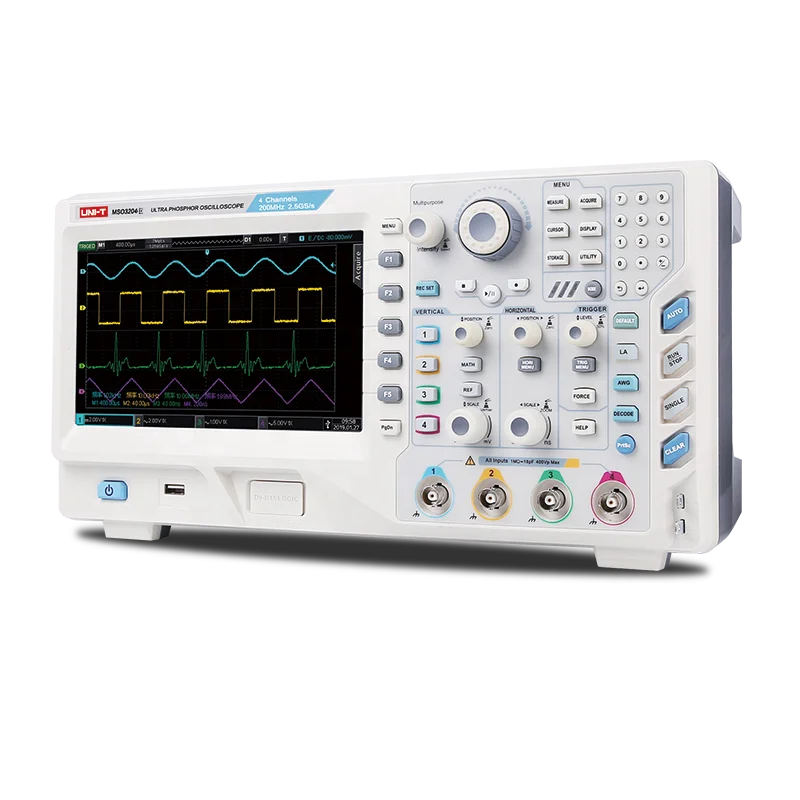

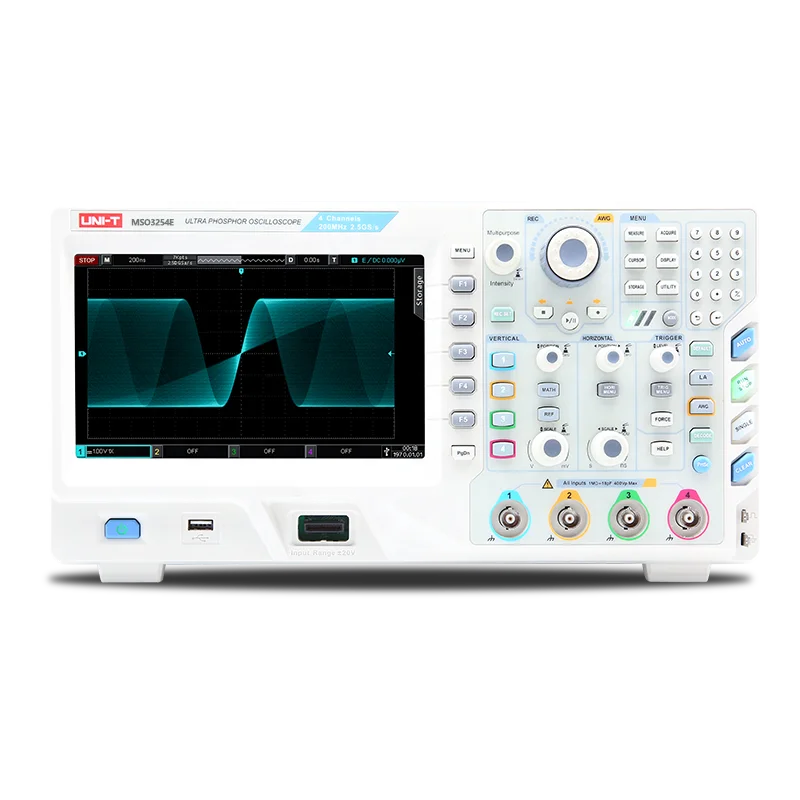

UNI-T MSO3000E серии цифровой осциллограф смешанный сигнал портативными осциллографами
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Yuntong,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1421.8 $* | 1449.52 $* |
| Jul-19-2025 | 1153.10 $* | 1176.19 $* |
| Jun-19-2025 | 1399.34 $* | 1427.40 $* |
| May-19-2025 | 1388.7 $* | 1416.72 $* |
| Apr-19-2025 | 1108.99 $* | 1130.8 $* |
| Mar-19-2025 | 1365.20 $* | 1392.51 $* |
| Feb-19-2025 | 1354.9 $* | 1381.63 $* |
| Jan-19-2025 | 1343.17 $* | 1370.84 $* |
Характеристики
Product Description

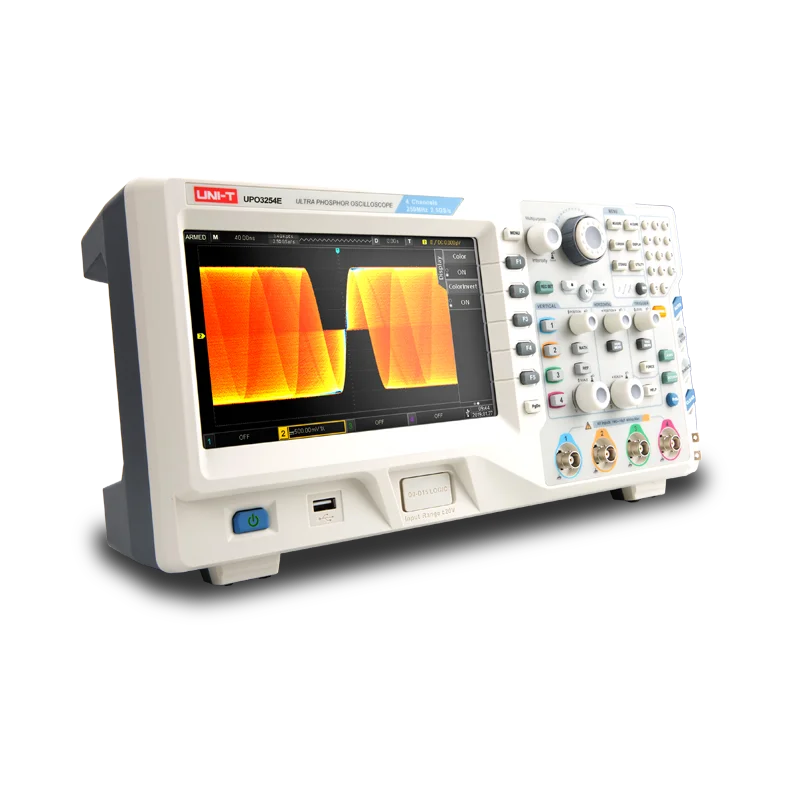

MSO3000E Series Mixed Signal Oscilloscope is based on UNI-T's unique Ultra Phosphor technology. A multifunctional,
high-performance oscilloscope that is easy to use, with excellent technical specifications, a perfect combination of many
functionalities that help users to quickly complete testing.
16 Digital Channels Mixed Signal Analysis Capability
MSO3000E not only has 4 analog channels, but also provides
16 digital channels to accurately capture and display digital
level signals and bus logic status
16 digital channels to accurately capture and display digital
level signals and bus logic status
Built-in Dual-Channel 50MHz Signal Generator
Built-in dual-channel 50MHz arbitrary waveform generator function,
integrating oscilloscope, logic analyzer and signal source into one,
bringing you a more efficient test experience.
integrating oscilloscope, logic analyzer and signal source into one,
bringing you a more efficient test experience.
Independent Time Base and Multiple Trigger Functions
Rich trigger function to meet more test conditions, and the time base of each channel is independently adjustable,
which is convenient for users to observe four signals with large frequency differences at the same time.
which is convenient for users to observe four signals with large frequency differences at the same time.
Longer storage depth
70Mpts storage depth per channel, while observing four channels of signals at the same time, it can maintain the highest sampling
rate for a longer period of time, without losing any waveform changes, and can also analyze waveform details
rate for a longer period of time, without losing any waveform changes, and can also analyze waveform details
Specification
Model | MSO3152E | MSO3154E | MSO3252E | MSO3254E | |||
Analog bandwidth | 150MHz | 250MHz | |||||
Channels | 2+16 digital | 4+16 digital | 2+16 digital | 4+ 16digital | |||
Sampling rate (Analog) | 2.5GS/s (Single channel), 1.25GS/s (Dual channels) | ||||||
Sampling rate (Digital) | 1.25GS/s (Eight channels), 625MS/s(Sixteen channels) | ||||||
Memory depth | 70Mpts | ||||||
Waveform capture rate | 200,000wfms/s | ||||||
Time base scale | 2ns/div~50s/div (Real-time sampling rate, memory depth display ) | ||||||
Time base scale (digital) | 2ns/div~40S/div[Step by 1-2-4 stall] | ||||||
Input impedance | (1MΩ±1%) II (20pF±3pF) | ||||||
Input impedance digital | (101kΩ±1%) II (9pF±1pF) | ||||||
Vertical scale | 1mV/div~20 V/div (1 MΩ) | ||||||
DC gain accuracy | <5mV: ±3%, ≥5mV: ±2% | ||||||
Waveform record | 100,000 frames | ||||||
Trigger types | Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slop, Video, Code; RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay | ||||||
Bus decode | RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay | ||||||
Waveform operations | A+B, A-B, A×B, A/B, FFT, editable advanced and logical operations | ||||||
Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in totaldigital channel: Freq, Period, +Width, -Width, +Duty, -Duty, RiseDelay A→B,FallDelay A→B, Phase A→B, Phase B→A | ||||||
Measurement display | 5 types | ||||||
Measurement statistics | Average, Max, Min, standard deviation and number of measurements | ||||||
Frequency counter | 6 bits | ||||||

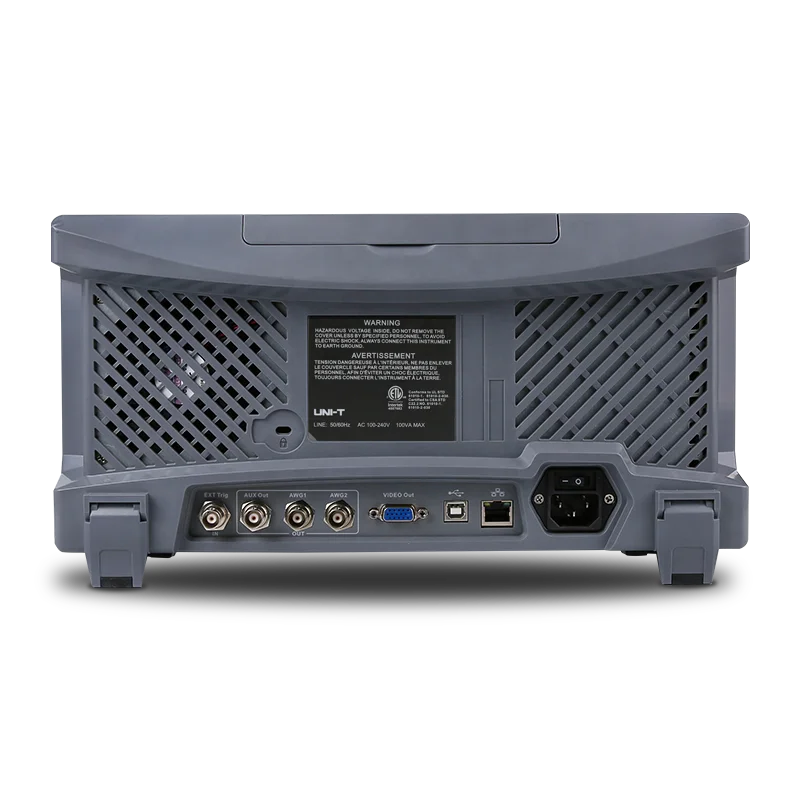

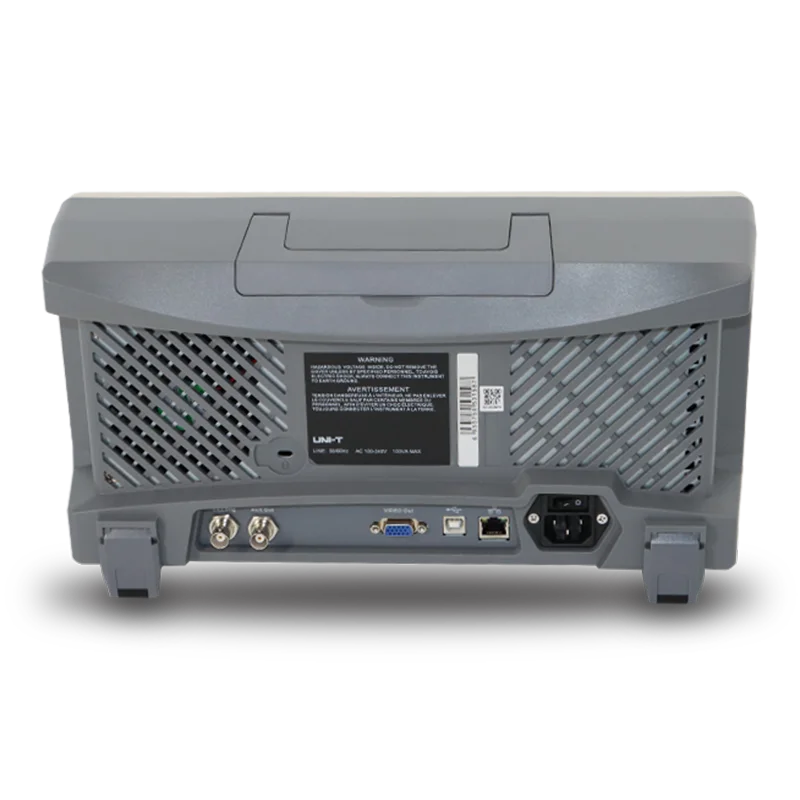

Standard interfaces | USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), AWG,UT-M15 logic analyzer probe, VGA | ||||||
USB interface cable | UT-D14 | ||||||
Passive Probe x 2/4 (1 x , 10 x switchable,300MHz,) | UT-P06 | ||||||
Passive Probe x 2/4 (1 x , 10 x switchable,200MHz,) | UT-P05 | ||||||
16CH Logic analyzer probe | UT-15M | ||||||
Packing & Delivery
Product net weight | 3.5kg | ||||||
Standard quantity per carton | 2 pcs | ||||||
Standard carton measurement | 470mm x 425mm x 300mm | ||||||
Standard carton gross weight | 11kg | ||||||
Delivery time | Generally 3-5 days from in stock | ||||||
