45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Китайский производитель машина для производства сэндвич-панелей PIR доска из фенольной пены непрерывная
- Категория: Other Construction Material Making Machinery >>>
- Поставщик: Zhejiang,Jinggong,Integration,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 833000.89 $* | 874650.7 $* |
| Aug-17-2025 | 826000.74 $* | 867300.88 $* |
| Jul-17-2025 | 693000.36 $* | 727650.7 $* |
| Jun-17-2025 | 812000.2 $* | 852600.69 $* |
| May-17-2025 | 707000.25 $* | 742350.48 $* |
| Apr-17-2025 | 798000.50 $* | 837900.66 $* |
| Mar-17-2025 | 791000.26 $* | 830550.87 $* |
| Feb-17-2025 | 784000.81 $* | 823200.86 $* |
| Jan-17-2025 | 777000.53 $* | 815850.11 $* |
Характеристики
Product Paramenters
Item | Parameter | ||
Material | Type | Color steel sheet;galvanized sheet;Aluminum sheet | |
Thickness(mm) | 0.4-0.8 | ||
Width(Mpa) | ≤1250 | ||
Suitable size of panel | Length(mm) | 2000-16000 | |
Width(mm) | 600-1200 | ||
Thickness((mm) | 30-200(Not including height of corrugation) | ||
Production speed(m/min) | (Adjustable)3-8 | ||
Valid length of double belt conveyor(mm) | 16000-36000 | ||
Work pressure on pouring foam(Bar) | 150-200 | ||
Total power(kw) | Abouot 300 | ||
Total size(Length×Width×Height) | 130000×15000×6000 | ||

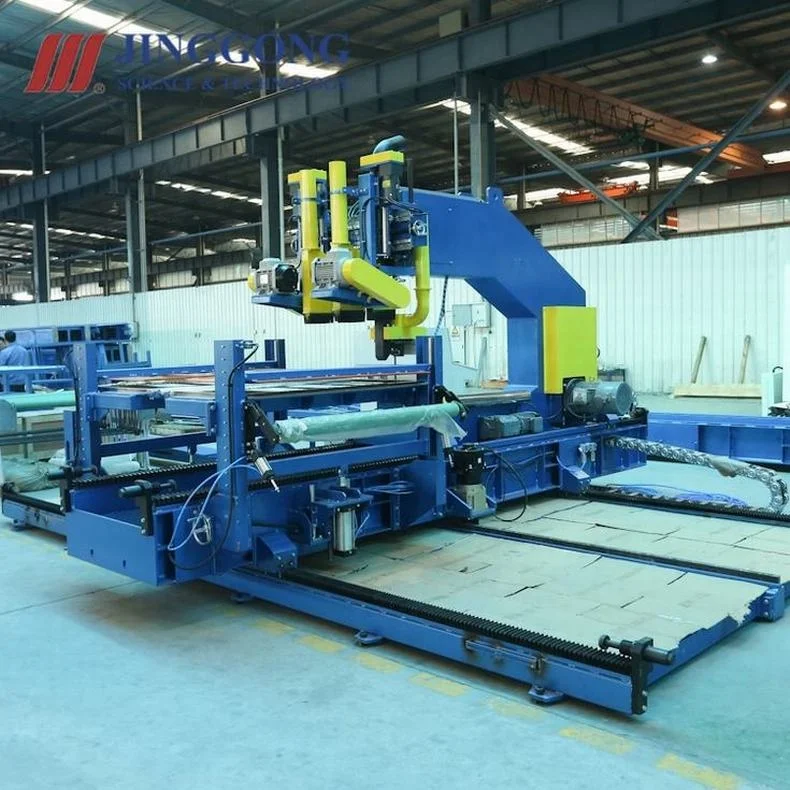

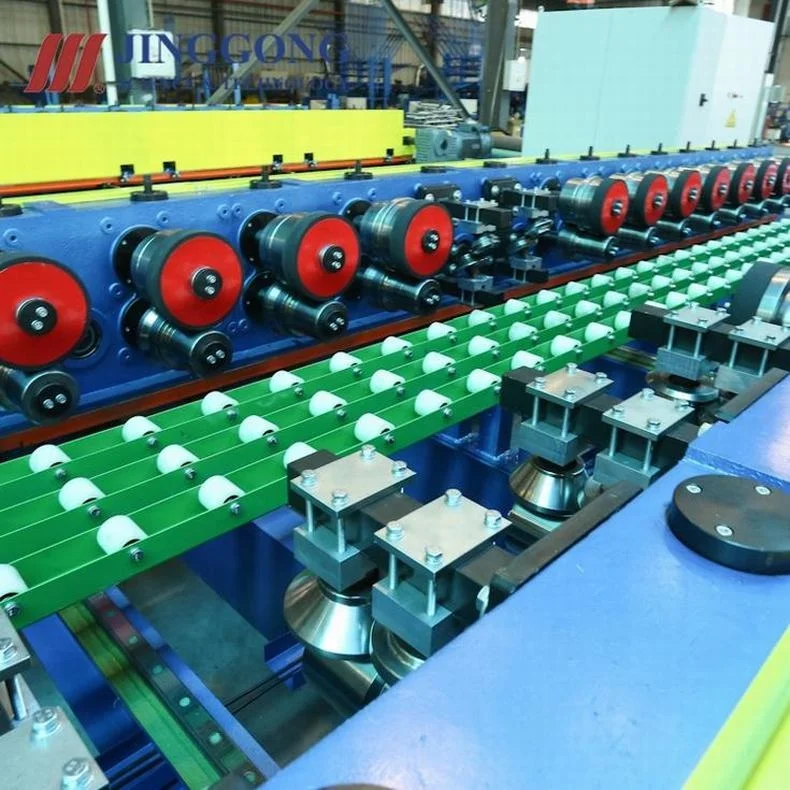

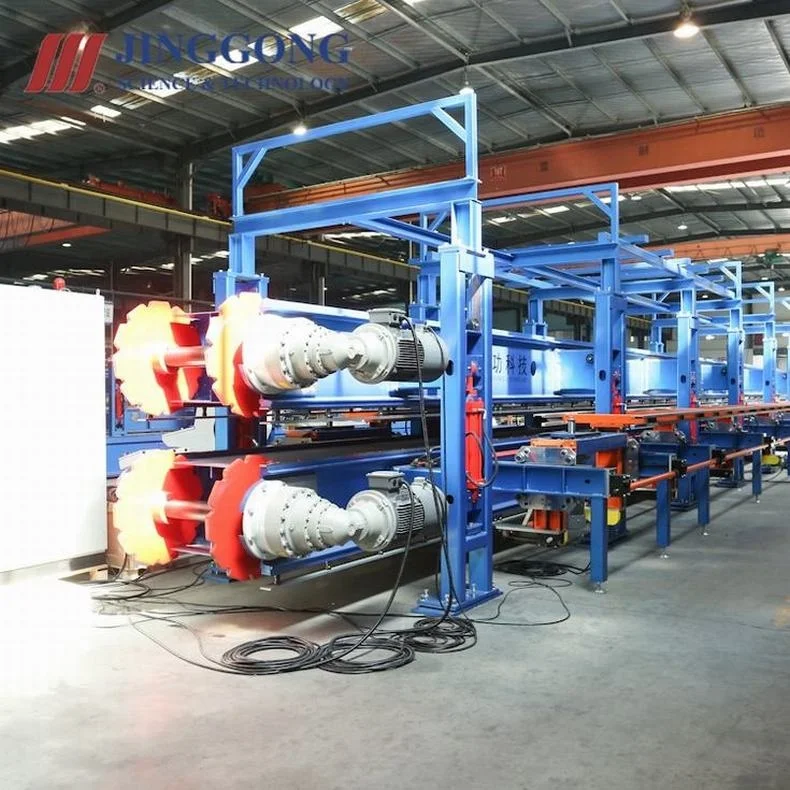

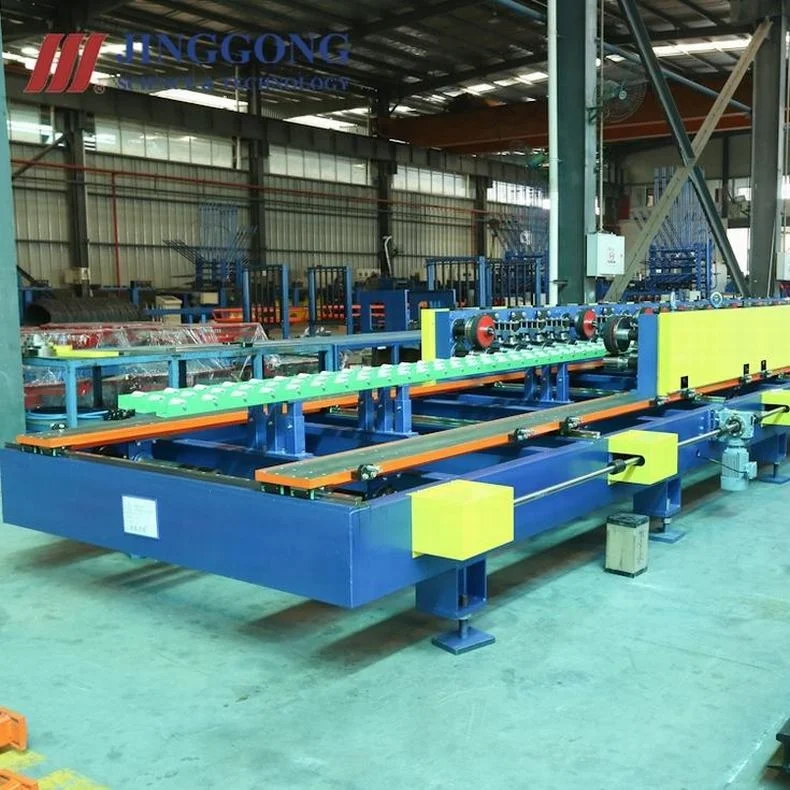

Details Images
JF 100 type PU sandwich panel line is an automatic production line, which is consisting of decoiler, film coating, pre-cutting equipment,roll forming machine system, preheating, foaming, solidification, band saw cuttinig, cooling, stacking and packing. The whole line integtates technologies of mechanics, chemistry, eletrical control, hydraulic pressure pneumatic and temperature control.
Features
1.Beautiful and applicable,multiple functions,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent.Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer,personal design and simple operation.
1.Beautiful and applicable,multiple functions,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent.Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer,personal design and simple operation.
Manufacturing Technique
Panel type
Recommended Products
Why Choose Us
Certifications
FAQ
