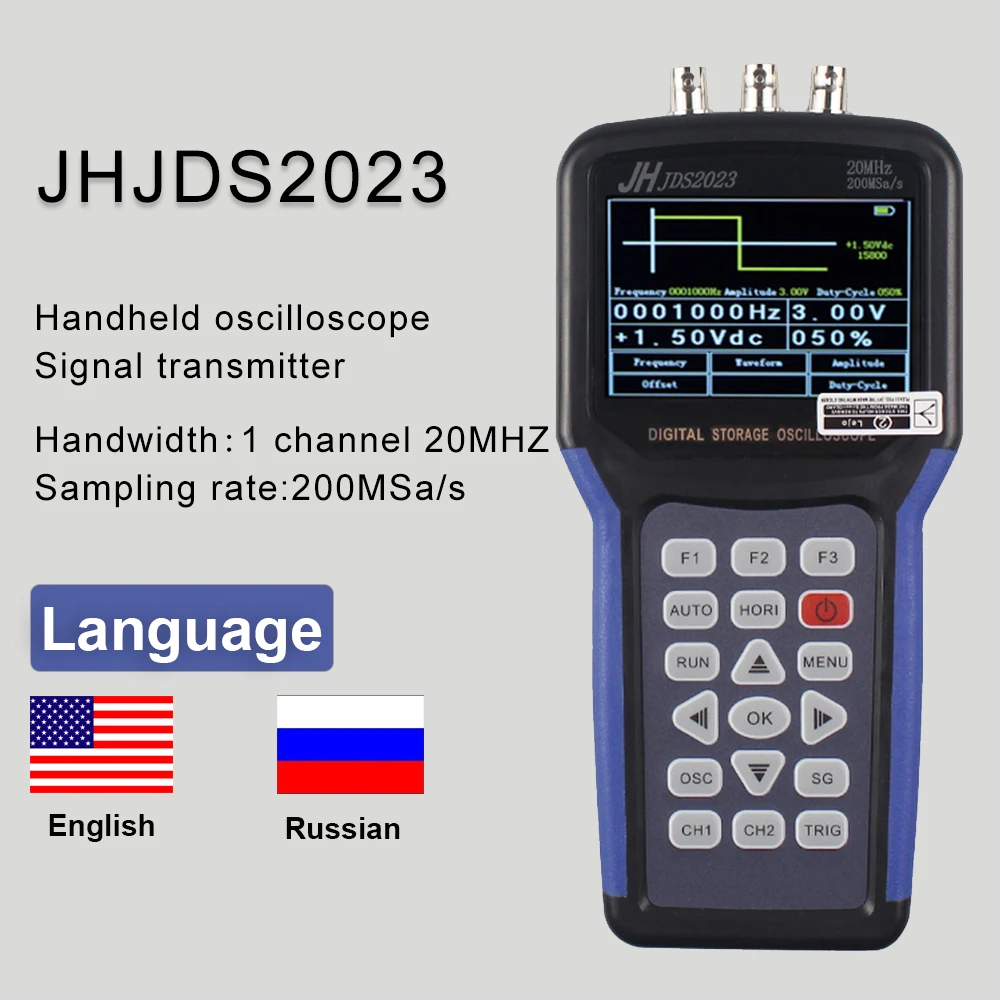

Цзиньханьская JDS2023 usb осциллограф 200 м 20 МГц полос пропускания 1 канал знак передатчик сигнала цифровой
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Youngrun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.87 $* | 0.87 $* |
| Aug-19-2025 | 0.96 $* | 0.67 $* |
| Jul-19-2025 | 0.81 $* | 0.3 $* |
| Jun-19-2025 | 0.23 $* | 0.10 $* |
| May-19-2025 | 0.13 $* | 0.14 $* |
| Apr-19-2025 | 0.96 $* | 0.56 $* |
| Mar-19-2025 | 0.28 $* | 0.38 $* |
| Feb-19-2025 | 0.85 $* | 0.20 $* |
| Jan-19-2025 | 0.89 $* | 0.81 $* |
Характеристики

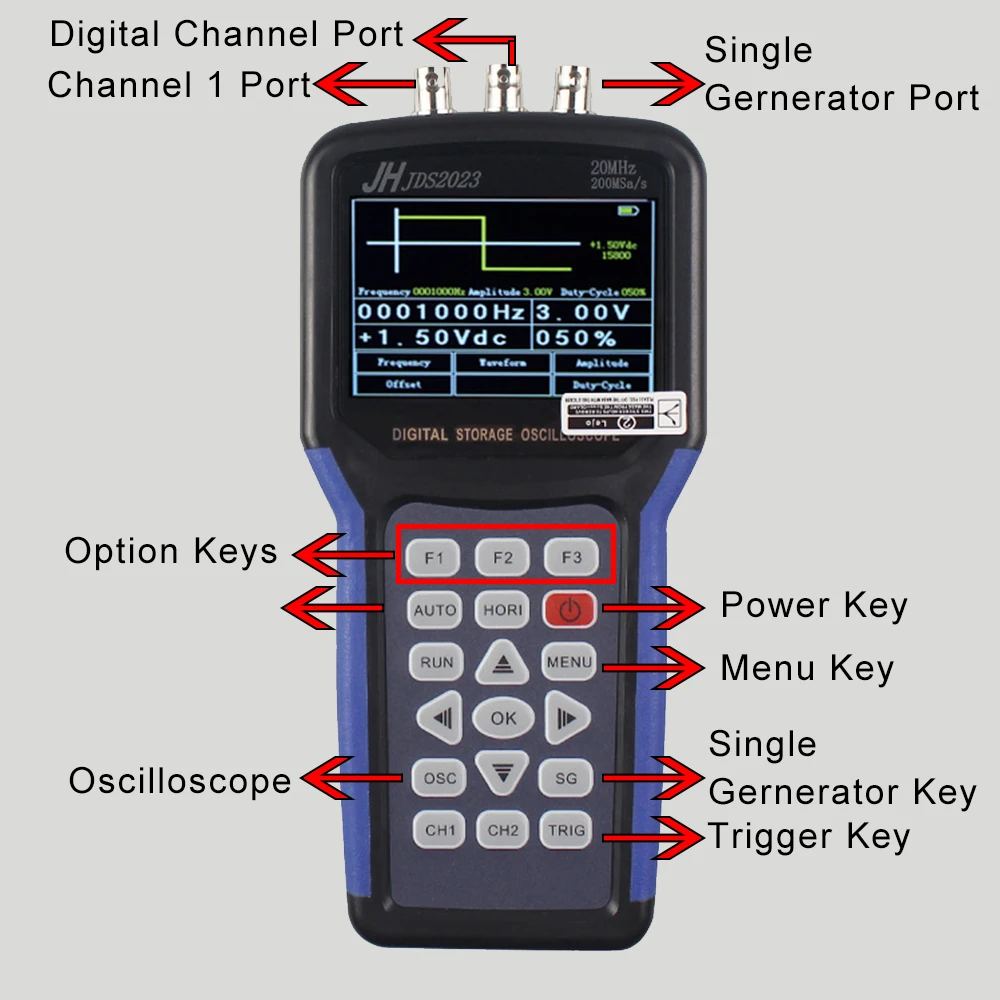

JDS2023 Handheld Oscilloscope Portable Oscilloscope 20MHz 1Channels Digital Storage Dual Channel 200M Sa/S TIP : ship not include battery !!!!!!!!!!
Input
Input coupling AC,DC

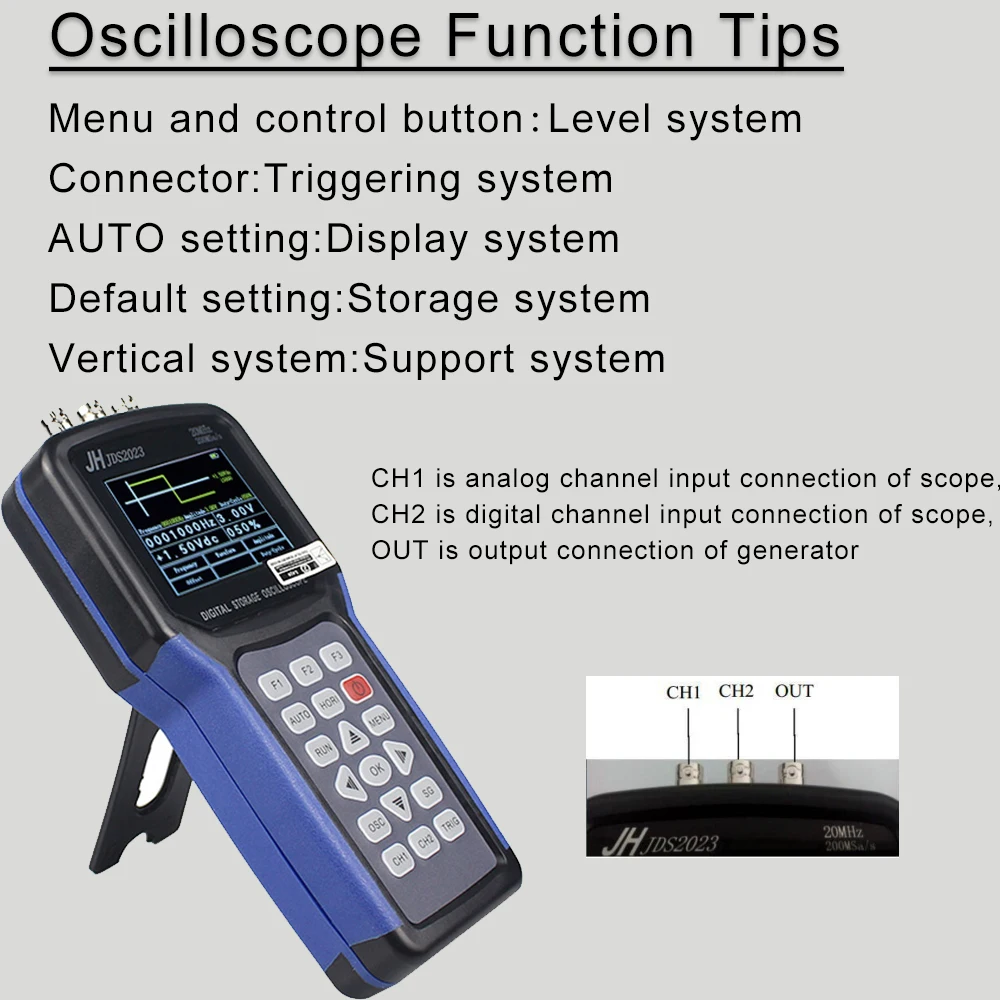

Channel 2 (1 analog channel, 1 digital channel)
Display mode Y-T
The input impedance 1MOmega 25pF
The maximum input voltage 40V(Probe X1);400V(Probe X1);2000V(Probe X100)
Probe attenuation 1X,10X
Attenuation setting 1X,10X,100X
Signal acquisition system
Sampling method Real time sampling, random sampling
The storage depth 2K
Acquisition mode Sampling, peak detect
Vertical system
Vertical sensitivity 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy +/-3%
The vertical resolution 8bit
Bandwidth 20MHz
Horizontal system
The real-time sampling rate 200 MSa/s
Horizontal scanning range 10nS/div-5S/div
Triggering system
Trigger Mode Automatic, normal and single
Trigger Type The rising edge, falling edge
Automatic detection Support(50Hz-40MHz)
Measurement system
Cursor measurement Support time and voltage
Measuring method Manual
Measurement The peak to peak value and frequency
Equipment
Screen 3.2 inch,16 bit true color,TFT,320*240
Battery 2000+mA Lithium battery (support 5 hours of continuous work)(not include)
Size 202*100*35（mm）
Digital channel 200 MSa/s
Signal generator
Frequency Sine wave (1Hz - 5MHz); the other(1Hz-1MHz)
Duty ratio 0% - 100%
Range 100mV - 4V
Offset +(0V -2V)
Input coupling AC,DC
Channel 2 (1 analog channel, 1 digital channel)
Display mode Y-T
The input impedance 1MOmega 25pF
The maximum input voltage 40V(Probe X1);400V(Probe X1);2000V(Probe X100)
Probe attenuation 1X,10X
Attenuation setting 1X,10X,100X
Signal acquisition system
Sampling method Real time sampling, random sampling
The storage depth 2K
Acquisition mode Sampling, peak detect
Vertical system
Vertical sensitivity 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy +/-3%
The vertical resolution 8bit
Bandwidth 20MHz
Horizontal system
The real-time sampling rate 200 MSa/s
Horizontal scanning range 10nS/div-5S/div
Triggering system
Trigger Mode Automatic, normal and single
Trigger Type The rising edge, falling edge
Automatic detection Support(50Hz-40MHz)
Measurement system
Cursor measurement Support time and voltage
Measuring method Manual
Measurement The peak to peak value and frequency
Equipment
Screen 3.2 inch,16 bit true color,TFT,320*240
Battery 2000+mA Lithium battery (support 5 hours of continuous work)(not include)
Size 202*100*35（mm）
Digital channel 200 MSa/s
Signal generator
Frequency Sine wave (1Hz - 5MHz); the other(1Hz-1MHz)
Duty ratio 0% - 100%
Range 100mV - 4V
Offset +(0V -2V)
Product Description
Specification

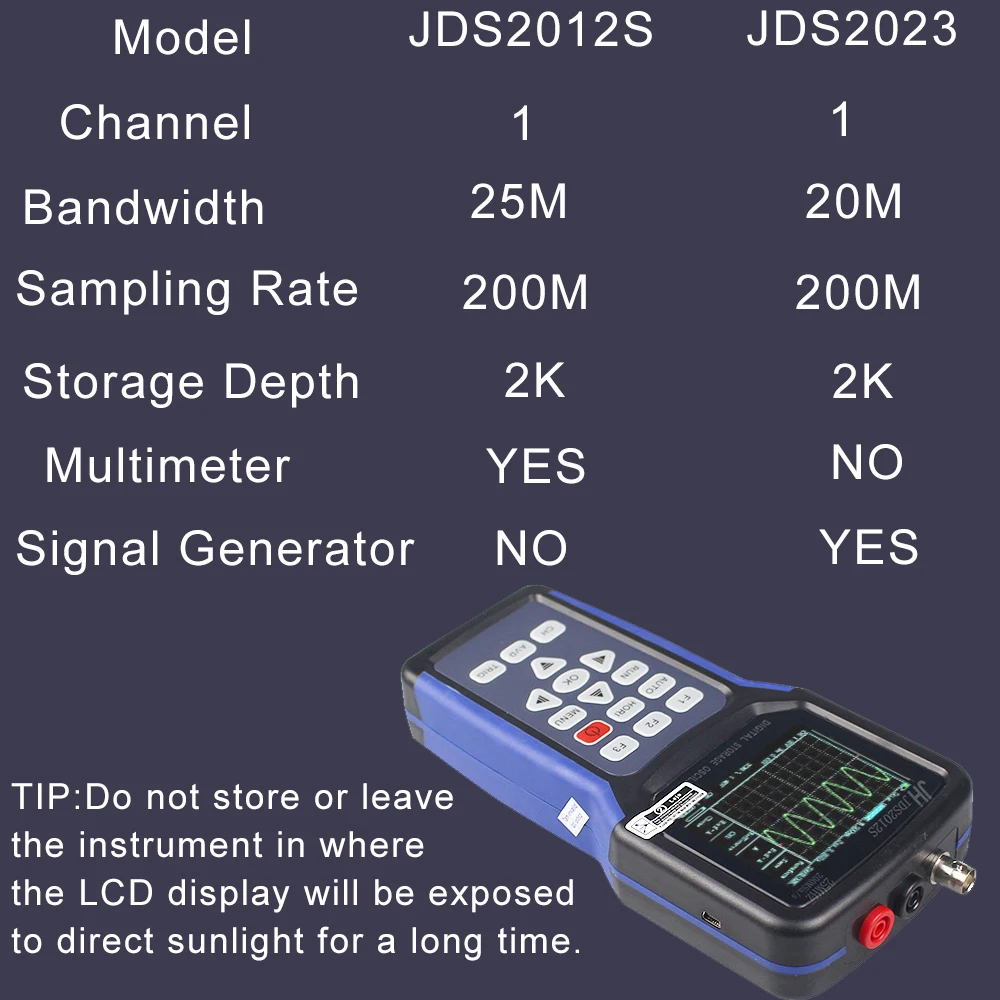

item | value |
Warranty | 3 year |
Type | Digital oscilloscope multimeter |
Customized support | OEM, ODM |
Place of Origin | China |
Model Number | jinhan |
Product Name | Digital oscilloscope multimeter |
Bandwidth | 25MHz |
Display | LED Backlight Display |
2022A Channel | TWO Channels |
2012A Channel | ONE Channels |
Sample Rate | 200M/s |
2022A Memory Depth | 4K |
2012A Memory Depth | 2K |
multimeter function | 2021A support |
