Гидравлический листогибочный станок с ЧПУ гидравлический 40 т/2500
- Категория: Other Machinery & Industry Equipment >>>
- Поставщик: Maanshan,BYFO,CNC,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4760.82 $* | 4998.89 $* |
| Aug-20-2025 | 4720.84 $* | 4956.96 $* |
| Jul-20-2025 | 3960.13 $* | 4158.20 $* |
| Jun-20-2025 | 4640.69 $* | 4872.69 $* |
| May-20-2025 | 4040.26 $* | 4242.89 $* |
| Apr-20-2025 | 4560.91 $* | 4788.21 $* |
| Mar-20-2025 | 4520.18 $* | 4746.25 $* |
| Feb-20-2025 | 4480.73 $* | 4704.3 $* |
| Jan-20-2025 | 4440.80 $* | 4662.29 $* |
Характеристики
Products Description

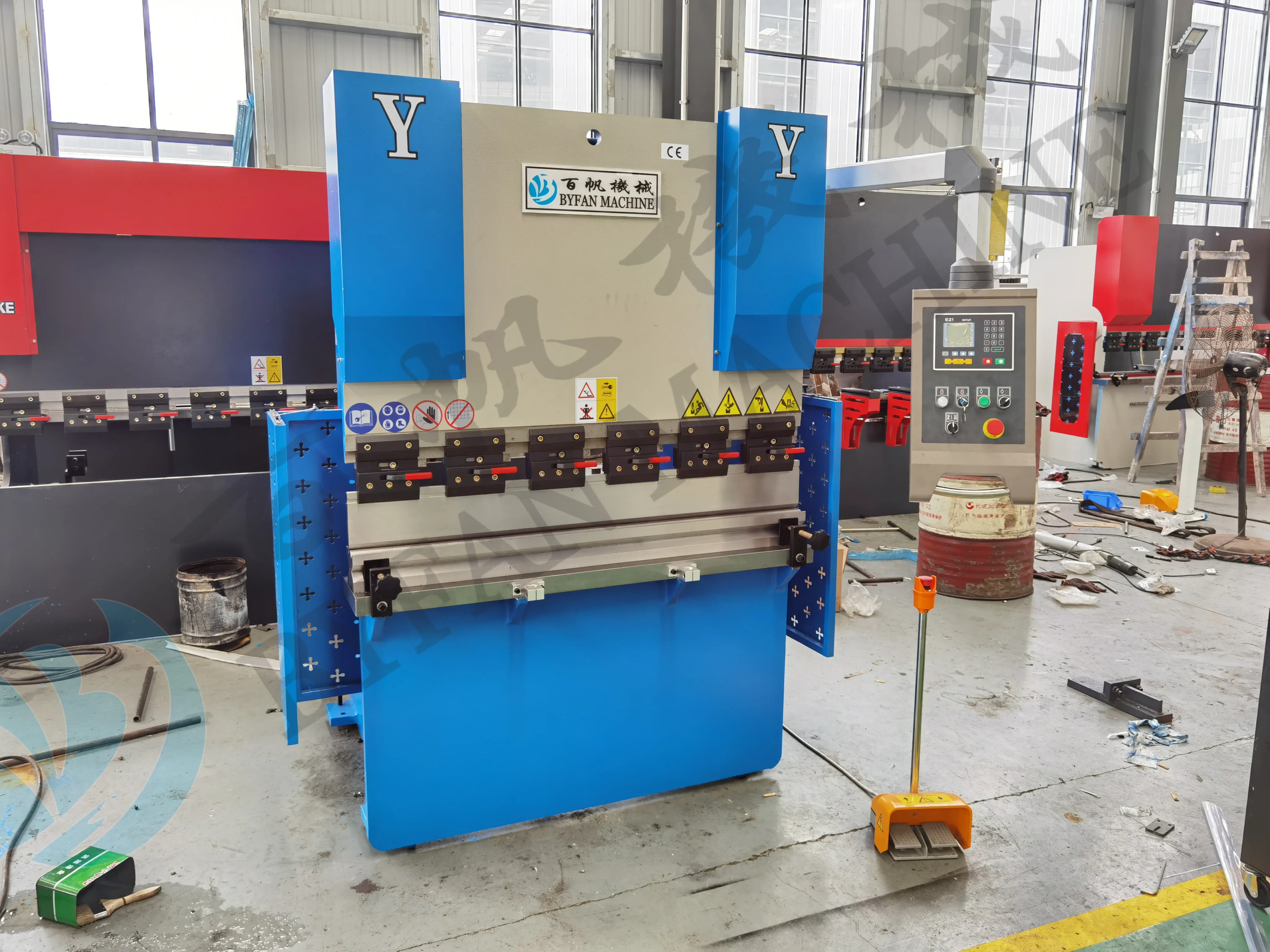

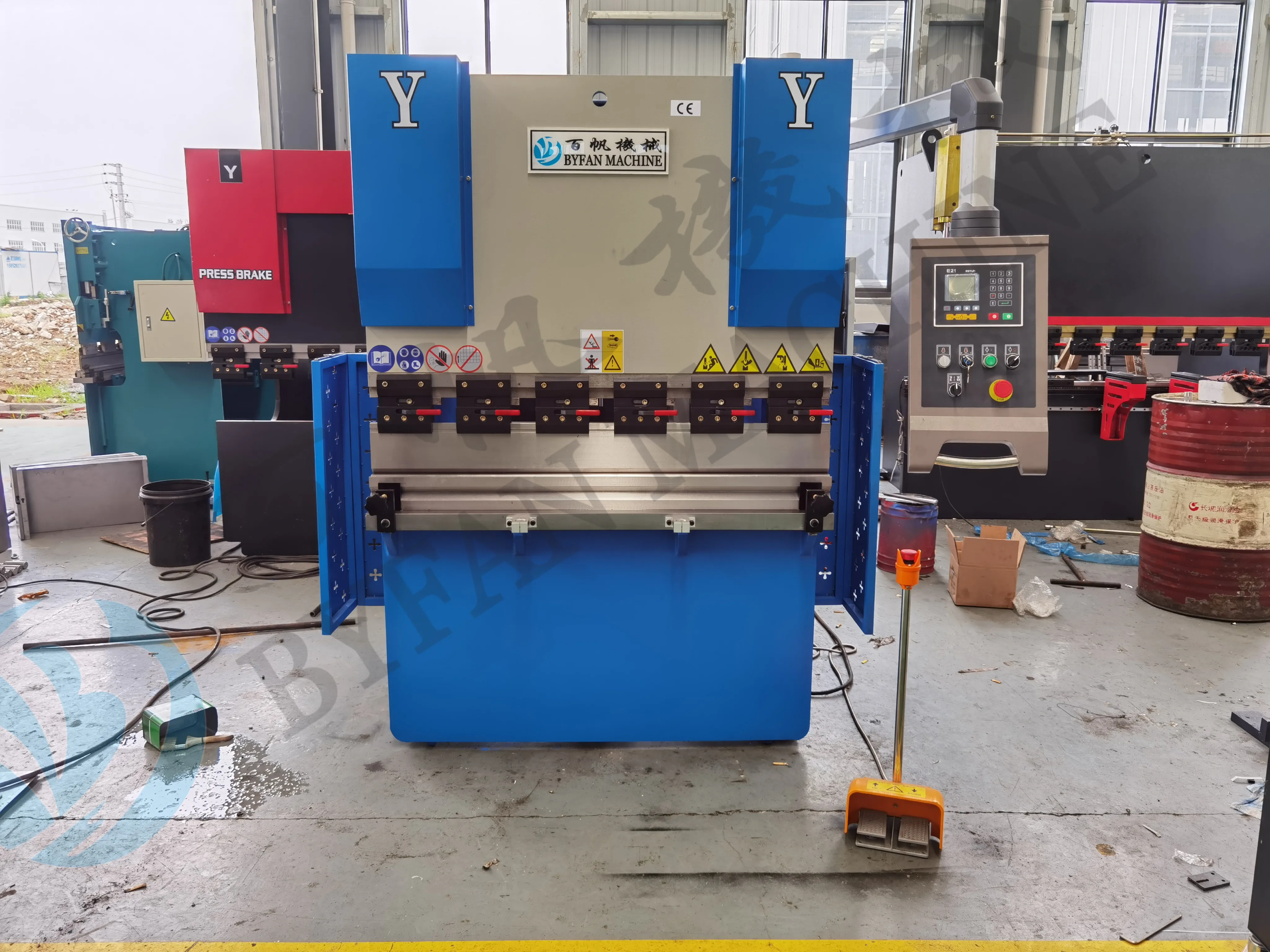

WC67K 30T 2000mm Series Small hydraulic NC metal sheet press brake iron plate bending machine
Main features
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Hydraulic synchronised positive stop design,and by Estun NC programmable controller assuring accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
Model | Bending pressure | Bending length | Throat depth(mm) | Motor | Weight |
WC67Y-30T/1600 | 300 | 1600 | 230 | 3 | 2000 |
WC67Y-40T/1600 | 400 | 1600 | 230 | 3 | 2500 |
WC67Y-40T/2200 | 400 | 2200 | 230 | 5.5 | 2750 |
WC67Y-40T/2500 | 400 | 2500 | 230 | 5.5 | 3000 |
WC67Y-50T/2500 | 500 | 2500 | 230 | 5.5 | 3400 |
The non-standard size can be customized by requirement
Details Images
E21 system
* Back gauge and block control
* Control for general AC motors,frequency inverter
* Intelligent positioning
* Stock counter
* Holding/decompression time setting
* Program memory of up to 40 programs Up to 25 steps per program
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English
* Control for general AC motors,frequency inverter
* Intelligent positioning
* Stock counter
* Holding/decompression time setting
* Program memory of up to 40 programs Up to 25 steps per program
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English

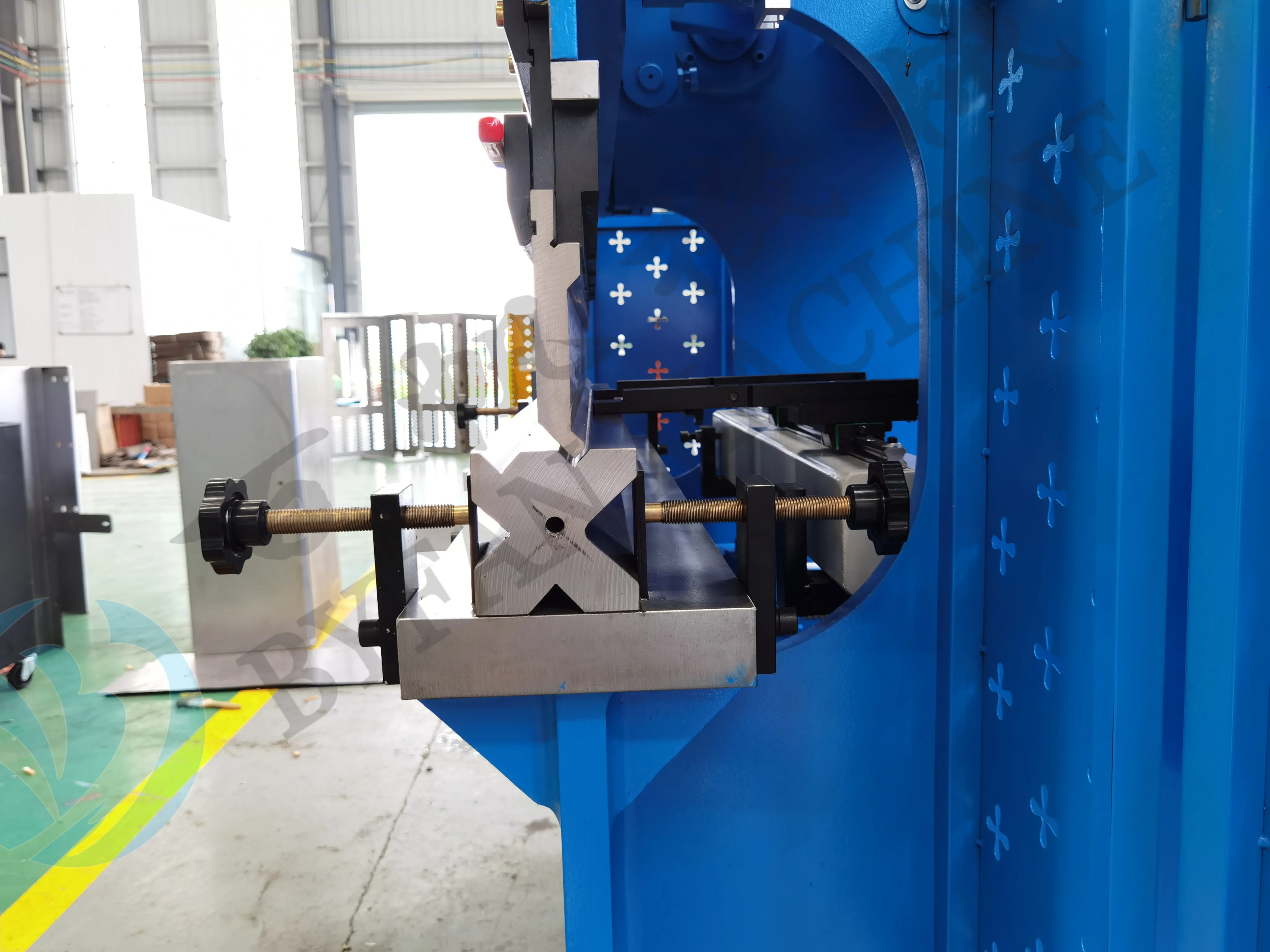

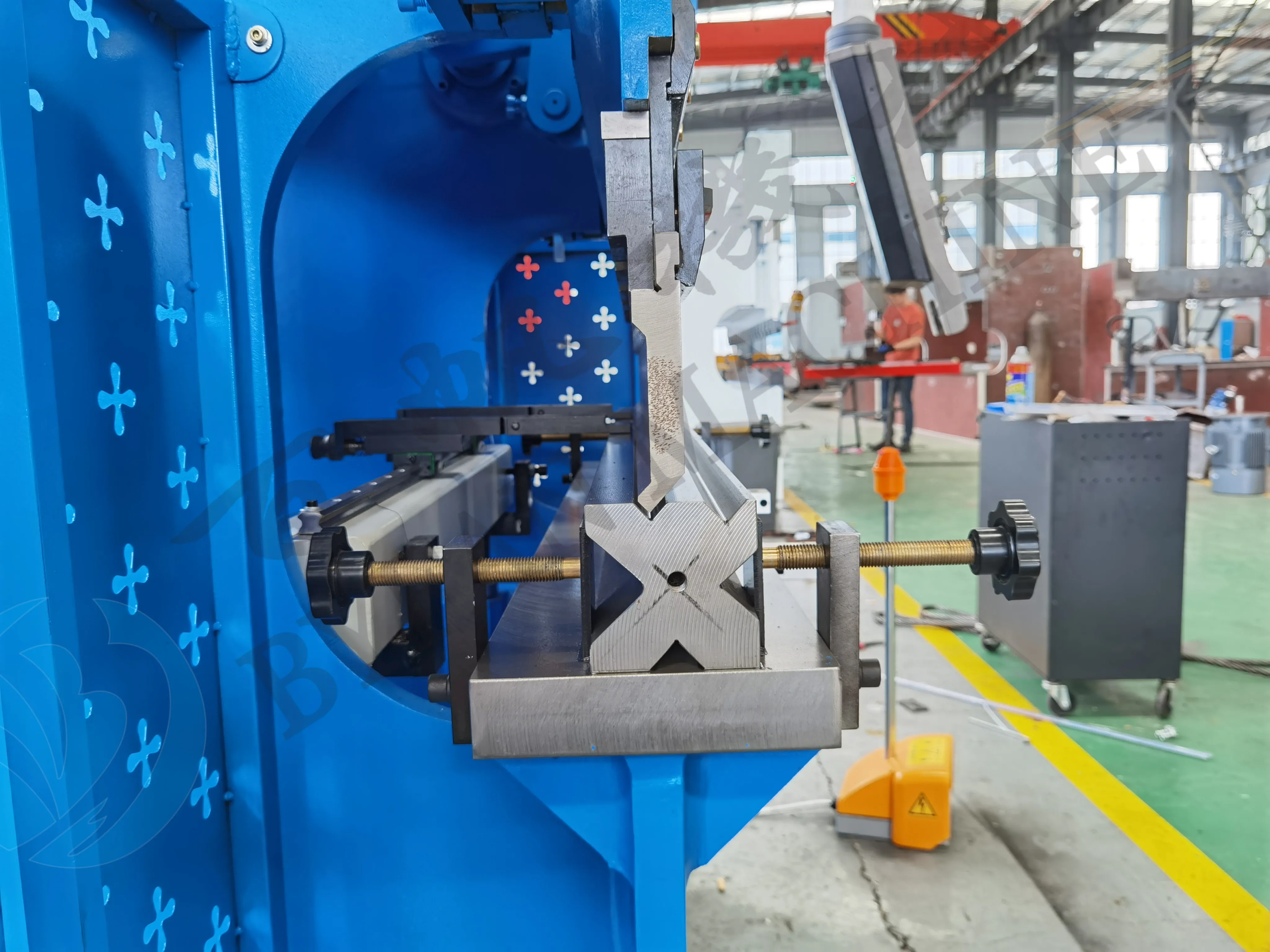

Multi-V die
The standard die is multi-V die, which designed for sheet metal's bending. Other more press brake's tooling can be selected by customers' requirement.

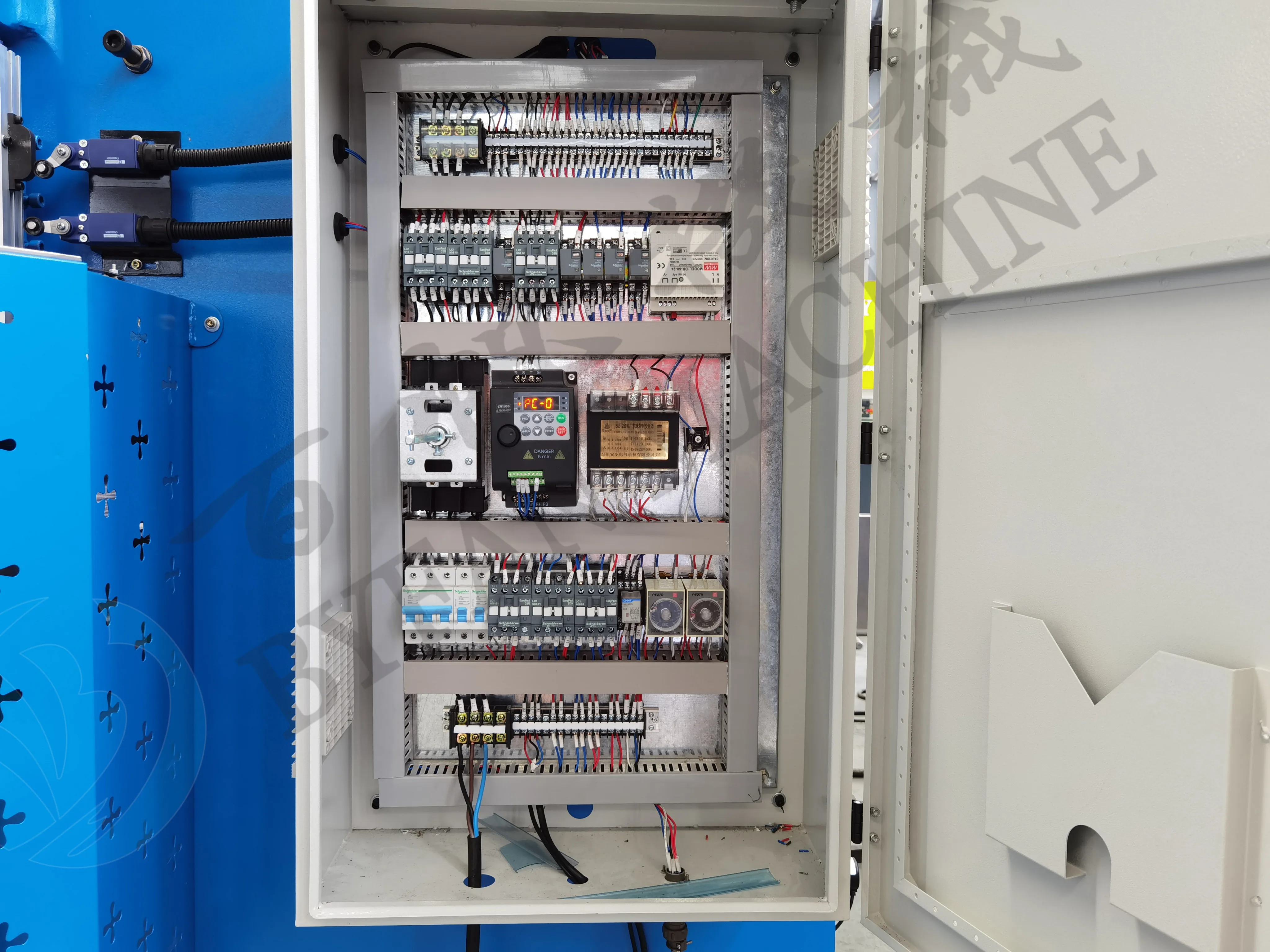

Electric system
Our mini press brake adopts Schneider electric components. The high quality's electric system can make the machine perform well.
Backage
We use Taiwan PMI ball screw and linear guide to ensure the moving of X-axis with high accuracy than using rod.
