Смеситель и диспенсер для эпоксидной
- Категория: Other Machinery & Industry Equipment >>>
- Поставщик: Guangzhou,Zhengqi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.25 $* |
| Aug-16-2025 | 0.43 $* | 0.29 $* |
| Jul-16-2025 | 0.5 $* | 0.66 $* |
| Jun-16-2025 | 0.21 $* | 0.8 $* |
| May-16-2025 | 0.55 $* | 0.95 $* |
| Apr-16-2025 | 0.30 $* | 0.44 $* |
| Mar-16-2025 | 0.26 $* | 0.15 $* |
| Feb-16-2025 | 0.87 $* | 0.62 $* |
| Jan-16-2025 | 0.22 $* | 0.13 $* |
Характеристики
Contact
Whatsapp/wechat +86 134 2516 4065
Product Description

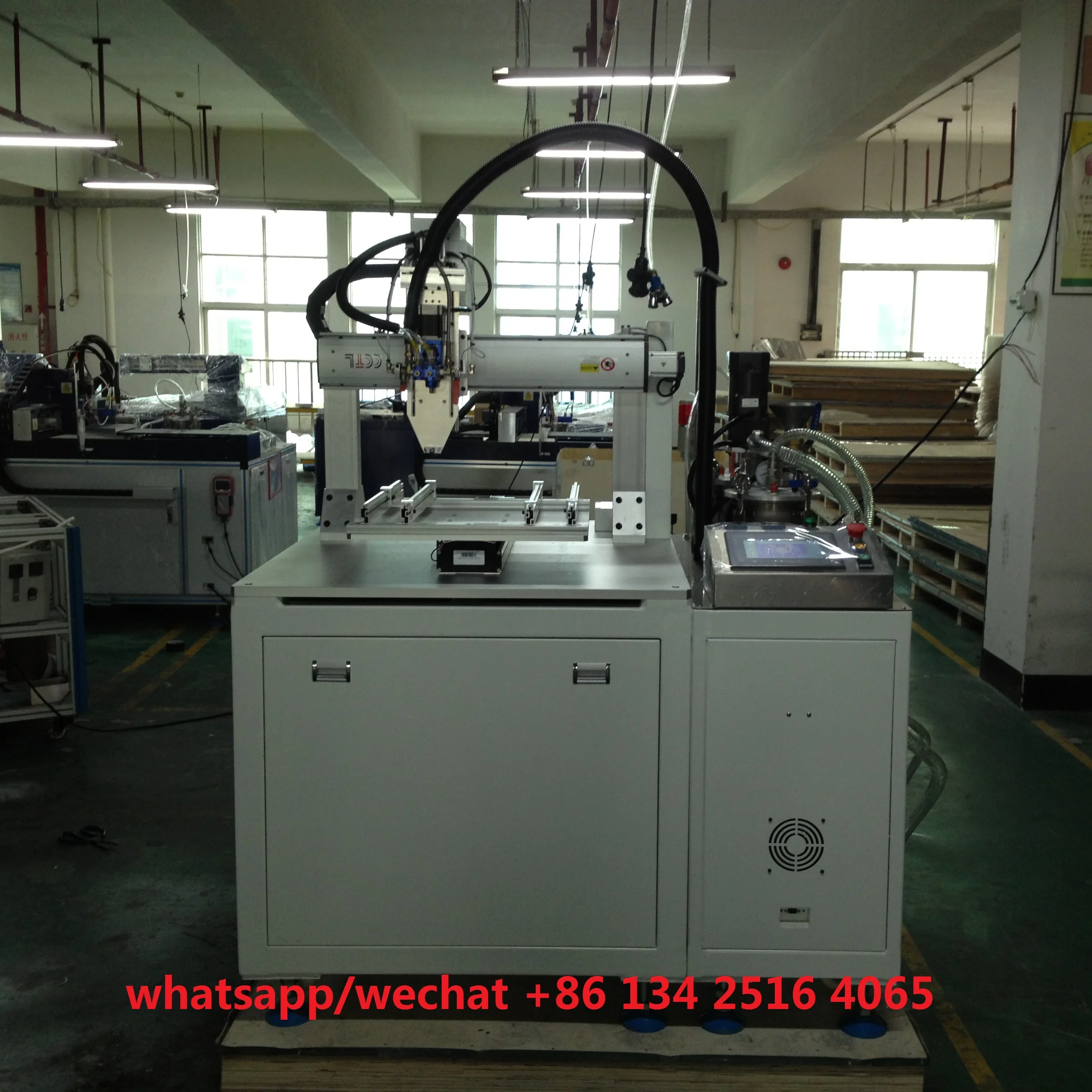

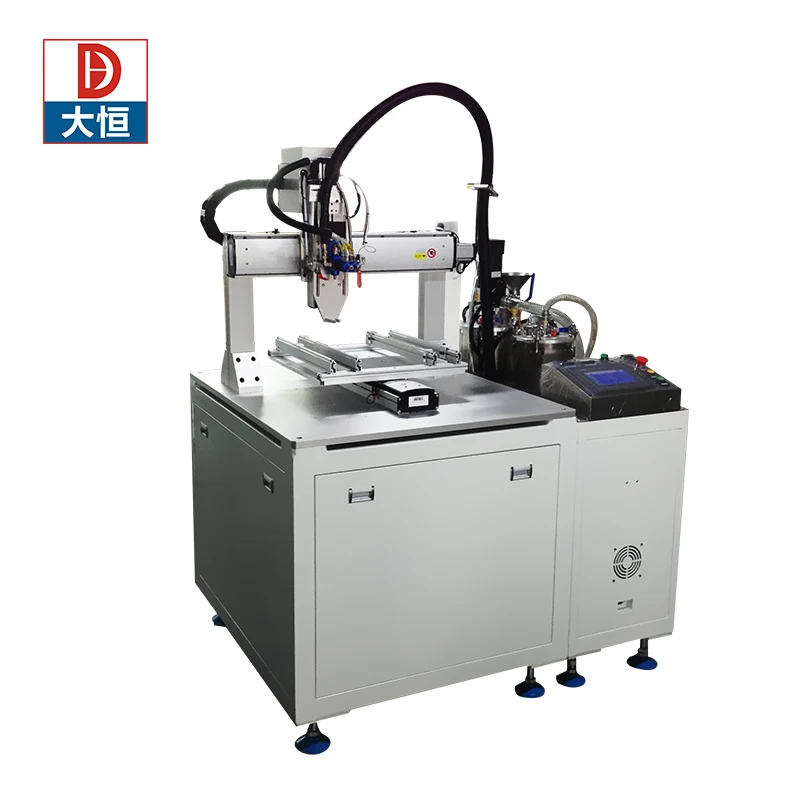

Our system accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting,
gasketing,sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.

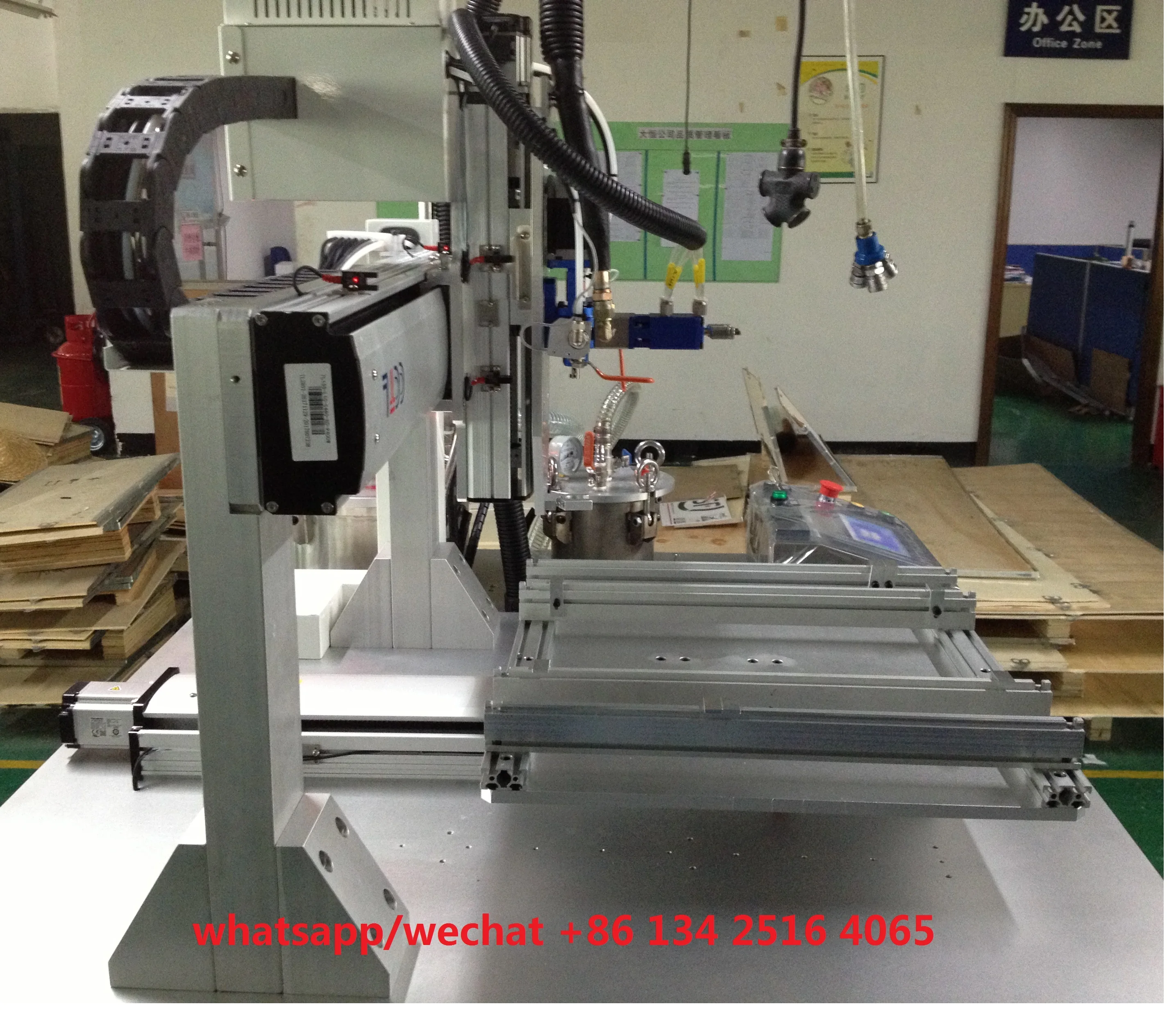

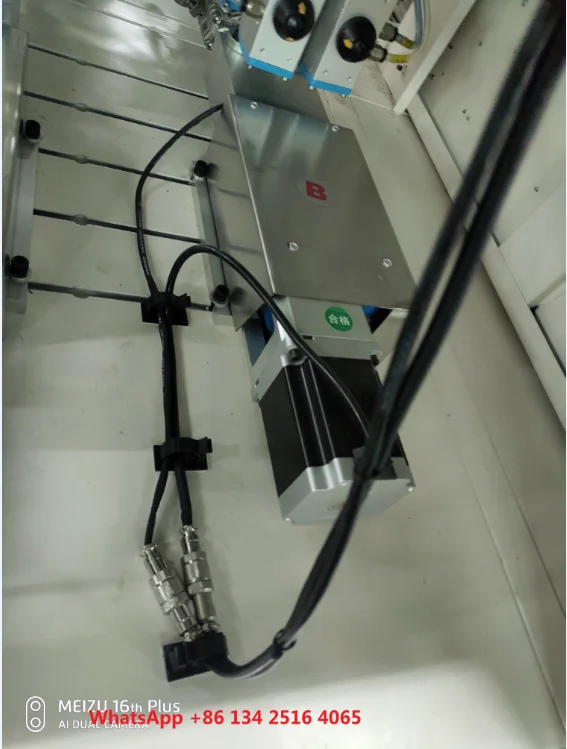

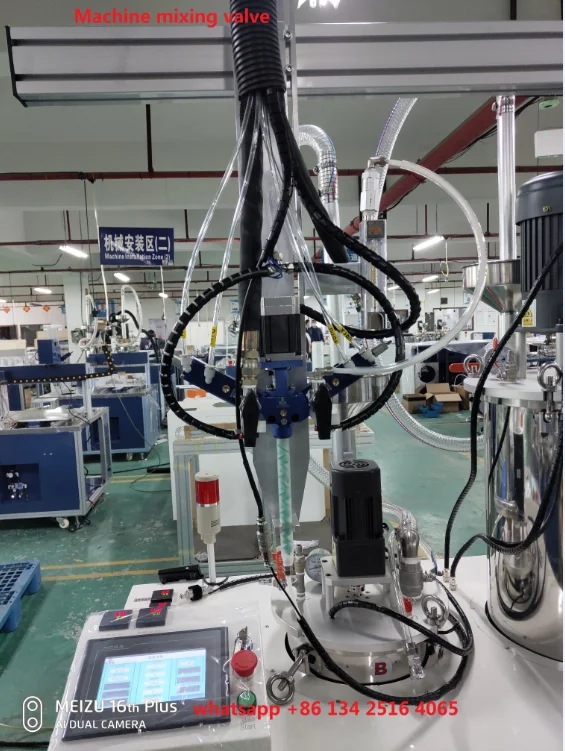

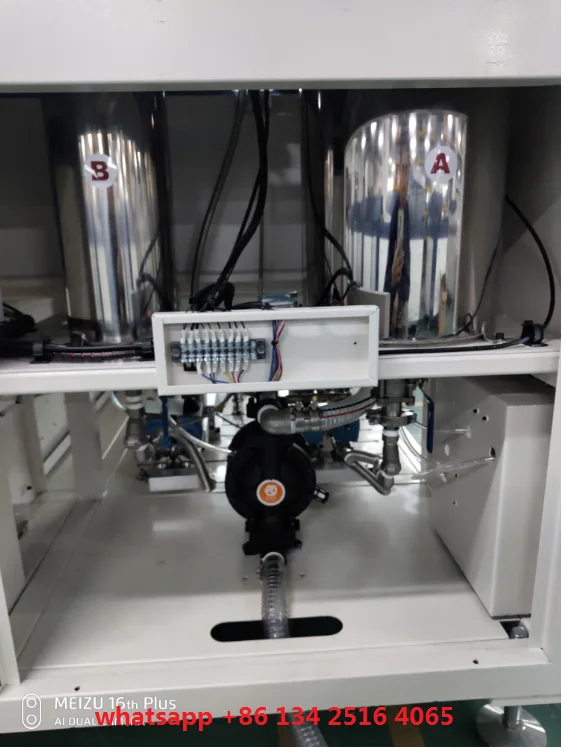

The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring, mixing tube and 3 axis robotic arms. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and valve;
gasketing,sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring, mixing tube and 3 axis robotic arms. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and valve;
Super glue dispenser peristaltic pump main functions:
1. Automatic metering and mixing
2. Manual/Auto Gluing
3. Auto alarm for lack of material or full material
4. Gluing ratio and quantity adjustable
5. Auto cleaning
6. Material tank stirring (Optional)
7. Glue tank Vacuum Defoaming and Auto filling(Optional)
8. Glue barrels,metering pump,glue pipe can be heating (Optional)
1. Automatic metering and mixing
2. Manual/Auto Gluing
3. Auto alarm for lack of material or full material
4. Gluing ratio and quantity adjustable
5. Auto cleaning
6. Material tank stirring (Optional)
7. Glue tank Vacuum Defoaming and Auto filling(Optional)
8. Glue barrels,metering pump,glue pipe can be heating (Optional)
Specification
item | PGB-700 |
Core Components | PLC, meter mixing pump, mixing valve |
Applicable Industries | led strip encapsolution, filter gluing, transformer potting, solar panel junction box potting, label doming, sensor potting and dispensing, Potting for electronic parts |
Showroom Location | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Chile, Romania, Ukraine, Malaysia, Australia, Morocco |
Application | Chemical |
Operation Method | Auto, Manual |
Glue mixing ratio | 100:100 to 100:10 |
Air Pressure | 0.5-0.8MPa |
Mixing mode | Dynamic mixing /Static mixing |
Glue Viscosity | Lower than 20000 CPS(mPa·s) |
Mixing Stirring System | High speed dynamic stirring mixing device(static option) |
PUMP model | Gear pump, cylinder pump, cylinder pump |
Suitable glue model | silicone, epoxy , polyurethane |
Optional function | vacuum for degassing the bubble |
Heating function | support high vicosity |
Application
Applications:
Filter, LED products ,Electronic components,Crafts
Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, air filter gluing,end cap for filter, solar junction box and so on
Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
Filter, LED products ,Electronic components,Crafts
Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, air filter gluing,end cap for filter, solar junction box and so on
Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
Packing & Delivery
According to the customer requirement
Company Profile
Daheng originally created technologies - double cylinder plunger pump, signle reciprocating pump, precision AB valve have been realized a new generation liquid metering and matching control, with high accuracy, variable, ceaseless, long life-time, which widely used on the industries of LED, outdoor lighting, cars, power supply, capacitance, transformer, ignition coil and other electronic components industries.
All the equipments of Glue dispensing, glue pouring, glue spraying, glue coating, glue matching, gluing control are in one-stop service.
All the equipments of Glue dispensing, glue pouring, glue spraying, glue coating, glue matching, gluing control are in one-stop service.
FAQ
1. who are we?
Please feel contact wechat/whatsapp +86 134 2516 4065
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
auto glue machine,glue dispensing machine,glue dispenser,automatic glue dispensing machine,gluing machine
4. why should you buy from us not from other suppliers?
All the equipments of Glue dispensing, glue pouring, glue spraying, glue coating, glue matching, gluing control are in one-stop service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Please feel contact wechat/whatsapp +86 134 2516 4065
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
auto glue machine,glue dispensing machine,glue dispenser,automatic glue dispensing machine,gluing machine
4. why should you buy from us not from other suppliers?
All the equipments of Glue dispensing, glue pouring, glue spraying, glue coating, glue matching, gluing control are in one-stop service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
