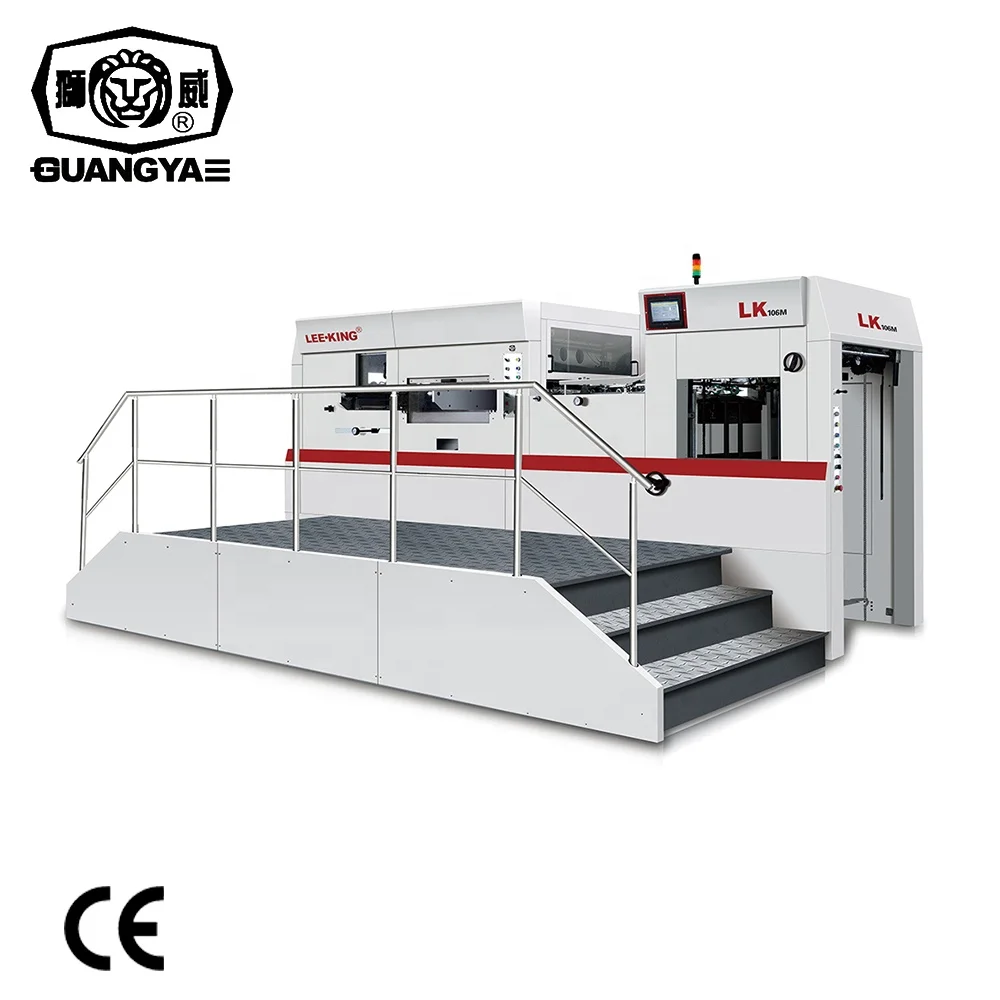

Автоматическая машина для резки коробок

Категория: Paper Processing Machinery >>>
Поставщик: Wenzhou,Guangya,Machinery,Co.,Ltd.

Цена:96 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	114240.2 $*	119952.46 $*
Aug-18-2025	113280.69 $*	118944.11 $*
Jul-18-2025	95040.95 $*	99792.35 $*
Jun-18-2025	111360.74 $*	116928.88 $*
May-18-2025	96960.27 $*	101808.69 $*
Apr-18-2025	109440.16 $*	114912.6 $*
Mar-18-2025	108480.89 $*	113904.42 $*
Feb-18-2025	107520.99 $*	112896.19 $*
Jan-18-2025	106560.85 $*	111888.63 $*

Характеристики

Products Description

Max. sheet size	1060×770mm
Min. sheet size	400×370mm
Max.die cutting size	1050×750mm
Gripper margin	8-17mm
Paper range	90-2000g/m2(cardboard) 0.1-2mm(cardboard)≤4mm(corrugated)
Maximum cutting force	300T
Max. mechanical speed	6500s/h
Max.Stripping Speed	6000s/h
Max. delivery pile height	1200mm
Max. feeding pile height	1350mm
Main motor power	15kw
Power rating	17.6kw
Machine weight	16000kg
Air supply	0.6Mpa, ＞0.37m3/min
Overall machine dimensions	6050×4200×2260mm

Details Images

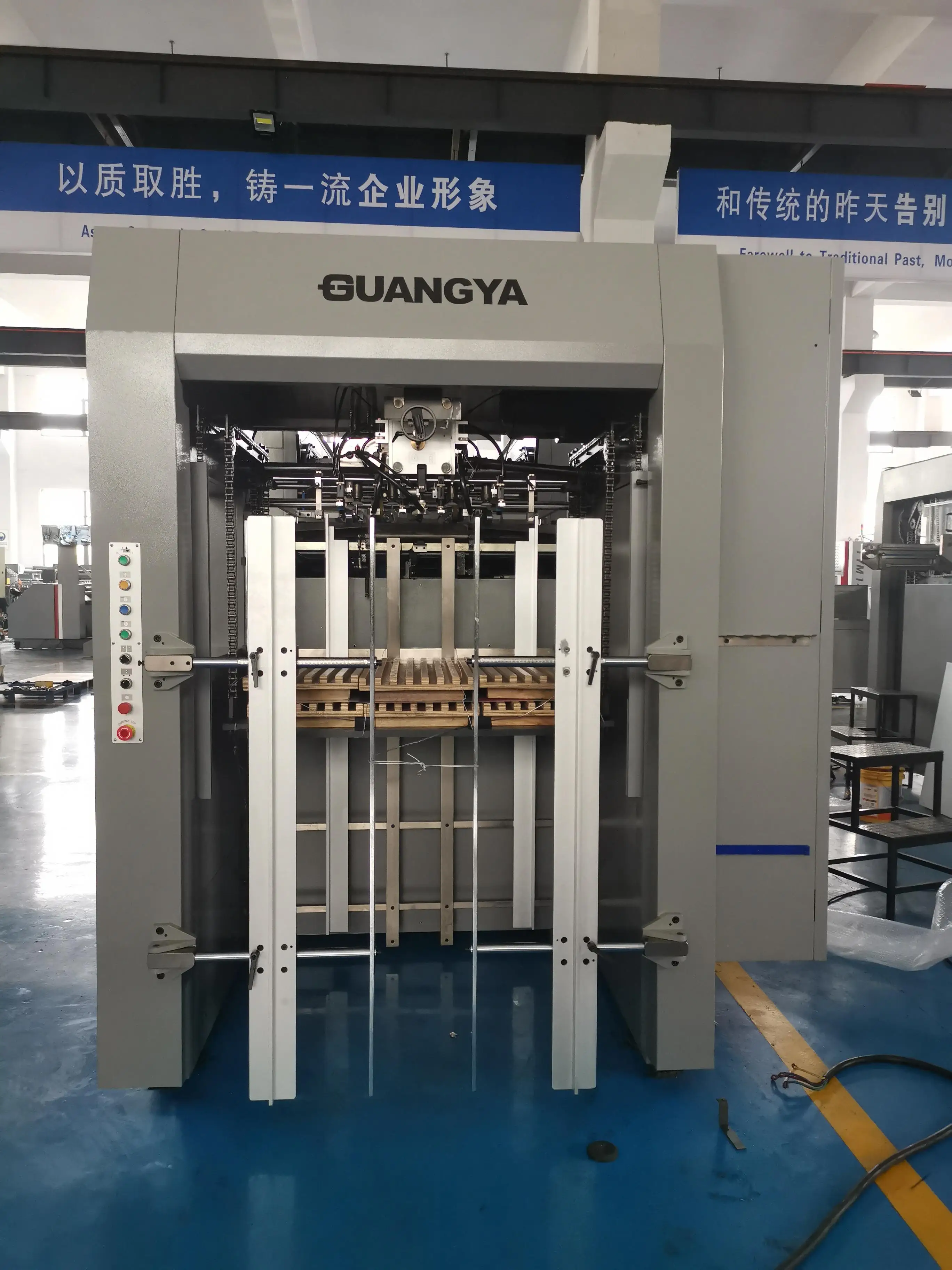

Feeder

1. Pile tray with a handle allowing manual lateral correction of the pile during production
2. Feeder protective device in case of crashing
3. Feeder is equipped with 4 lifting suction cups and 4 transport suction cups
4. the suction cups are adjustable according to the paper deformation in a lateral way
5. Side blowers adjustable with centerline marks. Blowers on both side of the feed system separate the product for a smoot feeding
process
6. Adjustable while in operation: to fine-tune the feeder cycle to the platen
7. Safety system for lowering the pile tray

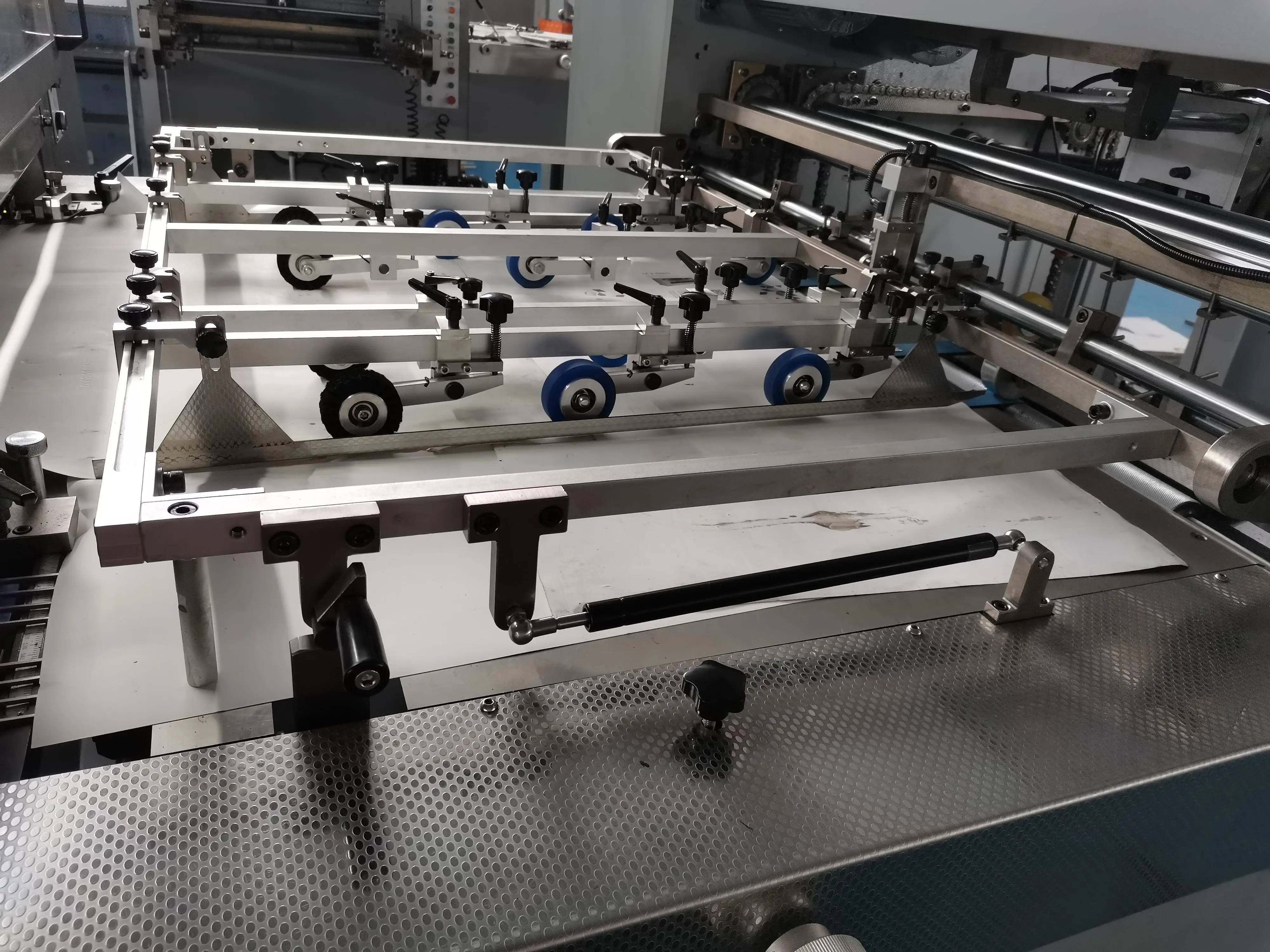

Feed table

1. Covered with an anti-static stainless steel plate
2. Double sheet detector
3. Support plates at the entry of platen station
4. Sheet hold-down device (guiding the sheets to the front lays)
5. Upper frame with manual lifting device
6. Wide conveyor belts ensure sheets accurately to the front and side lay units

Platen

1. Gripper reopening device
2. Gripper fine adjustment
3. Automatic "on and off" pressure device of the platen.
4. Equipment centering and locking.
5. Automatic locking of the chase against the upper beam
6. Measurement of the cutting force with strain gauge automatically

Sample

Packing & Delivery

Certifications

Recommend Products

Exhibition

Since 1996, our company has participated in many well-known exhibitions and our customers come from all over the world, according to statistics our machines have been sold to more than 70 countries worldwide

Company Profile

Zhejiang Guangya Machinery Co.,Ltd is a professional manufacturers of hot foil stamping and die cutting machine with long history.Since its establish we have always insisting on the policy of Achieved success by quality,Integrity is base,also pay attention to new product development and continual improvement.On designing machine, we adopt high and new technology from home and abroad.Our products is very popular in domestic market and already exported to over 70 countries or region such as Europe,North America,Middle East and so on.

Reception Center

Work Shop 1

Work Shop 2

Company Office

Company Outside

Pictures Gallery

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory,manufacturer.

2. Q: What certificate do you have?
A: We have ISO9001 and CE certificate.

3. Q: How long is the warranty period?
A: All of our products have one year warranty.

4. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.

5.Q: Where is your factory located? How can we visit there?
A: Our factory located in Baihai New Zone,Pingyang County,Zhejiang province,China. You can by air to Wenzhou Airport and by High-speed rain to Ruian Station. We will arrange to pick up you.

VR Link of company: https://www.chinaguangya.com/vr/-144406/data/
