Китайский завод лесное оборудование Yuchai YCF135 бревенчатый комбайн для древесного

Китайский завод лесное оборудование Yuchai YCF135 бревенчатый комбайн для древесного

Категория: Forestry Machinery >>>
Поставщик: Guangxi,Yuchai,Heavy,Industry,Company,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.36 $*	0.36 $*
Aug-16-2025	0.93 $*	0.82 $*
Jul-16-2025	0.18 $*	0.96 $*
Jun-16-2025	0.14 $*	0.88 $*
May-16-2025	0.39 $*	0.29 $*
Apr-16-2025	0.38 $*	0.90 $*
Mar-16-2025	0.93 $*	0.25 $*
Feb-16-2025	0.35 $*	0.62 $*
Jan-16-2025	0.16 $*	0.24 $*

Характеристики

Why Choose YUCHAI

CHOOSE YUCHAI

Large number of retained, large number retained in China excavator market reach 100000 units,It is the brand that the customer believes in.

CHOOSE YUCHAI

The first domestic R&D of harvester head and successfully listed on the market for more than 10 years.

CHOOSE YUCHAI

Yuchai Group's Annual sales revenue exceeded RMB 45 billion Yuan

CHOOSE YUCHAI

70 year's experience in Diesel engine R&D and manufacturing; 32 years's experience in construction machinery R&D and manufacturing.

CHOOSE YUCHAI

Yuchai Group ranks among the top 500 Chinese enterprises, the top 500 Chinese manufacturing companies, the top 100 Chinese machinery manufacturers and 100th among the 500 most valuable brands in China, with a brand value exceeding RMB57.276 billion

CHOOSE YUCHAI

Exports to more than 100 countries and regions.

CHOOSE YUCHAI

Choice of more than 13,000 overseas users

Products Description

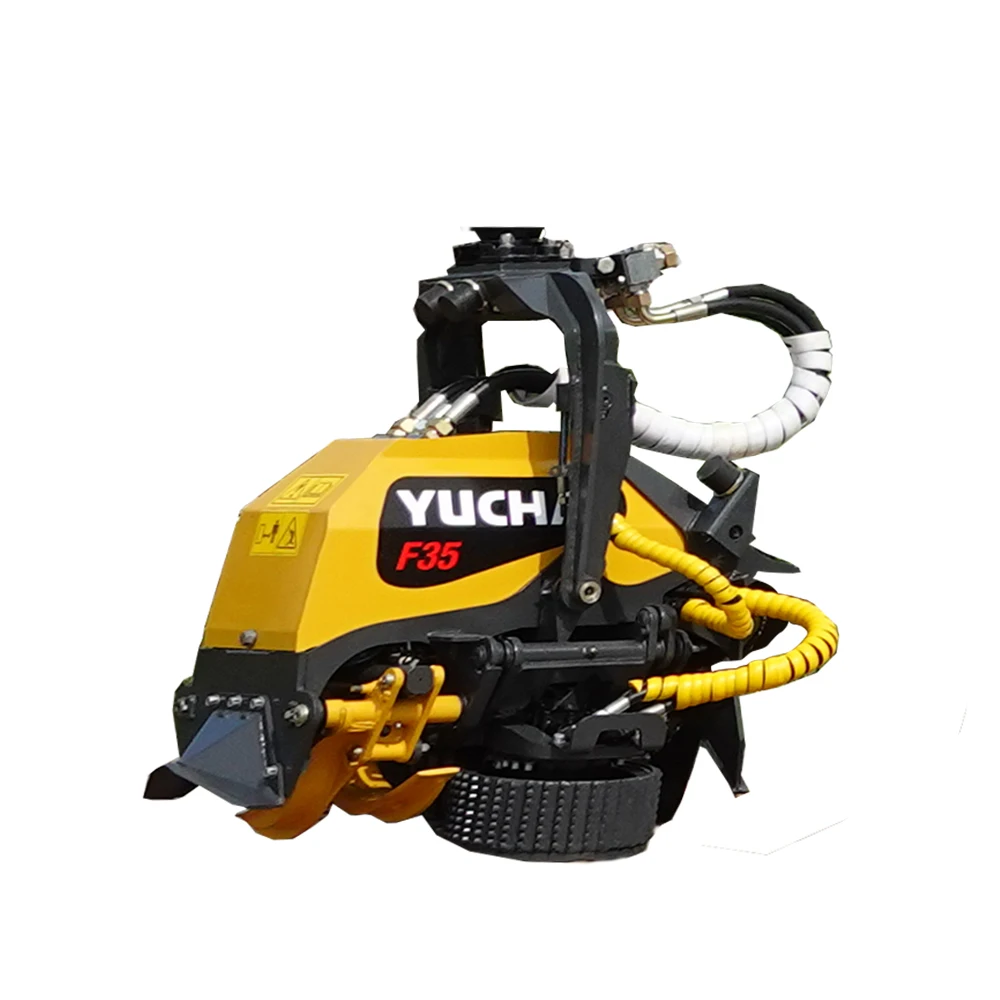

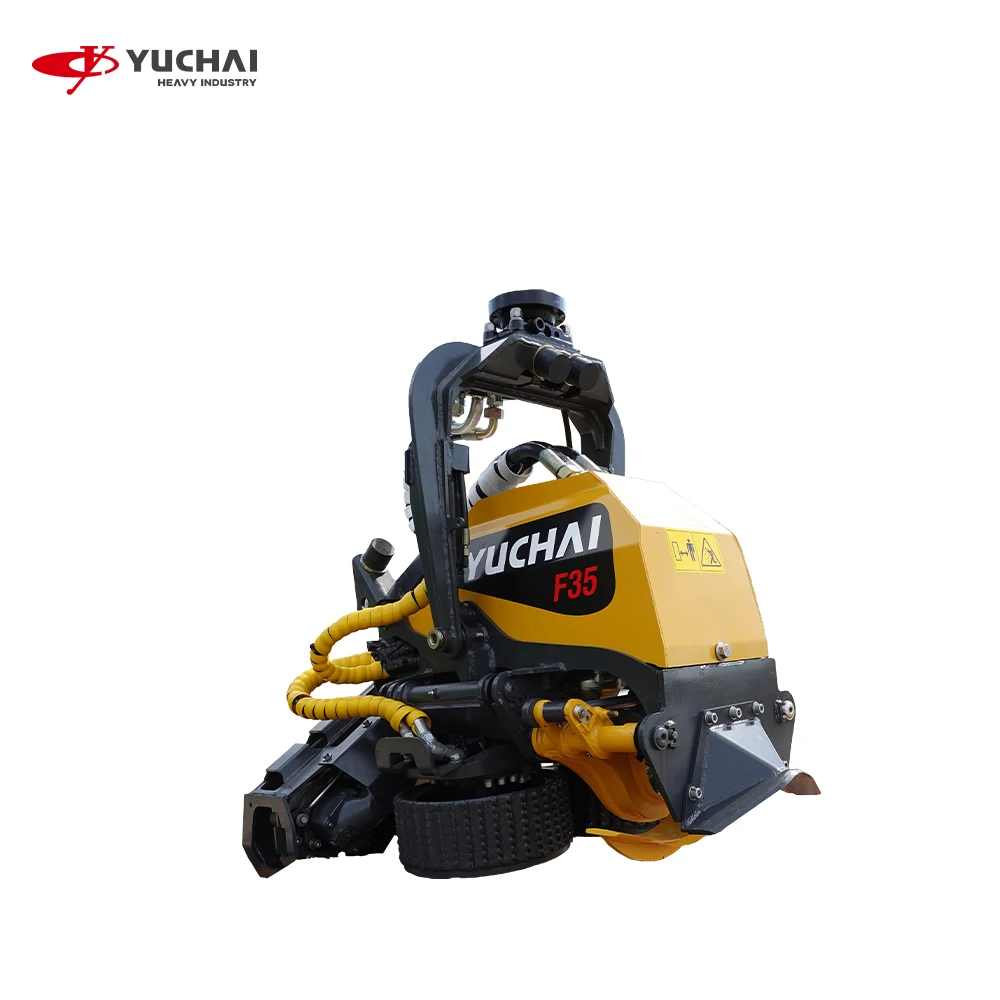

YCF35 Harvester Heads

Parameter List
Chain saw	Max.cutting diameter	350mm
		Guide bar length	457.2mm
		Chain pitch	10.3mm
		Chain tank capacity	3.4L
Feeding	Rollers quantity	2
		Rollers diameter	371.mm
		Max. opening of rollers	400mm
		Max. feed force	16KN
		Max. feed speed	5m/s
Delimbing	Knives qty	2+1
		Diameter tip-to-tip	330mm
		Front knives max. opening	480mm
Hydraulic requirement	Operating pressure	22.5MPa
		Flow required	150~180L/min
		Power required	40~60KW
Control system	Operating voltage	24 V
Control system		Control system	YUCHAI Y01T.1
Application	Excavator	18-15 T
Technical specification	Width (head closed/head open)	870/1130 mm
		Length	1140 mm
		Height	1100 mm
		Weight	560 kg

YCF135FM Tree Harvester

Parameter List
Basic parameter	Weight	13800kg
		Engine	YUCHAI YCF36
		Rated power	86/2200 kW/rpm
		Max cutting diameter	350 mm
Performance parameter	Max slewing speed	12 r/min
		Travel speed	3.1/5.5 km/h
		Fuel tank capacity	270 L
		Hydraulic tank capacity	105 L
		Gradeability	35 °
Operation parameter	Max.Operating Radius	7819 mm
		Max.Operating Depth	5500 mm
		Max.Operating Height	8290 mm
		Platform Tail Turning Radius	2250 mm
Transportation dimension	Length	7780 mm
		Width	2600 mm
		Height	2823 mm
Other Parameter	Lenght Of Track	3695 mm
		Track Gauge	2950 mm
		Width Of Track	600 mm
		Height Between Undercarriage And Ground	415 mm

Product Paramenters

YUHCAI YCF135FM Tree harvester

Intelligent electronic control system

Set the cutting length independently,
intelligently remind and judge the fault

Comfortable driving experience

Optimal design air conditioning, the refrigeration capacity is
increased by 20% and the air volume is increased by 53%.

Suspended two-way sliding seat, which can be adjusted freely,
makes driving more comfortable.

Anti-rolling and anti-falling object cabin

The high-strength cabin that has
passed the "ROPS/FOPS" certification
is equipped with protective nets to
further improve safety

Recommend Products

Company Profile

COMPANY PROFILE

GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED

Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture enterprise controlled by Yuchai Machinery Group Co., Ltd.It is al professional manufacturer who focus on crawler excavators since 1989, engaged in R&D, manufacturing and sales of varioussized construction machinery. It is the first manufacturer of mini excavator in China, as well as the main export base of miniconstruciton machinery.The company upholds such quality concepts with Creating famous brand name by manufacturing crowned product and such serviceprinciples with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world. With an annual capacity to produce 10,000 sets of construction machinery. The main products are the Hydraulic Excavator, Rotary Drilling Rig, Skid Steer loader etc. There are more than 18 models of multi-functional full hydraulic excavators. The products are of compac structure and reliable quality. The performance indexes of the products have reached the international advanced level, and obtained more thar 300 national patents. Most of them are CE certified. They could conduct digging, rock-breaking, drilling, grabbing and ditch-cleaning, and widely used in construction projects such as public and municipal infrastructure works, garden, farm, mine and irrigation etc. And such service principles with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world.
