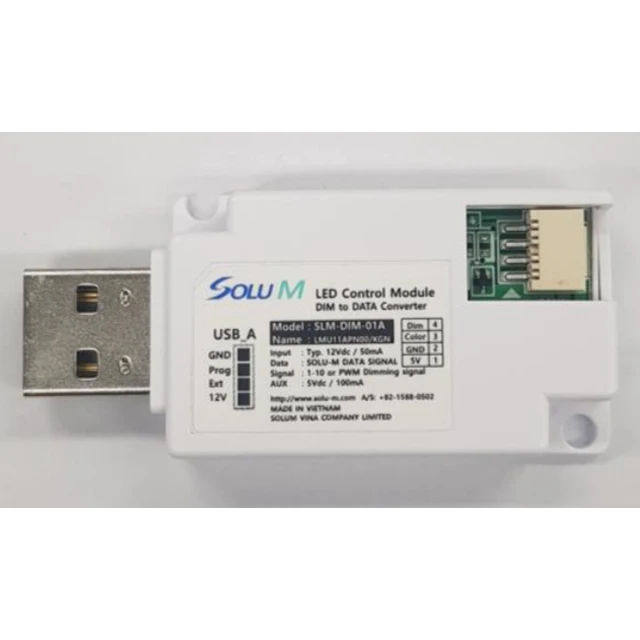

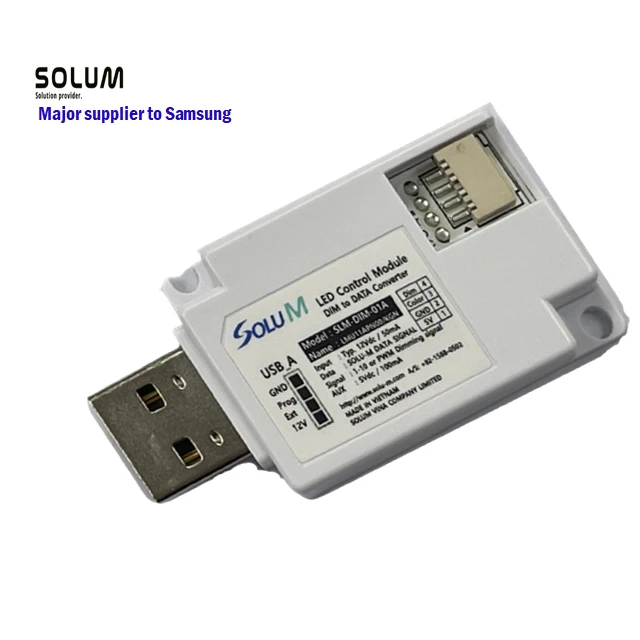

USB тусклый преобразователь интерфейса программного ключа заглушки для смарт освещения сменный светодиодный драйвер

USB тусклый преобразователь интерфейса программного ключа заглушки для смарт освещения сменный светодиодный драйвер

Категория: Electronic Data Systems >>>
Поставщик: Knowware,Co.Ltd

Цена:2,25 $ - 4,09 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	2.6 $*	2.66 $*
Aug-18-2025	2.22 $*	2.66 $*
Jul-18-2025	2.14 $*	2.91 $*
Jun-18-2025	2.17 $*	2.0 $*
May-18-2025	2.54 $*	2.92 $*
Apr-18-2025	2.37 $*	2.58 $*
Mar-18-2025	2.68 $*	2.41 $*
Feb-18-2025	2.77 $*	2.26 $*
Jan-18-2025	2.22 $*	2.68 $*

Характеристики

Products Description

* CCCV (Constant Current & Constant Voltage)
* Flickerless : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power (Slim_Narrow Size)
M2 _Dimension : 280(L) * 29.4(W) * 22.9(H)
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* C-Unified Dim for SMART Control
UART _On/Off , Dim, Tunnable
Status Monitoring
* Programmable UI
AOC : Control Output Current
Dim to off : Dim off or Min Dim, Set Min current
OPP : Overpower limit, Selestable Dim type
* Aux Power : 12Vdc 150mA PK
* High Performance
High Efficiency : Up to 86~88%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108~305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP_Autorecovery
Temperature tc : 73℃
* High Surge Immunity
L-L 4KV↑, L-FG 6KV↑
* Classification : Class Ⅱ
No Leakage Current : Line - FG

MODEL NAME	MODEL CODE
SPU280N701S2A	LS280S701A/WGN

Features:

ㅡ Flickerless, Constant Current & Voltage

ㅡ Programmable Set

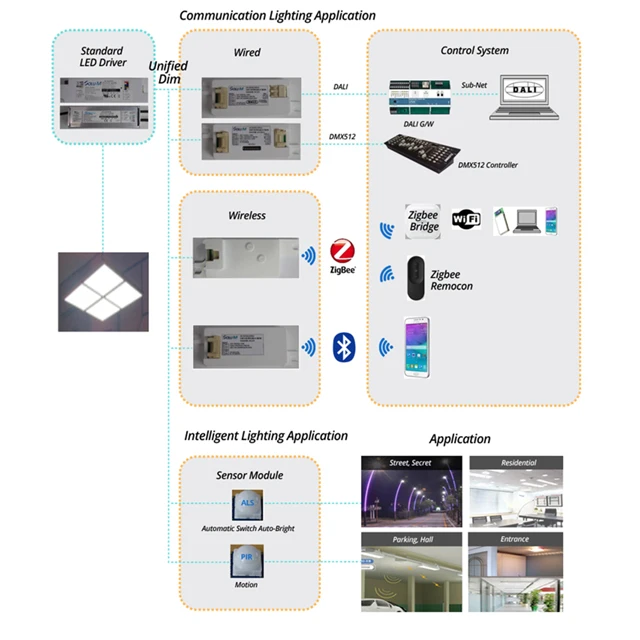

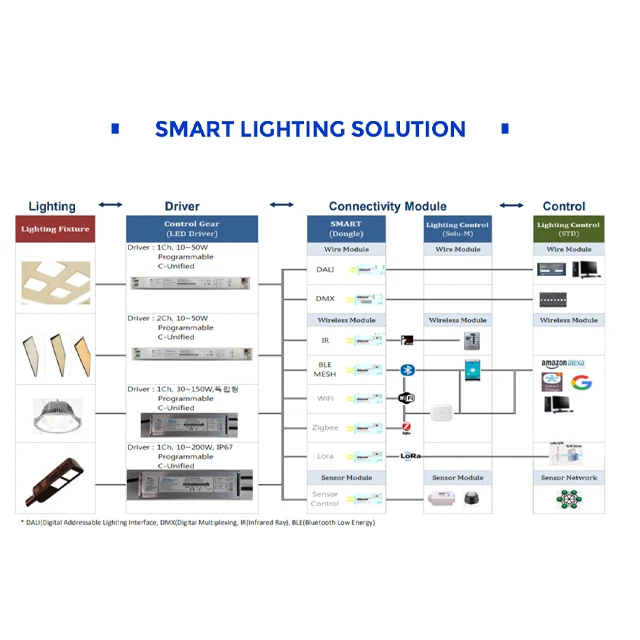

ㅡ SMART Lighting Control by SLM_Smart Lighting Module

ㅡ Full-protection provided: OCP/OVP/OTP/SCP/OLP

ㅡ Wide Vout: 24 to 50 Vdc

ㅡ Compliant with CB, CE, KC, KS, UL safety requirements for LED lighting ㅡ Factory Wirin

Product Paramenters

Electrical Specification

No	Item	Min	Typ	Max	Unit	Remark
1	Nominal input Voltage	120	220	277	Vac
2	Variable Input Voltage	108		300	Vac
3	Maximum Input Current			0.4	Arms
4	Maximum Input Power			32	W
5	Nominal input Frequency	47	50/60	63	Hz
6	Power Factor	90	95		%
7	Total Harmonic Distortion(THD)			10	%
8	Inrush Current			50	A	Meets NEMA 410
9	Electical Efficiency		87	88	%
10	Turn-On Delay			0.5	S
11	LED Output Voltage	24	36	50	Vdc
12	LED Output Current	35	500	700	mA
13	LED Output Power_Max			25	W
14	LED output Current Ripple			70	mA
15	Operating Temperature	-20	25	45	'C
16	Case Temperature (Tc)		50	75	'C
17	Humidity	20		85	%
18	Insulation Resistance	10			Mohm
19	Surge	6			Kv	Line to Ground
20	ESD	8			Kv	Air Discharge
