We accept dropshipping, bulk orders and customized products. Please feel free to contact us at the first time.


DIYmall Mini Solar Lipo Charger CN3163 CN5711 Solar Panel Regulator Controller LED Driver Board Input Voltage 4.4V-6V to 4.2V Solar Panel Input 0.99A

[CN3163 Solar Power LED Driver Board]

Description:
This is a super mini Solar Lipo charger based on the CN3163 - a single lithium battery charge management chip.

This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 0.99A with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Specification:

Solar panel input: 4.4-6V

Constant voltage charging voltage: 4.2V

Continuous constant current charging current up to 0.99A (1A)

Can be used as a voltage source

C/10 charge end detection

Automatic recharge

Short circuit protection

Internal soft start circuit

Battery status indication ( Red : Charging , Blue: Charged )

Interface:  2-pin JST connectors (or PH2.0)

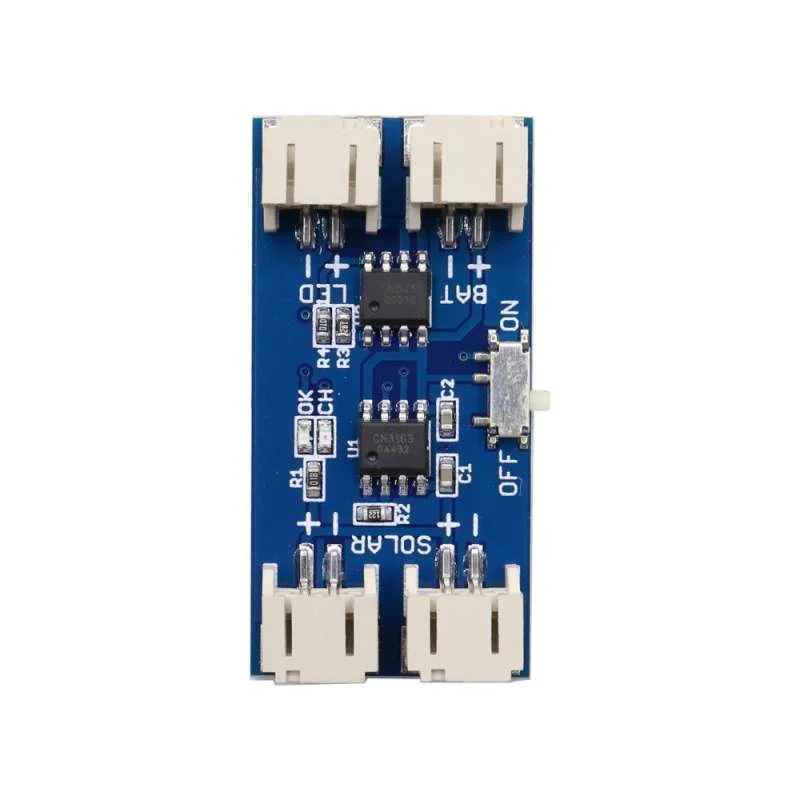

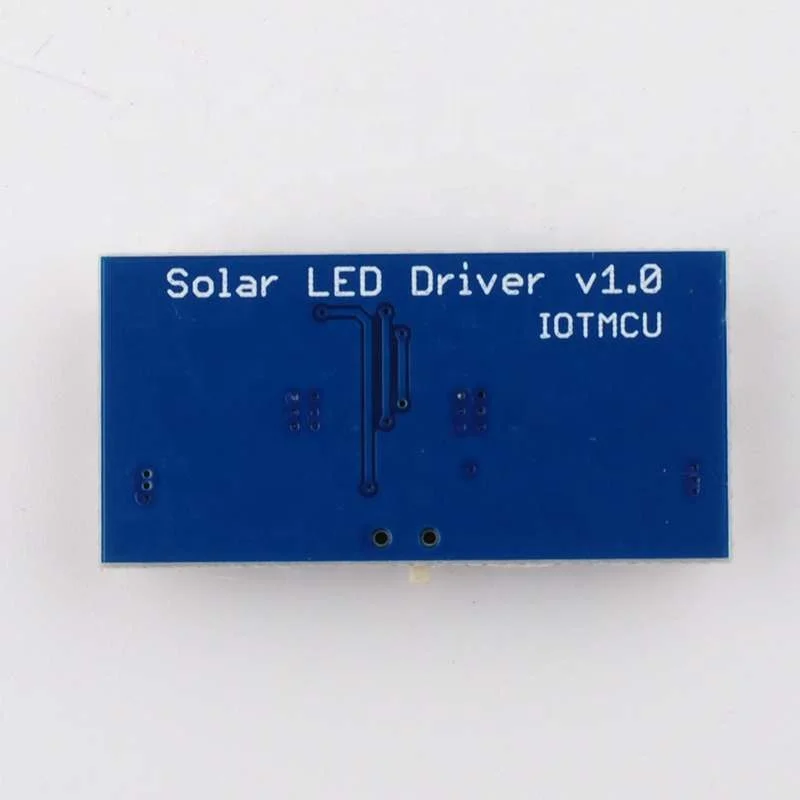

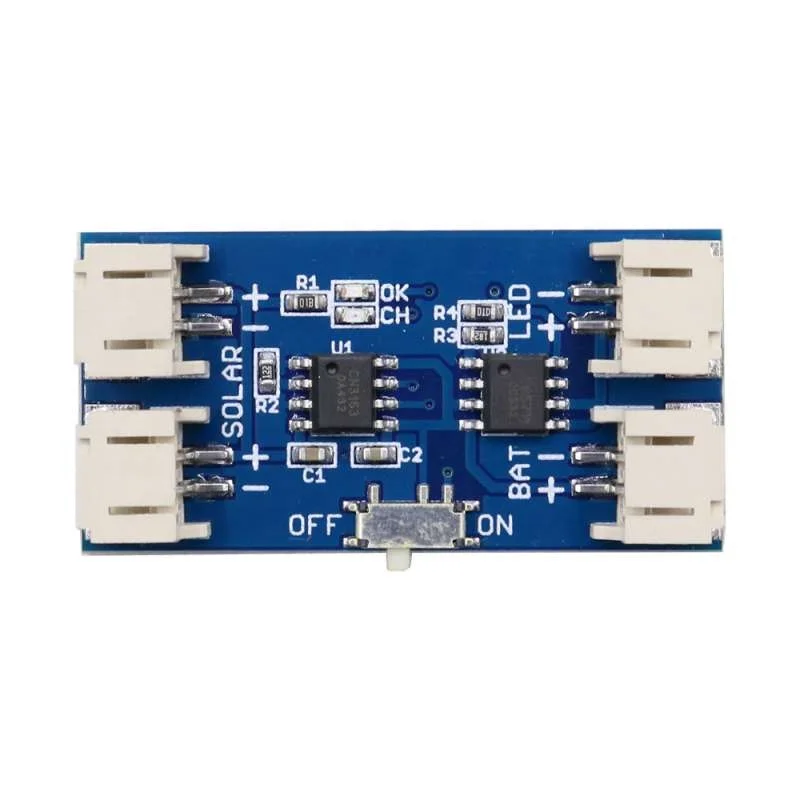

[CN3163 CN5711 Solar Power LED Driver Board]

Description:

This is a super mini Solar Powered LED Driver based on the CN3163 and CN5711. You can use this board DIY a solar street light, solar LED and so on.

CN5711 is a current modulation integrated circuit with a constant output current of up to 1A, which can be used to drive various types of light-emitting diodes including white light-emitting diodes.

This CN3163 Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

Specification:

Solar panel input: 4.4-6V

Constant voltage charging voltage: 4.2V

Continuous constant current charging current up to 0.99A (1A)

Automatic recharge

Short circuit protection

Internal soft start circuit

Battery status indication ( Red : Charging , Blue: Charged )

LED working voltage:3.7(4.2)V some as the battery

Output current up to 1A

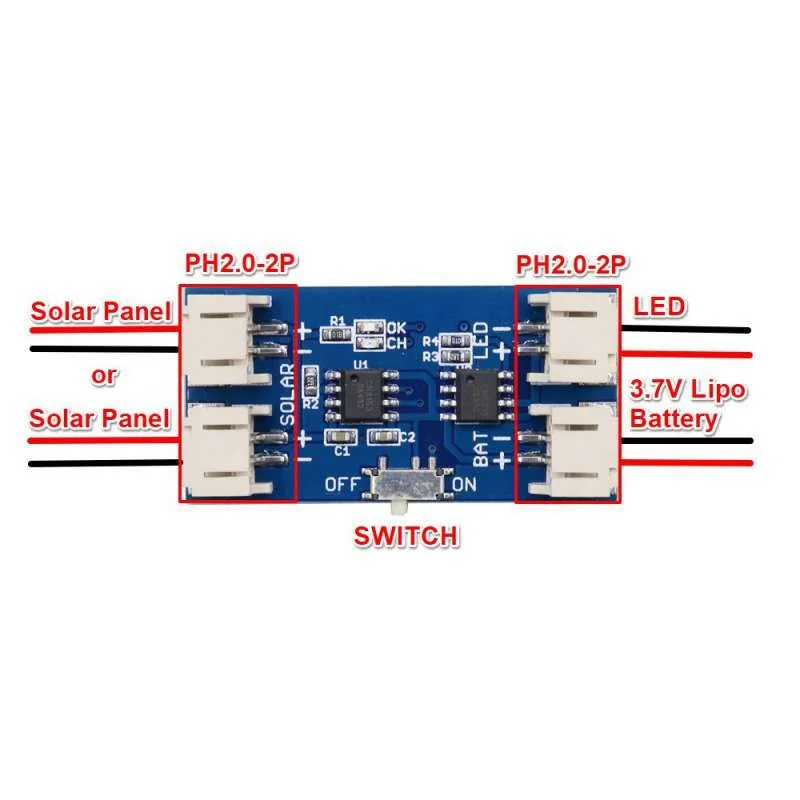

Interface:  2-pin JST connectors (or PH2.0)

Dimension: 2cm x 4cm



Package List

1 x Solar Power LED Driver Board
