Смарт-шлюз RS485 TCP для связи с дистанционным управлением и
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,DYC,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 146.10 $* | 149.35 $* |
| Jul-16-2025 | 118.42 $* | 120.31 $* |
| Jun-16-2025 | 144.42 $* | 147.55 $* |
| May-16-2025 | 143.30 $* | 146.46 $* |
| Apr-16-2025 | 114.59 $* | 116.4 $* |
| Mar-16-2025 | 140.13 $* | 143.52 $* |
| Feb-16-2025 | 139.46 $* | 142.41 $* |
| Jan-16-2025 | 138.32 $* | 141.32 $* |
Характеристики
multi gateway RTU gateway iot sim gateway dual ethernet, 4G cat1
Product Overview
IOT306 gateway with RS232/RS485 interface can connect various industrial equipments, such as PLC, meters, sensors, electrical switches, monitor the real-time running status and data of the industrial system, as well as connect the remote device to a proprietary central computer and mobile phones via the GSM/3G/4G/Ethernet communication network. In addition, it can efficiently acquires operating parameters and process management of remote equipments, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.
FEATURES AT A GLANCE
1. Multiple communication interface: RS232/485 LAN WAN USB
2. Multiple Network connections:
Ethernet WIFI/BT 4G
3. Support modbus
4. Support to connect to the IOT cloud platform
PRODUCT SPECIFICATIONS
Item | Details |
CPU | IMX6ULArm Cortex A7 528MHz |
RAM | 256MB, DDR3 |
Nor Flash | 128Mbit |
EMMC | 4GB |
Extend storage | 1 x Micro SD, max 16G Max |
Wireless( optional) | 1 x mini PCIe, Wifi/ 4G |
Serial ports | 1 x Console, 1 x RS232, 1 x RS485 |
USB | 1 x USB 2.0 |
Ethernet | 2 x RJ45, 10/100 Mbps |
Display | 1 x LVDS port ( reserved toch and brightness adjustment interface) |
CAN BUS | 2 x CAN : CAN2.0 B, 125/250kbps |
Audio | 1 x Buzzer 1 x Built-in 3.5 audio port |
System | Linux 4.1.5 |
Power supply | 20W/12V DC( Rated) |
Mounting | Wall/ DIN rail |
Enclosure dimension | 150mm x 110mm x 35mm |
Operating Temp | -40 ~ 70℃ |
Storage Temp | -40 ~ 85℃ |
Humidity | 5~95% |
Interface
______________________________________________________________________________________________________________________

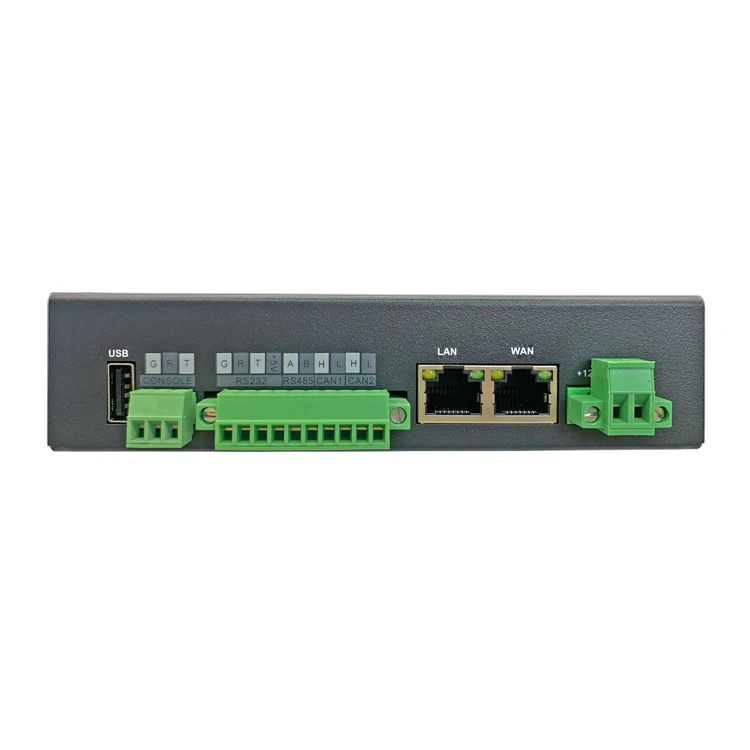

Interface layout diagram
Application
______________________________________________________________________________________________________________________
Except the following usage scene, there are also many other kinds of operating scenarios.
Strengths
______________________________________________________________________________________________________________________
Why choose us
______________________________________________________________________________________________________________________.
Company information
______________________________________________________________________________________________________________________
DYC is a PCB&PCBA contract manufacturing with one-stop service. we have 6 Yamaha YS series high-speed assembly machine, 6 sets of fully automatic printing machines, 6 sets of AOI, 6 sets of SPI, 2 DIP lead-free production lines, 4 end product assembly lines and a large number of advanced inspection and testing instruments.
Packaging
______________________________________________________________________________________________________________________.
FAQ
Q1：Are you support customized service?
A1：Yes, ODM and OEM are acceptable, we also can provide technical support.
Q2：Could I buy the boards only?
A2：Yes, it's acceptable to buy the boards alone.
Q3：Is the samples avialable?
A3：Yes, the samples will be delivered within 3 days after receive the payment.
Q4：Are the components for mass production available? (Due to the components shortage)
A4：Yes, we have all the components for this product in stock.
