DC24V 54W LED wall washer size:L1000*W48*H29MM Aluminum use in architecture facade

Betterway BW-W3U36 Structural waterproof Led Wall Washer Features :

1.High-end design Structural waterproof  & with excellent illumination

2.Same structural waterproof design series with different sizes & power:

18W,24W,36W,48W,54W,60W,72W

3.Time Management : the color temperature & brightness can be set according to time period

4.Multiple lens angles & brackets for different project's demands

5.Tough 4MM tempered glass and strong Aluminum lamp body : strongly protect the resistance

6.Strictly control points distance : seamless connection among lamps ,and no dark space at the joint

7.Automatically setting address code when power on :save the installation & debugging time and labors costs

	Item No.	BW-W3U36
	Size	L1000*W48*H29MM
	Rated voltage	DC24V
	Power	48W-54W
	Color	Single colro On-off
	Options for CCT	3000K,4000K,5000K,6000K
	Beam Angle	10/12/25/45/60/10*22/10*60/30*60 degree
	Led Light source	36PCS SMD3030 LEDS
	IP Rate	IP67
	Certificates	CE,ROHS
	Warranty	Regural is 3 years

Product Advanatges of Slim DMX RGB Wall Washer Series

1.Small power ,Midium power,High power.

2.Luminous uniformity .

3.High Graysacle 65536(16 bit )

4.Seamless connection .

5.Voltage DC24V,DC36V and High voltage .

6.Various sizes are available .

7.Various viewing angles are available .

8.Type :Single color ;DMX Single color ;DMX RGB;DMX RGBW

Product Descriptions

1.Adpot high brightness brand LEDs which it's UV resistant,Waterproof ,Dustproof .

2.The perfect combination of light .

3.Surface with Special Mateiral ,Strong Anti-yellowing properties ,Hardy till minus 40℃.

4.Back side has trunking ,cables can be hidden ,to reduce the cable aging and extra tibet wire cost .

5.Can live working ,resistant hot swappable .

6.Constant current designs .

7.Easy installation and Diversifiction installation such as front and side installation .

8.Fully supports color fading ,skipping ,scanning ,chasing ,play flash and video to music ,etc..

9.Compatible with MADRIX ,BW software and other softwares .

10.Length :0.5M,1M,1.5M or Customzied .

11.The illumination distance is around 1M to 15M.

12.Energy-saving ,Low-soct maintenance ,Long-life span .

Application

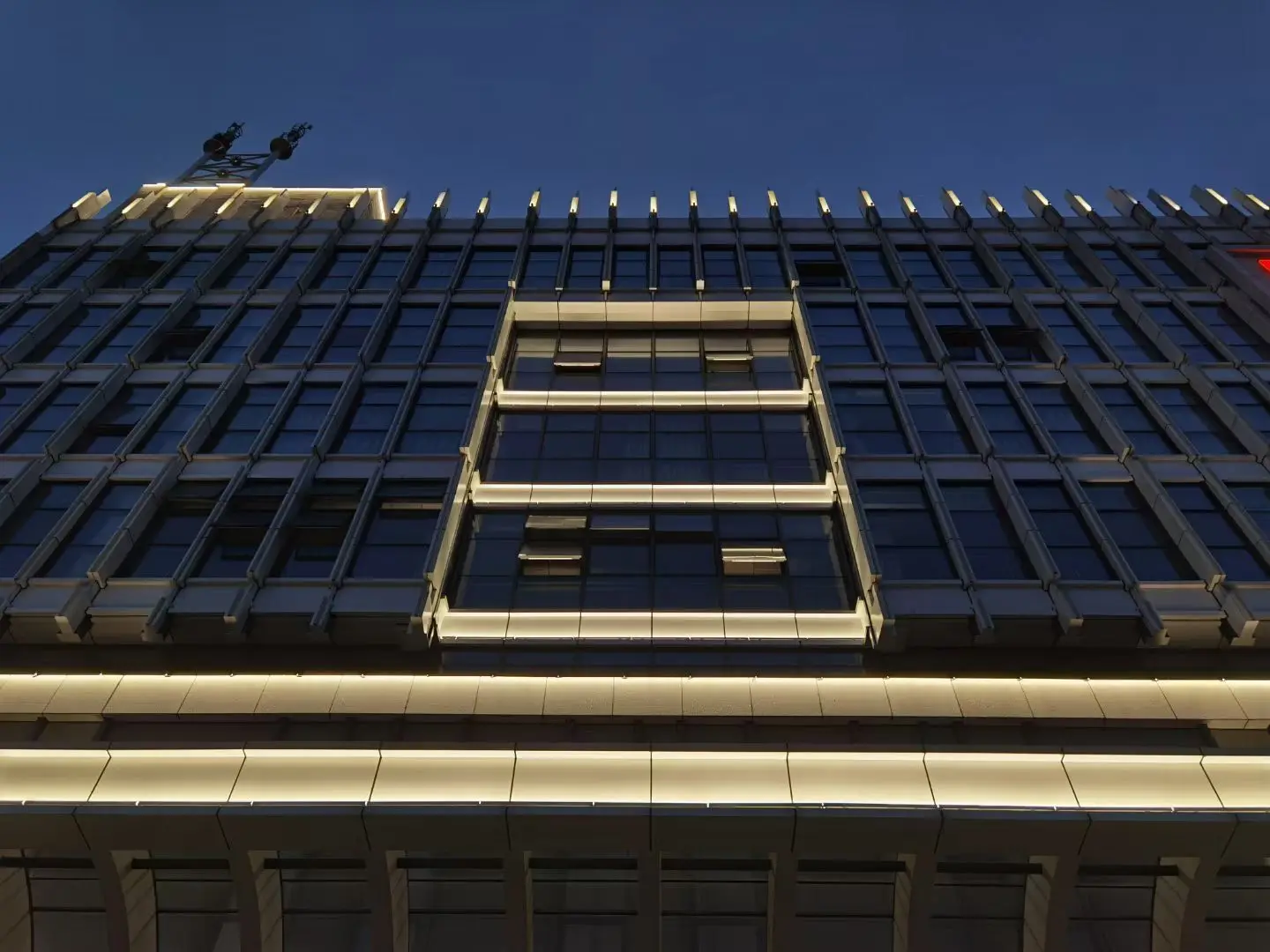

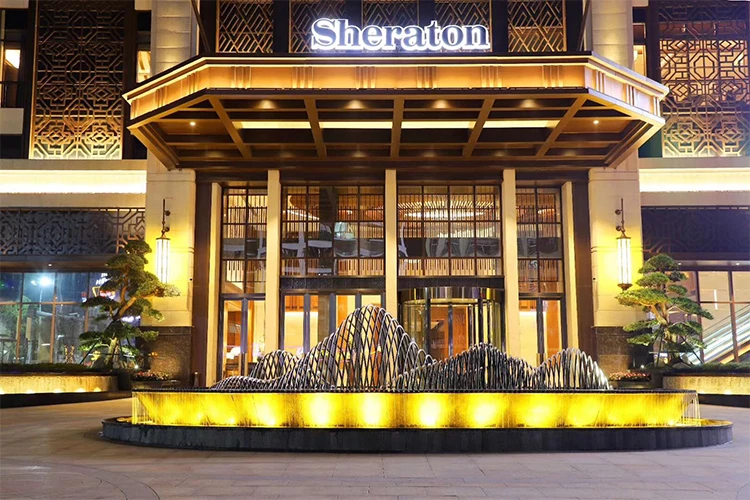

It is a perfect product for Architecture and Entertainment lighting such as Decorating Duilding Facades ,Hotels,Towers,and Bridges ,Plaza,Meeting room ,Stage ,etc..

Our Equipments

 Certifications

CUSTOMIZED PRODUCT DESIGN SUPPORT

A good product design is the key point for successful project .

With years of professional experience ,Betterway Lighting is available to Circuit Schematic Diagrams ,3D Drawing ,Technical Layout Drawing,Lighting Simulation Renderings ,Testing Report,etc.

Especially for our uncontrolled dimming technology ,the brightness can be adjusted at any time after installation .

And our products support RDM protocol which enables remote monitoring & control of lamps ,real-time feedback

of relevant information ,such as lamps position ,working temperature ,working current ,working voltage ,etc.

PROVIDE PRODUCT SAMPLES

After project product scheme is confirmed ,Betterway Lighting will prepare samples for client for site testing and

quality checking ASAP .Normal sample lead time is 2-3 days ,customized sample lead time is 7 days .

PROJECT INSTALLATION & TESTING

Betterway Lighting has a professional team with on-site construction guidance training ,rich knowledge of lighting ,and proficient in lighting system installation .Ensure that the project's lighting system & installation correctly to

meet the specifications of project's requirements,in testing and commissioning of project ,it can arrange technicians to guide on-site instruction or remote instruction .
