Светодиодный линейный светильник 1 м 96 шт. 12 Вт Ip67 ширина 50 мм Одноцветный высококлассный дизайн подходит для нескольких

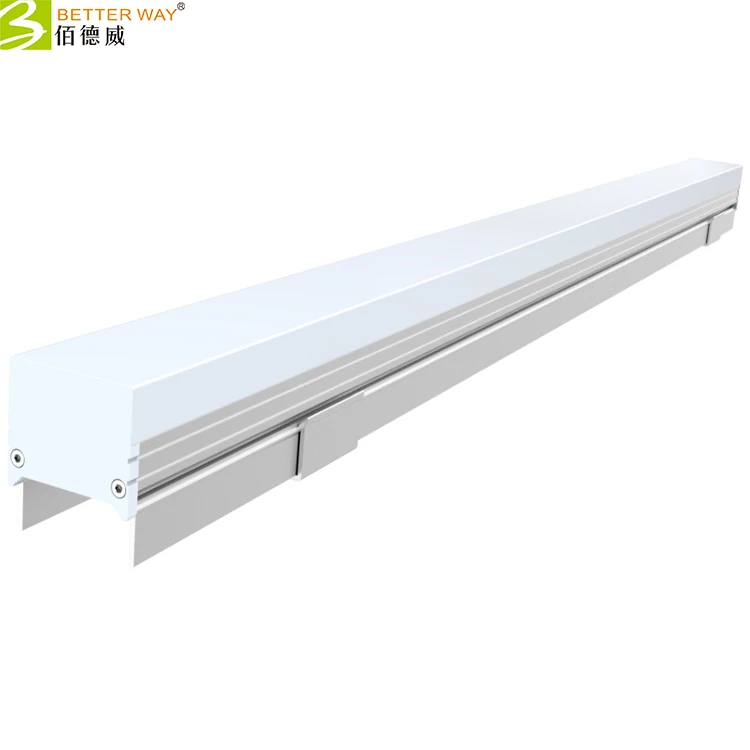

Betterway BW-L1N96 Led Linear Bar Features :

1.With 50mm for width --with large light emitting area

2.High-end design-- suitable for multiple projects

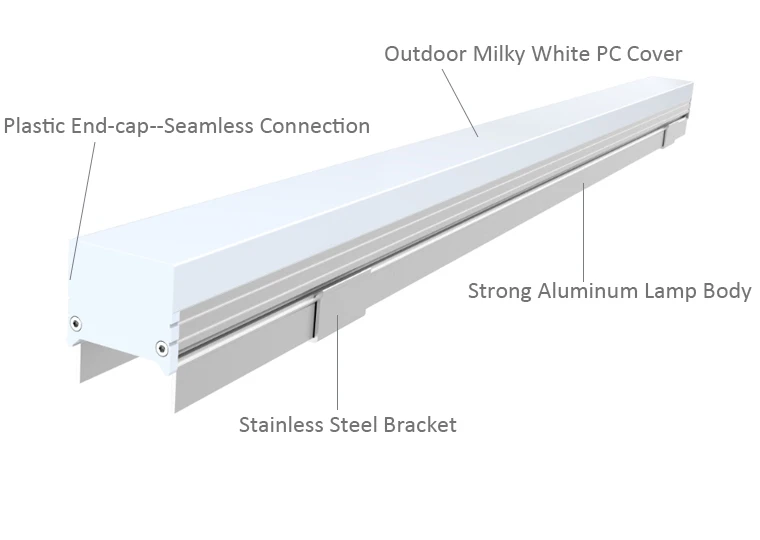

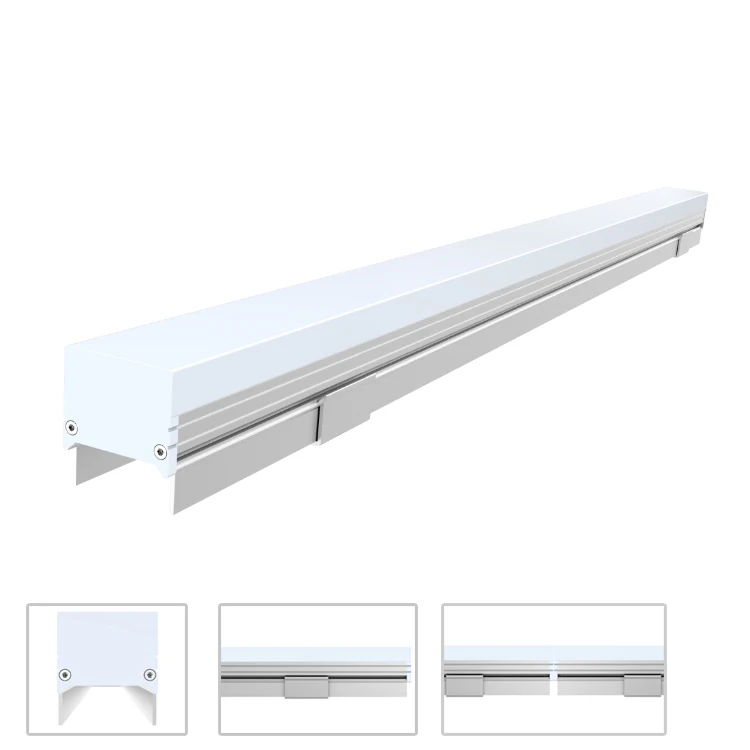

3.Adopt transparent end-cap that with excellent light guide performance and strictly control pixel distance --perfectly realize seamless connection among lamps,and no dark space at the joint

4.Multiple options for pixel per 100cm : 1/2/4/8 or customized

5.High grayscale 65536 16 bit & with Excellent light distribution

6.Automatically setting address code when power on --Save the installation & debugging time and labors costs

	Item No.	BW-L1N96-Single color
	Size	L1000*W50*H57.8MM
	Length	1000MM,500MM,250MM or Customized
	Voltage	DC24V
	Power	12W-24W
	Color	Single color On-off
	CCT	3000K,4000K,5000K
	IP Rate	IP67
	Certificates	CE ROHS EMC
	Warranty	Regural is 3 Years

Product Advantages of DMX Linear Bar Series (Betterway Hotspot Product Series )

Size is slim,Shape is smart ,Quality is stable .

One LED one pixel ,3 LEDS One pixel,6 LEDS one pixel or customzied .

High grayscale 65536(16 bit).

Seamless connection .

Voltage DC12V ,DC24V,DC36V,DC48V.

Detachable connector .

Various sizes are available .

Type :Single Color ;DMX Single color 'DMX RGB;DMX RGBW.

Product Descriptions

1.Adopt high brightness SMD5050 which it's UV resistant ,Waterproof ,Dustproof .

2.The structure of this series can be seamless stitching .

3.The bar shell can be sprayed with the requirement color to fit the project .

4.Back side has trunking,cables can be hidden,to reduce the cable aging and extra tibet wire cost .

5.Surface with special material ,strong anti-yellowing properties ,hardy till minus 40℃.

6.Can live working ,resistant hot swappable .

7.constant current design .

8.Diversification installation .

9.Fully support color fading ,skipping ,scanning ,chasing ,play flash and vedio to music ,etc..

10.Compatible with MADRIX and BW software and other softwares .

11.Length:0.5M,1M,1.5M,2M or customized .

12.Energy-saving ,Low-cost maintenance ,Long-life span .

Applications

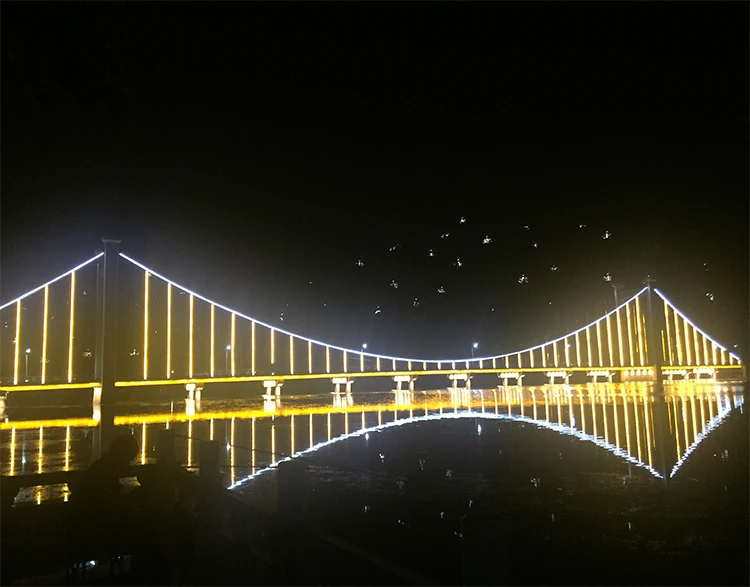

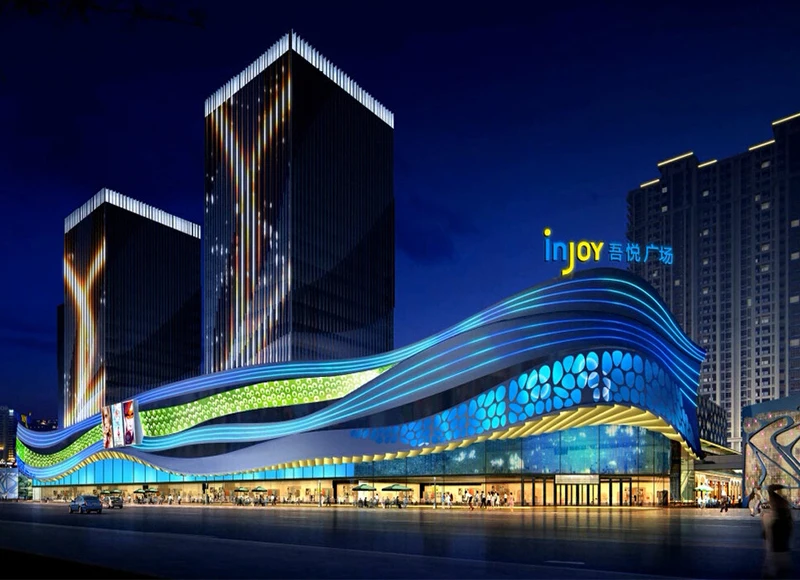

It is a perfect product for Entertainment and Architecture lighting such as Big TV Show ,Music Festival ,Stage Design ,Disco Clubs ,Outline of building and bridge ,Display screen and son on .

Our Equipments

Our Certificates

CUSTOMIZED PRODUCT DESIGN SUPPORT

A good product design is the key point for successful project .

With years of professional experience ,Betterway Lighting is available to Circuit Schematic Diagrams ,3D Drawing ,Technical Layout Drawing,Lighting Simulation Renderings ,Testing Report,etc.

Especially for our uncontrolled dimming technology ,the brightness can be adjusted at any time after installation .

And our products support RDM protocol which enables remote monitoring & control of lamps ,real-time feedback

of relevant information ,such as lamps position ,working temperature ,working current ,working voltage ,etc.

PROVIDE PRODUCT SAMPLES

After project product scheme is confirmed ,Betterway Lighting will prepare samples for client for site testing and

quality checking ASAP .Normal sample lead time is 2-3 days ,customized sample lead time is 7 days .

PROJECT INSTALLATION & TESTING

Betterway Lighting has a professional team with on-site construction guidance training ,rich knowledge of lighting ,and proficient in lighting system installation .Ensure that the project's lighting system & installation correctly to

meet the specifications of project's requirements,in testing and commissioning of project ,it can arrange technicians to guide on-site instruction or remote instruction .
