ЧПУ высокоскоростная стальная проволочная машина для выпрямления и резки диаметра 1 1-1 5
- Категория: Metal Straightening Machinery >>>
- Поставщик: Platinum,Overseas,Trade,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14875.60 $* | 15619.50 $* |
| Aug-18-2025 | 14750.21 $* | 15488.4 $* |
| Jul-18-2025 | 12375.25 $* | 12994.47 $* |
| Jun-18-2025 | 14500.81 $* | 15225.38 $* |
| May-18-2025 | 12625.63 $* | 13256.96 $* |
| Apr-18-2025 | 14250.60 $* | 14963.64 $* |
| Mar-18-2025 | 14125.60 $* | 14831.82 $* |
| Feb-18-2025 | 14000.54 $* | 14700.64 $* |
| Jan-18-2025 | 13875.83 $* | 14569.14 $* |
Характеристики

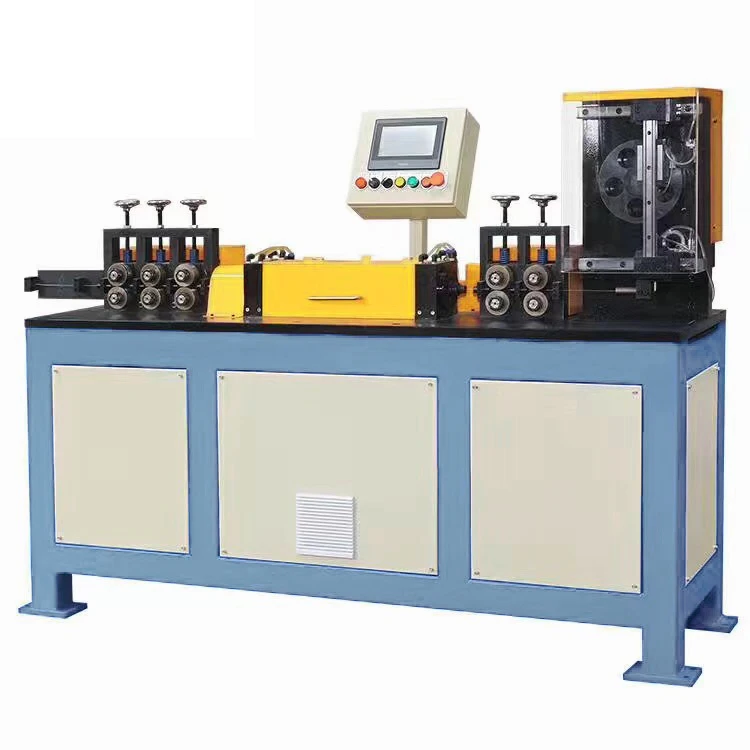

Product Description
The high speed steel wire cut to length is special designed for wire on tube condenser making, the cutting wire diameter is
1.1-1.5mm. With inverter control, the straightening wheel and cutting blade speed is adjustable.
1.1-1.5mm. With inverter control, the straightening wheel and cutting blade speed is adjustable.
Features:
1. Feeding, cutting with motor driven, straightening with inverter control.
2. With touch-screen control, the cutting length, straightening drum rotating speed, feeding speed can be set and adjusted.
3. The straightening device equipped with auto-stop function when cover open. And alarm for no wire feeding
4. Servo motor and gear box driven system for high accurate feeding.
2. With touch-screen control, the cutting length, straightening drum rotating speed, feeding speed can be set and adjusted.
3. The straightening device equipped with auto-stop function when cover open. And alarm for no wire feeding
4. Servo motor and gear box driven system for high accurate feeding.
Specification
Parameter | Data | |
1 | Wire Material | Carbon steel wire |
2 | Wire Diameter | 1.1-1.5mm |
3 | Cutting Length | 100-5000mm |
4 | Work Speed | 0~150m/min, adjustable by Inverter |
5 | Cutting Tolerance | +/-0.5mm/1m |
6 | Control System | PLC control / HMI |
7 | Motor Power | 1.50KW |
8 | Electric System | 380V, 50Hz, 3Phae (Customized) |
9 | Dimension | 1700 x 750 x 1350 mm (main machine) |
10 | Weight | 860 KG |
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
