Kaowool керамического волокна блок для пара туннели и печь
US $1.00-$10.00
С анкерным алюминиевым кремниевым огнестойким изоляционным керамическим волоконным
- Категория: Ceramic Fiber Module >>>
- Поставщик: Zhengzhou,Shuojin,Refractory,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.43 $* | 1.29 $* |
| Jul-20-2025 | 1.21 $* | 1.10 $* |
| Jun-20-2025 | 1.59 $* | 1.17 $* |
| May-20-2025 | 1.81 $* | 1.69 $* |
| Apr-20-2025 | 1.37 $* | 1.15 $* |
| Mar-20-2025 | 1.24 $* | 1.90 $* |
| Feb-20-2025 | 1.64 $* | 1.74 $* |
| Jan-20-2025 | 1.44 $* | 1.98 $* |
Характеристики
With Anchor Alumina Silicate Fireproof Aluminum Insulation Ceramic Fiber Module
Product Description

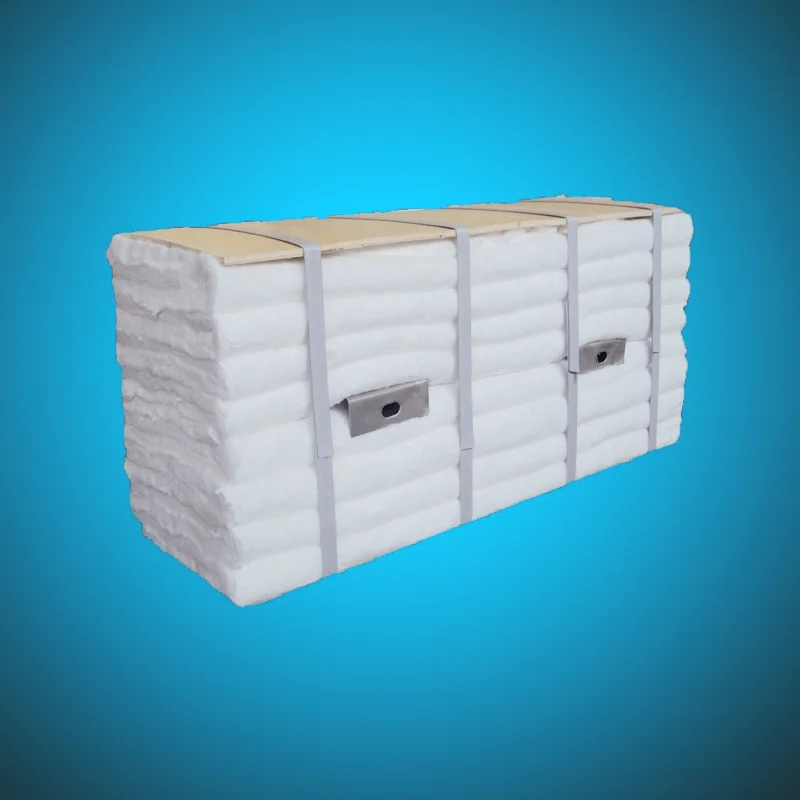

SHUOJIN Ceramic fiber module
SHUOJIN The fiber module is pre-folded or cut into pieces with ceramic fiber blankets and processed by professional equipment. The SHUOJIN module has the advantages of precise size and smooth surface. It is specially designed for a variety of thermal processing equipment lining applications, with reliable quality, quick installation and excellent thermal insulation performance.
Features of Ceramic fiber module
● Built-in anchor system, good safety performance.
● Low thermal conductivity, excellent thermal insulation performance.
● Excellent mechanical strength.
● Excellent mechanical strength.
● Excellent thermal shock resistance.
● Excellent resistance to wind erosion.
● Excellent sound insulation performance.
● Low bulk density, low heat storage.
● Excellent resistance to wind erosion.
● Excellent sound insulation performance.
● Low bulk density, low heat storage.
Classification temperature
● Fiber module: 1260℃
● Fiber module: 1425℃
● Fiber module: 1500°C
● Fiber module: 1600°C
● Fiber composite module: 1425 + 1500℃
● Fiber composite module: 1425 + 1600℃
● Fiber module: 1425℃
● Fiber module: 1500°C
● Fiber module: 1600°C
● Fiber composite module: 1425 + 1500℃
● Fiber composite module: 1425 + 1600℃
SHUOJIN Ceramic fiber module Typical application
● Iron and steel industry : ladle cover, heating furnace, sheet annealing furnace, continuous annealing furnace, ring furnace, bell furnace, coating furnace, walking furnace, hot blast pipe and flue, etc.
● Aluminum industry : Crucible furnace, pit soaking furnace and furnace cover, crucible furnace, flue, etc.
● Petrochemical industry : cracking furnace, reforming furnace, coking furnace, heating furnace, atmospheric furnace, decompression furnace, flue, etc.
● Ceramic industry : tunnel kiln, shuttle kiln, roller kiln.
● Environmental protection industry: garbage incinerators, RTO waste gas treatment furnaces, etc.
● Aluminum industry : Crucible furnace, pit soaking furnace and furnace cover, crucible furnace, flue, etc.
● Petrochemical industry : cracking furnace, reforming furnace, coking furnace, heating furnace, atmospheric furnace, decompression furnace, flue, etc.
● Ceramic industry : tunnel kiln, shuttle kiln, roller kiln.
● Environmental protection industry: garbage incinerators, RTO waste gas treatment furnaces, etc.
● SHUOJIN The fiber module anchor system uses reinforced anchors. The anchors have greater strength and are closer to the cold surface (45mm). The anchors can withstand lower temperatures at high temperatures to ensure their high-temperature strength. The anchors are made of high-quality heat-resistant steel (SS304, SS316, SS316L, SS310, 610,
Ceramic anchors, etc.) to ensure a firm installation system for the fiber module.
● SHUOJIN Fiber module installation is simple, fast and reliable. Module design is carried out in advance to determine the position of the fixing bolts. Bolts are welded in advance and the welding strength is checked. The steel plate inside the furnace shell can be coated with anti-corrosion materials. Board, backing blanket, metal aluminum foil composite backing.
● SHUOJIN The 1500 fiber module can effectively fill the temperature gap between the zirconium-containing fiber and the mullite fiber module.
● SHUOJIN 1600 fiber module is suitable for working environment above 1500℃, and it has good stability in oxidizing and reducing atmosphere.
● SHUOJIN The 1425/1500 composite module takes into account both high temperature resistance and economic performance.
● SHUOJIN The 1425/1600 composite module uses a temperature above 1400°C and has low high-temperature shrinkage, which effectively solves the problem of insufficient temperature resistance of the zirconium-containing fiber and chromium-containing fiber module, and is also lower in cost than the 1600 fiber module.
Ceramic anchors, etc.) to ensure a firm installation system for the fiber module.
● SHUOJIN Fiber module installation is simple, fast and reliable. Module design is carried out in advance to determine the position of the fixing bolts. Bolts are welded in advance and the welding strength is checked. The steel plate inside the furnace shell can be coated with anti-corrosion materials. Board, backing blanket, metal aluminum foil composite backing.
● SHUOJIN The 1500 fiber module can effectively fill the temperature gap between the zirconium-containing fiber and the mullite fiber module.
● SHUOJIN 1600 fiber module is suitable for working environment above 1500℃, and it has good stability in oxidizing and reducing atmosphere.
● SHUOJIN The 1425/1500 composite module takes into account both high temperature resistance and economic performance.
● SHUOJIN The 1425/1600 composite module uses a temperature above 1400°C and has low high-temperature shrinkage, which effectively solves the problem of insufficient temperature resistance of the zirconium-containing fiber and chromium-containing fiber module, and is also lower in cost than the 1600 fiber module.
Product specifications
With Anchor Alumina Silicate Fireproof Aluminum Insulation Ceramic Fiber Module
Main performance | Unit | SJ-1260 module | SJ-1425module | SJ-1500 module | SJ-1600 module | |||||
Classification temperature | ℃ | 1260 | 1425 | 1500 | 1600 | |||||
Normal temperature performance (23℃/relative humidity 50%) | ||||||||||
Colour | White | White | Light green | White | ||||||
specific gravity | g/ cm³ | 2 . 7 | 2 . 7 | 2 . 7 | 3 . 2 | |||||
Fiber melting point | ℃ | 1760 | 1760 | 1760 | - | |||||
Average fiber diameter | μm | 2 . 8 | 2 . 8 | 2 . 8 | 3 . 1 | |||||
Shot content | ≥0 . 212 mm ( %） | 7 | 7 | 7 | Trace amount | |||||
High temperature performance | ||||||||||
Permanent thread shrinkage (Insulation for 24 hours) 192 kg/ m³ | % | ≤1 . 3 （1100℃） | ≤1 . 5 （1200℃） | ≤1 . 7 （1300℃） | ≤1 . 1 （1500℃） | |||||
Thermal Conductivity | W/( m• k) ASTM- C- 201 | |||||||||
Bulk density 160 kg/ m³ | ||||||||||
400℃ | 0 . 09 | 0 . 09 | 0 . 09 | - | ||||||
600℃ | 0 . 14 | 0 . 14 | 0 . 14 | 0 . 14 | ||||||
800℃ | 0 . 20 | 0 . 20 | 0 . 20 | 0 . 20 | ||||||
1000℃ | 0 . 28 | 0 . 28 | 0 . 28 | 0 . 28 | ||||||
1200℃ | - | - | - | 0 . 36 | ||||||
Bulk density 192 kg/ m³ | ||||||||||
400℃ | 0 . 08 | 0 . 08 | 0 . 08 | - | ||||||
600℃ | 0 . 13 | 0 . 13 | 0 . 13 | 0 . 13 | ||||||
800℃ | 0 . 18 | 0 . 18 | 0 . 18 | 0 . 18 | ||||||
1000℃ | 0 . 26 | 0 . 26 | 0 . 26 | 0 . 26 | ||||||
1200℃ | - | - | - | 0 . 34 | ||||||
chemical composition | ||||||||||
Al 2 O 3 | % | 44 - 48 | 34 - 36 | 43 | 72 | |||||
Si O 2 | % | 52 - 56 | 48 - 50 | 54 | 28 | |||||
Zr 2 O 3 | % | - | 15 - 17 | - | - | |||||
Cr O 2 | % | - | - | 2 . 8 | - | |||||

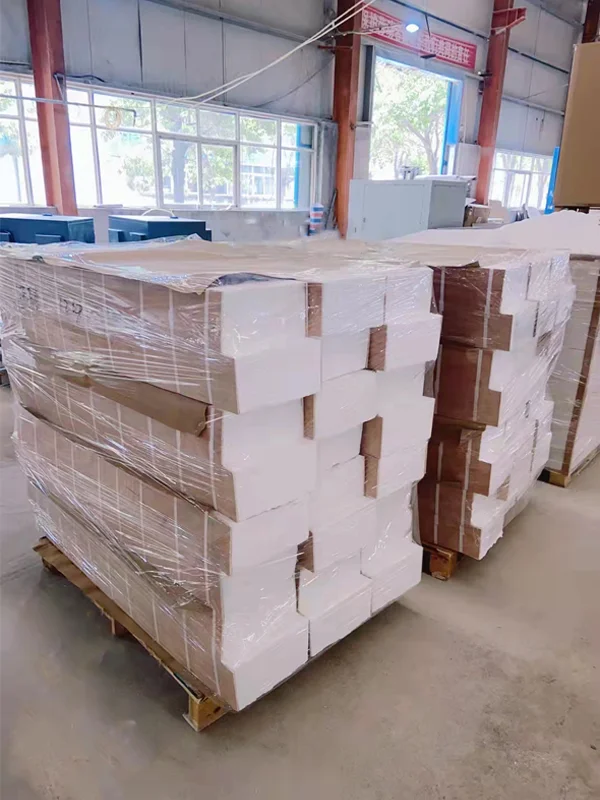

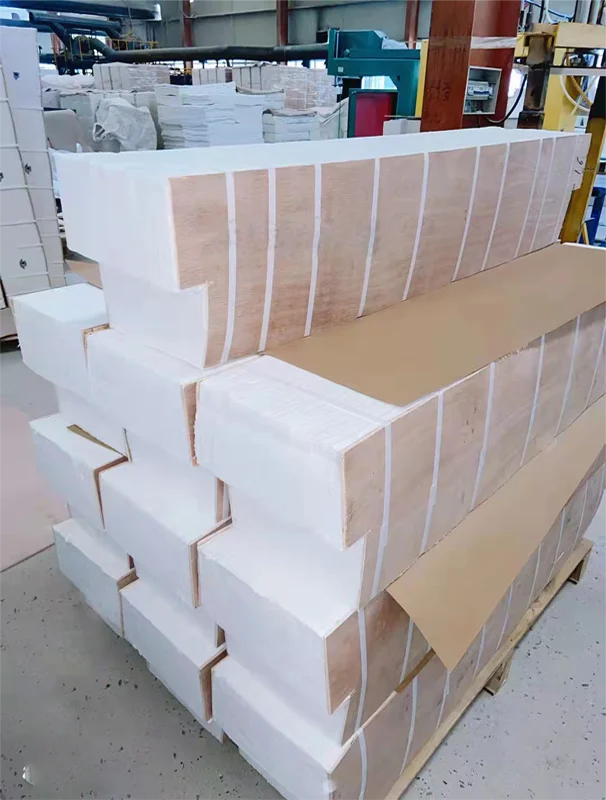

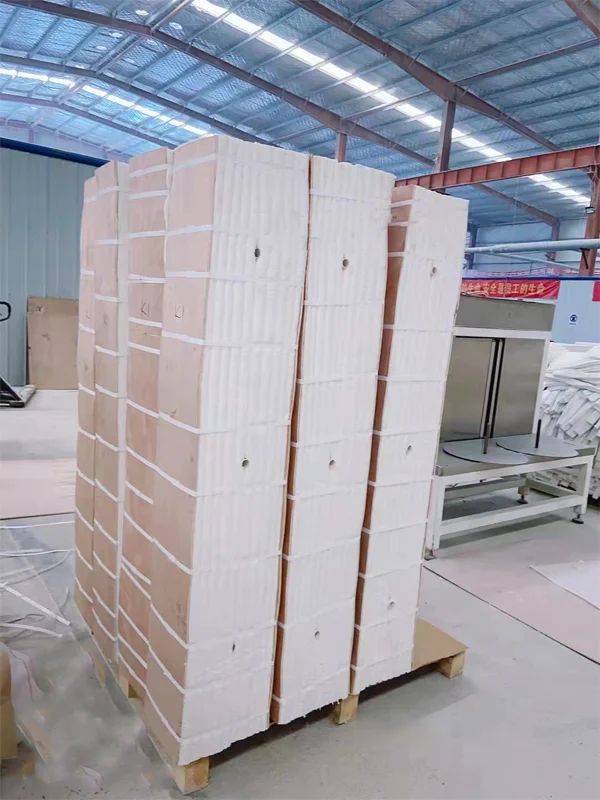

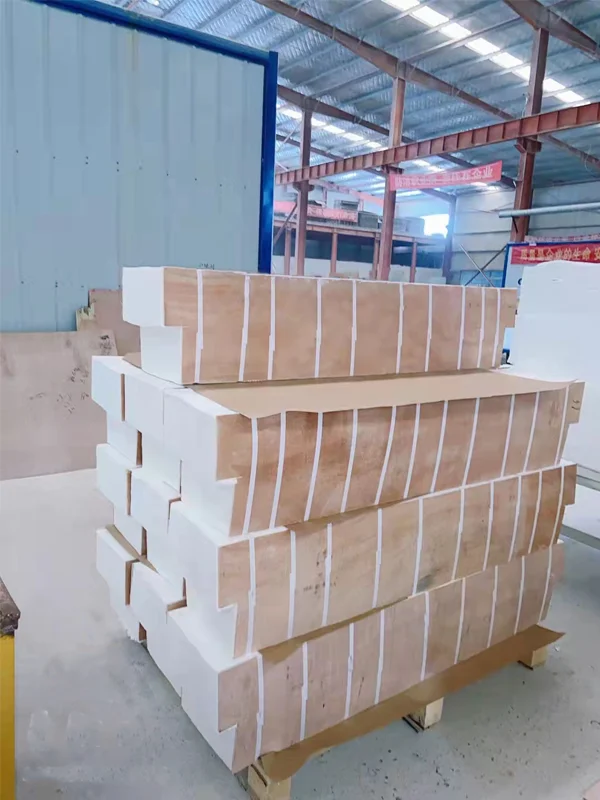

Packing & Delivery
With Anchor Alumina Silicate Fireproof Aluminum Insulation Ceramic Fiber Module
● The anchor materials are SS304, SS316, SS316L, SS310, 610 heat-resistant steel. Standard specifications: 300/305 x 300/305 x 100~300, other specifications and bulk density can be produced according to customer requirements. ● Packing: The module is packed in a carton or packed on a pallet and wrapped with stretch film.
Company Profile
Zhengzhou Shuojin Refractories Co., Ltd. is located in the west of Zhengzhou, Henan Province, and the east of Luoyang, the ancient capital, adjacent to 310. It has a superior geographical location, abundant refractory resources and convenient transportation.
The company relies on scientific research units as its technical support, insists on seeking development by science and technology, seeking survival by quality, winning users by honesty, seeking benefits by management, and has a pioneering, pragmatic and efficient team.
The company currently has 70 employees, including 8 senior technical titles, 10 intermediate technical titles, and 10 million yuan in fixed assets. It has three series of production lines: light and heavy quality stereotyped series and unshaped series.There are more than 50 sets of production equipment, 6 sets of friction brick presses, two tunnel kilns, various testing equipment.
leading products of light-weight insulation brick series, Ceramic fiber products series，mullite light-weight brick series, high-aluminum poly-light-ball insulation brick series It enjoys a high reputation in China and produces various series of unshaped products, high, medium and low-grade preforms, unshaped bulk materials series, gun clay series technology research and development and production, and can produce 50,000 tons of unshaped refractory products and 30,000 shaped products per year. Tons and 30,000 tons of magnesia carbon bricks.
Our company has established a long-term and stable technical cooperation relationship with Wuhan Iron and Steel Research Institute and Luoyang Refractory Research Institute, and continuously researches and develops a new generation of high-function refractory materials, making our company the most dynamic and competitive new refractory enterprise at present.
"Seeking truth and innovation, satisfying customers, and serving the society" is our business policy. Our company wholeheartedly welcomes cooperation with friends from all walks of life, strives hard, and creates brilliance together.
The company relies on scientific research units as its technical support, insists on seeking development by science and technology, seeking survival by quality, winning users by honesty, seeking benefits by management, and has a pioneering, pragmatic and efficient team.
The company currently has 70 employees, including 8 senior technical titles, 10 intermediate technical titles, and 10 million yuan in fixed assets. It has three series of production lines: light and heavy quality stereotyped series and unshaped series.There are more than 50 sets of production equipment, 6 sets of friction brick presses, two tunnel kilns, various testing equipment.
leading products of light-weight insulation brick series, Ceramic fiber products series，mullite light-weight brick series, high-aluminum poly-light-ball insulation brick series It enjoys a high reputation in China and produces various series of unshaped products, high, medium and low-grade preforms, unshaped bulk materials series, gun clay series technology research and development and production, and can produce 50,000 tons of unshaped refractory products and 30,000 shaped products per year. Tons and 30,000 tons of magnesia carbon bricks.
Our company has established a long-term and stable technical cooperation relationship with Wuhan Iron and Steel Research Institute and Luoyang Refractory Research Institute, and continuously researches and develops a new generation of high-function refractory materials, making our company the most dynamic and competitive new refractory enterprise at present.
"Seeking truth and innovation, satisfying customers, and serving the society" is our business policy. Our company wholeheartedly welcomes cooperation with friends from all walks of life, strives hard, and creates brilliance together.
Our Service
● Provide free samples of mullite insulation bricks.
● Strict quality control and fast delivery.
● High-quality products, perfect pre-sales and after-sales services.
● After placing the order, ShuoJin will update any of your production processes.
● We have a dedicated after-sales team to solve the problems you encounter when using our products.
● Any questions will get our feedback as soon as possible.
● Strict quality control and fast delivery.
● High-quality products, perfect pre-sales and after-sales services.
● After placing the order, ShuoJin will update any of your production processes.
● We have a dedicated after-sales team to solve the problems you encounter when using our products.
● Any questions will get our feedback as soon as possible.
Why choose us
Please give us one minute. In just one minute, you can eliminate your doubts and witness that we maintain a highly serious and professional attitude to solve your problems.
No.2: Our reputation is established in the past few years: Germany, Britain, Russia, South Africa, Japan, South Korea and India, etc. If you wish, you can always get feedback from customers in these countries before dealing with us.
No.3: We have good contacts with shipping companies, agencies, and local customs and port authorities. Ensure that we deliver on time.
No.4: We have no gap in communication, because Shuo Jin will help you with our sincere attitude.
No.5: We can provide you with the most favorable price, what you get from us is our dedicated service and the hospitality you are willing to be our friend.
FAQ
1. who are we?
We are based in Henan, China, start from 2020,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High alumina brick,Anhydrous Cannon Clay,Refractory castable,Mullite Lightweight Insulation Brick,Ramming mass
4. why should you buy from us not from other suppliers?
Our company has more than 15 years of product production and research and development experience, and has provided stable and high-quality products and services to more than 50 customers at home and abroad for a long time!
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2020,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High alumina brick,Anhydrous Cannon Clay,Refractory castable,Mullite Lightweight Insulation Brick,Ramming mass
4. why should you buy from us not from other suppliers?
Our company has more than 15 years of product production and research and development experience, and has provided stable and high-quality products and services to more than 50 customers at home and abroad for a long time!
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact us for details to get the best price
