Ceramic Fiber Module
Теплоизоляционный блок из керамического волокна для

Теплоизоляционный блок из керамического волокна для

Категория: Ceramic Fiber Module >>>
Поставщик: Zibo,Double,Egret,Thermal,Insulation,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.30 $*	0.98 $*
Aug-18-2025	0.44 $*	0.54 $*
Jul-18-2025	0.96 $*	0.29 $*
Jun-18-2025	0.71 $*	0.67 $*
May-18-2025	0.37 $*	0.13 $*
Apr-18-2025	0.87 $*	0.59 $*
Mar-18-2025	0.42 $*	0.24 $*
Feb-18-2025	0.22 $*	0.71 $*
Jan-18-2025	0.28 $*	0.22 $*

Характеристики

Product Description

Heat insulation Ceramic Fiber Block for stove is the popular standard ceramic fiber blcok, the working temperature is 950℃, Alumina contont is 44%, usally with SS304 anchoring. It is a new kind of heat resistant material and widly used in all kinds of furnace, kiln. It has been exported to EU, USA, South africa, turkey, and more than 30 countries.

Ceramic Fiber Block is made by ceramic fiber blanket. In the process, We keep a certain proportion of compression in order to ensure modules expand to the different direction after completion of ceramic fiber block wall lining.Ceramic fiber folded modules is directly fixed in industry furnace shell plate by anchorage. we can provide different shape of ceremic fiber block, such as ceramic fiber folded block, cermaic fiber cutting block.

ceramic fiber blcok characteristics & application
ceramic fiber blcok characteristics & application
Characteristics	Excellent chemical stability and thermal stability;
	Low thermal conductivity, low thermal capacity;
	Supporting both soldiers-march-based arrangement and
	assembly-based arrangement with the help of anchor in various forms in the back of the module
	Module will squeeze with each another in different directions after unbinding, to produce no gap
	Elastic fiber blanket resists to external mechanical forces;
	Light weight, and absorbing less heat as insulation materials;
	Fiber blanket’s elasticity can compensate for the deformation of furnace shell, so that no gap is generated between modules;
	Low thermal conductivity brings strong energy-saving effects;
	Able to withstand any thermal shock;
	Lining need no drying or curing, ready to use immediately after installation;
	Anchoring system is far away from hot surface of component, to allow metal anchor member to be in a relatively low temperature
	All kinds of industrial furnace and heating device linings for metallurgy, machinery, construction
	materials, petrochemicals, non-ferrous metal industries.
Application	Furnace lining and insulation of heat treatment furnace in heat treatment circle
	All kinds of industry frunace and heating device linings for metallurgy, machinery,
	construction materials, petrochemicals, non-ferrous metal industrie

Technical Data

physical charactoristic
Ceramic Fiber Module	1050 Common	1260 STD	1260 HP	1400 HA	1450 HZ
Operation Temp(℃)	950℃ (1742℉)	1050℃ (1922℉)	1100℃ (2012℉)	1200℃ (2192℉)	1350℃ (2462℉)
Density:(kg/m3)	64-160
Permanent Change on Heating (%)	950℃x24h ≤-3	1050℃x24h ≤-3	1100℃x24h ≤-3	1200℃x24h ≤-3	1350℃x24h ≤-3
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3)	0.15 (600℃) 0.22 (800℃)	0.12 (600℃) 0.20( 800℃)	0.12 (600℃) 0.20 (800℃)	0.12 (600℃) 0.20 (800℃)	0.16 (800℃) 0.20 (1000℃)
Tensile Strength(Mpa) (Thickness 25mm)	≥0.04	≥0.05	≥0.05	≥0.04	≥0.06
chemical composition
Al2O3(%)	44	45-46	47-49	52-55	39-40
Al2O3+SiO2(%)	≥96	≥98	≥99	≥99	-
ZrO2(%)	-	-	-	-	15-17
Al2O3+SiO2 + ZrO2(%)	-	-	-	-	≥99
Fe2O3(%)	≤1.0	≤0.8	≤0.2	≤0.2	≤0.2
Na2O+K2O(%)	≤0.4	≤0.3	≤0.2	≤0.2	≤0.2
CaO+MgO	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2

Product Detail

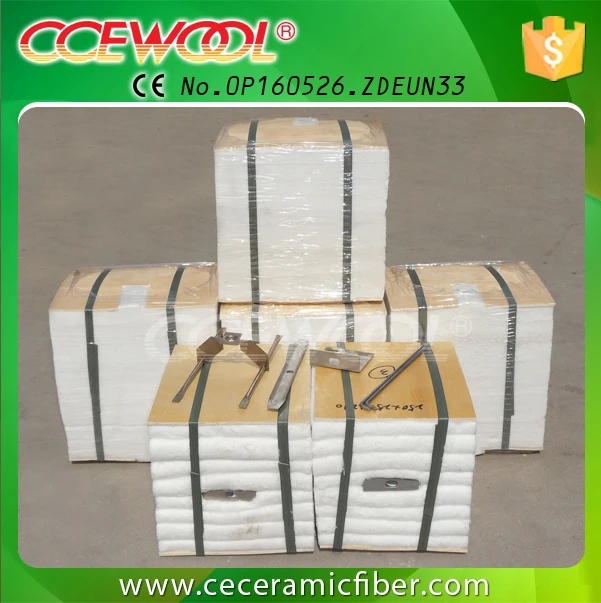

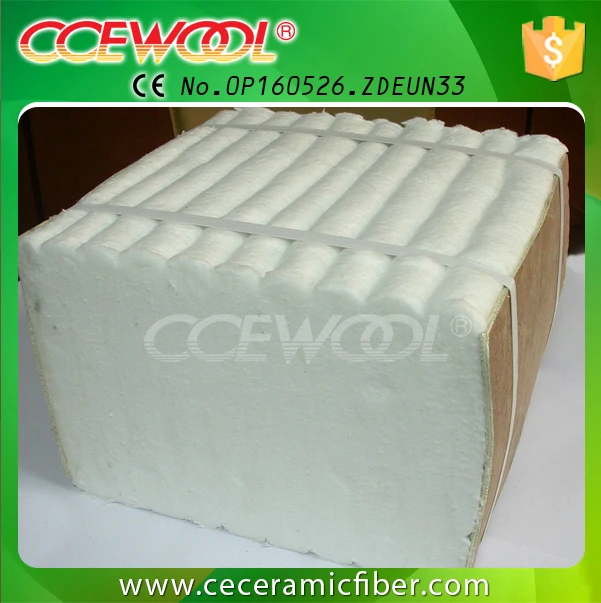

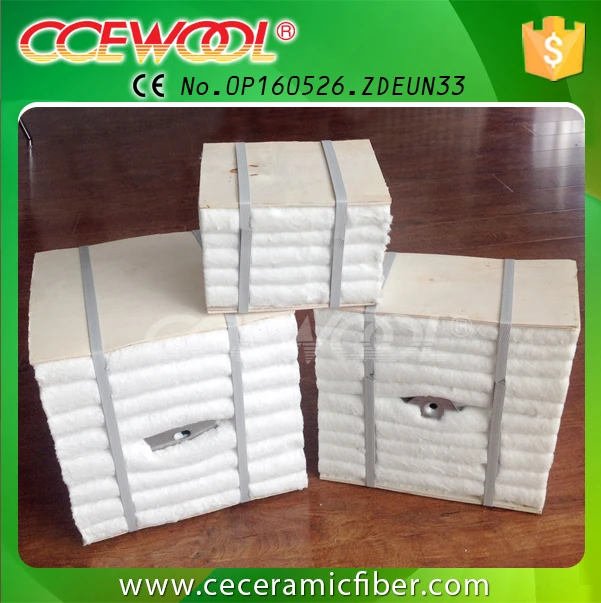

CCEWOOL ceramic fiber block 's color is pure white, and size is exact. The four sides also can be cut as your require. And we can also produce anchoring as your design.

.jpg

Certifications

Our products have got CE certificate, and we can also accept the third part inspection such as SGS, BV, TUV.

.jpg

Quality control

We weigh strictly each CCEWOOL ceramic fiber block before packing,and make sure actual weight is no less than theoretical weight. We guarantee to measure the size of products according with customers' need. We also do chemical composition test before shipment

.jpg

Swift Delivery

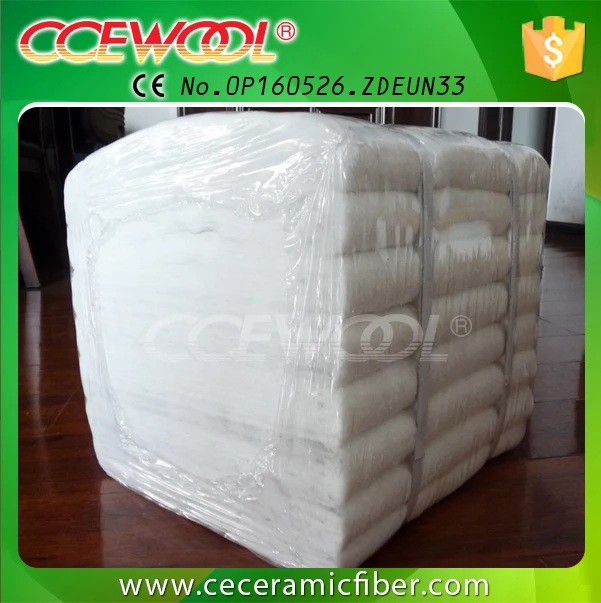

We have professional inspectors for each container's delivery. we can offer photos and records for packing details to customers.we can make sure ceramic fiber block according with customer's need.

.jpg
