Kaowool керамического волокна блок для пара туннели и печь
US $1.00-$10.00
1260 г. модуль из алюминиево-силикатного изоляционного керамического волокна для подкладки
- Категория: Ceramic Fiber Module >>>
- Поставщик: Henan,Synthe,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 36.33 $* | 38.44 $* |
| Aug-19-2025 | 35.25 $* | 37.43 $* |
| Jul-19-2025 | 30.79 $* | 32.69 $* |
| Jun-19-2025 | 35.18 $* | 37.33 $* |
| May-19-2025 | 30.5 $* | 32.92 $* |
| Apr-19-2025 | 34.11 $* | 36.46 $* |
| Mar-19-2025 | 34.96 $* | 36.9 $* |
| Feb-19-2025 | 34.66 $* | 36.21 $* |
| Jan-19-2025 | 33.22 $* | 35.92 $* |
Характеристики
Products Description
The sewing Module improves the shortcomings of compression modules processed by traditional tri-ply straps, we have researched and developed the whole set of automatic sewing equipment. By using the sewn method, the ceramic fiber modules are manufactured and compressed to be installed in specific parts, which can enhance the construction efficiency, reduce garbage pollution and save materials, and lower the cost.
Specification
Type | SYN-1260Z | SYN-1600Z | ||
Classification Temperature(℃) | 1260 | 1600 | ||
Working Temperature(℃) | 1000 | 1500 | ||
Color | white | white | ||
Density(kg/m³) | 96-230 | 96-250 | ||
Shrinkage(%) | 1100℃*24h (2-3) | 1500℃*24h (0.5-1) | ||
Thermal conductive(w/mk) | 600℃ | 0.12 | 0.08 | |
800℃ | 0.16 | 0.13 | ||
1000℃ | 0.22 | 0.17 | ||
1200℃ | - | 0.2 | ||
Standard Size:Module 300*300*150-300mm;
Other shapes and sizes can be made according to your requirements
Other shapes and sizes can be made according to your requirements
Details Images

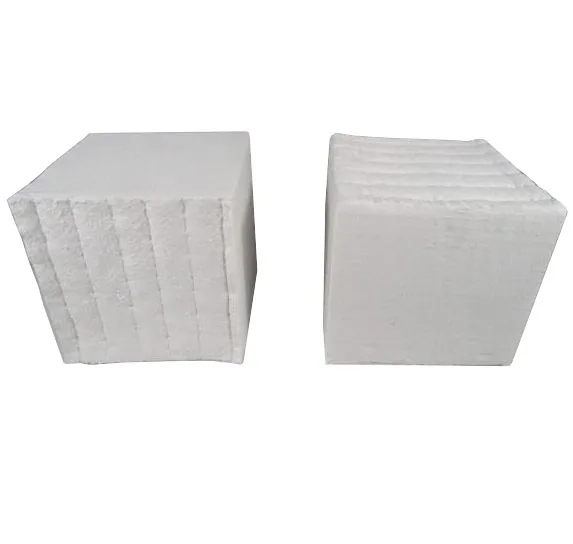

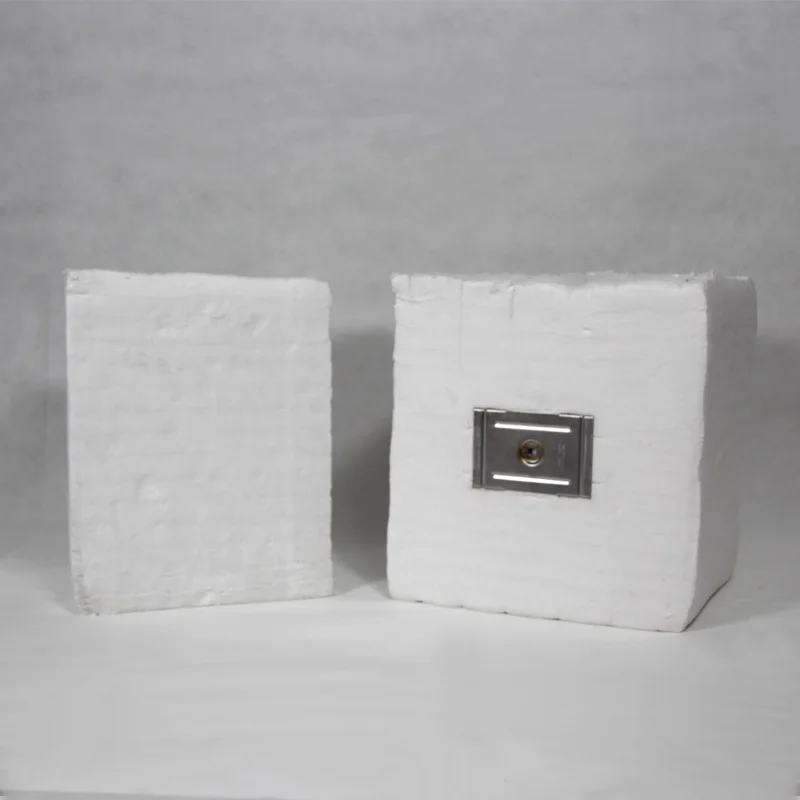

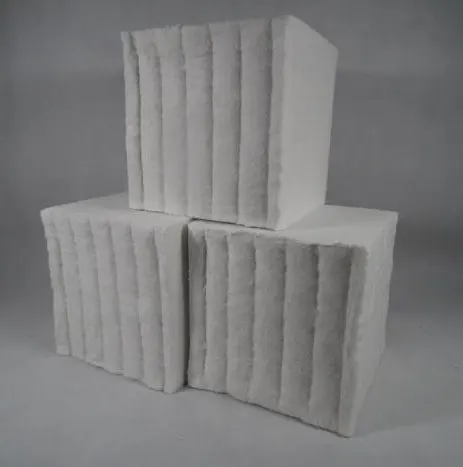

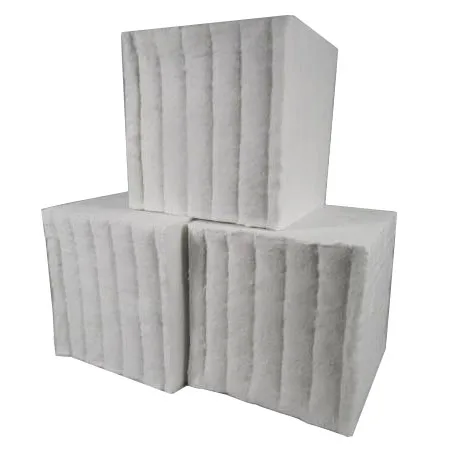

Our self-researched ceramic fiber modules, using sewing method, which is tightened by the rope, exclude the plywood and braid,which is more environmental protection and time saving, the whole installation process can be done by 1-2 person.
Here is the real case we have done
Application:
1. Insulation for high-temperature furnaces.
2. Surface insulation of industrial kilns.
3. Fire-barrier material for the multi-temperature-zones furnace.
4. Backing insulation of petroleum, chemical, and metallurgical furnace.
5. High-temperature sintering sagger.
6. High temperature sealing for machine and precision mold.
Our Company
Henan Synthe Corporation was founded in January 2013, is engaged in the design, development, manufacture, and sales of high-temperature insulation, vacuum-formed ceramic fiber heaters, diffusion heaters, and high-quality thermal processing equipment, all custom designed to meet your thermal requirements. Temperature ranges from room temperature 20°C ( 68°F) to 1800°C ( 3272°F), for over ten years in the industry, SYNTHE have been a problem-solver working with our customers to resolve their thermal management problems.
International Exhibition:
HK2017 Heat Treatment Congress Held in Koln, Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany
Relanted Products
Certifications
The company has obtained the "High-tech enterprise", "Private enterprise of technology", and other awards successively.Currently,it has eight new utility patents, and two other patents of invention and eight other new utility patents are in the process of application.

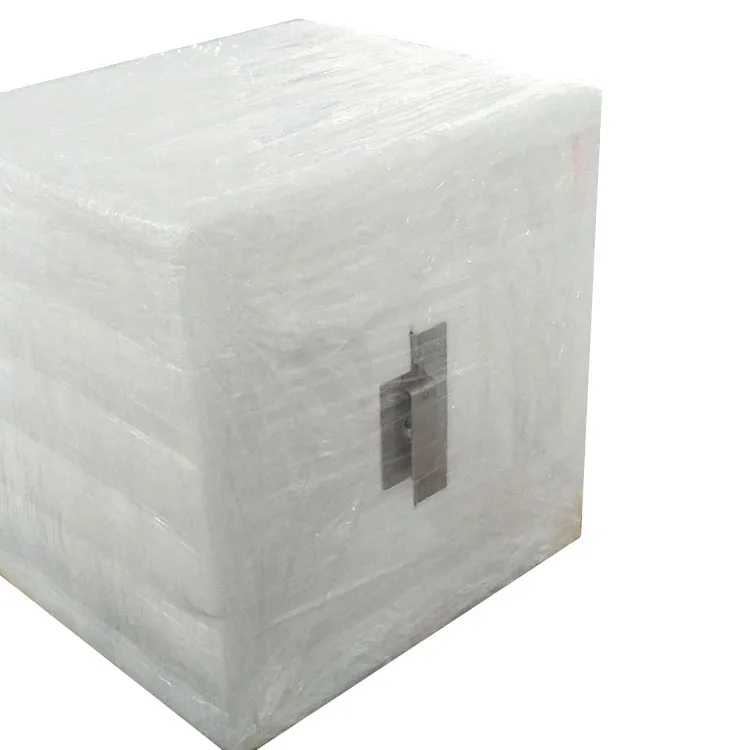

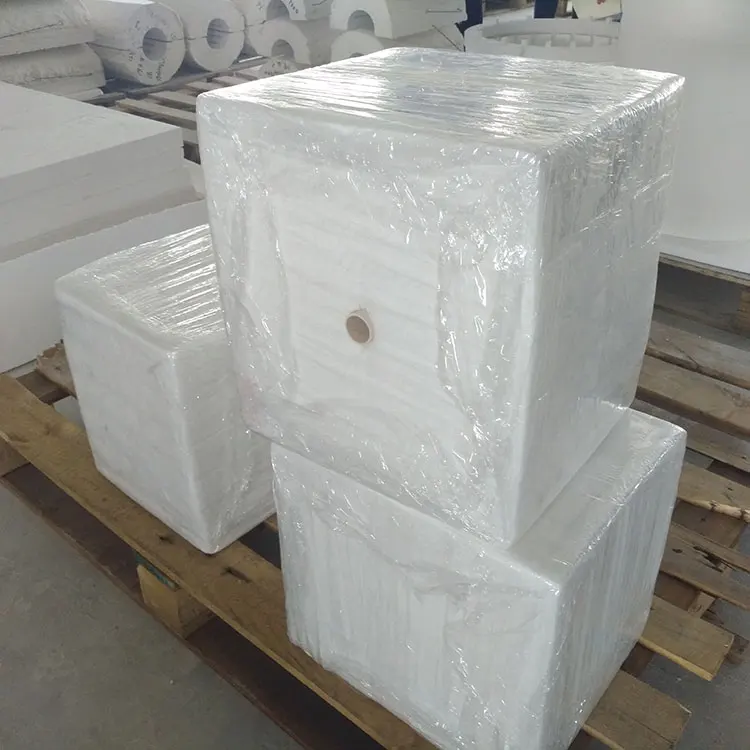

Product packaging
FAQ
1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
2.How is the product quality and stability?
We can provide samples for you to test so that you can feel our superior quality and stability. At the same time, we have
long-term cooperation with customers and get good feedback.
3.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation
for it.
4. What is the delivery time?
10-25 days after receiving the deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is
about 10-25days.
5. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirms, the balance after goods ready before shipping or L/C, or Western Union
for small amount. Or PAYPAL.
We have our own factory and excellent technical team, and we accept OEM service.
2.How is the product quality and stability?
We can provide samples for you to test so that you can feel our superior quality and stability. At the same time, we have
long-term cooperation with customers and get good feedback.
3.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation
for it.
4. What is the delivery time?
10-25 days after receiving the deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is
about 10-25days.
5. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirms, the balance after goods ready before shipping or L/C, or Western Union
for small amount. Or PAYPAL.
