Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00

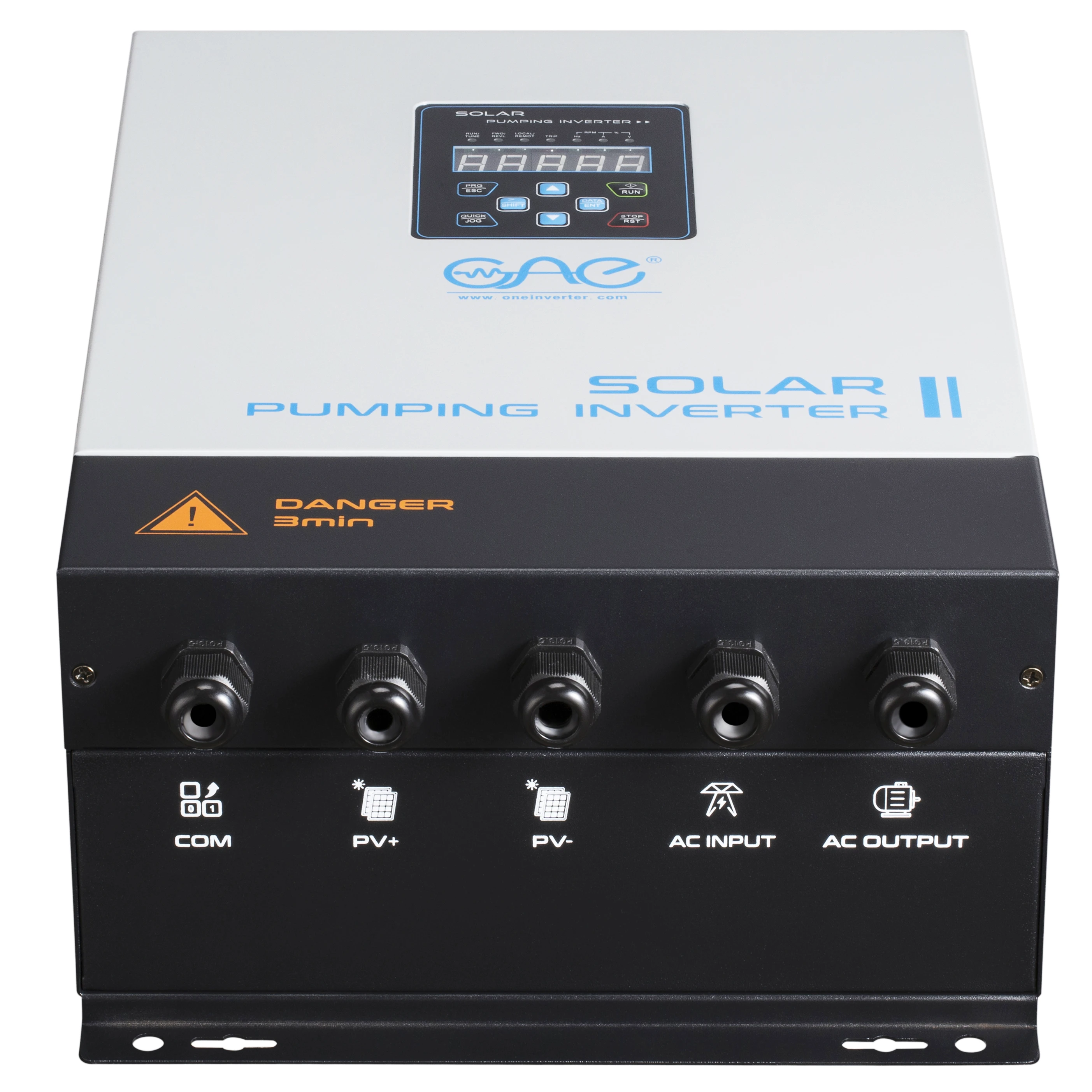

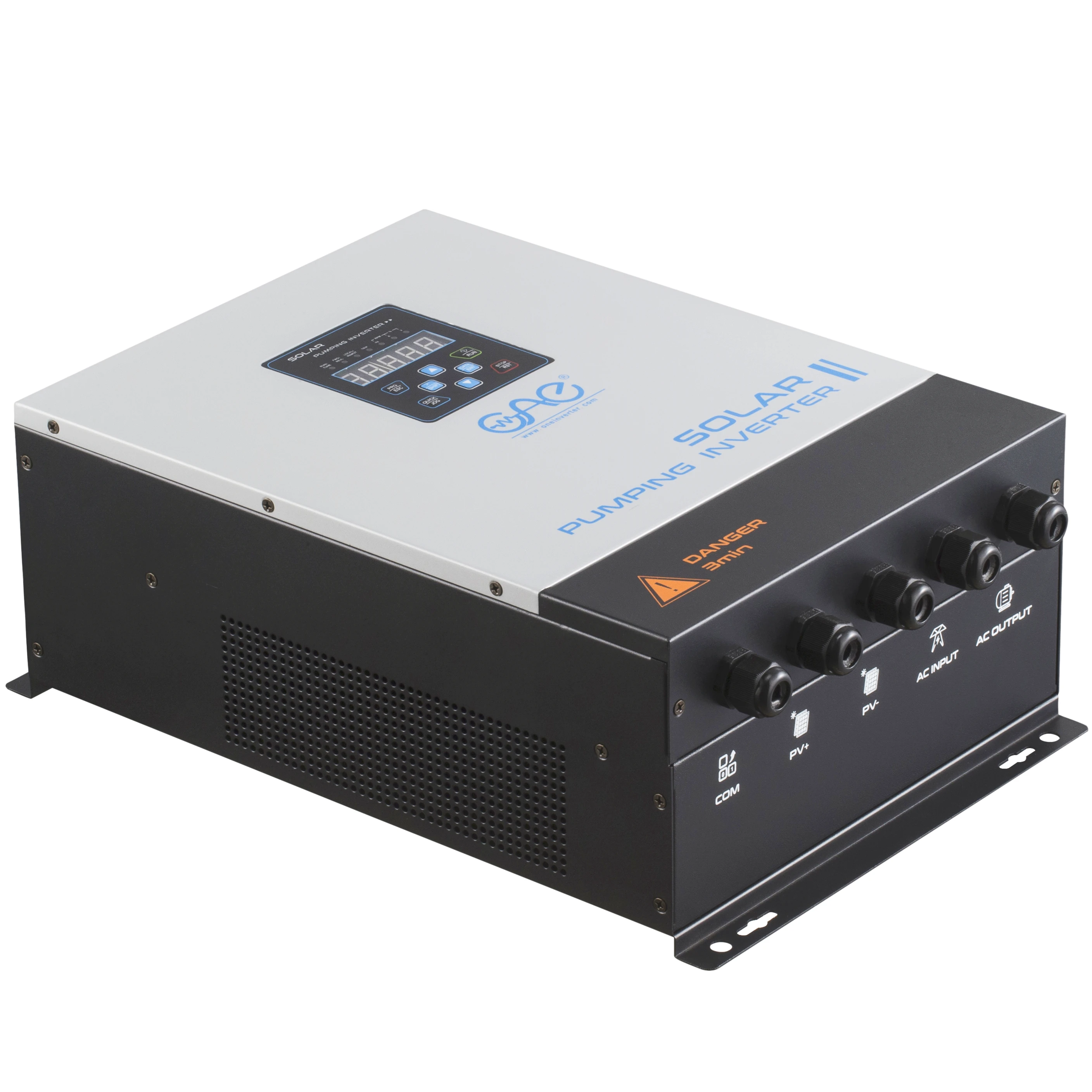

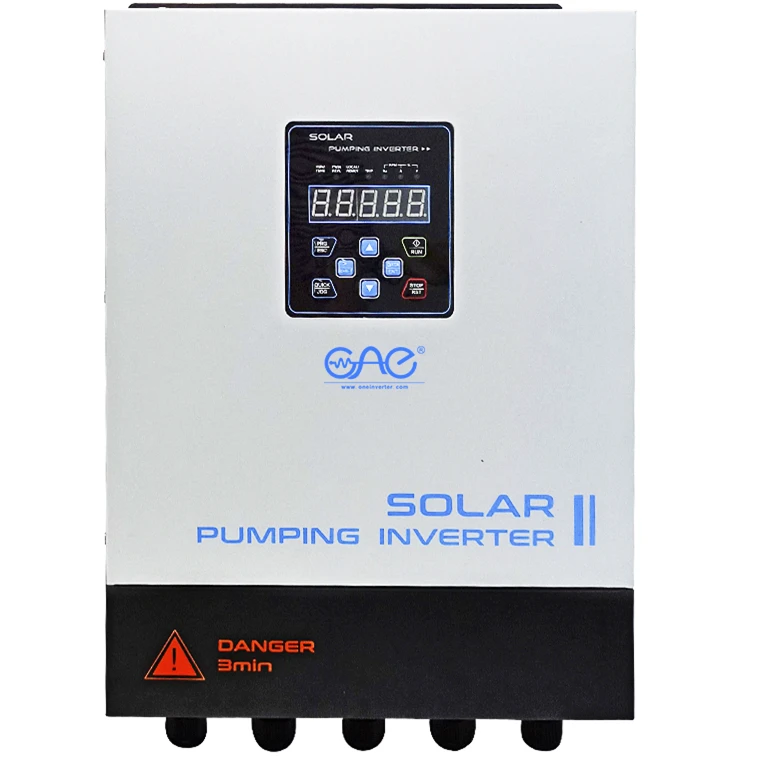

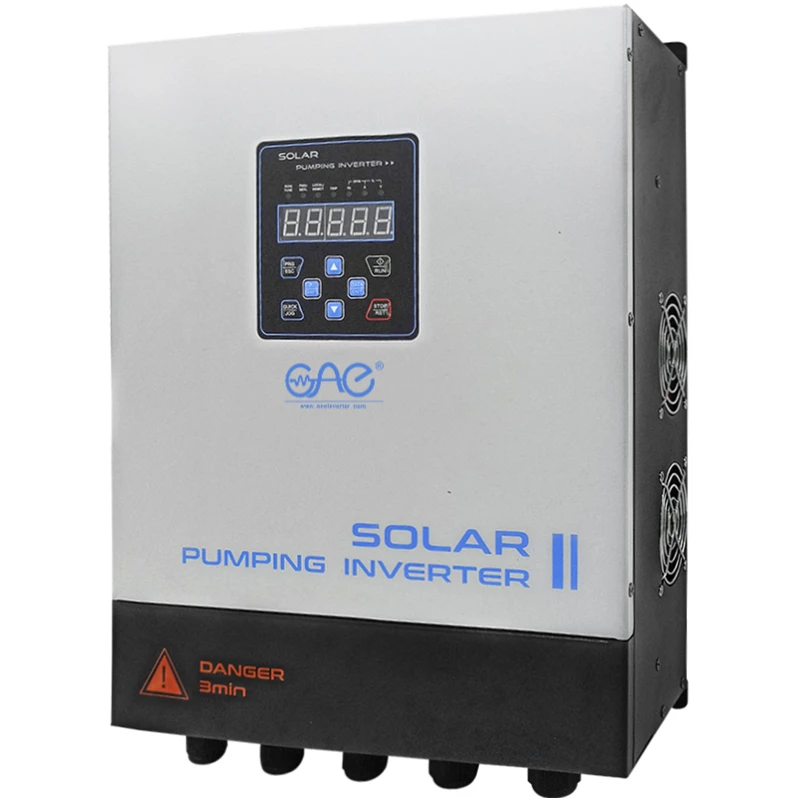

Solar pump controller inverter 3 phase solar
- Категория: Solar Pump Inverter >>>
- Поставщик: Foshan,Top,One,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 265.41 $* | 270.60 $* |
| Jul-15-2025 | 215.19 $* | 219.53 $* |
| Jun-15-2025 | 261.50 $* | 266.15 $* |
| May-15-2025 | 259.54 $* | 264.81 $* |
| Apr-15-2025 | 207.43 $* | 211.4 $* |
| Mar-15-2025 | 255.25 $* | 260.74 $* |
| Feb-15-2025 | 253.64 $* | 258.50 $* |
| Jan-15-2025 | 251.40 $* | 256.53 $* |
Характеристики
Product Description
High quality 1.5KW-37KW MPPT solar pump inverter:
1. MPPT function.
2. AC input compensation function.
3. No water sensor function, water tank full function.
4. Widely PV working voltage 150VDC to 800VDC.
5. Broadest voltage single-phase 2V and three-phase 220V/380V.
6 Power range 1.5KW to 37KW.
7.Multiple protective measures, including PV over-voltage protection, PV polarity reverse warning, auto derating against over-temperature
Specification
Model | L11 | L13 | L33 | H33 | ||||
Ac Input Voltage | 220V(-15%)~240V(+10%) (1PH) | 220V(-15%)~240V(+10%) (3PH) | 380V(-15%)~440V(+10%) (3PH) | |||||
Max. Dc Input Voltage | 440V | 440V | 440V | 800V | ||||
Start-up Volatge | 220V | 220V | 220V | 300V | ||||
Lowest Working Voltage | 150V | 150V | 150V | 250V | ||||
Recommended Dc Input Range | 200V~400V | 200V~400V | 200V~400V | 300~750V | ||||
Recommended Mppt Voltage | 330V | 330V | 330V | 550V | ||||
Reted Output Voltage | 220V(1PH) | 220V(3PH) | 220V(3PH) | 380V(3PH) | ||||
Output Frequency Range | 0~400HZ | |||||||
Mppt Efficiency | 99% | |||||||
Environment Temperature | -10℃~+50℃,if Above 40℃,derate 2% For Every Additional 1℃f Above 40℃,derate 2% For Every Additional 1℃ | |||||||
Altitude | Below 1000m, If Above 1000m ,derate 1% For Every Additional 100m | |||||||
Cooling | Fan Cooling | |||||||
Series | Model | Rated Output Power | Rated Input Current | Rated Output Current | ||||
L11 (1.5~5.5KW) | SPC-1K5-L11 | 1.5KW | 15.7A | 10.2A | ||||
SPC-2K2-L11 | 2.2KW | 24A | 14A | |||||
SPC-4K0-L11 | 4KW | 38A | 24A | |||||
SPC-5K5-L11 | 5KW | 48A | 30A | |||||
L13 (1.5~5.5KW) | SPC-1K5-L13 | 1.5KW | 15.7A | 7.5A | ||||
SPC-2K2-L13 | 2.2KW | 24A | 10A | |||||
SPC-4K0-L13 | 4KW | 38A | 18A | |||||
SPC-5K5-L13 | 5KW | 48A | 25A | |||||
L33 (4~7.5KW) | SPC-4K0-L33 | 4KW | 17A | 16A | ||||
SPC-5K5-L33 | 5.5KW | 25A | 20 | |||||
SPC-7K5-L33 | 7.5KW | 33A | 30A | |||||
H33 (1.5~37KW) | SPC-1K5-H33 | 1.5KW | 5A | 4.2A | ||||
SPC-2K2-H33 | 2.2KW | 5.8A | 5.5A | |||||
SPC-4K0-H33 | 4KW | 13.5A | 9.5A | |||||
SPC-5K5-H33 | 5.5KW | 19.5A | 14A | |||||
SPC-7K5-H33 | 7.5KW | 25A | 18.5A | |||||
SPC-11K0-H33 | 11KW | 32A | 25A | |||||
SPC-15K0-H33 | 15KW | 40A | 32A | |||||
SPC-18K0-H33 | 18KW | 47A | 38A | |||||
SPC-22K0-H33 | 22KW | 51A | 45A | |||||
SPC-30K0-H33 | 30KW | 70A | 60A | |||||
SPC-37K0-H33 | 37KW | 80A | 75A | |||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||
Company Profile
FAQ
Q1: Does your company also provide other solar products except for Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger, and other accessories
related to the solar power system.
Q2: How to choose the right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.
Q4: What is the warranty for the inverter?
A4: 1-year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger, and other accessories
related to the solar power system.
Q2: How to choose the right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.
Q4: What is the warranty for the inverter?
A4: 1-year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
