Kaowool керамического волокна блок для пара туннели и печь
US $1.00-$10.00
Промышленная печь с покрытием из алюминиевого силиката огнеупорная изоляция модуль 1260 керамического
- Категория: Ceramic Fiber Module >>>
- Поставщик: Zhengzhou,Shuojin,Refractory,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.3 $* | 1.11 $* |
| Jul-20-2025 | 1.3 $* | 1.57 $* |
| Jun-20-2025 | 1.67 $* | 1.20 $* |
| May-20-2025 | 1.26 $* | 1.42 $* |
| Apr-20-2025 | 1.15 $* | 1.98 $* |
| Mar-20-2025 | 1.60 $* | 1.9 $* |
| Feb-20-2025 | 1.93 $* | 1.91 $* |
| Jan-20-2025 | 1.88 $* | 1.86 $* |
Характеристики
Industrial furnace lined with aluminum silicate refractory insulation 1260 ceramic fiber module
Product Description

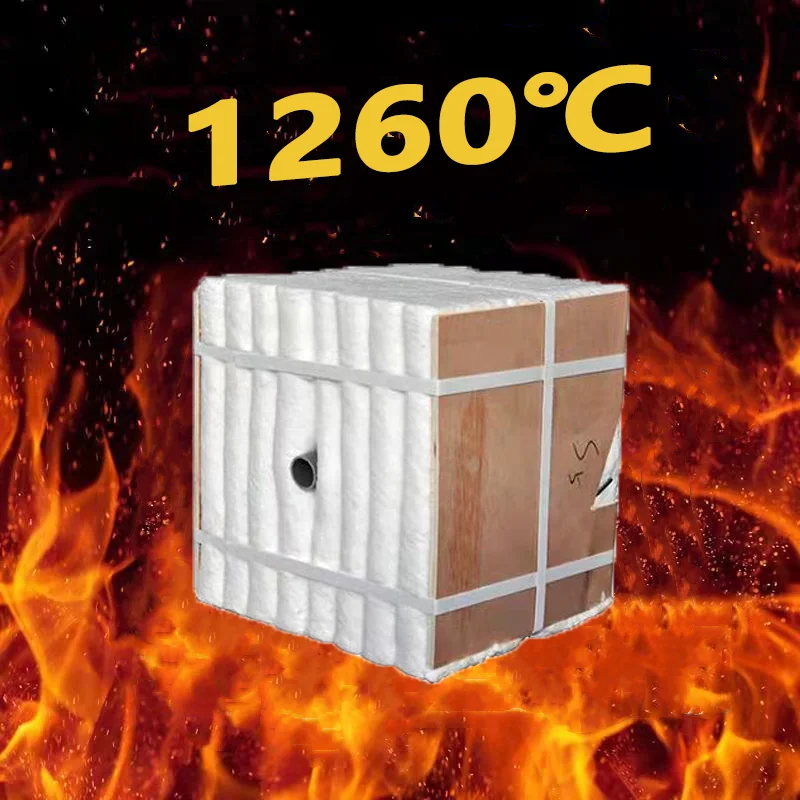

SHUOJIN Ceramic fiber module
SHUOJIN The fiber module is pre-folded or cut into pieces with ceramic fiber blankets and processed by professional equipment. The SHUOJIN module has the advantages of precise size and smooth surface. It is specially designed for a variety of thermal processing equipment lining applications, with reliable quality, quick installation and excellent thermal insulation performance.
Features of Ceramic fiber module
● Built-in anchor system, good safety performance.
● Low thermal conductivity, excellent thermal insulation performance.
● Excellent mechanical strength.
● Excellent mechanical strength.
● Excellent thermal shock resistance.
● Excellent resistance to wind erosion.
● Excellent sound insulation performance.
● Low bulk density, low heat storage.
● Excellent resistance to wind erosion.
● Excellent sound insulation performance.
● Low bulk density, low heat storage.
Classification temperature
● Fiber module: 1260℃
● Fiber module: 1425℃
● Fiber module: 1500°C
● Fiber module: 1600°C
● Fiber composite module: 1425 + 1500℃
● Fiber composite module: 1425 + 1600℃
● Fiber module: 1425℃
● Fiber module: 1500°C
● Fiber module: 1600°C
● Fiber composite module: 1425 + 1500℃
● Fiber composite module: 1425 + 1600℃
SHUOJIN Ceramic fiber module Typical application
● Iron and steel industry : ladle cover, heating furnace, sheet annealing furnace, continuous annealing furnace, ring furnace, bell furnace, coating furnace, walking furnace, hot blast pipe and flue, etc.
● Aluminum industry : Crucible furnace, pit soaking furnace and furnace cover, crucible furnace, flue, etc.
● Petrochemical industry : cracking furnace, reforming furnace, coking furnace, heating furnace, atmospheric furnace, decompression furnace, flue, etc.
● Ceramic industry : tunnel kiln, shuttle kiln, roller kiln.
● Environmental protection industry: garbage incinerators, RTO waste gas treatment furnaces, etc.
● Aluminum industry : Crucible furnace, pit soaking furnace and furnace cover, crucible furnace, flue, etc.
● Petrochemical industry : cracking furnace, reforming furnace, coking furnace, heating furnace, atmospheric furnace, decompression furnace, flue, etc.
● Ceramic industry : tunnel kiln, shuttle kiln, roller kiln.
● Environmental protection industry: garbage incinerators, RTO waste gas treatment furnaces, etc.
● SHUOJIN The fiber module anchor system uses reinforced anchors. The anchors have greater strength and are closer to the cold surface (45mm). The anchors can withstand lower temperatures at high temperatures to ensure their high-temperature strength. The anchors are made of high-quality heat-resistant steel (SS304, SS316, SS316L, SS310, 610,
Ceramic anchors, etc.) to ensure a firm installation system for the fiber module.
● SHUOJIN Fiber module installation is simple, fast and reliable. Module design is carried out in advance to determine the position of the fixing bolts. Bolts are welded in advance and the welding strength is checked. The steel plate inside the furnace shell can be coated with anti-corrosion materials. Board, backing blanket, metal aluminum foil composite backing.
● SHUOJIN The 1500 fiber module can effectively fill the temperature gap between the zirconium-containing fiber and the mullite fiber module.
● SHUOJIN 1600 fiber module is suitable for working environment above 1500℃, and it has good stability in oxidizing and reducing atmosphere.
● SHUOJIN The 1425/1500 composite module takes into account both high temperature resistance and economic performance.
● SHUOJIN The 1425/1600 composite module uses a temperature above 1400°C and has low high-temperature shrinkage, which effectively solves the problem of insufficient temperature resistance of the zirconium-containing fiber and chromium-containing fiber module, and is also lower in cost than the 1600 fiber module.
Ceramic anchors, etc.) to ensure a firm installation system for the fiber module.
● SHUOJIN Fiber module installation is simple, fast and reliable. Module design is carried out in advance to determine the position of the fixing bolts. Bolts are welded in advance and the welding strength is checked. The steel plate inside the furnace shell can be coated with anti-corrosion materials. Board, backing blanket, metal aluminum foil composite backing.
● SHUOJIN The 1500 fiber module can effectively fill the temperature gap between the zirconium-containing fiber and the mullite fiber module.
● SHUOJIN 1600 fiber module is suitable for working environment above 1500℃, and it has good stability in oxidizing and reducing atmosphere.
● SHUOJIN The 1425/1500 composite module takes into account both high temperature resistance and economic performance.
● SHUOJIN The 1425/1600 composite module uses a temperature above 1400°C and has low high-temperature shrinkage, which effectively solves the problem of insufficient temperature resistance of the zirconium-containing fiber and chromium-containing fiber module, and is also lower in cost than the 1600 fiber module.
Product specifications
Industrial furnace lined with aluminum silicate refractory insulation 1260 ceramic fiber module
Main performance | Unit | SJ-1260 module | SJ-1425module | SJ-1500 module | SJ-1600 module | |||||
Classification temperature | ℃ | 1260 | 1425 | 1500 | 1600 | |||||
Normal temperature performance (23℃/relative humidity 50%) | ||||||||||
Colour | White | White | Light green | White | ||||||
specific gravity | g/ cm³ | 2 . 7 | 2 . 7 | 2 . 7 | 3 . 2 | |||||
Fiber melting point | ℃ | 1760 | 1760 | 1760 | - | |||||
Average fiber diameter | μm | 2 . 8 | 2 . 8 | 2 . 8 | 3 . 1 | |||||
Shot content | ≥0 . 212 mm ( %） | 7 | 7 | 7 | Trace amount | |||||
High temperature performance | ||||||||||
Permanent thread shrinkage (Insulation for 24 hours) 192 kg/ m³ | % | ≤1 . 3 （1100℃） | ≤1 . 5 （1200℃） | ≤1 . 7 （1300℃） | ≤1 . 1 （1500℃） | |||||
Thermal Conductivity | W/( m• k) ASTM- C- 201 | |||||||||
Bulk density 160 kg/ m³ | ||||||||||
400℃ | 0 . 09 | 0 . 09 | 0 . 09 | - | ||||||
600℃ | 0 . 14 | 0 . 14 | 0 . 14 | 0 . 14 | ||||||
800℃ | 0 . 20 | 0 . 20 | 0 . 20 | 0 . 20 | ||||||
1000℃ | 0 . 28 | 0 . 28 | 0 . 28 | 0 . 28 | ||||||
1200℃ | - | - | - | 0 . 36 | ||||||
Bulk density 192 kg/ m³ | ||||||||||
400℃ | 0 . 08 | 0 . 08 | 0 . 08 | - | ||||||
600℃ | 0 . 13 | 0 . 13 | 0 . 13 | 0 . 13 | ||||||
800℃ | 0 . 18 | 0 . 18 | 0 . 18 | 0 . 18 | ||||||
1000℃ | 0 . 26 | 0 . 26 | 0 . 26 | 0 . 26 | ||||||
1200℃ | - | - | - | 0 . 34 | ||||||
chemical composition | ||||||||||
Al 2 O 3 | % | 44 - 48 | 34 - 36 | 43 | 72 | |||||
Si O 2 | % | 52 - 56 | 48 - 50 | 54 | 28 | |||||
Zr 2 O 3 | % | - | 15 - 17 | - | - | |||||
Cr O 2 | % | - | - | 2 . 8 | - | |||||

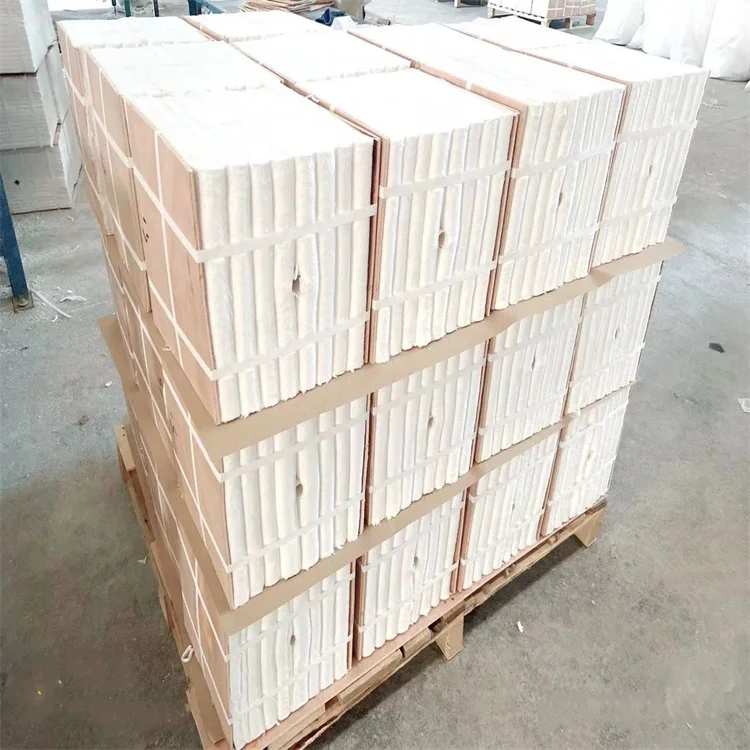

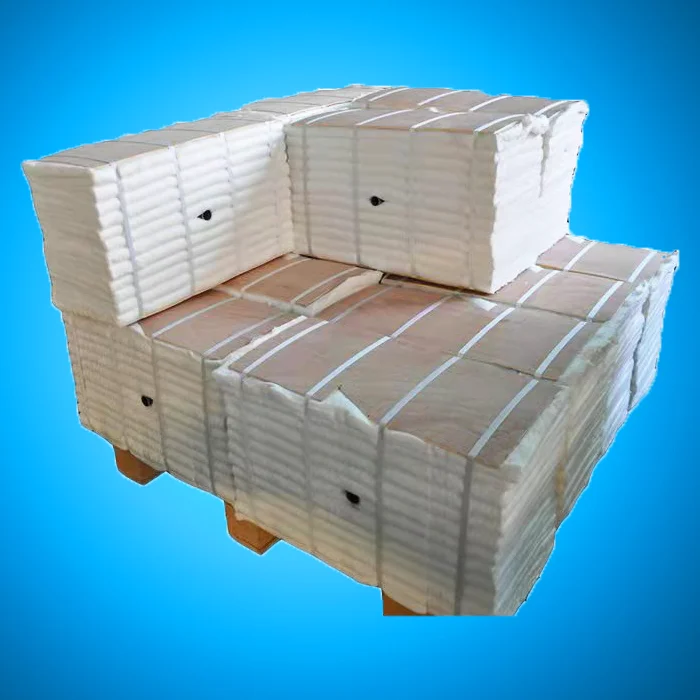

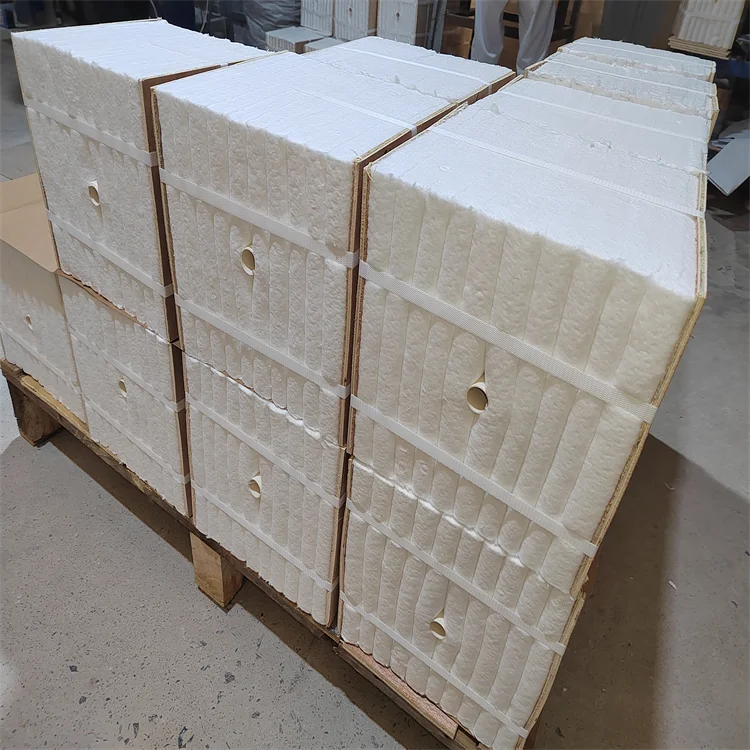

Packing & Delivery
Industrial furnace lined with aluminum silicate refractory insulation 1260 ceramic fiber module
● The anchor materials are SS304, SS316, SS316L, SS310, 610 heat-resistant steel. Standard specifications: 300/305 x 300/305 x 100~300, other specifications and bulk density can be produced according to customer requirements. ● Packing: The module is packed in a carton or packed on a pallet and wrapped with stretch film.
