12V 24V 48V 40A 60A 80A 100A MPPT Solar Charge Controller For
- Категория: Solar Charger Controllers >>>
- Поставщик: Foshan,Shantekexing,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.87 $* | 0.46 $* |
| Aug-15-2025 | 0.64 $* | 0.83 $* |
| Jul-15-2025 | 0.58 $* | 0.0 $* |
| Jun-15-2025 | 0.14 $* | 0.79 $* |
| May-15-2025 | 0.39 $* | 0.89 $* |
| Apr-15-2025 | 0.2 $* | 0.98 $* |
| Mar-15-2025 | 0.73 $* | 0.52 $* |
| Feb-15-2025 | 0.59 $* | 0.87 $* |
| Jan-15-2025 | 0.13 $* | 0.71 $* |
Характеристики
Product Parameters
Model | 40A | 60A | 80A | 100A | |||||||||
System voltage | 12V/24V/36V/48V(Adaptive) | ||||||||||||
Nominal current | 40A | 60A | 80A | 100A | |||||||||
Charging mode | MPPT maximum power point tracking | ||||||||||||
Applicable battery type | Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging | ||||||||||||
Charging method | Three stages: constant current, constant voltage, floating charge | ||||||||||||
PV input maximum open circuit voltage (VOC) | DC150V | ||||||||||||
Starting time | ≤10s | ||||||||||||
Dynamic response recovery time | ≤500us | ||||||||||||
Static power | ≤1W | ≤1.2W | |||||||||||
Overall efficiency | ≥98.5% | ≥99.5% | |||||||||||
System identified voltage | 12V | 9～16V | |||||||||||
24V | 18～30V | ||||||||||||
48V | 34～64V | ||||||||||||
Photovoltaic input voltage | 12V | 18～145V | |||||||||||
24V | 30～145V | ||||||||||||
48V | 54～145V | ||||||||||||
Solar panel rated input power | 12V | 540W | 800W | 1040W | 1300W | ||||||||
24V | 1080W | 1600W | 2080W | 2600W | |||||||||
48V | 2160W | 3200W | 4160W | 5200W | |||||||||
Load voltage | Same as the battery voltage | ||||||||||||
Nominal load current | 40A | 60A | 80A | 100A | |||||||||
Load control method | Normally on&off mode | ||||||||||||
Load undervoltage protection | 10.5V*N（N stands for batteries number）Parameters can be adjustable | ||||||||||||
Display | HD LCD backlight display | ||||||||||||
Protections | Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection | ||||||||||||
Working temperature | ▬20℃～+50℃ | ||||||||||||
Storage temperature | ▬40℃～+70℃ | ||||||||||||
Accoustic Noise(db) | ≤50dB | ||||||||||||
Humidity | 0～90%RH | ||||||||||||
orking altitude | 0～3000M | ||||||||||||

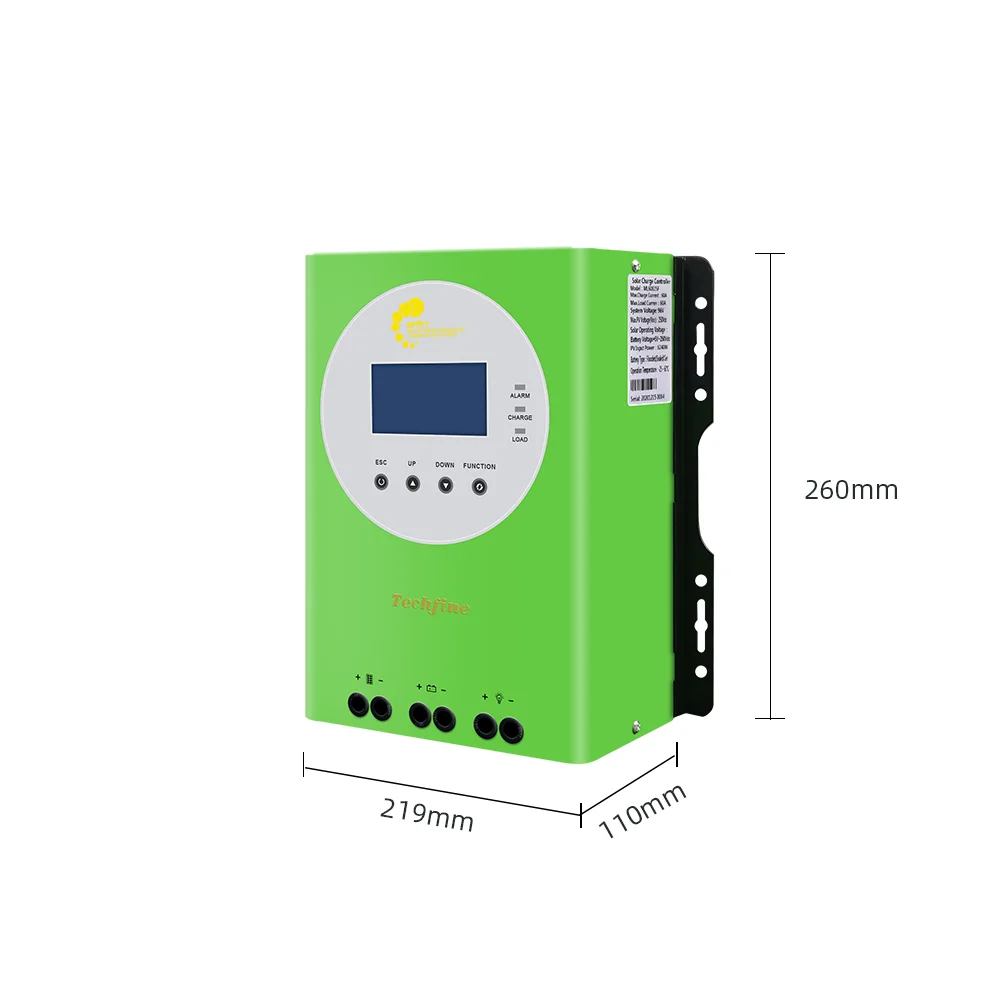

Dimension, L×W×H | 219*260*110mm | 275*348*109mm | |||||||||||
Net Weight（KG） | 2.8KG | 5.2KG | |||||||||||
Products Details
Product Application
Our Case
Product Packaging
Company Profile
FAQ
Q1. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q2. Can I have a sample? A. Yes, we welcome sample order to test and check quality.
Q3. What about the lead time?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q2. Can I have a sample? A. Yes, we welcome sample order to test and check quality.
Q3. What about the lead time?
A. Samples within 7 days, bulk production needs 20-25 working days.
Q4. What's your MOQ?
Q4. What's your MOQ?
A. We already have some instock model for sample,for bulk order,10-100 as MOQ base on different model.
Q5. are you factory or trading company
Q5. are you factory or trading company
A. We are factory, You can come and visit our factory at any time, or you can watch it
through video
through video
