>>Products Description

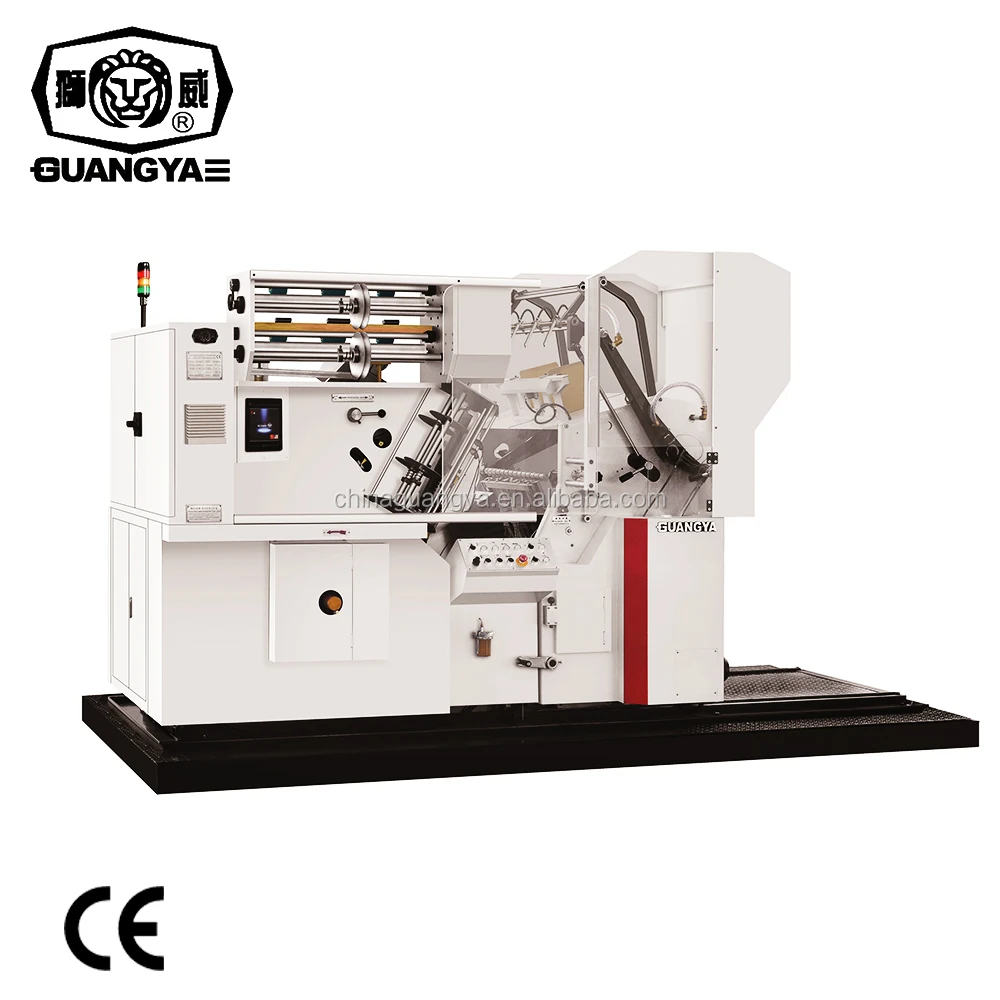

TL780 Automatic Hot Foil Stamping and Die Cutting Machine

1)The TL780 Automatic Foil Stamping and Die Cutting Machine is designed for the Hot Stamping, Die Cutting, Pressing Convex and Creasing etc technics, it's suitable for paper, cardboard, plastic film and so on. It can finish feeding, die cutting,separating collecting work cycle automatically.

2)The machine is composed of four parts: main motor, hot stamping, auto feeder and electric equip. The motor's main transmission is by bend shaft structure driving the platen running up and down, plus the pressure adjusting structure, coordinate to finish hot stamping or die cutting job.

3)The electrical parts are composed of main motor control, feeder and collect control, foil feeder control and so on. The whole machine is controlled by microprocessor.

4)The machine is equipped with the automatic lubrication system.

Max. sheet size	780×560mm
Min. sheet size	280×220mm
Max. feeding pile height	800mm
Max. working pressure	110T
Power rating	12kw
Air pump displacement	40m3/h
Paper range	100-2000g/m2
Max. mechanical speed	1500s/h paper < 150g/m2 ；2500s/h paper > 150g/m2
Machine weight	5500kg
Machine noise	< 81 db
Electric Plate Power	8kw
Overall machine dimensions	3700×1910×2200mm

>>Details Images

Automatic Oil Pump,If the worker forgets to refuel, there is no oil pump, the machine will Stop automatically.

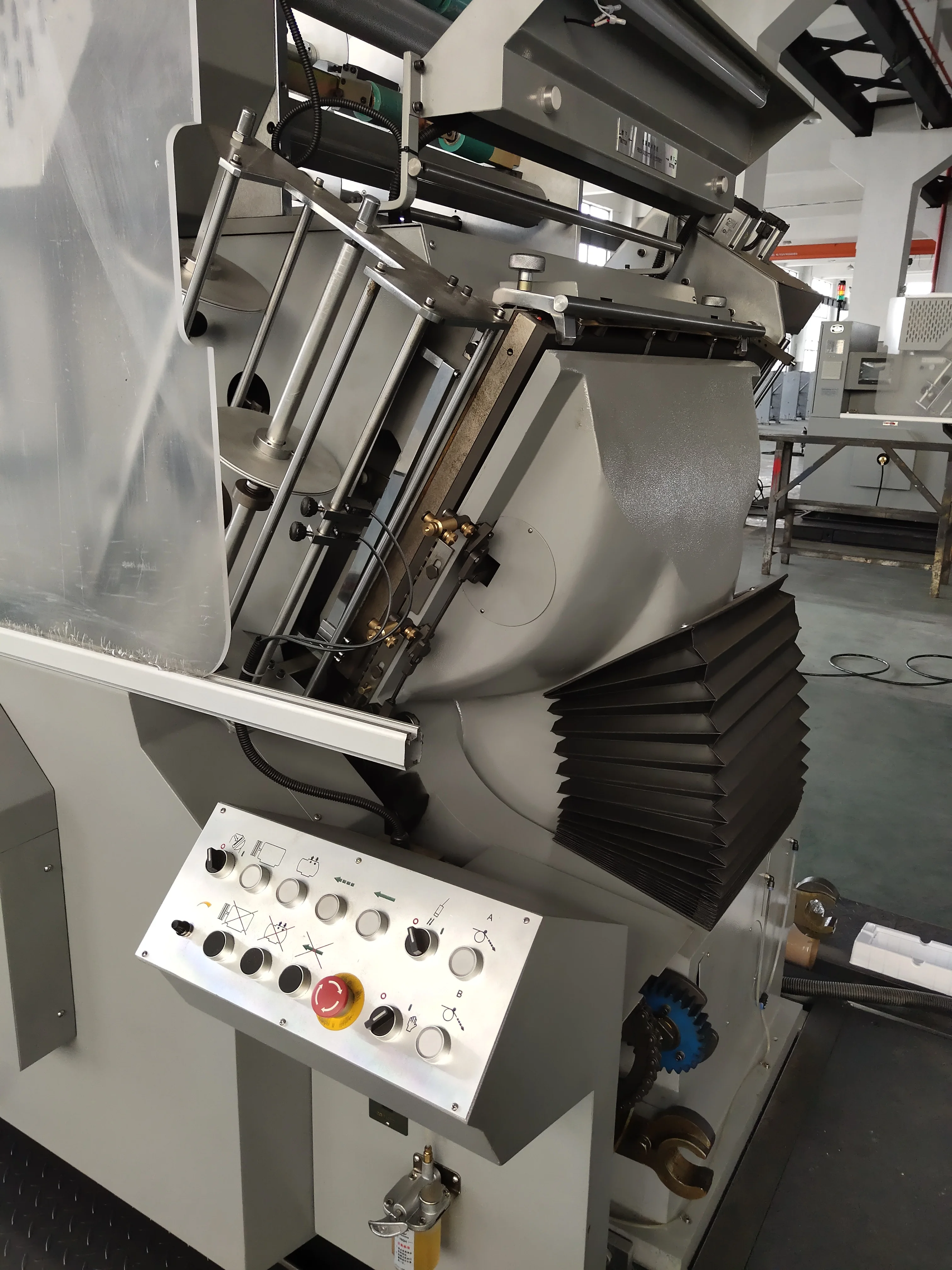

Operation pannel, Control machine start and stop. And also it control machine speed, remove machine body. All function could be
controled in pannel.

Honeycomb Plate, it could speed your changing plate time. Improving working efficiency.

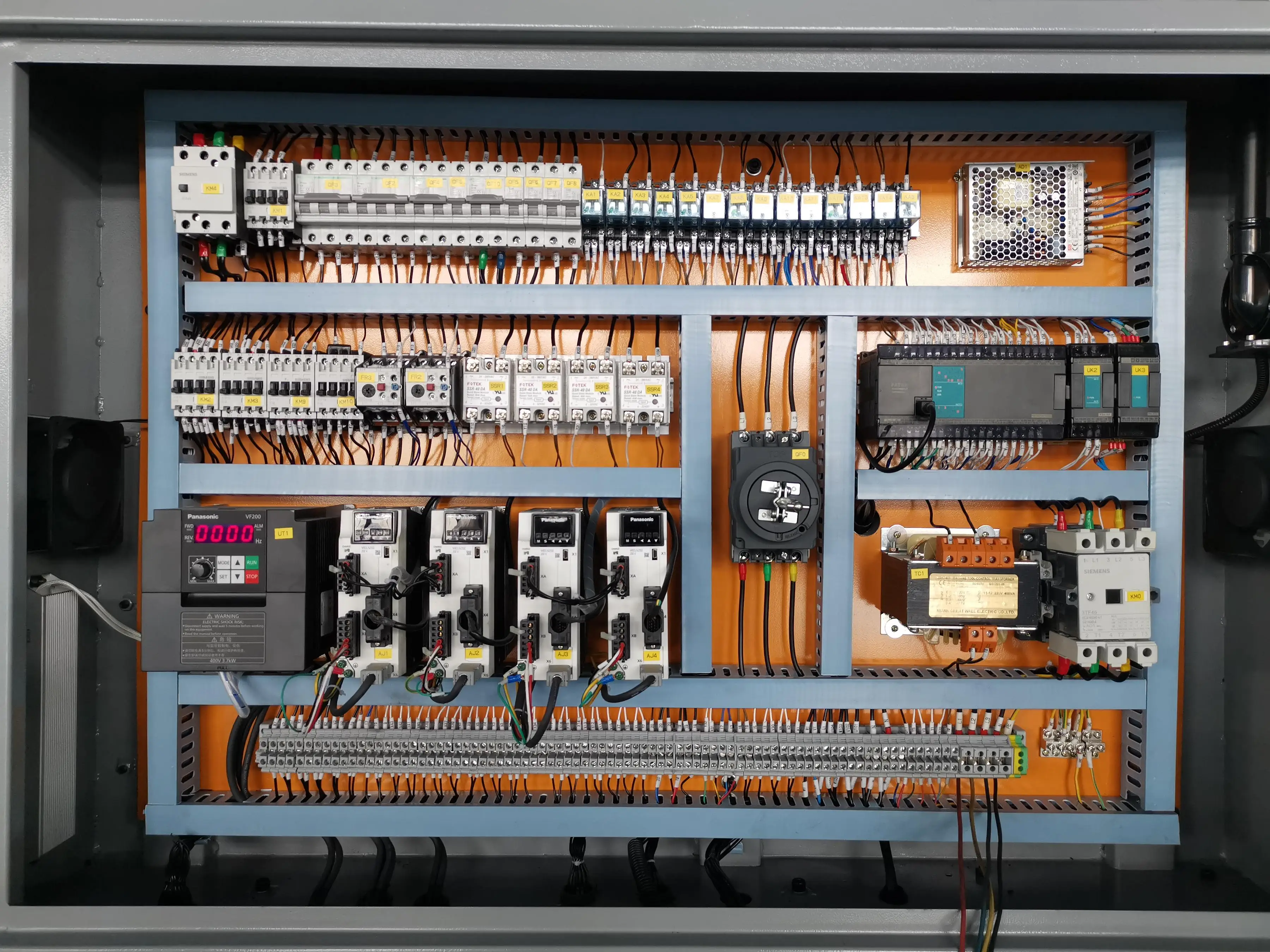

Electric Box, Which is bought from Siemens, Panasonic and so on. Meet CE Certifiction

Foil Groups, Put Hot Stamping in it. Two Groups could stamping more colors in one pattern.Making pattern more Exquisite and
beautiful

>> Sample

>>Packing & Delivery

Clean the machine

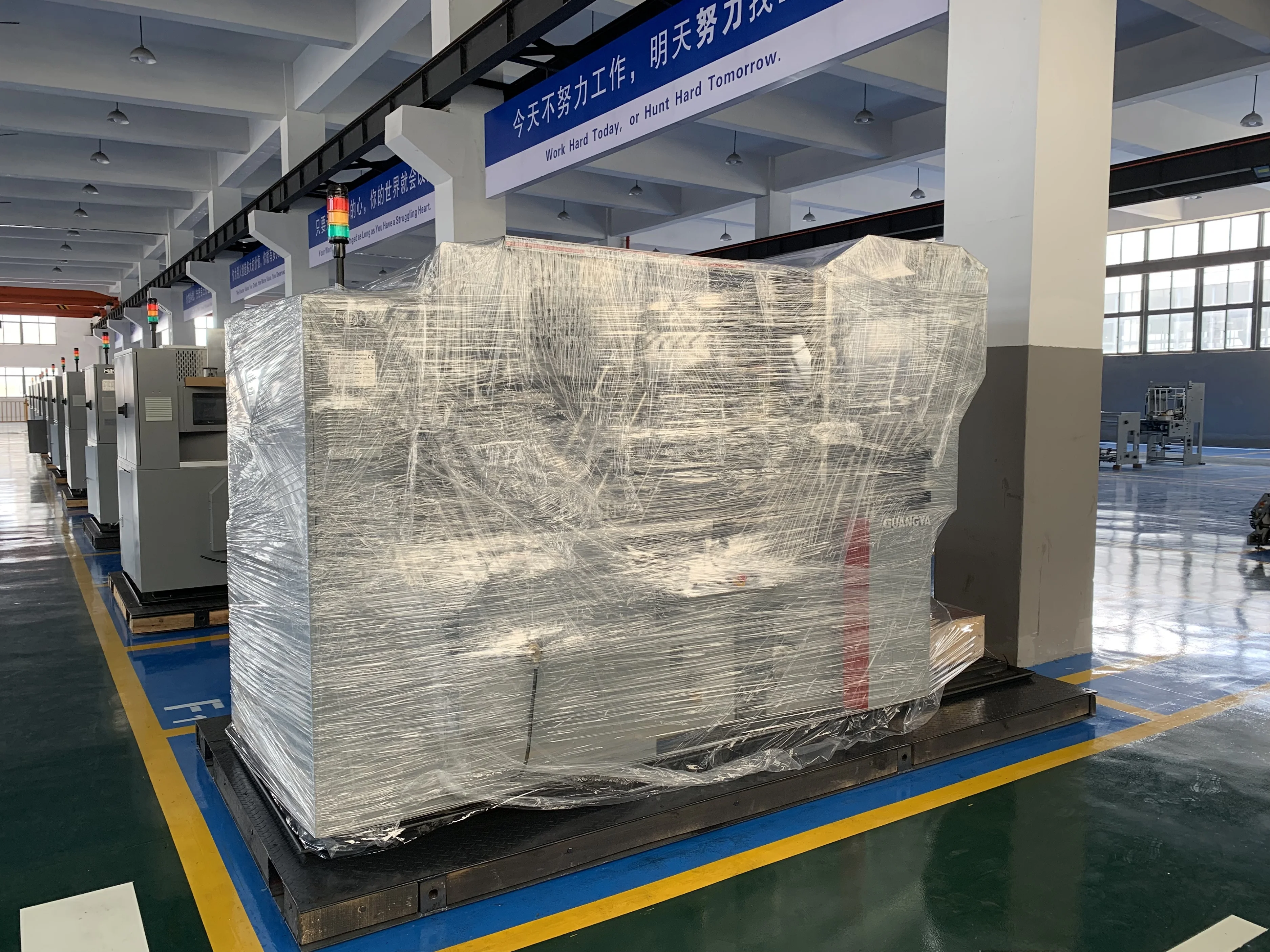

Package machine with film

Package machine with wooden box

Loading in Container

Delivery to Port

>>Certifications

>>Recommend Products

Exhibition

Since 1996, our company has participated in many well-known exhibitions and our customers come from all over the world, according to statistics our machines have been sold to more than 70 countries worldwide

Company Profile

Zhejiang Guangya Machinery Co.,Ltd is a professional manufacturers of hot foil stamping and die cutting machine with long history.Since its establish we have always insisting on the policy of Achieved success by quality,Integrity is base,also pay attention to new product development and continual improvement.On designing machine, we adopt high and new technology from home and abroad.Our products is very popular in domestic market and already exported to over 70 countries or region such as Europe,North America,Middle East and so on.

Reception Center

Work Shop 1

Work Shop 2

Company Office

Company Outside

Pictures Gallery

>>FAQ

1. Q: Are you a factory or trading company?
A: We are a factory,manufacturer.

2. Q: What certificate do you have?
A: We have ISO9001 and CE certificate.

3. Q: How long is the warranty period?
A: All of our products have one year warranty.

4. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.

5.Q: Where is your factory located? How can we visit there?
A: Our factory located in Baihai New Zone,Pingyang County,Zhejiang province,China. You can by air to Wenzhou Airport and by High-speed rain to Ruian Station. We will arrange to pick up you.

We are welcome all friends to visit us for future cooperation!
