Автоматический станок для резки
- Категория: Metal Straightening Machinery >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.10 $* | 0.38 $* |
| Aug-15-2025 | 0.76 $* | 0.89 $* |
| Jul-15-2025 | 0.60 $* | 0.48 $* |
| Jun-15-2025 | 0.77 $* | 0.23 $* |
| May-15-2025 | 0.18 $* | 0.83 $* |
| Apr-15-2025 | 0.87 $* | 0.41 $* |
| Mar-15-2025 | 0.76 $* | 0.28 $* |
| Feb-15-2025 | 0.60 $* | 0.14 $* |
| Jan-15-2025 | 0.70 $* | 0.39 $* |
Характеристики

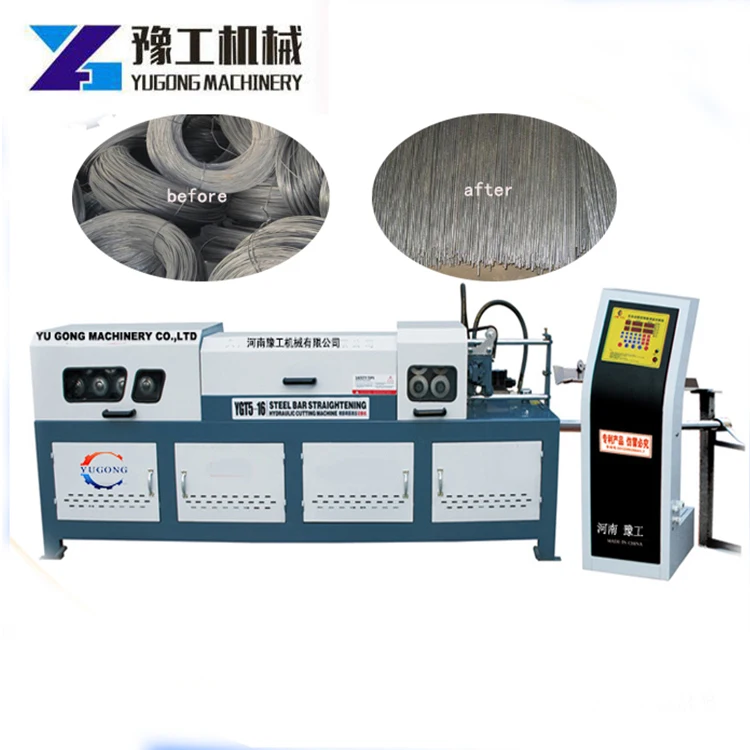

Straightening and cutting machine for steel bars is suitable for the straightening and cutting of wire rod or cold-drawn steel bar in prefabricated component factory, steel bar processing and distribution factory and construction site. After loading the machine for automated operation, the operator can manage multiple machines at the same time, greatly improving the production efficiency, but also hardware, cable and other manufacturers must have special equipment.
Parameters
Model | YGT 4-14 | YG4-16 |
Diameter adjustment range | 4-14mm ( grade steel) | 5-16mm ( grade steel) |
Wire pulling speed | 50m/min | 50m/min |
Traction motor power | 2.2kw-6 | 2.2kw-6 |
Modulation motor power | 7.5kw-4 | 15kw-4 |
Cut off motor power | 5.5kw | 5.5kw-4 |
Cutting error | ±0.5-1cm | ±0.5-1cm |
Wire Length | 800-9000mm (can be lengthened) | 800-9000mm (can be lengthened) |
straightening degree | ±2 mm/m | ±2 mm/m |
Weight | 1500kg | 1500kg |
Size | 2800*650*1200mm | 3300*650*1300mm |
1.Microcomputer control, automatic straightening, automatic length, automatically cut off;
2."Fool" type of operation ;
3. Multiple batches simultaneously enter the length and number of computer memory;

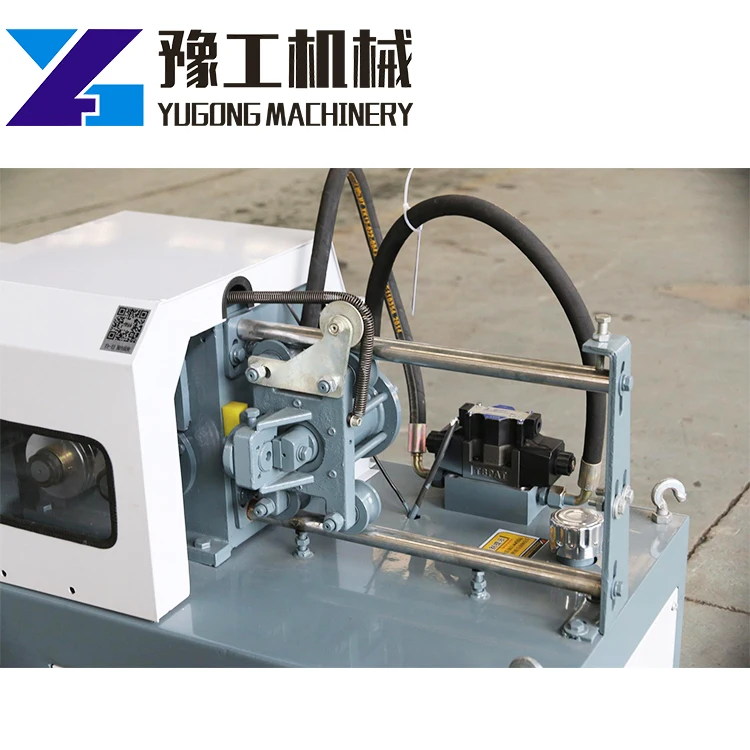

4. Hydraulic cut, more accurate, more quiet;
5. An area of small, easy to install mobile;
6. Stable operation, low failure rate, easy maintenance, cheap accessories.
